SAXSdb — 6pla

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lysozyme

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 19–147	Not recorded	NA SODIUM ION × 1 O1N dichlorido(1,3-dimethylbenzimidazol-2-ylidene)(eta6-p-cymene)osmium(II) × 2 OS OSMIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；297 K；Hen egg white lysozyme (100mg/mL), 0.8 M sodium chloride, and 0.1 M sodium acetate pH 4.7. Os(II)(cymene)(1,3-dimethylbenzimidazol-2-ylidene)(Cl)2 (1.04 mg, 1 mg/mL) soak occurred in 0.8 M sodium nitrate and 0.1 M sodium acetate pH 4.7	Resolution 1.25 Å R-free 0.184

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6PLA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3OTP Crystal structure of the DegP dodecamer with a model substrate Deposited 2010-09-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 24 PDB declaration: 24-meric	Chain G 36–76（41 aa） Fragment：a model peptide substrate Chain H 36–76（41 aa） Fragment：a model peptide substrate Chain I 36–76（41 aa） Fragment：a model peptide substrate Chain J 36–76（41 aa） Fragment：a model peptide substrate Chain K 36–76（41 aa） Fragment：a model peptide substrate Chain L 36–76（41 aa） Fragment：a model peptide substrate	Mutation：C30S Mutation：C30S Mutation：C30S Mutation：C30S Mutation：C30S Mutation：C30S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.6；291 K；65 mM citric acid, 35 mM Bis-Tris propane, 8% PEG3350, pH 3.6, VAPOR DIFFUSION, HANGING DROP, temperature 18K, temperature 291K	Resolution 3.76 Å R-free 0.251
5A3Z Structure of monoclinic Lysozyme obtained by multi crystal data collection Deposited 2015-06-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–147（147 aa）	Not recorded	NO3 NITRATE ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.59 Å R-free 0.265
5A3Z Structure of monoclinic Lysozyme obtained by multi crystal data collection Deposited 2015-06-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–147（147 aa）	Not recorded	NO3 NITRATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.59 Å R-free 0.265
6PBB Crystal structure of Hen Egg White Lysozyme in complex with I3C Deposited 2019-06-13	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	I3C 5-amino-2,4,6-triiodobenzene-1,3-dicarboxylic acid × 4 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.1；289 K；0.2 M Ammonium acetate, 20% w/v Polyethylene glycol 3,350	Resolution 1.89 Å R-free 0.240
6PL9 Adduct formed after 1 month in the reaction of dichlorido(1,3-dimethylbenzimidaz ol-2-ylidene)(eta5-pentamethylcyclopentadienyl)rhodium(III) with HEWL Deposited 2019-06-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	ORS dichloro[(1,2,3,4,5-eta)-pentamethylcyclopentadienyl]rhodium × 1 R1N 2-(1-chloranyl-2,3,4,5,6-pentamethyl-1$l^{7}-rhodapentacyclo[2.2.0.0^{1,3}.0^{1,5}.0^{2,6}]hexan-1-yl)-1,3-dimethyl-benzimidazole × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；Hen egg white lysozyme (100mg/mL), 0.8 M sodium chloride, and 0.1 M sodium acetate pH 4.7. Rh(III)(Cp*)(1,3-dimethylbenzimidazol-2-ylidene)(Cl)2 (1.09 mg, 1 mg/mL) soak occurred in 0.8 M sodium nitrate and 0.1 M sodium acetate pH 4.7	Resolution 1.20 Å R-free 0.203
6PLB Adducts formed after 1 month in the reaction of dichlorido(1,3-dimethylbenzimida zol-2-ylidene)(eta5-pentamethylcyclopentadienyl)iridium(III) with HEWL Deposited 2019-06-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	OT1 2-(1-chloranyl-2,3,4,5,6-pentamethyl-1$l^{7}-iridapentacyclo[2.2.0.0^{1,3}.0^{1,5}.0^{2,6}]hexan-1-yl)-1,3-dimethyl-benzimidazole × 1 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；297 K；Hen egg white lysozyme (100mg/mL), 0.8 M sodium chloride, and 0.1 M sodium acetate pH 4.7. Ir(III)(Cp*)(1,3-dimethylbenzimidazol-2-ylidene)(chlorido)2 (1.13 mg, 1 mg/mL) soak occurred in 0.8 M sodium nitrate and 0.1 M sodium acetate pH 4.7	Resolution 1.30 Å R-free 0.190
6W7P Crystal Structure Analysis of Space-grown Lysozyme - Ground experiment Deposited 2020-03-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	NA SODIUM ION × 1 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 4.6；296 K；PEG 6000, NaCl, Na Acetate	Resolution 1.60 Å R-free 0.220
6W8E Crystal Structure Analysis of Space-grown Lysozyme Deposited 2020-03-20	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 4.6；296 K；PEG 6000, NaCl, Na Acetate	Resolution 2.68 Å R-free 0.306
6WEB Multi-Hit SFX using MHz XFEL sources Deposited 2020-04-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	ACT ACETATE ION × 1 EDO 1,2-ETHANEDIOL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 3.5；293 K；NaCl, ethylene glycol, PEG 3350, acetate buffer pH 3.5	Resolution 2.10 Å R-free 0.216
6WEC Multi-Hit SFX using MHz XFEL sources Deposited 2020-04-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	CL CHLORIDE ION × 3 EDO 1,2-ETHANEDIOL × 5 ACT ACETATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 3.5；293 K；NaCl, ethylene glycol, PEG 3350, acetate buffer pH 3.5	Resolution 2.10 Å R-free 0.299
6WGO The interaction of dichlorido(3-(anthracen-9-ylmethyl)-1-methylimidazol-2-ylidene)(eta6-p-cymene)ruthenium(II) with HEWL after 1 week Deposited 2020-04-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	NA SODIUM ION × 1 ACT ACETATE ION × 2 U0J {(2R)-1-[(anthracen-9-yl)methyl]-3-methyl-2,3-dihydro-1H-imidazol-2-yl}(dichloro)ruthenium × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；291 K；0.1 M Sodium Acetate pH 4.7 and 0.8 M Sodium Chloride	Resolution 1.30 Å R-free 0.192
6WRL The interaction of chlorido(1,5-cyclooctadiene)([4-(2-((tert-butoxycarbonyl)amino)-3-methoxy-3-oxopropyl)-1,3-dimethyl-1H-imidazol-3-ide])rhodium(I) with HEWL after 1 week Deposited 2020-04-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	NA SODIUM ION × 1 ACT ACETATE ION × 3 RH Rhodium × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；291 K；0.1 M Sodium Acetate pH 4.7 and 0.8 M Sodium Chloride	Resolution 1.35 Å R-free 0.215
6WRM The interaction of chlorido(1,5-cyclooctadiene)([4-(2-((tert-butoxycarbonyl)amino)-3-methoxy-3-oxopropyl)-1,3-dimethyl-1H-imidazol-3-ide])rhodium(I) with HEWL after 1 month Deposited 2020-04-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	NA SODIUM ION × 1 CL CHLORIDE ION × 2 RH Rhodium × 1 U8G (4-{2-[(tert-butoxycarbonyl)amino]-3-methoxy-3-oxopropyl}-1,3-dimethyl-2,3-dihydro-1H-imidazol-2-yl)rhodium × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；291 K；0.1 M Sodium Acetate pH 4.7 and 0.8 M Sodium Chloride	Resolution 1.55 Å R-free 0.249
6WX5 Adducts formed after 3 weeks in the reaction of chlorido[chlorido(2,2'-((2-([2,2':6',2''-Terpyridin]-4'-yloxy)ethyl)azanediyl)bis(ethan-1-ol))platinum(II)] with HEWL Deposited 2020-05-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	NA SODIUM ION × 1 ACT ACETATE ION × 1 PT PLATINUM (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.7；291 K；0.1 M Sodium Acetate pH 4.7 and 0.8 M Sodium Chloride pH 4.7	Resolution 1.30 Å R-free 0.202
7D0W Crystal structure of Hen Egg White Lysozyme Deposited 2020-09-12	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 19–147（129 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298.15 K；PEG 3000, TRIS pH 5.6	Resolution 1.80 Å R-free 0.226

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	B8YK79_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–129； UniProt 19–147

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6pla
Deposition date deposition_date	2019-06-30
Structure title title	Adducts formed after 1 month in the reaction of dichlorido(1,3-dimethylbenzimidazol-2-ylidene)(eta6-p-cymene)osmium(II) with HEWL
Keywords keywords	metal-based, anticancer, ruthenium, NHC, carbene, lysozyme, metallodrug, benzimidazole, dimethylbenzimidazole, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.36 Å
Radius of gyration Rg (electron density) rg_electron	14.07 Å
Forward intensity I(0) i0	5719750.00
Molecular weight molecular_weight	15574.0 kDa
Excluded volume excluded_volume	18525 Å³
Envelope volume envelope_volume	20139 Å³
Hydration-shell volume shell_volume	12302 Å³
Envelope diameter envelope_diameter	52.8 Å
Shell Rg shell_rg	19.71 Å
Envelope Rg envelope_rg	14.27 Å
Shape Rg shape_rg	13.98 Å
Total Rg total_rg	15.28 Å
Total atoms total_atoms	1050
Residues n_residues	129
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

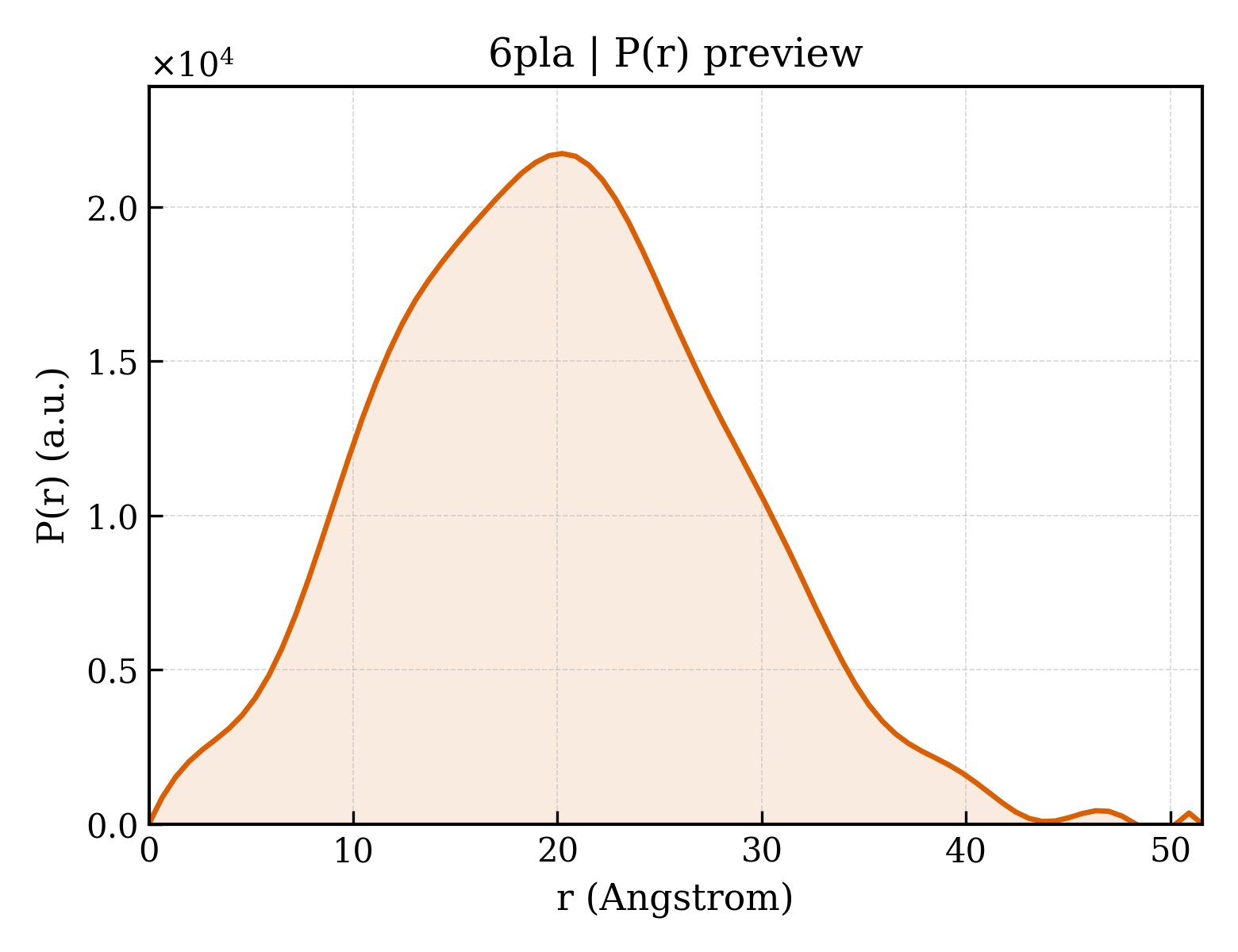

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	51.6 Å
Rg (real space) rg_real	15.28 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	5.7200e+06
I(0) uncertainty (real space) i0_real_error	6.7200e+04
Rg (reciprocal space) rg_reciprocal	15.28 Å
I(0) (reciprocal space) i0_reciprocal	5720000.0000
Solution quality estimate total_estimate	0.6374
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	20.2 Å
Skewness Skewness skewness	0.200
Kurtosis Kurtosis kurtosis	-0.236
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	690200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.728; Stabil: 0.999; Sysdev: 0.368; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Lysozyme
Molecular weight formula_weight	14331.2 kDa
EC 编号 ec_number	3.2.1.17
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1150

KVFGRCELAAAMKRHGLDNYRGYSLGNWVCAAKFESNFNTQATNRNTDGSTDYGILQINSRWWCNDGRTPGSRNLCNIPCSALLSSDITASVNCAKKIVSDGNGMNAWVAWRNRCKGTDVQAWIRGCRL

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	dichlorido(1,3-dimethylbenzimidazol-2-ylidene)(eta6-p-cymene)osmium(II)
Molecular weight formula_weight	537.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	OSMIUM ION
Molecular weight formula_weight	190.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	80

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6plaa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.2 — Lysozyme-like
Superfamily Superfamily superfamily	d.2.1 — Lysozyme-like
Family Family family	d.2.1.2 — C-type lysozyme

▶

8. Citations (1)

▶

Unit-cell length a length_a	76.448 Å
Unit-cell length b length_b	76.448 Å
Unit-cell length c length_c	37.763 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	1.250 Å
Low-resolution limit resolution_low	34.210 Å
R factor r_factor	0.1521
R_work r_work	0.1505
R_free r_free	0.1836

fit	/app/data/saxs_computation/pl/6pla/6pla.fit
pddf	/app/data/pr_computation/pl/6pla/6pla.pr.out
profile	/app/data/saxs_computation/pl/6pla/6pla.dat

Adducts formed after 1 month in the reaction of dichlorido(1,3-dimethylbenzimidazol-2-ylidene)(eta6-p-cymene)osmium(II) with HEWL
