SAXSdb — 6r31

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endoglucanase H

Clostridium thermocellum (strain ATCC 27405 / DSM 1237 / NBRC 103400 / NCIMB 10682 / NRRL B-4536 / VPI 7372)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	;beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose ; × 1 CALCIUM ION × 2 PHOSPHATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GUNH_CLOTH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–170； UniProt 655–821

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6r31
Deposition date deposition_date	2019-03-19
Structure title title	Family 11 Carbohydrate-Binding Module from Clostridium thermocellum in complex with beta-1,3-1,4-mixed-linked tetrasaccharide
Keywords keywords	CtCBM11 beta-1, 3-1, 4-mixed-linked glucan Clostridium thermocellum, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6r31__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

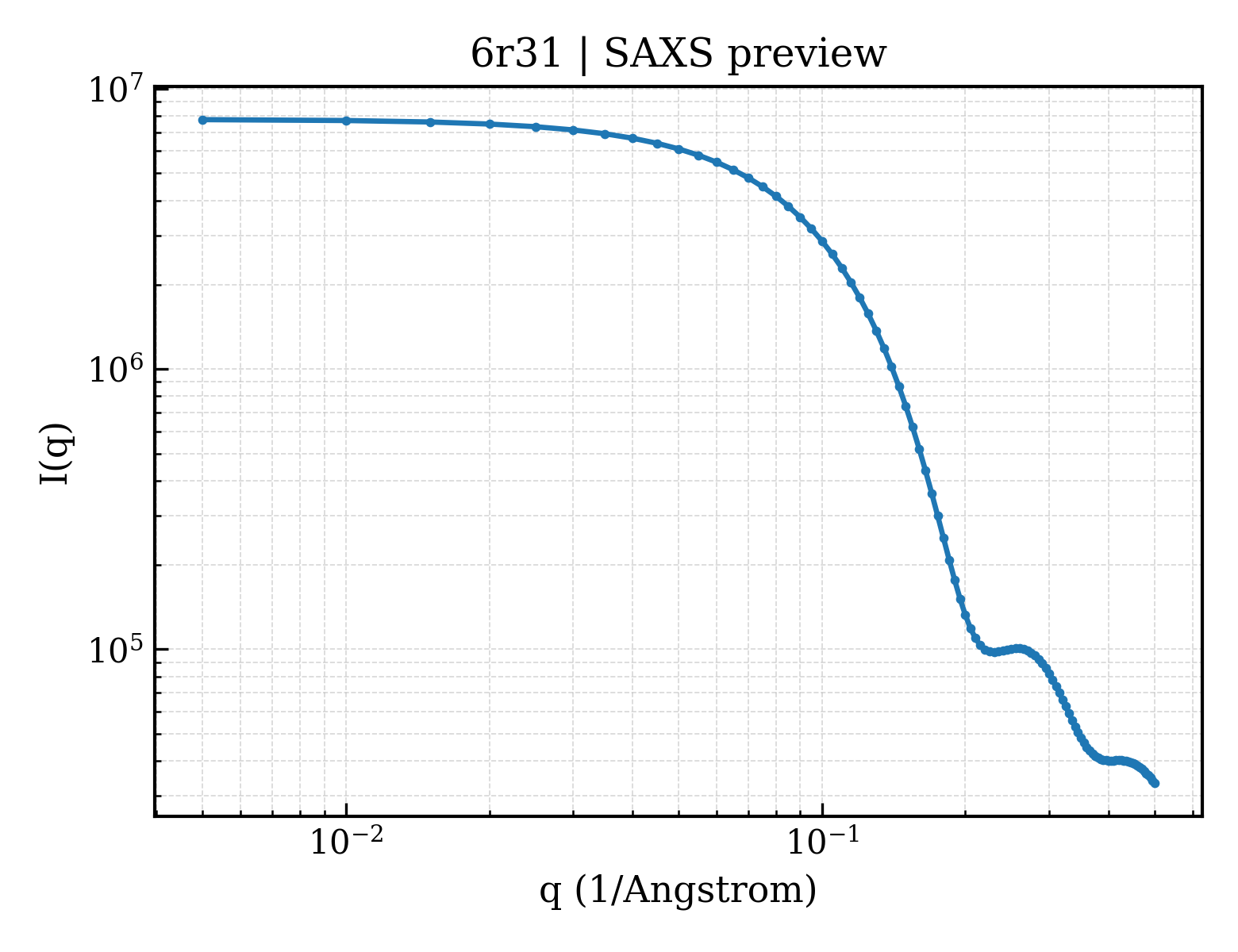

6r31__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6r31__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.09 Å
Rg (electron density)	15.73 Å
Total Rg	16.93 Å
Atom count	1402
Residues	170
Excluded volume	24772 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6r31__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Endoglucanase H
Molecular weight formula_weight	19792.0 kDa
EC 编号 ec_number	3.2.1.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1454

MASAVGEKMLDDFEGVLNWGSYSGEGAKVSTKIVSGKTGNGMEVSYTGTTDGYWGTVYSLPDGDWSKWLKISFDIKSVDGSANEIRFMIAEKSINGVGDGEHWVYSITPDSSWKTIEIPFSSFRRRLDYQPPGQDMSGTLDLDNIDSIHFMYANNKSGKFVVDNIKLIGALEHHHHHH

Source Source

Source organism organism	Clostridium thermocellum (strain ATCC 27405 / DSM 1237 / NBRC 103400 / NCIMB 10682 / NRRL B-4536 / VPI 7372)
NCBI taxonomy ID ncbi_taxonomy_id	203119
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	;beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-4)-beta-D-glucopyranose-(1-3)-beta-D-glucopyranose ;
Molecular weight formula_weight	990.9 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	52

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6r31A01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	430 — Galactose-binding lectin

▶

Unit-cell length a length_a	104.910 Å
Unit-cell length b length_b	104.910 Å
Unit-cell length c length_c	39.511 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	9

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	29.830 Å
R factor r_factor	0.1971
R_work r_work	0.1901
R_free r_free	0.2538

Family 11 Carbohydrate-Binding Module from Clostridium thermocellum in complex with beta-1,3-1,4-mixed-linked tetrasaccharide
