6ro0

CRYSTAL STRUCTURE OF GENETICALLY DETOXIFIED PERTUSSIS TOXIN GDPT.

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pertussis toxin subunit 1

Bordetella pertussis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Islet-activating protein S2 × 2 （A0A0E8DFW5） Islet-activating protein S3 × 2 （Q546I1） Islet-activating protein S4 × 4 （C0MPK8） Pertussis toxin subunit 5 × 2 （C0MPK9） GLYCEROL × 9 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	T1SR96_BORPT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–269； UniProt 1–269 Author chain G； PDBConstruct 1–269； UniProt 1–269

Islet-activating protein S2

Bordetella pertussis

UniProt A0A0E8DFW5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Pertussis toxin subunit 1 × 2 （T1SR96） Islet-activating protein S3 × 2 （Q546I1） Islet-activating protein S4 × 4 （C0MPK8） Pertussis toxin subunit 5 × 2 （C0MPK9） GLYCEROL × 9 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0E8DFW5_BORPT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–226； UniProt 1–226 Author chain H； PDBConstruct 1–226； UniProt 1–226

Islet-activating protein S3

Bordetella pertussis

UniProt Q546I1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Pertussis toxin subunit 1 × 2 （T1SR96） Islet-activating protein S2 × 2 （A0A0E8DFW5） Islet-activating protein S4 × 4 （C0MPK8） Pertussis toxin subunit 5 × 2 （C0MPK9） GLYCEROL × 9 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q546I1_BORPT
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–227； UniProt 1–227 Author chain I； PDBConstruct 1–227； UniProt 1–227

Islet-activating protein S4

Bordetella pertussis

UniProt C0MPK8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Pertussis toxin subunit 1 × 2 （T1SR96） Islet-activating protein S2 × 2 （A0A0E8DFW5） Islet-activating protein S3 × 2 （Q546I1） Pertussis toxin subunit 5 × 2 （C0MPK9） GLYCEROL × 9 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C0MPK8_BORPT
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–152； UniProt 1–152 Author chain E； PDBConstruct 1–152； UniProt 1–152 Author chain J； PDBConstruct 1–152； UniProt 1–152 Author chain K； PDBConstruct 1–152； UniProt 1–152

Pertussis toxin subunit 5

Bordetella pertussis

UniProt C0MPK9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	Pertussis toxin subunit 1 × 2 （T1SR96） Islet-activating protein S2 × 2 （A0A0E8DFW5） Islet-activating protein S3 × 2 （Q546I1） Islet-activating protein S4 × 4 （C0MPK8） GLYCEROL × 9 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C0MPK9_BORPT
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain F； PDBConstruct 1–133； UniProt 1–133 Author chain L； PDBConstruct 1–133； UniProt 1–133

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6ro0
Deposition date deposition_date	2019-05-10
Structure title title	CRYSTAL STRUCTURE OF GENETICALLY DETOXIFIED PERTUSSIS TOXIN GDPT.
Keywords keywords	TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6ro0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

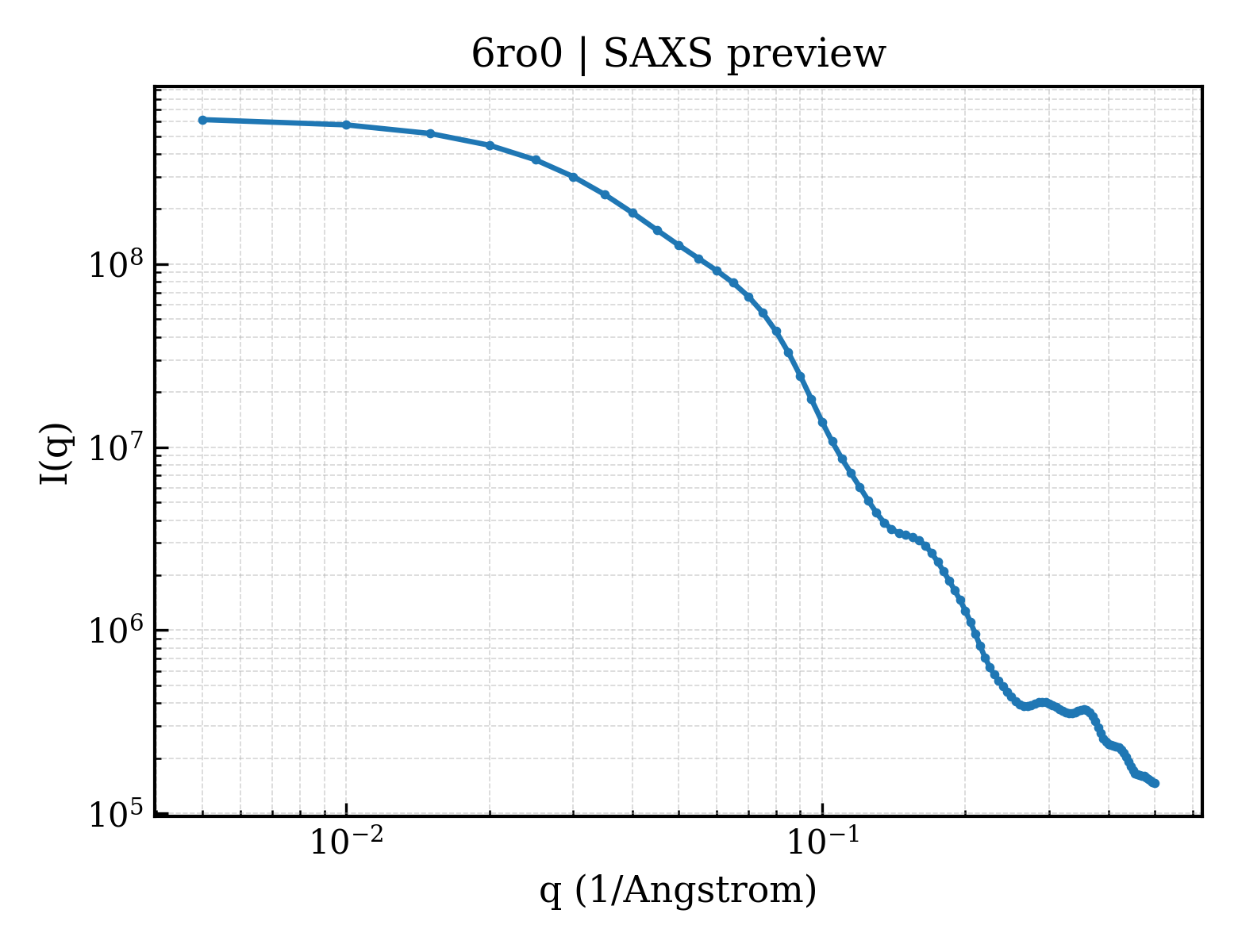

6ro0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

6ro0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	51.07 Å
Rg (electron density)	51.33 Å
Total Rg	51.15 Å
Atom count	14632
Residues	1871
Excluded volume	259060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6ro0__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Pertussis toxin subunit 1
Molecular weight formula_weight	29905.1 kDa
Mutation mutation	R9K, E129G
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	15156

MRCTRAIRQTARTGWLTWLAILAVTAPVTSPAWADDPPATVYKYDSRPPEDVFQNGFTAWGNNDNVLEHLTGRSCQVGSSNSAFVSTSSSRRYTEVYLEHRMQEAVEAERAGRGTGHFIGYIYEVRADNNFYGAASSYFEYVDTYGDNAGRILAGALATYQSGYLAHRRIPPENIRRVTRVYHNGITGETTTTEYSNARYVSQQTRANPNPYTSRRSVASIVGTLVRMAPVVGACMARQAESSEAMAAWSERAGEAMVLVYYESIAYSF

Source Source

Source organism organism	Bordetella pertussis
NCBI taxonomy ID ncbi_taxonomy_id	520
Host organism host_organism	Bordetella pertussis

Entity 2 Entity 2 polymer

Description description	Islet-activating protein S2
Molecular weight formula_weight	24856.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,H

MPIDRKTLCHLLSVLPLALLGSHVARASTPGIVIPPQEQITQHGSPYGRCANKTRALTVAELRGSGDLQEYLRHVTRGWSIFALYDGTYLGGEYGGVIKDGTPGGAFDLKTTFCIMTTRNTGQPATDHYYSNVTATRLLSSTNSRLCAVFVRSGQPVIGACTSPYDGKYWSMYSRLRKMLYLIYVAGISVRVHVSKEEQYYDYEDATFETYALTGISICNPGSSLC

Source Source

Source organism organism	Bordetella pertussis
NCBI taxonomy ID ncbi_taxonomy_id	520
Host organism host_organism	Bordetella pertussis

Entity 3 Entity 3 polymer

Description description	Islet-activating protein S3
Molecular weight formula_weight	25012.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,I

MLINNKKLLHHILPILVLALLGMRTAQAVAPGIVIPPKALFTQQGGAYGRCPNGTRALTVAELRGNAELQTYLRQITPGWSIYGLYDGTYLGQAYGGIIKDAPPGAGFIYRETFCITTIYKTGQPAADHYYSKVTATRLLASTNSRLCAVFVRDGQSVIGACASPYEGRYRDMYDALRRLLYMIYMSGLAVRVHVSKEEQYYDYEDATFQTYALTGISLCNPAASIC

Source Source

Source organism organism	Bordetella pertussis
NCBI taxonomy ID ncbi_taxonomy_id	520
Host organism host_organism	Bordetella pertussis

Entity 4 Entity 4 polymer

Description description	Islet-activating protein S4
Molecular weight formula_weight	16566.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,J,K

MLRRFPTRTTAPGQGGARRSRVRALAWLLASGAMTHLSPALADVPYVLVKTNMVVTSVAMKPYEVTPTRMLVCGIAAKLGAAASSPDAHVPFCFGKDLKRPGSSPMEVMLRAVFMQQRPLRMFLGPKQLTFEGKPALELIRMVECSGKQDCP

Source Source

Source organism organism	Bordetella pertussis
NCBI taxonomy ID ncbi_taxonomy_id	520
Host organism host_organism	Bordetella pertussis

Entity 5 Entity 5 polymer

Description description	Pertussis toxin subunit 5
Molecular weight formula_weight	14513.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,L

MQRQAGLPLKANPMHTIASILLSVLGIYSPADVAGLPTHLYKNFTVQELALKLKGKNQEFCLTAFMSGRSLVRACLSDAGHEHDTWFDTMLGFAISAYALKSRIALTVEDSPYPGTPGDLLELQICPLNGYCE

Source Source

Source organism organism	Bordetella pertussis
NCBI taxonomy ID ncbi_taxonomy_id	520
Host organism host_organism	Bordetella pertussis

Entity 6 Entity 6 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	524

▼

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d6ro0a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d6ro0b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.2 — Aerolysin/Pertussis toxin (APT) domain

Domain ID domain_id	d6ro0b2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.0 — automated matches

Domain ID domain_id	d6ro0c2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0d_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0e_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0f_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0g_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.166 — ADP-ribosylation
Superfamily Superfamily superfamily	d.166.1 — ADP-ribosylation
Family Family family	d.166.1.1 — ADP-ribosylating toxins

Domain ID domain_id	d6ro0h1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.2 — Aerolysin/Pertussis toxin (APT) domain

Domain ID domain_id	d6ro0h2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0i1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.0 — automated matches

Domain ID domain_id	d6ro0i2
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0j_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0k_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

Domain ID domain_id	d6ro0l_
Class class	b — All beta proteins
Fold Fold fold	b.40 — OB-fold
Superfamily Superfamily superfamily	b.40.2 — Bacterial enterotoxins
Family Family family	b.40.2.1 — Bacterial AB5 toxins, B-subunits

CATH v4.4 (16 domains)

Domain ID domain_id	6ro0A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	210 — Heat-Labile Enterotoxin; Chain A
Homologous superfamily homologous superfamily	10 — Heat-Labile Enterotoxin, subunit A

Domain ID domain_id	6ro0B01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	40 — Pertussis Toxin; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Aerolysin/Pertussis toxin (APT), N-terminal domain

Domain ID domain_id	6ro0B02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0C01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	40 — Pertussis Toxin; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Aerolysin/Pertussis toxin (APT), N-terminal domain

Domain ID domain_id	6ro0C02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0D00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0E00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0F00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0G00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	210 — Heat-Labile Enterotoxin; Chain A
Homologous superfamily homologous superfamily	10 — Heat-Labile Enterotoxin, subunit A

Domain ID domain_id	6ro0H01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	40 — Pertussis Toxin; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Aerolysin/Pertussis toxin (APT), N-terminal domain

Domain ID domain_id	6ro0H02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0I01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	40 — Pertussis Toxin; Chain B, domain 1
Homologous superfamily homologous superfamily	10 — Aerolysin/Pertussis toxin (APT), N-terminal domain

Domain ID domain_id	6ro0I02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0J00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0K00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	6ro0L00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	110 —

▶

Unit-cell length a length_a	94.464 Å
Unit-cell length b length_b	160.798 Å
Unit-cell length c length_c	194.829 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.130 Å
Low-resolution limit resolution_low	46.620 Å
R factor r_factor	0.2410
R_work r_work	0.2400
R_free r_free	0.2600

CRYSTAL STRUCTURE OF GENETICALLY DETOXIFIED PERTUSSIS TOXIN GDPT.

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pertussis toxin subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Islet-activating protein S2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Islet-activating protein S3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Islet-activating protein S4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Pertussis toxin subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

6ro0__assembly_1__model_1

6ro0__assembly_1__model_1 | I(q)

6ro0__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 polymer

Polymer Polymer

Source Source

Entity 4 Entity 4 polymer

Polymer Polymer

Source Source

Entity 5 Entity 5 polymer

Polymer Polymer

Source Source

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (1)
