Dual Epitope Targeting by Anti-DR5 Antibodies

Method: X-RAY DIFFRACTION D_max: 164.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor receptor superfamily member 10B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 58–184	Not recorded	IgG1-hDR5-01-Heavy Chain × 1 IgG1-hDR5-01-Light Chain × 1 IgG1-hDR5-05-Heavy Chain × 1 IgG1-hDR5-05-Light Chain × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；281 K；10% (w/v) PEG 4000 200 mM ammonium sulphate 100 mM Sodium acetate pH 4.6	Resolution 3.05 Å R-free 0.282
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain J； UniProt 58–184	Not recorded	IgG1-hDR5-01-Heavy Chain × 1 IgG1-hDR5-01-Light Chain × 1 IgG1-hDR5-05-Heavy Chain × 1 IgG1-hDR5-05-Light Chain × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.6；281 K；10% (w/v) PEG 4000 200 mM ammonium sulphate 100 mM Sodium acetate pH 4.6	Resolution 3.05 Å R-free 0.282

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6T3J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D0G CRYSTAL STRUCTURE OF DEATH RECEPTOR 5 (DR5) BOUND TO APO2L/TRAIL Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain R 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN RESIDUES 1-130 Chain S 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN RESIDUES 1-130 Chain T 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN RESIDUES 1-130	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；292 K；15% Peg8K, 10% ethylene glycol, 0.2M ammonium sulface, 0.1M Tris-HCl, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 19K	Resolution 2.40 Å R-free 0.267
1DU3 Crystal structure of TRAIL-SDR5 Deposited 2000-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN Chain B 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN Chain C 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.6；295 K；PEG 1000, Sodium Acetate, Sodium Chloride, pH 4.6, EVAPORATION, temperature 22K	Resolution 2.20 Å R-free 0.291
1DU3 Crystal structure of TRAIL-SDR5 Deposited 2000-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN Chain H 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN Chain I 54–183（130 aa） Fragment：EXTRACELLULAR DOMAIN	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 4.6；295 K；PEG 1000, Sodium Acetate, Sodium Chloride, pH 4.6, EVAPORATION, temperature 22K	Resolution 2.20 Å R-free 0.291
1ZA3 The crystal structure of the YSd1 Fab bound to DR5 Deposited 2005-04-05	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain S 54–183（130 aa） Fragment：Extra-cellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；292 K；20% PEG 8000, 0.2M MgAcetate, 0.1M NaCacodylate pH 6.2-6.6, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.35 Å R-free 0.280
1ZA3 The crystal structure of the YSd1 Fab bound to DR5 Deposited 2005-04-05	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 54–183（130 aa） Fragment：Extra-cellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.4；292 K；20% PEG 8000, 0.2M MgAcetate, 0.1M NaCacodylate pH 6.2-6.6, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.35 Å R-free 0.280
2H9G Crystal structure of phage derived Fab BdF1 with human Death Receptor 5 (DR5) Deposited 2006-06-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 54–183（130 aa） Fragment：extra cellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；Crystals from drops containing an equal volume of protein and well solution consisting of 20% PEG 3350, 0.2M Na2HPO4, 0.1 M Bis-Tris, pH 6.1-6.8. The crystals were cryo-protected with well solution supplemented with 20% PEG 200., pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.32 Å R-free 0.282
2H9G Crystal structure of phage derived Fab BdF1 with human Death Receptor 5 (DR5) Deposited 2006-06-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain S 54–183（130 aa） Fragment：extra cellular domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；292 K；Crystals from drops containing an equal volume of protein and well solution consisting of 20% PEG 3350, 0.2M Na2HPO4, 0.1 M Bis-Tris, pH 6.1-6.8. The crystals were cryo-protected with well solution supplemented with 20% PEG 200., pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.32 Å R-free 0.282
3X3F TRAIL-R2 Extracellular Region Complexed to a Fab fragment from Human Agonist Antibody KMTR2 Deposited 2015-01-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 54–184（131 aa） Fragment：UNP residues 54-184	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CL CHLORIDE ION × 1 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；7.5% PEG 3350, 75mM calcium chloride, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.10 Å R-free 0.224
4I9X Crystal structure of human cytomegalovirus glycoprotein UL141 targeting the death receptor TRAIL-R2 Deposited 2012-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 58–184（127 aa） Fragment：TRAIL-R2, UNP residues 58-184 Chain D 58–184（127 aa） Fragment：TRAIL-R2, UNP residues 58-184	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；295.15 K；20% PEG 8K, CHES, pH 9.5, VAPOR DIFFUSION, SITTING DROP, temperature 295.15K	Resolution 2.10 Å R-free 0.274
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain T 57–182（126 aa） Fragment：UNP residues 57-182	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain S 57–182（126 aa） Fragment：UNP residues 57-182	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
4N90 Crystal structure of ternary complex of TRAIL, DR5, and Fab fragment from a DR5 agonist antibody Deposited 2013-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 57–182（126 aa） Fragment：UNP residues 57-182	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；100 mM Tris pH 8.0, 1.0 M LiCl, 0.2 M MnCl2, 10% PEG6000, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.286
4OD2 Crystal structure of the Fab fragment of an anti-DR5 antibody bound to DR5 Deposited 2014-01-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain S 73–183（111 aa） Fragment：UNP residues 73-183	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；292 K；Protein (7mg/mL in 20 mM Tris-HCl, 150 mM NaCl) was mixed with equal volume of well solution (30% PEG 4K, 0.1 M Tris-HCl pH 8.5, 0.2M MgCl2), VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 3.20 Å R-free 0.305
6NHW Structure of the transmembrane domain of the Death Receptor 5 - Dimer of Trimer Deposited 2018-12-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 208–242（35 aa） Fragment：residues 208-242 Chain B 208–242（35 aa） Fragment：residues 208-242 Chain C 208–242（35 aa） Fragment：residues 208-242 Chain D 208–242（35 aa） Fragment：residues 208-242 Chain E 208–242（35 aa） Fragment：residues 208-242 Chain F 208–242（35 aa） Fragment：residues 208-242	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.8 mM [U-13C; U-15N; 85%-2H] Transmembrane Domain of Death Receptor 5, 50 mM DMPC, 100 mM DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.8 mM [U-13C; U-15N] Transmembrane Domain of Death Receptor 5, 50 mM [acyl chain U-2H] DMPC, 100 mM [acyl chain U-2H] DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [U-15N; U-2H; 15%-13C] Transmembrane Domain of Death Receptor 5, 50 mM [acyl chain U-2H] DMPC, 100 mM [acyl chain U-2H] DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
6NHY Structure of the transmembrane domain of the Death Receptor 5 mutant (G217Y) - Trimer Only Deposited 2018-12-24	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 208–242（35 aa） Chain B 208–242（35 aa） Chain C 208–242（35 aa）	Mutation：G217Y Mutation：G217Y Mutation：G217Y	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 0.8 mM [U-13C; U-15N; 85%-2H] Transmembrane Domain of DR5 Mutant G217Y, 50 mM DMPC, 100 mM DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.8 mM [U-13C; U-15N] Transmembrane Domain of DR5 Mutant G217Y, 50 mM [acyl chain U-2H] DMPC, 100 mM [acyl chain U-2H] DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.4 mM [15%-13C; U-15N; H-2H] Transmembrane Domain of DR5 Mutant G217Y, 50 mM [acyl chain U-2H] DMPC, 100 mM [acyl chain U-2H] DHPC, 20 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
8DPX Preligand association structure of DR5 Deposited 2022-07-17	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 77–184（108 aa） Chain B 77–184（108 aa） Chain C 77–184（108 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；310 K；Ionic strength (raw mmCIF value) 50；Pressure 1 NMR sample composition 400 uM [U-100% 15N, U-100% 13C, U-85% 2H] DR5 ectodomain, 4.4 mM DGS-NTA (Ni), 44 mM DMPC, 88 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 500 uM [U-100% 15N; U-100% 2H] DR5 ectodomain, 5.5 mM DGS-NTA (Ni), 55 mM DMPC, 110 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 250 uM [U-100% 15N; U-100% 2H] Isotopically mixed DR5 ectodomain, 250 uM [U-100% 13C] DR5 ectodomain, 5.5 mM DGS-NTA (Ni), 55 mM DMPC, 110 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 250 uM [U-100% 13C; U-100% 15N; U-95% 2H] Isotopically mixed DR5 ectodomain, 250 uM DR5 ectodomain, 5.5 mM DGS-NTA (Ni), 55 mM DMPC, 110 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 500 uM [U-100% 13C; U-100% 15N] DR5 ectodomain, 5.5 mM DGS-NTA (Ni), 55 mM DMPC, 110 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 400 uM [U-100% 15N, U-85% 2H] DR5 ectodomain, 4.4 mM DGS-NTA (Ni), 44 mM DMPC, 88 mM D7PC, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

11 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TR10B_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–127； UniProt 58–184 Author chain J； PDBConstruct 1–127； UniProt 58–184

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6t3j
Deposition date deposition_date	2019-10-11
Structure title title	Dual Epitope Targeting by Anti-DR5 Antibodies
Keywords keywords	DR5, ANTIBODY, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	52.66 Å
Radius of gyration Rg (electron density) rg_electron	52.53 Å
Forward intensity I(0) i0	678837000.00
Molecular weight molecular_weight	211110.0 kDa
Excluded volume excluded_volume	261690 Å³
Envelope volume envelope_volume	439410 Å³
Hydration-shell volume shell_volume	69607 Å³
Envelope diameter envelope_diameter	169.5 Å
Shell Rg shell_rg	57.78 Å
Envelope Rg envelope_rg	49.57 Å
Shape Rg shape_rg	52.51 Å
Total Rg total_rg	52.78 Å
Total atoms total_atoms	14837
Residues n_residues	1940
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

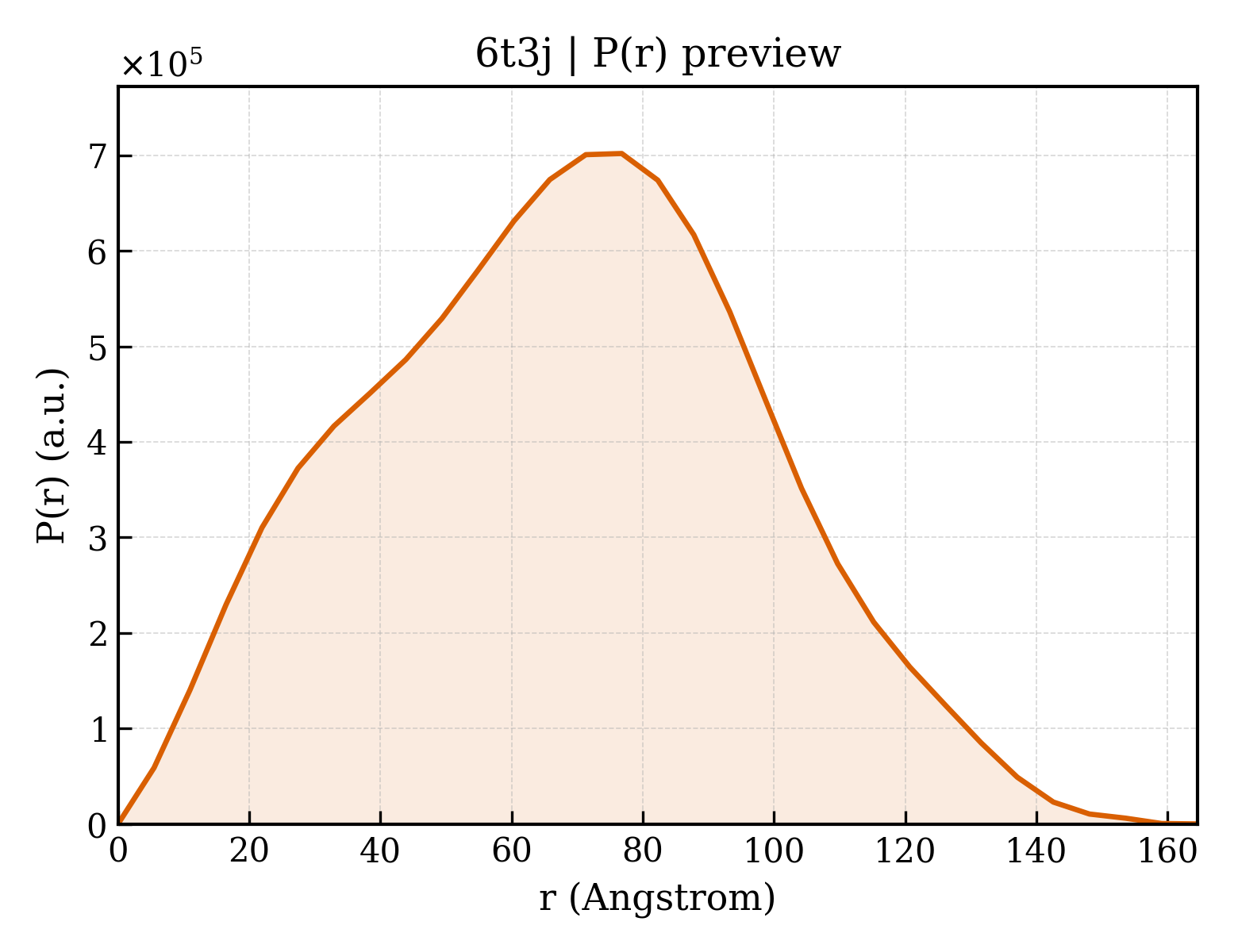

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	164.6 Å
Rg (real space) rg_real	52.51 Å
Rg uncertainty (real space) rg_real_error	1.45 Å
I(0) (real space) i0_real	6.7880e+08
I(0) uncertainty (real space) i0_real_error	1.2790e+07
Rg (reciprocal space) rg_reciprocal	52.77 Å
I(0) (reciprocal space) i0_reciprocal	679100000.0000
Solution quality estimate total_estimate	0.8692
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	76.8 Å
Skewness Skewness skewness	0.069
Kurtosis Kurtosis kurtosis	-0.546
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	26810000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.519

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	IgG1-hDR5-01-Heavy Chain
Molecular weight formula_weight	25099.0 kDa
Mutation mutation	G56T
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F
Atom count atom_count	14837

EVQLQQSGAEVVKPGASVKLSCKASGFNIKDTFIHWVKQAPGQGLEWIGRIDPANTNTKYDPKFQGKATITTDTSSNTAYMELSSLRSEDTAVYYCVRGLYTYYFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	IgG1-hDR5-01-Light Chain
Molecular weight formula_weight	23436.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

EIVMTQSPATLSVSPGERATLSCRASQSISNNLHWYQQKPGQAPRLLIKFASQSITGIPARFSGSGSGTEFTLTISSLQSEDFAVYYCQQGNSWPYTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	IgG1-hDR5-05-Heavy Chain
Molecular weight formula_weight	25108.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H

QVQLVQSGAEVKKPGASVKVSCKASGFNIKDTHMHWVRQAPGQRLEWIGRIDPANGNTEYDQKFQGRVTITVDTSASTAYMELSSLRSEDTAVYYCARWGTNVYFAYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	IgG1-hDR5-05-Light Chain
Molecular weight formula_weight	23385.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I

DIQLTQSPSSLSASVGDRVTITCSASSSVSYMYWYQQKPGKAPKPWIYRTSNLASGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQYHSYPPTFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Tumor necrosis factor receptor superfamily member 10B
Molecular weight formula_weight	14663.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,J

QQDLAPQQRAAPQQKRSSPSEGLCPPGHHISEDGRDCISCKYGQDYSTHWNDLLFCLRCTRCDSGEVELSPCTTTRNTVCQCEEGTFREEDSPEMCRKCRTGCPRGMVKVGDCTPWSDIECVHKESGEPEA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▼

7. Fold Classification (SCOP + CATH) 34 domains

SCOP 2.08 (18 domains)

Domain ID domain_id	d6t3ja_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6t3jc_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jd1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jd2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6t3je1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

Domain ID domain_id	d6t3je2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

Domain ID domain_id	d6t3je3
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

Domain ID domain_id	d6t3jf_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jg1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3jg2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6t3jh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3ji1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6t3ji2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6t3jj1
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

Domain ID domain_id	d6t3jj2
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

Domain ID domain_id	d6t3jj3
Class class	g — Small proteins
Fold Fold fold	g.24 — TNF receptor-like
Superfamily Superfamily superfamily	g.24.1 — TNF receptor-like
Family Family family	g.24.1.0 — automated matches

CATH v4.4 (16 domains)

Domain ID domain_id	6t3jA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jG01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jG02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6t3jI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	121.604 Å
Unit-cell length b length_b	90.926 Å
Unit-cell length c length_c	138.379 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	103.79 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.050 Å
Low-resolution limit resolution_low	134.410 Å
R factor r_factor	0.2508
R_work r_work	0.2505
R_free r_free	0.2819

Dual Epitope Targeting by Anti-DR5 Antibodies

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tumor necrosis factor receptor superfamily member 10B

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 34 domains

SCOP 2.08 (18 domains)

CATH v4.4 (16 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/t3/6t3j/6t3j.fit
pddf	/app/data/pr_computation/t3/6t3j/6t3j.pr.out
profile	/app/data/saxs_computation/t3/6t3j/6t3j.dat
