SAXSdb — 6tir

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-dependent anion-selective channel protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–283	Not recorded	NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 1	SOLUTION NMR NMR measurement conditions：pH 6.5；303.15 K；Ionic strength (raw mmCIF value) 25；Pressure 1 NMR sample composition：0.5 mM [U-99%-2H, 15N; 99%-1Hdelta-IL; 99%-1Hgamma-V] human VDAC-1, 45 mM beta-NADH, 150 mM [U-99% 2H] LDAO, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM [U-99%-2H, 15N; 99%-1H,13C-delta-IL; 99%-1H,13Cgamma-V] human VDAC-1, 45 mM beta-NADH, 150 mM [U-99% 2H] LDAO, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition：0.5 mM U-99%-2H,15N,13C human VDAC-1, 150 mM [U-99% 2H] LDAO, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6TIR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JK4 Structure of the human voltage-dependent anion channel Deposited 2008-08-15	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–283（282 aa） Fragment：RESIDUES 2-283	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 0.2 M MAGNESIUM CHLORIDE HEXAHYDRATE, 0.1 M HEPES SODIUM PH 7.5, 30% V/V POLYETHYLENE GLYCOL 400	Resolution 4.10 Å R-free 0.387
2K4T Solution structure of human VDAC-1 in LDAO micelles Deposited 2008-06-17	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–283（283 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 25；Pressure AMBIENT NMR sample composition 1 mM [U-13C; U-15N; U-2H] VDAC-1, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
5JDP E73V mutant of the human voltage-dependent anion channel Deposited 2016-04-17	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–283（282 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；310 K；Ionic strength (raw mmCIF value) 20；Pressure 1 NMR sample composition 0.8 mM U- 2H, 15N_sample E73V mutant of the Voltage-dependent anion channel 1, 2 % [U-2H] LDAO, 20 mM [U-2H] TRIS, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5XDN Crystal structure of human voltage-dependent anion channel 1 (hVDAC1) in P22121 space group Deposited 2017-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–283（283 aa） Chain B 1–283（283 aa）	Not recorded	D12 DODECANE × 2 HEX HEXANE × 4 OCT N-OCTANE × 1 D10 DECANE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；36% PEG300, 0.1 M MES (pH 6.5), 0.1 M NaCl	Resolution 3.15 Å R-free 0.300
5XDO Crystal structure of human voltage-dependent anion channel 1 (hVDAC1) in C222 space group Deposited 2017-03-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–283（283 aa） Chain B 1–283（283 aa）	Not recorded	SPD SPERMIDINE × 2 OCT N-OCTANE × 4 LNK PENTANE × 2 HEX HEXANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；45% PEG300, 0.1 M HEPES (pH 7.0), 0.15 M NaCl, 11 mM spermidine	Resolution 3.10 Å R-free 0.298
6G6U The dynamic nature of the VDAC1 channels in bilayers: human VDAC1 at 2.7 Angstrom resolution Deposited 2018-04-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–283（283 aa） Chain B 1–283（283 aa）	Not recorded	MC3 1,2-DIMYRISTOYL-RAC-GLYCERO-3-PHOSPHOCHOLINE × 3 NO3 NITRATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；25.5% precipitant mix 4 [25% (v/v) MPD, 25% (w/v) PEG 1000, 25% (w/v) PEG 3350], 0.06 M NH4NO3, 0.1 buffer system 1 [imidazole and MES adjusted to pH 6.5]	Resolution 2.74 Å R-free 0.287
6G73 The dynamic nature of the VDAC1 channels in bilayers: human VDAC1 at 3.3 Angstrom resolution Deposited 2018-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–283（283 aa） Chain D 1–283（283 aa）	Not recorded	MC3 1,2-DIMYRISTOYL-RAC-GLYCERO-3-PHOSPHOCHOLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292.2 K；25.5% Precipitant mix 4 [precipitant mix 4 consists of 25% (v/v) MPD, 25% (w/v) PEG1000, 25% (w/v) PEG3350], 0.06M NaNO3, 0.08M K2HPO4, 0.1M Buffer System2 [HEPES and MOPS adjusted to pH 7.5]	Resolution 3.27 Å R-free 0.298
6G73 The dynamic nature of the VDAC1 channels in bilayers: human VDAC1 at 3.3 Angstrom resolution Deposited 2018-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–283（283 aa） Chain B 1–283（283 aa）	Not recorded	MC3 1,2-DIMYRISTOYL-RAC-GLYCERO-3-PHOSPHOCHOLINE × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；292.2 K；25.5% Precipitant mix 4 [precipitant mix 4 consists of 25% (v/v) MPD, 25% (w/v) PEG1000, 25% (w/v) PEG3350], 0.06M NaNO3, 0.08M K2HPO4, 0.1M Buffer System2 [HEPES and MOPS adjusted to pH 7.5]	Resolution 3.27 Å R-free 0.298
6TIQ Refined solution NMR structure of hVDAC-1 in detergent micelles Deposited 2019-11-22	Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–283（283 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；303.15 K；Ionic strength (raw mmCIF value) 225；Pressure 1 NMR sample composition 0.6 mM U-99%-2H,13C,15N hVDAC-1, 3 % no LDAO, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [ U -99%- 2 H, 13 C, 15 N; 99%- 1 H delta -IL; 99%- 1 H gamma -V] hVDAC-1, 3 % [U-99% 2H] LDAO, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [ U -99%- 2 H, 15 N; 99%- 1 H delta , 13 C delta -IL; 99%- 1 H gamma , 13 C gamma -V] hVDAC-1, 3 % [U-99% 2H] LDAO, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
7QI2 Magic-angle spinning NMR structure of the human voltage-dependent anion channel 1 (E73V/C127A/C232S) in DMPC lipid bilayers Deposited 2021-12-14	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–283（283 aa）	Mutation：E73V/C127A/C232S	No recorded non-water small molecule	SOLID-STATE NMR NMR measurement conditions pH 6.5；285 K；Ionic strength (raw mmCIF value) 0.21；Pressure 1 NMR sample composition 66 % w/w [U-13C; U-15N; U-2H] u[2H,13C,15N]-hVDAC1(E73V/C127A/C232S), 33 % w/w DMPC, 10 mM MES, 150 mM sodium chloride, 20 mM MgCl2, 100% H2O \| 100% H2O NMR sample composition 66 % w/w [U-13C; U-15N]-alpha PET u[2H,13C,15N]-hVDAC1(E73V/C127A/C232S), 33 % w/w DMPC, 10 mM MES, 150 mM sodium chloride, 20 mM MgCl2, 100% H2O \| 100% H2O	Resolution not provided
8J0O cryo-EM structure of human EMC and VDAC Deposited 2023-04-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain K 1–283（283 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.32 Å
9PFZ Architecture of human Voltage Dependent Anion Channel 1 in nanodiscs Deposited 2025-07-07	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–283（283 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7；25 mM NaPi, 100 mM NaCl, pH 7.0 cryo-EM vitrification conditions Cryogen ETHANE；3.0 uL sample, blot time 3sec, Blotforce 1, Blot total 1,	Resolution 5.40 Å

11 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	VDAC1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–283； UniProt 1–283

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6tir
Deposition date deposition_date	2019-11-22
Structure title title	NOE based model of hVDAC-1 bound to beta-NADH in detergent micelles
Keywords keywords	beta-barrel membrane protein complex, TRANSPORT PROTEIN; TRANSPORT PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.13 Å
Radius of gyration Rg (electron density) rg_electron	21.19 Å
Forward intensity I(0) i0	1429940000.00
Molecular weight molecular_weight	316650.0 kDa
Excluded volume excluded_volume	394970 Å³
Envelope volume envelope_volume	81029 Å³
Hydration-shell volume shell_volume	29097 Å³
Envelope diameter envelope_diameter	71.9 Å
Shell Rg shell_rg	30.26 Å
Envelope Rg envelope_rg	22.41 Å
Shape Rg shape_rg	21.18 Å
Total Rg total_rg	21.39 Å
Total atoms total_atoms	44200
Residues n_residues	2850
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.5 Å
Rg (real space) rg_real	20.94 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	1.4300e+09
I(0) uncertainty (real space) i0_real_error	1.8640e+07
Rg (reciprocal space) rg_reciprocal	20.98 Å
I(0) (reciprocal space) i0_reciprocal	1430000000.0000
Solution quality estimate total_estimate	0.8877
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.4 Å
Skewness Skewness skewness	-0.061
Kurtosis Kurtosis kurtosis	-0.457
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1344000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6tirA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	160 — Porin
Homologous superfamily homologous superfamily	10 — Porin

▶

8. Citations (1)

▶

Description description	Voltage-dependent anion-selective channel protein 1
Molecular weight formula_weight	31878.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	44200

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE
Molecular weight formula_weight	665.4 kDa
Source method src_method	syn
Copy count entity_count	1

fit	/app/data/saxs_computation/ti/6tir/6tir.fit
pddf	/app/data/pr_computation/ti/6tir/6tir.pr.out
profile	/app/data/saxs_computation/ti/6tir/6tir.dat

NOE based model of hVDAC-1 bound to beta-NADH in detergent micelles

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-dependent anion-selective channel protein 1

State in the Current Structure

Other States of the Same Protein in the Database

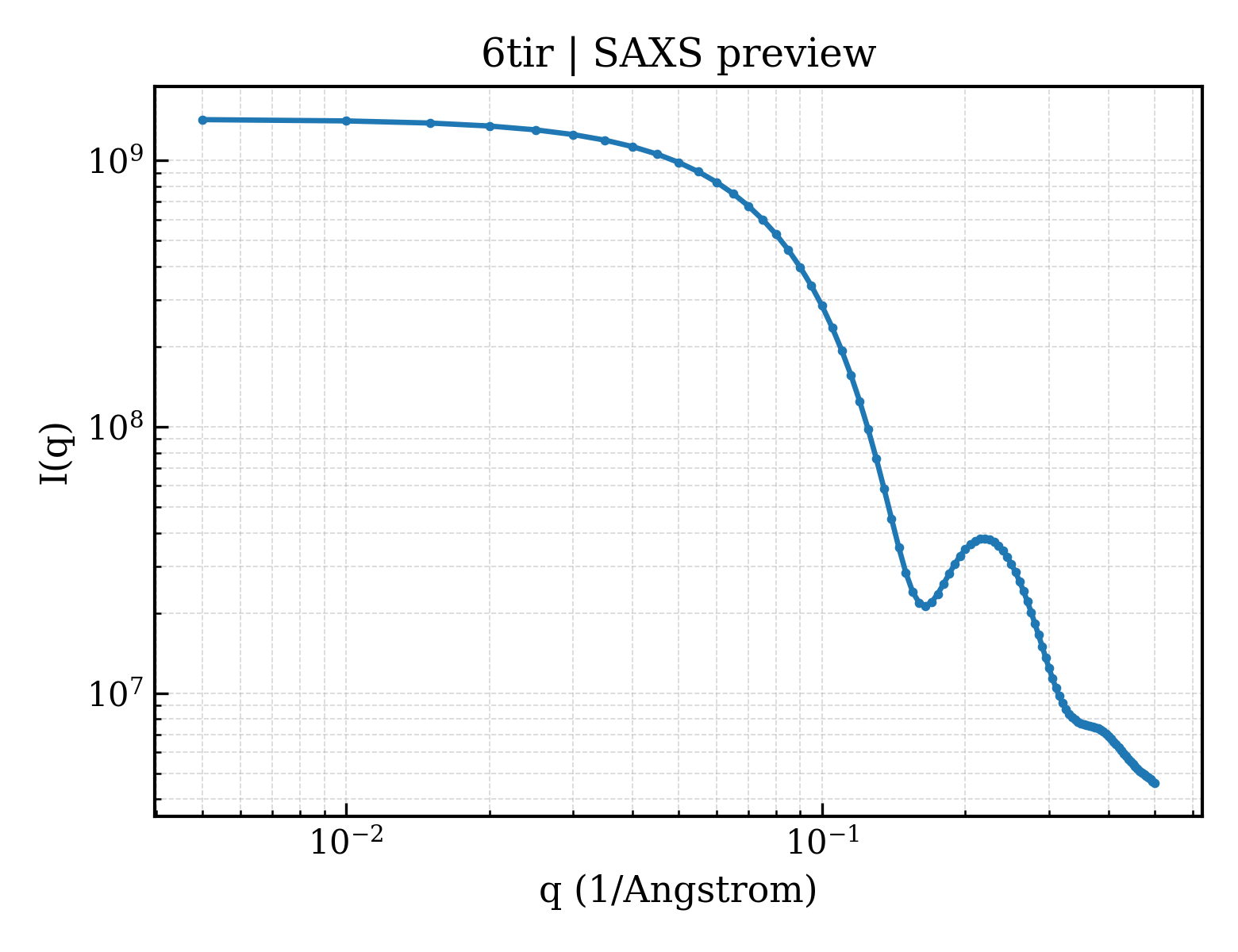

SAXS scattering curve SAXS Profile

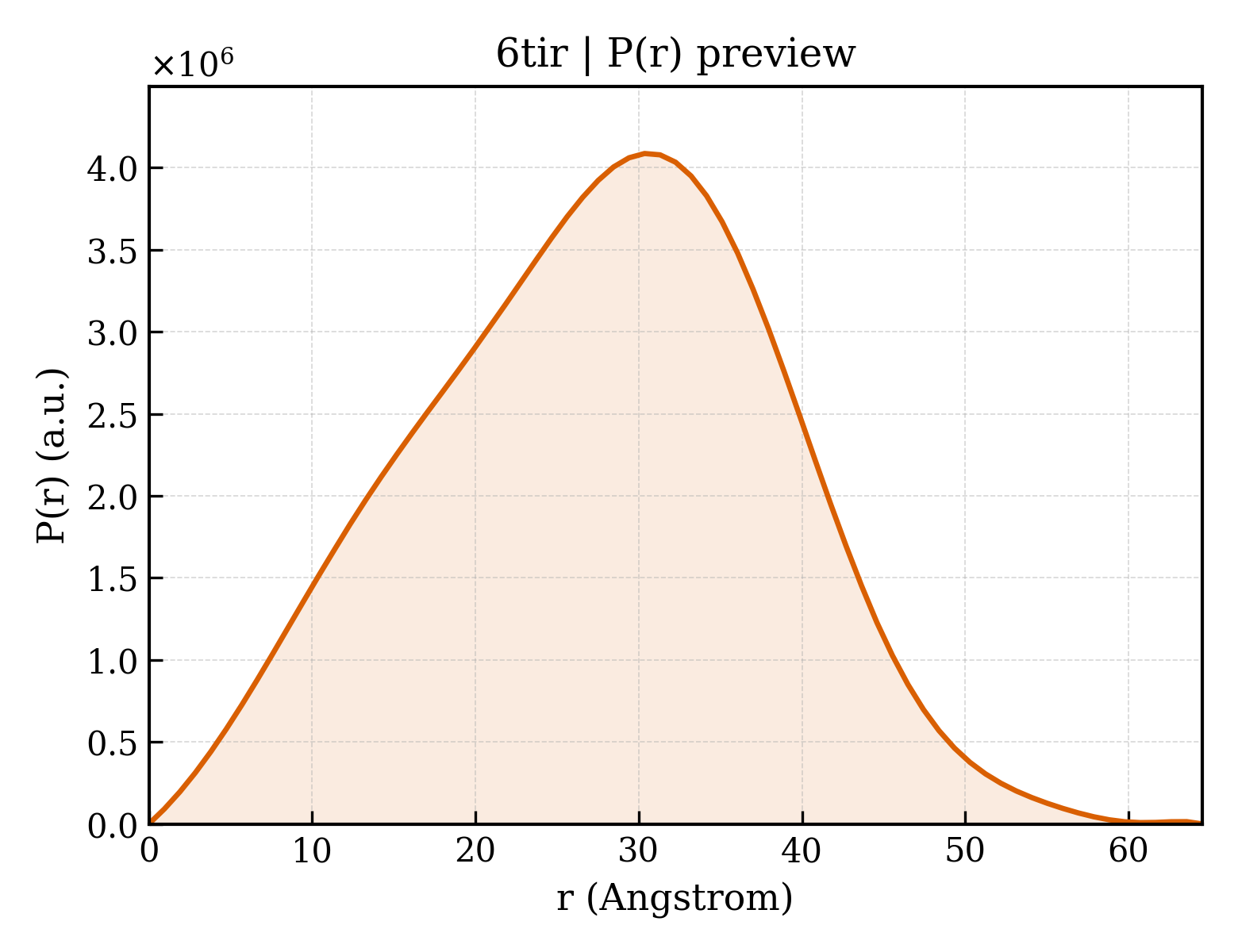

P(r) Distance Distribution P(r) Distribution
