SAXSdb — 6tvq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Env polyprotein (Fragment)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Envelope glycoprotein gp160 × 3 （Q6TAQ1） water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C7F3P9_9HIV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain AaA； PDBConstruct 2–39； UniProt 9–46

Envelope glycoprotein gp160

OrganismNot specified

UniProt Q6TAQ1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Env polyprotein (Fragment) × 3 （C7F3P9） water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q6TAQ1_9HIV1
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain BBB； PDBConstruct 1–31； UniProt 616–646

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6tvq
Deposition date deposition_date	2020-01-10
Structure title title	Structure of native gp41 derived peptide fusion inhibitor
Keywords keywords	Inhibitor, helix bundle, HIV, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6tvq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

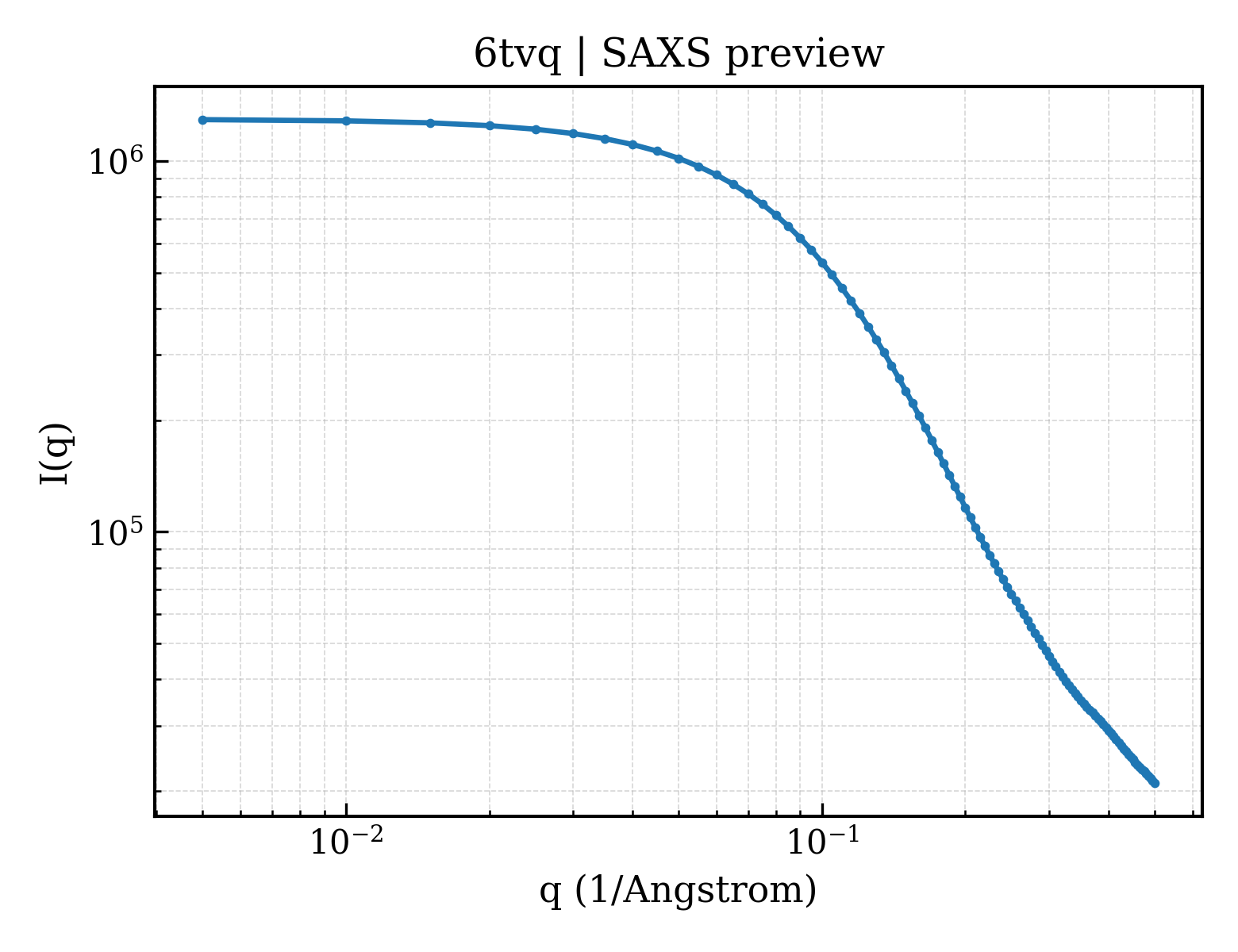

6tvq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

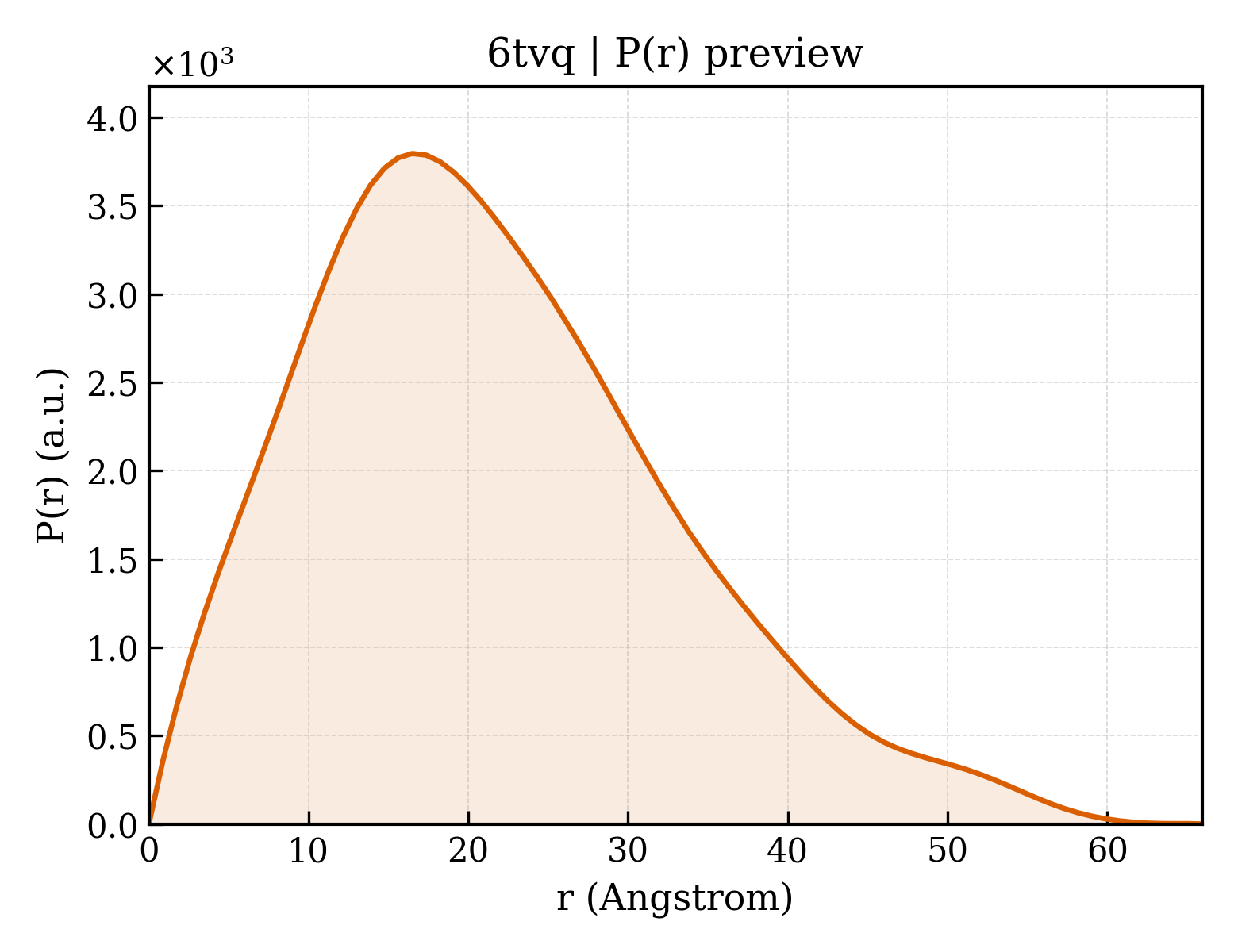

6tvq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.32 Å
Rg (electron density)	18.04 Å
Total Rg	19.05 Å
Atom count	3234
Residues	189
Excluded volume	28762 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6tvq__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Env polyprotein (Fragment)
Molecular weight formula_weight	4515.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	AaA
Atom count atom_count	1161

XNNLLRAIEAQQHLLQLTVWGIKQLQARILAVERYLKDQX

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein gp160
Molecular weight formula_weight	3913.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	BBB

EQIWNNMTWMEWDREINNYTSLIHSLIEESQ

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	53

▶

Unit-cell length a length_a	44.875 Å
Unit-cell length b length_b	44.875 Å
Unit-cell length c length_c	209.645 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	38.240 Å
R factor r_factor	—
R_work r_work	0.1879
R_free r_free	0.2426
