Crystal structure of Z004 iGL Fab in complex with ZIKV EDIII

Method: X-RAY DIFFRACTION D_max: 119.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Z004 iGL Fab heavy chain

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain H； UniProt 129–249	Not recorded	Z004 iGL Fab light chain × 1 （P0DOX7） Env × 1 （A0A1X9PPI0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 129–249	Not recorded	Z004 iGL Fab light chain × 1 （P0DOX7） Env × 1 （A0A1X9PPI0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6UTA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4O58 Crystal structure of broadly neutralizing antibody F045-092 in complex with A/Victoria/3/1975 (H3N2) influenza hemagglutinin Deposited 2013-12-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 161–245（85 aa） Fragment：Fab F045-092 heavy chain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 SO4 SULFATE ION × 42 PEG DI(HYDROXYETHYL)ETHER × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；277 K；1.7 M ammonium sulfate, 0.1 M Tris pH 8.1, 4% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.75 Å R-free 0.224
4O5I Crystal structure of broadly neutralizing antibody F045-092 in complex with A/Victoria/361/2011 (H3N2) influenza hemagglutinin Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain M 161–245（85 aa） Fragment：Fab F045-092 heavy chain Chain O 161–245（85 aa） Fragment：Fab F045-092 heavy chain Chain Q 161–245（85 aa） Fragment：Fab F045-092 heavy chain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 400, 30% 1,2-propanediol, 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 6.50 Å R-free 0.248
4O5I Crystal structure of broadly neutralizing antibody F045-092 in complex with A/Victoria/361/2011 (H3N2) influenza hemagglutinin Deposited 2013-12-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain S 161–245（85 aa） Fragment：Fab F045-092 heavy chain Chain U 161–245（85 aa） Fragment：Fab F045-092 heavy chain Chain W 161–245（85 aa） Fragment：Fab F045-092 heavy chain	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG 400, 30% 1,2-propanediol, 0.1 M HEPES pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 6.50 Å R-free 0.248
5UGY Influenza hemagglutinin in complex with a neutralizing antibody Deposited 2017-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain H 138–243（106 aa） Fragment：Fab Chain I 138–243（106 aa） Fragment：Fab Chain J 138–243（106 aa） Fragment：Fab	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；2.2 M ammonium sulfate, 100 mM Tris, 5% PEG400, pH 7.5	Resolution 2.80 Å R-free 0.289
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain Q 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
5W08 A/Texas/50/2012(H3N2) Influenza hemagglutinin in complex with K03.12 Fab Deposited 2017-05-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain M 143–247（105 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291.15 K；100 mM sodium citrate/citric acid, pH 5.5, 20% w/v PEG3000	Resolution 2.60 Å R-free 0.262
6CBJ Crystal Structure of DH270.3 Fab in complex with Man9 Deposited 2018-02-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 143–247（105 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；293 K；1 M sodium/potassium phosphate, pH 5.6	Resolution 2.85 Å R-free 0.231
6MYY Germline VRC01 antibody recognition of a modified clade C HIV-1 envelope trimer, 3 Fabs bound, sharpened map Deposited 2018-11-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 9 PDB declaration: nonameric	Chain D 132–248（117 aa） Fragment：germline VH gene reverted sequences of VH1-202, which include CDRH1 and CDRH2 along with the mature CDRH3 of VRC01 Chain G* 132–248（117 aa） Fragment：germline VH gene reverted sequences of VH1-202, which include CDRH1 and CDRH2 along with the mature CDRH3 of VRC01 Chain H* 132–248（117 aa） Fragment：germline VH gene reverted sequences of VH1-2*02, which include CDRH1 and CDRH2 along with the mature CDRH3 of VRC01	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
6MZJ Germline VRC01 antibody recognition of a modified clade C HIV-1 envelope trimer, 2 Fabs bound, sharpened map Deposited 2018-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 132–248（117 aa） Fragment：germline VH reverted sequences of VH1-202, which include CDRH1 and CDRH2 along with the mature CDRH3 of VRC01 Chain H* 132–248（117 aa） Fragment：germline VH reverted sequences of VH1-2*02, which include CDRH1 and CDRH2 along with the mature CDRH3 of VRC01	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
6UDK HIV-1 bNAb 1-55 in complex with modified BG505 SOSIP-based immunogen RC1 and 10-1074 Deposited 2019-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 18 PDB declaration: octadecameric	Chain D 140–249（110 aa） Chain H 140–249（110 aa） Chain M 140–249（110 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 27	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；0 blot force, 3.5 second blot time, 3 uL sample added to freshly glow-discharged grids	Resolution 3.90 Å

8 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	S6C4S0_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 109–229； UniProt 129–249 Author chain H； PDBConstruct 109–229； UniProt 129–249

Z004 iGL Fab light chain

Homo sapiens

UniProt P0DOX7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain L； UniProt 109–214	Not recorded	Z004 iGL Fab heavy chain × 1 （S6C4S0） Env × 1 （A0A1X9PPI0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 109–214	Not recorded	Z004 iGL Fab heavy chain × 1 （S6C4S0） Env × 1 （A0A1X9PPI0）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6UTA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4NM4 Crystal structure of broadly neutralizing antibody CR8043 Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 115–214（100 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 6000, 0.1 M HEPES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.232
4NM4 Crystal structure of broadly neutralizing antibody CR8043 Deposited 2013-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 115–214（100 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；20% PEG 6000, 0.1 M HEPES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.65 Å R-free 0.232
4NM8 Crystal structure of broadly neutralizing antibody CR8043 bound to H3 influenza hemagglutinin Deposited 2013-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain L 115–214（100 aa） Chain M 115–214（100 aa） Chain N 115–214（100 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；2.2 M ammonium sulfate, 0.1 M sodium acetate pH 5.5, 3% PEG 400, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 4.00 Å R-free 0.292
5VIC Crystal structure of anti-Zika antibody Z004 bound to DENV-1 Envelope protein DIII Deposited 2017-04-14	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 109–214（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；295 K；0.1M sodium acetate trihydrate pH 4.5, 30% w/v PEG 1500	Resolution 3.00 Å R-free 0.286
5VIG Crystal structure of anti-Zika antibody Z006 bound to Zika virus envelope protein DIII Deposited 2017-04-16	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 109–214（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；10% isopropanol, 0.1M sodium citrate tribasic dihydrate pH 5.0, 26% PEG 400	Resolution 3.00 Å R-free 0.257
5VIG Crystal structure of anti-Zika antibody Z006 bound to Zika virus envelope protein DIII Deposited 2017-04-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 109–214（106 aa）	Not recorded	FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；295 K；10% isopropanol, 0.1M sodium citrate tribasic dihydrate pH 5.0, 26% PEG 400	Resolution 3.00 Å R-free 0.257
5W1K JUNV GP1 CR1-10 Fab CR1-28 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 109–212（104 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.7；297 K；1.9 M AmSO4 pH 7.7	Resolution 3.99 Å R-free 0.288
5W1K JUNV GP1 CR1-10 Fab CR1-28 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 109–212（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.7；297 K；1.9 M AmSO4 pH 7.7	Resolution 3.99 Å R-free 0.288
5W1K JUNV GP1 CR1-10 Fab CR1-28 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain K 109–212（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.7；297 K；1.9 M AmSO4 pH 7.7	Resolution 3.99 Å R-free 0.288
5W1K JUNV GP1 CR1-10 Fab CR1-28 Fab complex Deposited 2017-06-03	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain S 109–212（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions BATCH MODE；pH 7.7；297 K；1.9 M AmSO4 pH 7.7	Resolution 3.99 Å R-free 0.288
6BF7 Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11-E heavy chain, FAB H11-E light chain Deposited 2017-10-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 129–211（83 aa） Chain F 129–211（83 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton	Resolution 6.50 Å
6BF9 Cryo-EM structure of human insulin degrading enzyme in complex with FAB H11-E heavy chain, FAB H11-E light chain Deposited 2017-10-26	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 109–211（103 aa） Chain F 109–211（103 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；The cryo grids were made using Spotiton	Resolution 7.20 Å
6MSY Anti-HIV-1 Fab Fab 2G12 + Man4 re-refinement Deposited 2018-10-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 109–213（105 aa）	Not recorded	UNX UNKNOWN LIGAND × 8 ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；295 K；27% Peg 4000, 0.05M sodium acetate	Resolution 2.00 Å R-free 0.242
6MU3 Anti-HIV-1 Fab 2G12 + Man7 re-refinement Deposited 2018-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 110–213（104 aa） Chain L 110–213（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；295 K；20% Peg 4000, 0.2M sodium tartrate	Resolution 2.33 Å R-free 0.234
6MUB Anti-HIV-1 Fab 2G12 + Man5 re-refinement Deposited 2018-10-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 110–213（104 aa） Chain L 110–213（104 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；295 K；1.6M sodium/potassium phosphate	Resolution 2.50 Å R-free 0.280
6N2X Anti-HIV-1 Fab 2G12 + Man9 re-refinement Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 109–213（105 aa） Chain L 109–213（105 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；295 K；25% Peg 400, 0.2M imidazole malate	Resolution 3.00 Å R-free 0.283
6N32 Anti-HIV-1 Fab 2G12 re-refinement Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 109–213（105 aa） Chain M 109–213（105 aa）	Not recorded	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；1.05M ammonium sulfate, 18% Peg 6000, 0.1M imidazole malate	Resolution 2.20 Å R-free 0.227
6N35 Anti-HIV-1 Fab 2G12 + Man1-2 re-refinement Deposited 2018-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 109–213（105 aa） Chain L 109–213（105 aa）	Not recorded	BEZ BENZOIC ACID × 1 GOL GLYCEROL × 1 MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；2M Sodium/Potassium Phosphate	Resolution 1.75 Å R-free 0.238
6NQD Cryo-EM structure of T/F100 SOSIP.664 HIV-1 Env trimer in complex with 8ANC195 Fab Deposited 2019-01-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 12 PDB declaration: dodecameric	Chain D 109–214（106 aa） Chain H 109–214（106 aa） Chain L 109–214（106 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 30	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
6UOE 3-25 Fab germline-reversion variant bound to an HCMV gB-derived peptide Deposited 2019-10-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 114–214（101 aa）	Not recorded	TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1 M magnesium chloride, 13.4% PEG3350, 16.75% PEG400, 0.1 M Tris, pH 8.5	Resolution 1.80 Å R-free 0.186
6UTE Crystal structure of Z032 Fab in complex with WNV EDIII Deposited 2019-10-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 109–214（106 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide, 20% w/v polyethylene glycol 3,350	Resolution 2.90 Å R-free 0.264
6UTE Crystal structure of Z032 Fab in complex with WNV EDIII Deposited 2019-10-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 109–214（106 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide, 20% w/v polyethylene glycol 3,350	Resolution 2.90 Å R-free 0.264
6UTE Crystal structure of Z032 Fab in complex with WNV EDIII Deposited 2019-10-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 109–214（106 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide, 20% w/v polyethylene glycol 3,350	Resolution 2.90 Å R-free 0.264
6UTE Crystal structure of Z032 Fab in complex with WNV EDIII Deposited 2019-10-29	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 109–214（106 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide, 20% w/v polyethylene glycol 3,350	Resolution 2.90 Å R-free 0.264
6UTE Crystal structure of Z032 Fab in complex with WNV EDIII Deposited 2019-10-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 109–214（106 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.2 M sodium bromide, 20% w/v polyethylene glycol 3,350	Resolution 2.90 Å R-free 0.264
8BBO SARS-CoV-2 Delta-RBD complexed with BA.2-36 Fab Deposited 2022-10-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 2–214（213 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；2% (v/v) PEG400, 0.1M imidazole pH7.0 and 24% (w/v) PEG MME 5000.	Resolution 2.75 Å R-free 0.252
8XKJ Ckappa domain of human immunoglobulin Deposited 2023-12-23	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 110–213（104 aa） Fragment：Ckappa domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；298 K；Ionic strength (raw mmCIF value) Not defined；Pressure 1 NMR sample composition 1.0 mM [U-13C; U-15N] protein, 5 mM Napi, 50 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided

18 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IGK_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 109–214； UniProt 109–214 Author chain L； PDBConstruct 109–214； UniProt 109–214

Env

Zika virus ZIKV/H. sapiens/FrenchPolynesia/10087PF/2013

UniProt A0A1X9PPI0

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain E； UniProt 299–407	Not recorded	Z004 iGL Fab heavy chain × 1 （S6C4S0） Z004 iGL Fab light chain × 1 （P0DOX7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 299–407	Not recorded	Z004 iGL Fab heavy chain × 1 （S6C4S0） Z004 iGL Fab light chain × 1 （P0DOX7）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；% w/v tryptone, 0.001 M sodium azide, 0.05 M HEPES sodium pH 7.0, 20% w/v polyethylene glycol 3,350	Resolution 3.10 Å R-free 0.291

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6UTA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6PLK Crystal structure of ZIKV-116 Fab in complex with ZIKV envelope DIII Deposited 2019-07-01	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 299–407（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30% MPD, 0.1 M Imidazole and 10% PEG 4K	Resolution 2.30 Å R-free 0.211
6PLK Crystal structure of ZIKV-116 Fab in complex with ZIKV envelope DIII Deposited 2019-07-01	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 299–407（109 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30% MPD, 0.1 M Imidazole and 10% PEG 4K	Resolution 2.30 Å R-free 0.211

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A1X9PPI0_ZIKV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 2–110； UniProt 299–407 Author chain E； PDBConstruct 2–110； UniProt 299–407

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

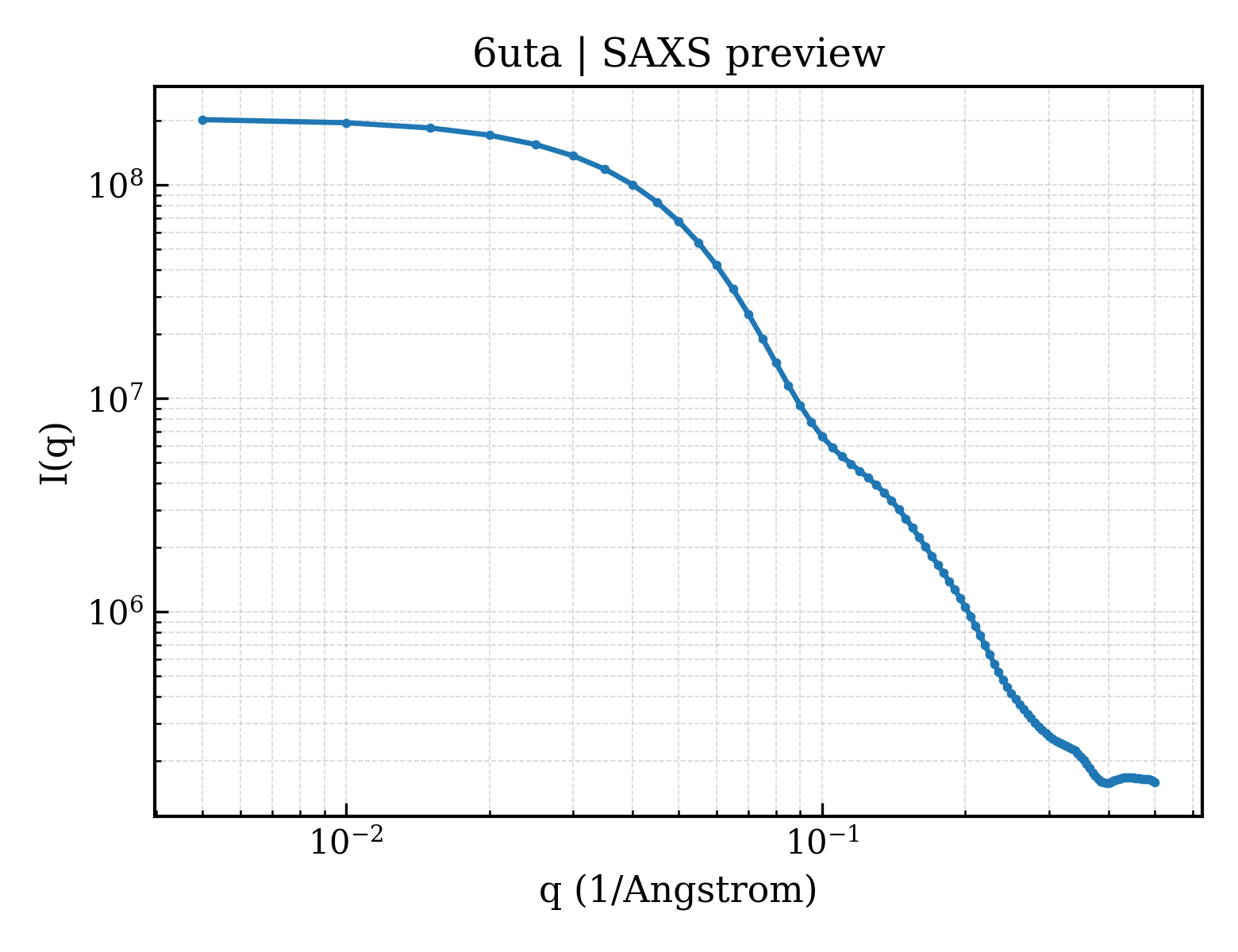

SAXS scattering curve SAXS Profile

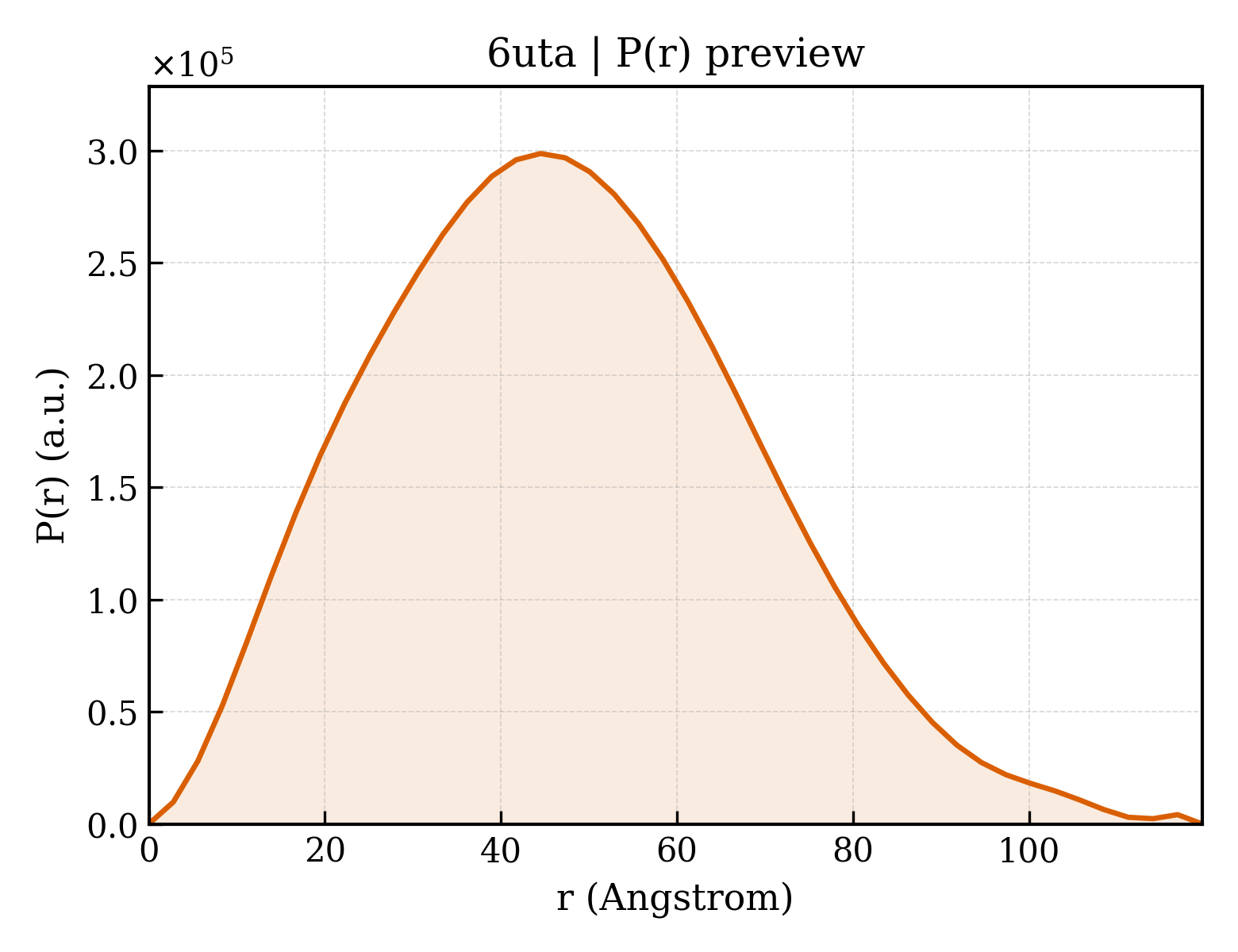

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6uta
Deposition date deposition_date	2019-10-29
Structure title title	Crystal structure of Z004 iGL Fab in complex with ZIKV EDIII
Keywords keywords	VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.55 Å
Radius of gyration Rg (electron density) rg_electron	36.15 Å
Forward intensity I(0) i0	204673000.00
Molecular weight molecular_weight	114220.0 kDa
Excluded volume excluded_volume	142590 Å³
Envelope volume envelope_volume	195050 Å³
Hydration-shell volume shell_volume	46000 Å³
Envelope diameter envelope_diameter	130.7 Å
Shell Rg shell_rg	41.64 Å
Envelope Rg envelope_rg	35.44 Å
Shape Rg shape_rg	36.12 Å
Total Rg total_rg	36.62 Å
Total atoms total_atoms	8038
Residues n_residues	1043
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	119.7 Å
Rg (real space) rg_real	36.54 Å
Rg uncertainty (real space) rg_real_error	1.17 Å
I(0) (real space) i0_real	2.0470e+08
I(0) uncertainty (real space) i0_real_error	3.9700e+06
Rg (reciprocal space) rg_reciprocal	36.55 Å
I(0) (reciprocal space) i0_reciprocal	204700000.0000
Solution quality estimate total_estimate	0.8887
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	44.5 Å
Skewness Skewness skewness	0.309
Kurtosis Kurtosis kurtosis	-0.277
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15580000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.908; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.832

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Z004 iGL Fab heavy chain
Molecular weight formula_weight	24819.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,A
Atom count atom_count	8038

EVQLLESGGGLVQPGGSLRLSCAASGFTFSSYAMSWVRQAPGKGLEWVSAISGSGGSTYYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCAKDRGPRGVGELFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Z004 iGL Fab light chain
Molecular weight formula_weight	23515.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,B

DIQMTQSPSTLSASVGDRVTITCRASQSISSWLAWYQQKPGKAPKLLIYKASSLESGVPSRFSGSGSGTEFTLTISSLQPDDFATYYCQQYNSYPWTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Env
Molecular weight formula_weight	11935.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,C

MRLKGVSYSLCTAAFTFTKIPAETLHGTVTVEVQYAGTDGPCKVPAQMAVDMQTLTPVGRLITANPVITESTENSKMMLELDPPFGDSYIVIGVGEKKITHHWHRSGSTI

来源 Source

来源生物 organism	Zika virus ZIKV/H. sapiens/FrenchPolynesia/10087PF/2013
通用名 common_name	ZIKV
NCBI Class编号 ncbi_taxonomy_id	2043570
宿主生物 host_organism	Escherichia coli

▼

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d6utaa_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6utab1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6utab2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6utac_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.4 — Class II viral fusion proteins C-terminal domain

Domain ID domain_id	d6utae_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.4 — Class II viral fusion proteins C-terminal domain

Domain ID domain_id	d6utah_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d6utal1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6utal2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (10 domains)

Domain ID domain_id	6utaA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

Domain ID domain_id	6utaE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	350 —

Domain ID domain_id	6utaH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6utaL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.907 Å
Unit-cell length b length_b	85.907 Å
Unit-cell length c length_c	327.458 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	tetragonal

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	38.420 Å
R factor r_factor	0.2751
R_work r_work	0.2743
R_free r_free	0.2912

fit	/app/data/saxs_computation/ut/6uta/6uta.fit
pddf	/app/data/pr_computation/ut/6uta/6uta.pr.out
profile	/app/data/saxs_computation/ut/6uta/6uta.dat

Crystal structure of Z004 iGL Fab in complex with ZIKV EDIII

1. Protein Identity and Related Structures Protein Identity & Related Structures

Z004 iGL Fab heavy chain

State in the Current Structure

Other States of the Same Protein in the Database

Z004 iGL Fab light chain

State in the Current Structure

Other States of the Same Protein in the Database

Env

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (8 domains)

CATH v4.4 (10 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
