SAXSdb — 6vb8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Concanavalin-Br

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–237	Not recorded	GOL GLYCEROL × 4 CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4 CL CHLORIDE ION × 8 DBB D-ALPHA-AMINOBUTYRIC ACID × 4 IAC 1H-INDOL-3-YLACETIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；1.8 M ammonium sulfate, 0.2 M sodium chloride, 0.1 M HEPES, pH 8.5	Resolution 2.20 Å R-free 0.236

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6VB8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AZD CONCANAVALIN FROM CANAVALIA BRASILIENSIS Deposited 1997-11-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa） Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；2 MICRO-L CBR (10 MG/ML) 2 MICRO-L (11-15% PEG 6000, 0.1 M MES PH 6, pH 6.0	Resolution 3.00 Å R-free 0.240
1C57 DIRECT DETERMINATION OF THE POSITIONS OF DEUTERIUM ATOMS OF BOUND WATER IN CONCANAVALIN A BY NEUTRON LAUE CRYSTALLOGRAPHY Deposited 1999-10-26	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	NEUTRON DIFFRACTION X-ray crystallization conditions pH 6.5；CRYSTALS SELECTED FOR NEUTRON STUDY WERE TRANSFERRED TO A 1ML BUFFERMADE UP OF 99.9% D2O WITH 0.1M NANO3, 0.05M TRIS-ACETATE, 1MM MNCL2 AND 1MM CACL2; PH 6.5.	Resolution 2.40 Å R-free 0.301
1DQ0 Locked, metal-free concanavalin A, a minor species in solution Deposited 1999-12-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；2.1 M AMMONIUM SULPHATE, 120 MM SODIUM ACETATE, SOAKING OF LOCKED MNMN CON A CRYSTALS WITH THE METAL CHELATOR EDTA, pH 7.0, temperature 293.0K	Resolution 1.70 Å R-free 0.204
1DQ1 Calcium;Calcium concanavalin A Deposited 1999-12-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；293 K；2.1 M ammonium sulphate, 120 mM sodium acetate, 100 mM calcium, prepared by soaking of locked, metal-free concanavalin A crystals (1DQ0) with calcium, pH 7.0, temperature 293.0K	Resolution 2.15 Å R-free 0.276
1DQ2 Unlocked metal-free concanavalin A Deposited 1999-12-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	ACY ACETIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277 K；2 M ammonium sulphate, 100 mM sodium acetate, 3% (w/v) PEG4000, pH 5.0, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K	Resolution 2.05 Å R-free 0.279
1DQ4 A transient unlocked concanavalin A structure with MN2+ bound in the transition metal ion binding site S1 and an empty calcium binding site S2 Deposited 1999-12-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；277 K；2.0 M ammonium sulphate, 100 mM sodium acetate, 3% PEG4000, 7 mM MnCl2, unlocked metal-free concanavalin A crystals were soaked with Mn2+, pH 5.0, temperature 277.0K	Resolution 2.90 Å R-free 0.246
1DQ5 Manganese;Manganese concanavalin A at pH 5.0 Deposited 1999-12-30	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；277 K；2.0 M ammonium sulphate, 100 mM sodium acetate, 3% PEG4000, 5 mM Mn2+, crystals of unlocked, metal-free con A were soaked with Mn2+, pH 5.0, temperature 277.0K	Resolution 2.00 Å R-free 0.210
1JOJ CONCANAVALIN A-HEXAPEPTIDE COMPLEX Deposited 2001-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.231
1JOJ CONCANAVALIN A-HEXAPEPTIDE COMPLEX Deposited 2001-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.00 Å R-free 0.231
1JUI CONCANAVALIN A-CARBOHYDRATE MIMICKING 10-MER PEPTIDE COMPLEX Deposited 2001-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.222
1JUI CONCANAVALIN A-CARBOHYDRATE MIMICKING 10-MER PEPTIDE COMPLEX Deposited 2001-08-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.222
1JYC CONCANAVALIN A/15-mer PEPTIDE COMPLEX Deposited 2001-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.240
1JYC CONCANAVALIN A/15-mer PEPTIDE COMPLEX Deposited 2001-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.240
1JYI CONCANAVALIN A/12-MER PEPTIDE COMPLEX Deposited 2001-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.265
1JYI CONCANAVALIN A/12-MER PEPTIDE COMPLEX Deposited 2001-09-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.75 Å R-free 0.265
1QDC MAN(APLHA1-6)MAN(ALPHA1-O)METHYL CONCANAVALIN A COMPLEX Deposited 1998-07-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa） Chain B 1–237（237 aa） Chain C 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	MN MANGANESE (II) ION × 4 CA CALCIUM ION × 4 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；291 K；DROP: 5 MICROLITER 7 MG/ML CON A + 5 MICROLITER 7% JEFFAMINE M-600, 10 % PEG 8000, 50 MM NH4COOH, 5MM MGCL2, 25 MM PHOSPHATE, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.00 Å R-free 0.211
3JU9 Crystal structure of a lectin from Canavalia brasiliensis seed (ConBr) complexed with alpha-aminobutyric acid Deposited 2009-09-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	DBB D-ALPHA-AMINOBUTYRIC ACID × 4 GOL GLYCEROL × 4 CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4 CL CHLORIDE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.8 M ammonium sulfate, 0.2 M sodium chloride, 0.1 M HEPES, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.10 Å R-free 0.253
4H55 Crystal structure of Canavalia brasiliensis seed lectin (ConBr) in complex with beta-d-ribofuranose Deposited 2012-09-18	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4 BDR beta-D-ribofuranose × 4 DBB D-ALPHA-AMINOBUTYRIC ACID × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；1.8 M ammonium sulfate, 0.2 M sodium chloride, 0.1 M HEPES, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.15 Å R-free 0.227
4P14 Crystal structure of Canavalia brasiliensis (ConBr) complexed with adenine Deposited 2014-02-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa）	Not recorded	CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4 ADE ADENINE × 4 GOL GLYCEROL × 8 DBB D-ALPHA-AMINOBUTYRIC ACID × 4 EDO 1,2-ETHANEDIOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；1.8 M ammonium sulfate, 0.2 M sodium chloride, 0.1 M HEPES, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.00 Å R-free 0.228
4PCR Crystal structure of Canavalia brasiliensis seed lectin (ConBr) complexed with Gamma-Aminobutyric Acid (GABA) Deposited 2014-04-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	CA CALCIUM ION × 2 MN MANGANESE (II) ION × 2 IPA ISOPROPYL ALCOHOL × 2 ABU GAMMA-AMINO-BUTANOIC ACID × 3 PEG DI(HYDROXYETHYL)ETHER × 3 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；TRIS 0.1 M pH 9.0, amonium sulfate 2.2 M	Resolution 2.15 Å R-free 0.236
4PCR Crystal structure of Canavalia brasiliensis seed lectin (ConBr) complexed with Gamma-Aminobutyric Acid (GABA) Deposited 2014-04-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–237（237 aa） Chain D 1–237（237 aa）	Not recorded	CA CALCIUM ION × 4 MN MANGANESE (II) ION × 4 IPA ISOPROPYL ALCOHOL × 4 ABU GAMMA-AMINO-BUTANOIC ACID × 6 PEG DI(HYDROXYETHYL)ETHER × 6 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；TRIS 0.1 M pH 9.0, amonium sulfate 2.2 M	Resolution 2.15 Å R-free 0.236
8YJ9 Crystallization Studies of Concanavalin A in-Complex with D-Arabinose Deposited 2024-03-01	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–237（237 aa）	Not recorded	GOL GLYCEROL × 3 ROR L-ribose × 1 CA CALCIUM ION × 1 MN MANGANESE (II) ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；Crystallization solution was comprised of sodium acetate (100 mM, pH=5), PEG6000 (5%), and Ammoniun Sulphate (2M) in hanging drop vapor diffusion setup.	Resolution 2.20 Å R-free 0.221
8YYA Crystal Structure of Concanavalin A Complexed with 5-Fluorouracil Deposited 2024-04-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–237（237 aa）	Not recorded	URF 5-FLUOROURACIL × 1 CA CALCIUM ION × 1 MN MANGANESE (II) ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293.5 K；0. 1M Sodium Accetate buffer pH 5.0 , 5% PEG 6000, 2 M Ammonium Sulphate.	Resolution 2.96 Å R-free 0.274
8ZE7 Crystal Structure of Concanavalin A Complexed with Lysine Deposited 2024-05-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–237（237 aa）	Not recorded	LYS LYSINE × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；2M Ammonium Sulphate, 0.1M Sodium Acetate (pH 5.0), PEG600 (5%), temperature 293.0 K	Resolution 2.22 Å R-free 0.248

19 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CONA_CANBR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–237； UniProt 1–237

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6vb8
Deposition date deposition_date	2019-12-18
Structure title title	Crystal structure of a lectin from Canavalia brasiliensis seed (ConBr) complexed with indole-3-acetic acid
Keywords keywords	Canavalia brasiliensis, ConBr, IAA, indole-3-acetic acid, auxin, Lectin, ABU, alpha-aminobutyric acid, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.11 Å
Radius of gyration Rg (electron density) rg_electron	16.72 Å
Forward intensity I(0) i0	11927200.00
Molecular weight molecular_weight	25646.0 kDa
Excluded volume excluded_volume	32028 Å³
Envelope volume envelope_volume	35660 Å³
Hydration-shell volume shell_volume	17578 Å³
Envelope diameter envelope_diameter	61.4 Å
Shell Rg shell_rg	23.26 Å
Envelope Rg envelope_rg	17.13 Å
Shape Rg shape_rg	16.69 Å
Total Rg total_rg	17.83 Å
Total atoms total_atoms	1805
Residues n_residues	233
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

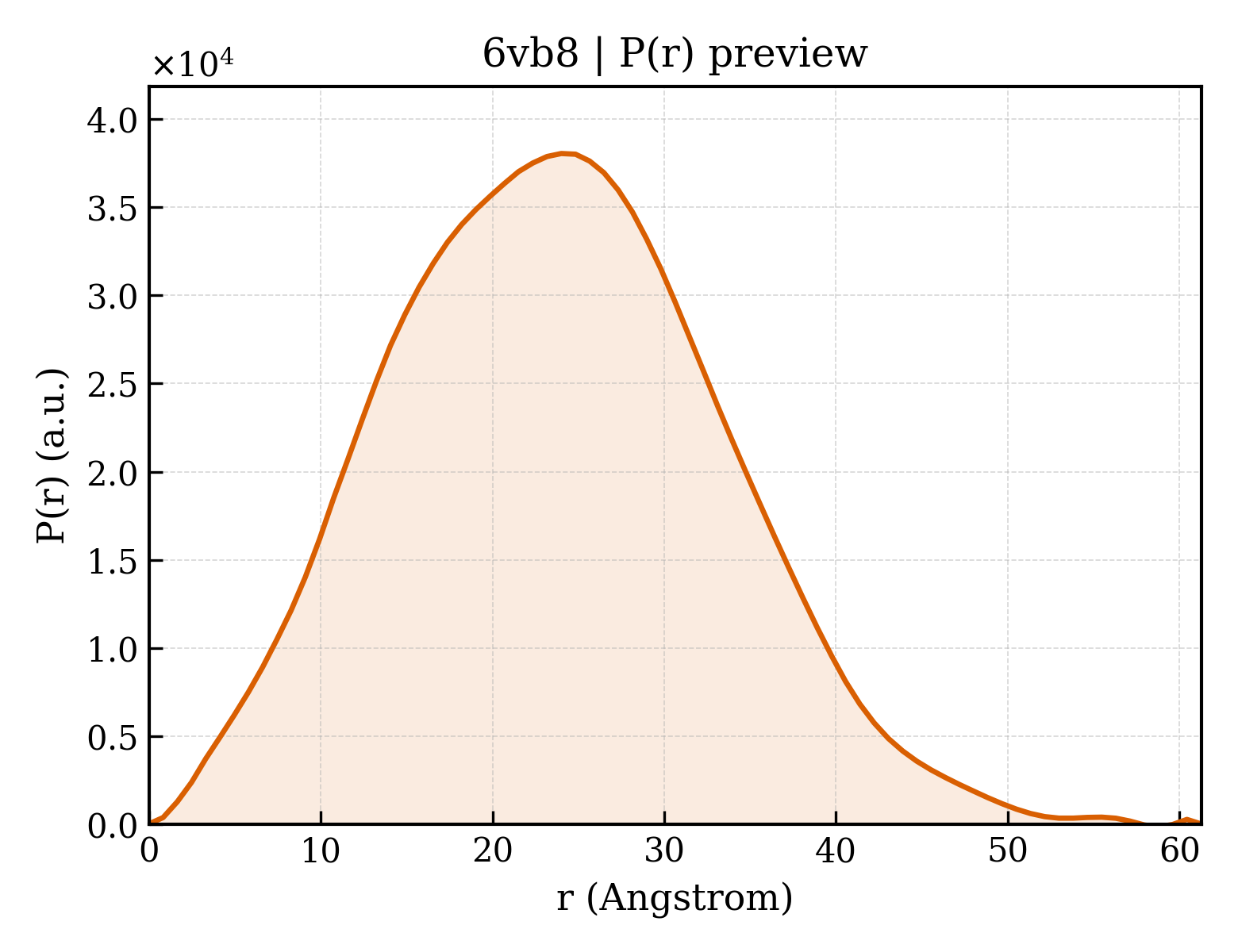

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.3 Å
Rg (real space) rg_real	17.99 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.1930e+07
I(0) uncertainty (real space) i0_real_error	1.5490e+05
Rg (reciprocal space) rg_reciprocal	18.01 Å
I(0) (reciprocal space) i0_reciprocal	11930000.0000
Solution quality estimate total_estimate	0.7866
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	24.0 Å
Skewness Skewness skewness	0.203
Kurtosis Kurtosis kurtosis	-0.249
Angular range angular_range	— – 0.4400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2963000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.745; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Concanavalin-Br
Molecular weight formula_weight	25592.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1855

ADTIVAVELDTYPNTDIGDPSYPHIGIDIKSVRSKKTAKWNMQNGKVGTAHIIYNSVGKRLSAVVSYPNGDSATVSYDVDLDNVLPEWVRVGLSASTGLYKETNTILSWSFTSKLKSNSTHETNALHFMFNQFSKDQKDLILQGDATTGTEGNLRLTRVSSNGSPQGSSVGRALFYAPVHIWESSAVVASFEATFTFLIKSPDSHPADGIAFFISNIDSSIPSGSTGRLLGLFPDAN

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	D-ALPHA-AMINOBUTYRIC ACID
Molecular weight formula_weight	103.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	1H-INDOL-3-YLACETIC ACID
Molecular weight formula_weight	175.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	44

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d6vb8a_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.1 — Legume lectins

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.806 Å
Unit-cell length b length_b	72.427 Å
Unit-cell length c length_c	99.272 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	49.690 Å
R factor r_factor	0.2005
R_work r_work	0.1985
R_free r_free	0.2356

fit	/app/data/saxs_computation/vb/6vb8/6vb8.fit
pddf	/app/data/pr_computation/vb/6vb8/6vb8.pr.out
profile	/app/data/saxs_computation/vb/6vb8/6vb8.dat

Crystal structure of a lectin from Canavalia brasiliensis seed (ConBr) complexed with indole-3-acetic acid
