1. Protein Identity and Related Structures Protein Identity & Related Structures

N-alpha-acetyltransferase 20

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–163	Not recorded	N-alpha-acetyltransferase 25, NatB auxiliary subunit × 1 （Q14CX7） MDVFM peptide × 1 CMC CARBOXYMETHYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.46 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6VP9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7STX Cryo-EM structure of human NatB in complex with CoA-Alpha-Synuclein Deposited 2021-11-15	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–178（178 aa）	Not recorded	COA COENZYME A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
8G0L Semi-synthetic CoA-alpha-Synuclein Constructs Trap N-terminal Acetyltransferase NatB for Binding Mechanism Studies Deposited 2023-01-31	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–178（178 aa）	Not recorded	CMC CARBOXYMETHYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NAA20_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–163； UniProt 1–163

N-alpha-acetyltransferase 25, NatB auxiliary subunit

Homo sapiens

UniProt Q14CX7

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–972	Not recorded	N-alpha-acetyltransferase 20 × 1 （P61599） MDVFM peptide × 1 CMC CARBOXYMETHYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.46 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6VP9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7STX Cryo-EM structure of human NatB in complex with CoA-Alpha-Synuclein Deposited 2021-11-15	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 45–972（928 aa）	Not recorded	COA COENZYME A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.14 Å
8G0L Semi-synthetic CoA-alpha-Synuclein Constructs Trap N-terminal Acetyltransferase NatB for Binding Mechanism Studies Deposited 2023-01-31	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–972（972 aa）	Not recorded	CMC CARBOXYMETHYL COENZYME *A × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NAA25_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–972； UniProt 1–972

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6vp9
Deposition date deposition_date	2020-02-02
Structure title title	Cryo-EM structure of human NatB complex
Keywords keywords	NatB, NAA20, NAA25, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.91 Å
Radius of gyration Rg (electron density) rg_electron	33.17 Å
Forward intensity I(0) i0	225348000.00
Molecular weight molecular_weight	122280.0 kDa
Excluded volume excluded_volume	153830 Å³
Envelope volume envelope_volume	197580 Å³
Hydration-shell volume shell_volume	48746 Å³
Envelope diameter envelope_diameter	113.9 Å
Shell Rg shell_rg	40.72 Å
Envelope Rg envelope_rg	33.01 Å
Shape Rg shape_rg	33.15 Å
Total Rg total_rg	33.83 Å
Total atoms total_atoms	8610
Residues n_residues	1077
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

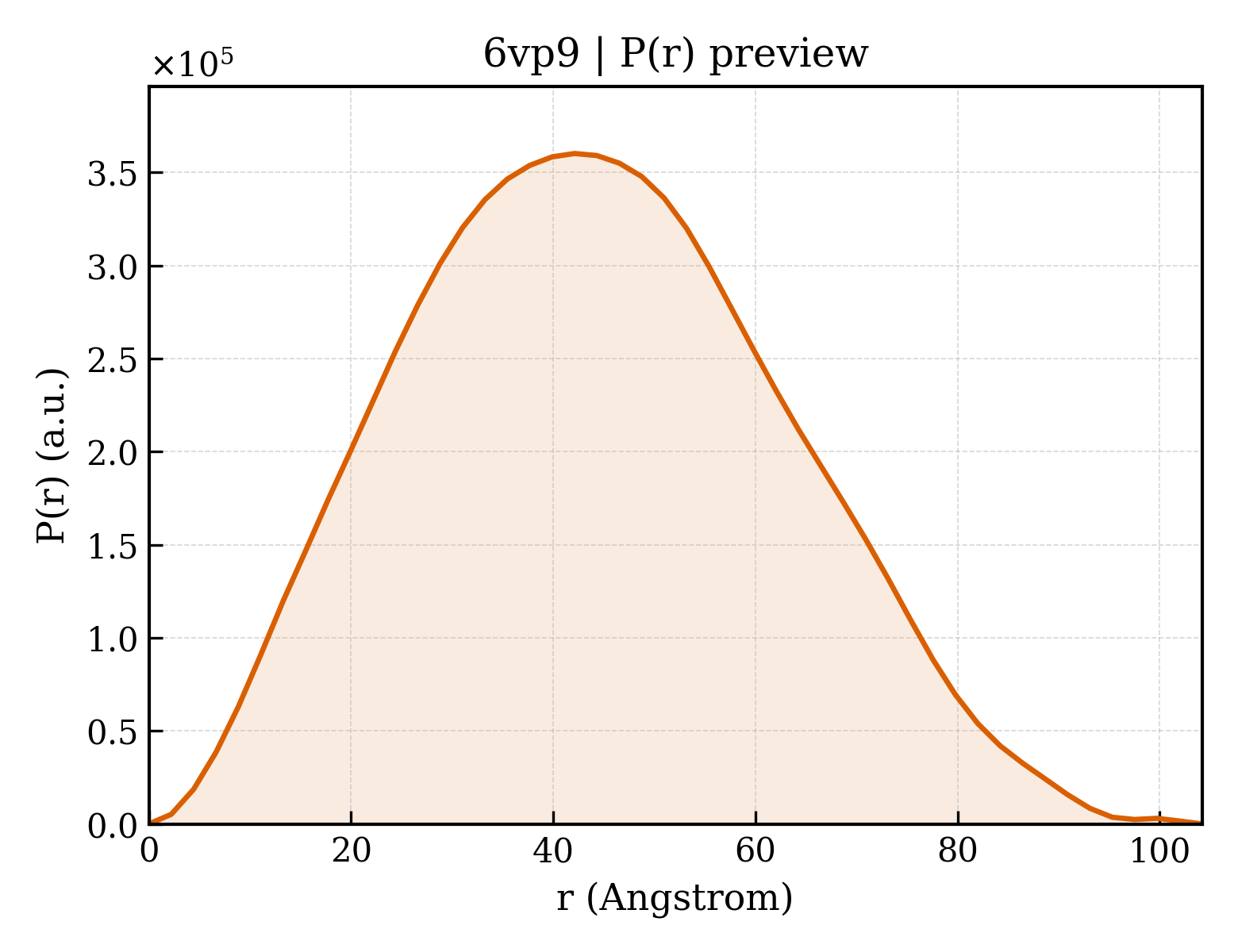

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.2 Å
Rg (real space) rg_real	33.79 Å
Rg uncertainty (real space) rg_real_error	0.76 Å
I(0) (real space) i0_real	2.2530e+08
I(0) uncertainty (real space) i0_real_error	4.0520e+06
Rg (reciprocal space) rg_reciprocal	33.87 Å
I(0) (reciprocal space) i0_reciprocal	225400000.0000
Solution quality estimate total_estimate	0.9053
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.1 Å
Skewness Skewness skewness	0.186
Kurtosis Kurtosis kurtosis	-0.511
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	41320000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.909

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	N-alpha-acetyltransferase 20
Molecular weight formula_weight	18694.2 kDa
EC 编号 ec_number	2.3.1.254
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8610

MTTLRAFTCDDLFRFNNINLDPLTETYGIPFYLQYLAHWPEYFIVAEAPGGELMGYIMGKAEGSVAREEWHGHVTALSVAPEFRRLGLAAKLMELLEEISERKGGFFVDLFVRVSNQVAVNMYKQLGYSVYRTVIEYYSASNGEPDEDAYDMRKALSRDTEKK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	N-alpha-acetyltransferase 25, NatB auxiliary subunit
Molecular weight formula_weight	112444.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MATRGHVQDPNDRRLRPIYDYLDNGNNKMAIQQADKLLKKHKDLHCAKVLKAIGLQRTGKQEEAFTLAQEVAALEPTDDNSLQALTILYREMHRPELVTKLYEAAVKKVPNSEEYHSHLFMAYARVGEYKKMQQAGMALYKIVPKNPYYFWSVMSLIMQSISAQDENLSKTMFLPLAERMVEKMVKEDKIEAEAEVELYYMILERLGKYQEALDVIRGKLGEKLTSEIQSRENKCMAMYKKLSRWPECNALSRRLLLKNSDDWQFYLTYFDSVFRLIEEAWSPPAEGEHSLEGEVHYSAEKAVKFIEDRITEESKSSRHLRGPHLAKLELIRRLRSQGCNDEYKLGDPEELMFQYFKKFGDKPCCFTDLKVFVDLLPATQCTKFINQLLGVVPLSTPTEDKLALPADIRALQQHLCVVQLTRLLGLYHTMDKNQKLSVVRELMLRYQHGLEFGKTCLKTELQFSDYYCLLAVHALIDVWRETGDETTVWQALTLLEEGLTHSPSNAQFKLLLVRIYCMLGAFEPVVDLYSSLDAKHIQHDTIGYLLTRYAESLGQYAAASQSCNFALRFFHSNQKDTSEYIIQAYKYGAFEKIPEFIAFRNRLNNSLHFAQVRTERMLLDLLLEANISTSLAESIKSMNLRPEEDDIPWEDLRDNRDLNVFFSWDPKDRDVSEEHKKLSLEEETLWLRIRSLTLRLISGLPSLNHPVEPKNSEKTAENGVSSRIDILRLLLQQLEATLETGKRFIEKDIQYPFLGPVPTRMGGFFNSGCSQCQISSFYLVNDIYELDTSGLEDTMEIQERIENSFKSLLDQLKDVFSKCKGDLLEVKDGNLKTHPTLLENLVFFVETISVILWVSSYCESVLRPYKLNLQKKKKKKKETSIIMPPVFTSFQDYVTGLQTLISNVVDHIKGLETHLIALKLEELILEDTSLSPEERKFSKTVQGKVQSSYLHSLLEMGELLKKRLETTKKLKI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	MDVFM peptide
Molecular weight formula_weight	641.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MDVFM

Entity 4 Entity 4 non-polymer

Description description	CARBOXYMETHYL COENZYME *A
Molecular weight formula_weight	825.6 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.46 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	982420

fit	/app/data/saxs_computation/vp/6vp9/6vp9.fit
pddf	/app/data/pr_computation/vp/6vp9/6vp9.pr.out
profile	/app/data/saxs_computation/vp/6vp9/6vp9.dat
