1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA helicase

Bacillus subtilis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 608–774	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 6.2；300 K；0.1M Na/K phosphate, pH 6.2, 0.2 M NaCl, 50 % PEG200	Resolution 2.00 Å R-free 0.202

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6VSX	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6ZCA Structure of the B. subtilis RNA POLYMERASE in complex with HelD (monomer) Deposited 2020-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain H 1–774（774 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
6ZFB Structure of the B. subtilis RNA POLYMERASE in complex with HelD (dimer) Deposited 2020-06-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain H 1–774（774 aa） Chain h 1–774（774 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A164TSE8_BACIU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–188； UniProt 608–774

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6vsx
Deposition date deposition_date	2020-02-12
Structure title title	X-ray crystal structure of the C-terminal domain of Bacillus subtilis RNA polymerase binding helicase HelD
Keywords keywords	RNA polymerase, Helicase, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.04 Å
Radius of gyration Rg (electron density) rg_electron	14.53 Å
Forward intensity I(0) i0	6546230.00
Molecular weight molecular_weight	18169.0 kDa
Excluded volume excluded_volume	22620 Å³
Envelope volume envelope_volume	25145 Å³
Hydration-shell volume shell_volume	14293 Å³
Envelope diameter envelope_diameter	46.4 Å
Shell Rg shell_rg	20.78 Å
Envelope Rg envelope_rg	14.83 Å
Shape Rg shape_rg	14.54 Å
Total Rg total_rg	15.67 Å
Total atoms total_atoms	1273
Residues n_residues	159
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

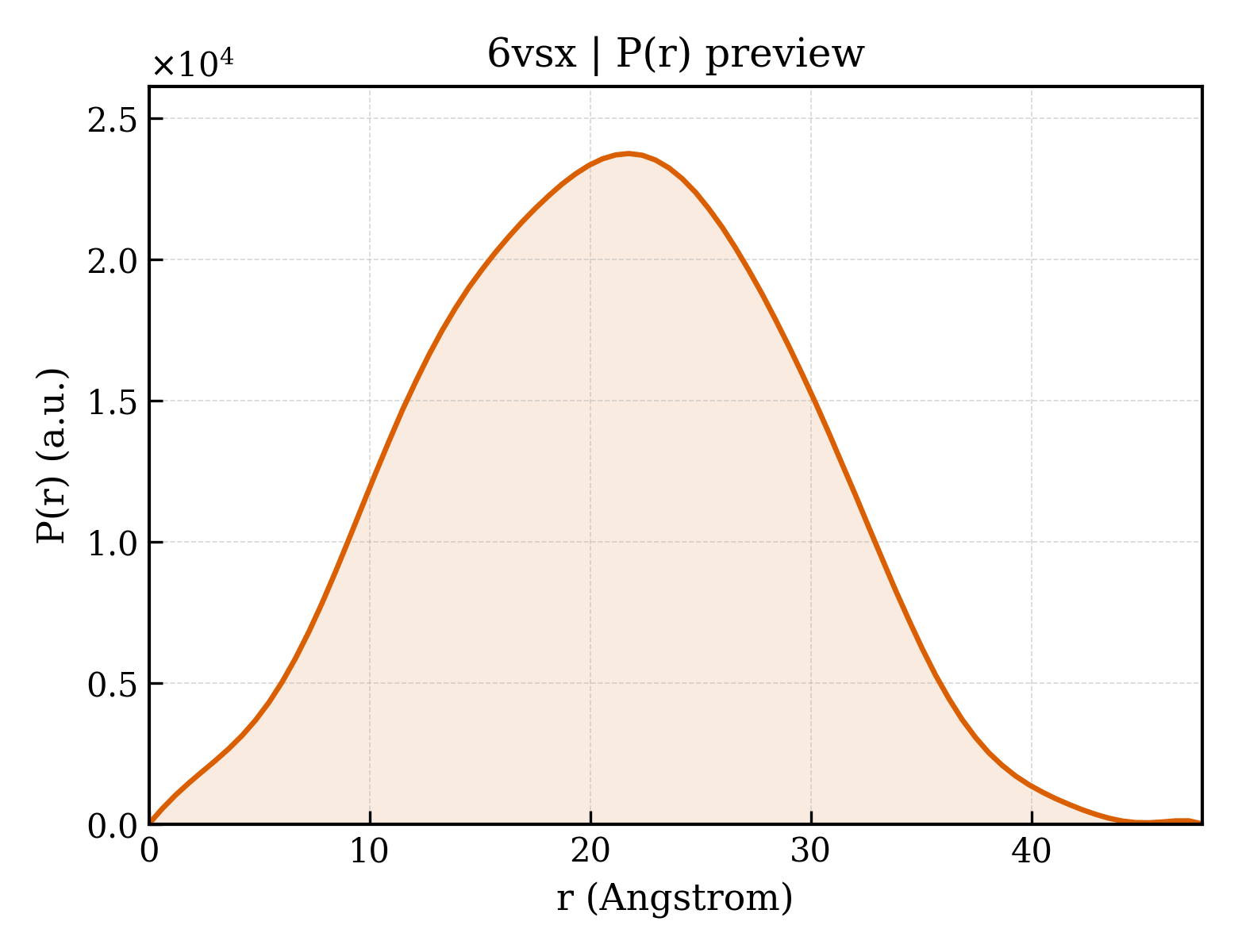

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.7 Å
Rg (real space) rg_real	15.89 Å
Rg uncertainty (real space) rg_real_error	0.20 Å
I(0) (real space) i0_real	6.5460e+06
I(0) uncertainty (real space) i0_real_error	7.2130e+04
Rg (reciprocal space) rg_reciprocal	15.91 Å
I(0) (reciprocal space) i0_reciprocal	6546000.0000
Solution quality estimate total_estimate	0.9025
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.8 Å
Skewness Skewness skewness	0.018
Kurtosis Kurtosis kurtosis	-0.488
Angular range angular_range	— – 0.4950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1634000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.982

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DNA helicase
Molecular weight formula_weight	21281.4 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1382

MGSSHHHHHHSSGLVPRGSHMRSTRQIVEFTKAMLQDGADIEPFNRSGEMPLVVKTEGHESLCQKLAQEIGRLKKKGHETIAVICKTAHQCIQAHAHMSEYTDVRLIHKENQPFQKGVCVIPVYLAKGIEFDAVLVYDASEEHYHTEHDRRLLYTACTRAMHMLAVFYTGEASPFVTAVPPHLYQIAE

来源 Source

来源生物 organism	Bacillus subtilis
NCBI Class编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	109

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6vsxA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	106.963 Å
Unit-cell length b length_b	38.813 Å
Unit-cell length c length_c	44.427 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.45 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	24.730 Å
R factor r_factor	0.1752
R_work r_work	0.1723
R_free r_free	0.2015
