1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA polymerase subunit omega

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	DNA-directed RNA polymerase subunit delta × 2 DNA-directed RNA polymerase subunit alpha × 4 （A0A063XB83） DNA-directed RNA polymerase subunit beta × 2 （A0A2J0WBQ0） ;DNA-directed RNA polymerase subunit beta' ; × 2 （A0A063XB23） DNA helicase × 2 （A0A164TSE8） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A410WI33_BACVA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–69； UniProt 1–69 Author chain e； PDBConstruct 1–69； UniProt 1–69

DNA-directed RNA polymerase subunit alpha

OrganismNot specified

UniProt A0A063XB83

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	DNA-directed RNA polymerase subunit delta × 2 RNA polymerase subunit omega × 2 （A0A410WI33） DNA-directed RNA polymerase subunit beta × 2 （A0A2J0WBQ0） ;DNA-directed RNA polymerase subunit beta' ; × 2 （A0A063XB23） DNA helicase × 2 （A0A164TSE8） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A063XB83_BACIU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain U； PDBConstruct 1–314； UniProt 1–314 Author chain V； PDBConstruct 1–314； UniProt 1–314 Author chain u； PDBConstruct 1–314； UniProt 1–314 Author chain v； PDBConstruct 1–314； UniProt 1–314

DNA-directed RNA polymerase subunit beta

OrganismNot specified

UniProt A0A2J0WBQ0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	DNA-directed RNA polymerase subunit delta × 2 RNA polymerase subunit omega × 2 （A0A410WI33） DNA-directed RNA polymerase subunit alpha × 4 （A0A063XB83） ;DNA-directed RNA polymerase subunit beta' ; × 2 （A0A063XB23） DNA helicase × 2 （A0A164TSE8） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A2J0WBQ0_BACIU
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain X； PDBConstruct 1–1193； UniProt 1–1193 Author chain x； PDBConstruct 1–1193； UniProt 1–1193

;DNA-directed RNA polymerase subunit beta' ;

OrganismNot specified

UniProt A0A063XB23

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	DNA-directed RNA polymerase subunit delta × 2 RNA polymerase subunit omega × 2 （A0A410WI33） DNA-directed RNA polymerase subunit alpha × 4 （A0A063XB83） DNA-directed RNA polymerase subunit beta × 2 （A0A2J0WBQ0） DNA helicase × 2 （A0A164TSE8） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A063XB23_BACIU
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain Y； PDBConstruct 1–1199； UniProt 1–1199 Author chain y； PDBConstruct 1–1199； UniProt 1–1199

DNA helicase

OrganismNot specified

UniProt A0A164TSE8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 14	DNA-directed RNA polymerase subunit delta × 2 RNA polymerase subunit omega × 2 （A0A410WI33） DNA-directed RNA polymerase subunit alpha × 4 （A0A063XB83） DNA-directed RNA polymerase subunit beta × 2 （A0A2J0WBQ0） ;DNA-directed RNA polymerase subunit beta' ; × 2 （A0A063XB23） ZINC ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A164TSE8_BACIU
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain H； PDBConstruct 1–774； UniProt 1–774 Author chain h； PDBConstruct 1–774； UniProt 1–774

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6zfb
Deposition date deposition_date	2020-06-17
Structure title title	Structure of the B. subtilis RNA POLYMERASE in complex with HelD (dimer)
Keywords keywords	TRANSCRIPTION/DNA/RNA, DNA-DEPENDENT RNA POLYMERASE, BACTERIAL, TRANSCRIPTION, Helicase; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6zfb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6zfb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

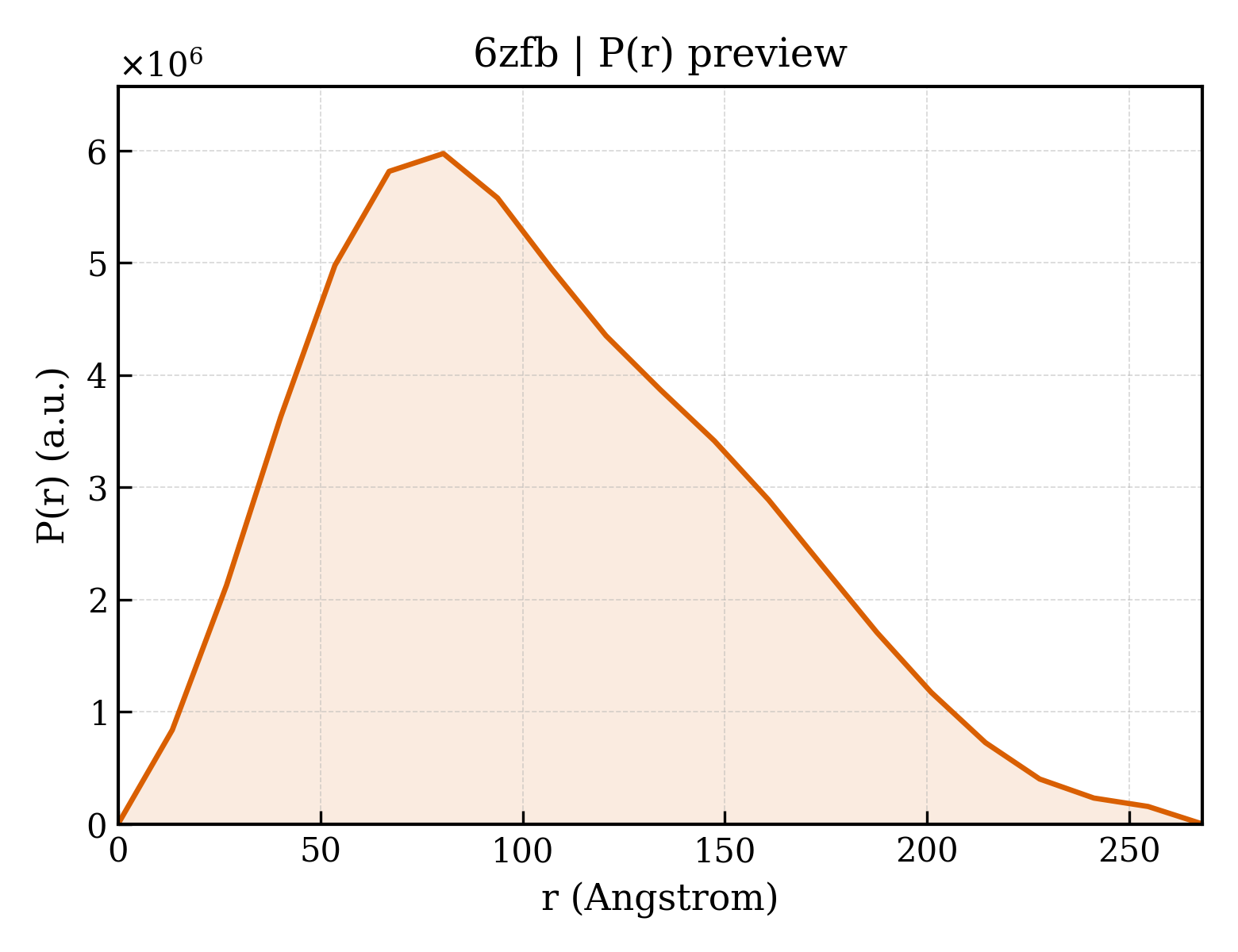

6zfb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	77.78 Å
Rg (electron density)	77.89 Å
Total Rg	77.77 Å
Atom count	57505
Residues	7313
Excluded volume	1023100 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6zfb__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit delta
Molecular weight formula_weight	16359.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,d
Atom count atom_count	57505

MGIKQYSQEELKEMALVEIAHELFEEHKKPVPFQELLNEIASLLGVKKEELGDRIAQFYTDLNIDGRFLALSDQTWGLRSWYPYDQLDEETQPTVKAKKKKAKKAVEEDLDEDDDDLEIEEDIIDEDDEDYDDEEEEIK

Entity 2 Entity 2 polymer

Description description	RNA polymerase subunit omega
Molecular weight formula_weight	8228.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,e

MIYKVFYQEKADEVPVREKTDSLYIEGVSERDVRTKLKEKKLNIEFITPVNGAFLEYEQQSENFKVLEL

Entity 3 Entity 3 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	34842.4 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,V,u,v

MIEIEKPKIETVEISDDAKFGKFVVEPLERGYGTTLGNSLRRILLSSLPGAAVTSIQIDGVLHEFSTIEGVVEDVTTIILHIKKLALKIYSDEEKTLEIDVQGEGTVTAADITHDSDVEILNPDLHIATLGENASFRVRLTAQRGRGYTPADANKRDDQPIGVIPIDSIYTPVSRVSYQVENTRVGQVANYDKLTLDVWTDGSTGPKEAIALGSKILTEHLNIFVGLTDEAQHAEIMVEKEEDQKEKVLEMTIEELDLSVRSYNCLKRAGINTVQELANKTEEDMMKVRNLGRKSLEEVKAKLEELGLGLRKDD

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	133847.9 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,x

MTGQLVQYGRHRQRRSYARISEVLELPNLIEIQTSSYQWFLDEGLREMFQDISPIEDFTGNLSLEFIDYSLGEPKYPVEESKERDVTYSAPLRVKVRLINKETGEVKDQDVFMGDFPIMTDTGTFIINGAERVIVSQLVRSPSVYFSGKVDKNGKKGFTATVIPNRGAWLEYETDAKDVVYVRIDRTRKLPVTVLLRALGFGSDQEILDLIGENEYLRNTLDKDNTENSDKALLEIYERLRPGEPPTVENAKSLLDSRFFDPKRYDLANVGRYKINKKLHIKNRLFNQRLAETLVDPETGEILAEKGQILDRRTLDKVLPYLENGIGFRKLYPNGGVVEDEVTLQSIKIFAPTDQEGEQVINVIGNAYIEEEIKNITPADIISSISYFFNLLHGVGDTDDIDHLGNRRLRSVGELLQNQFRIGLSRMERVVRERMSIQDTNTITPQQLINIRPVIASIKEFFGSSQLSQFMDQTNPLAELTHKRRLSALGPGGLTRERAGMEVRDVHYSHYGRMCPIETPEGPNIGLINSLSSYAKVNRFGFIETPYRRVDPETGKVTGRIDYLTADEEDNYVVAQANARLDDEGAFIDDSIVARFRGENTVVSRNRVDYMDVSPKQVVSAATACIPFLENDDSNRALMGANMQRQAVPLMQPEAPFVGTGMEYVSGKDSGAAVICKHPGIVERVEAKNVWVRRYEEVDGQKVKGNLDKYSLLKFVRSNQGTCYNQRPIVSVGDEVVKGEILADGPSMELGELALGRNVMVGFMTWDGYNYEDAIIMSERLVKDDVYTSIHIEEYESEARDTKLGPEEITRDIPNVGEDALRNLDDRGIIRIGAEVKDGDLLVGKVTPKGVTELTAEERLLHAIFGEKAREVRDTSLRVPHGGGGIIHDVKVFNREDGDELPPGVNQLVRVYIVQKRKISEGDKMAGRHGNKGVISKILPEEDMPYLPDGTPIDIMLNPLGVPSRMNIGQVLELHMGMAARYLGIHIASPVFDGAREEDVWETLEEAGMSRDAKTVLYDGRTGEPFDNRVSVGIMYMIKLAHMVDDKLHARSTGPYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEILTVKSDDVVGRVKTYEAIVKGDNVPEPGVPESFKVLIKELQSLGMDVKILSGDEEEIEMRDLEDEEDAKQADGLALSGDEEPEETASADVERDVVTKE

Entity 5 Entity 5 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	134445.0 kDa
EC 编号 ec_number	2.7.7.6
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	Y,y

MLDVNNFEYMNIGLASPDKIRSWSFGEVKKPETINYRTLKPEKDGLFCERIFGPTKDWECHCGKYKRVRYKGVVCDRCGVEVTRAKVRRERMGHIELAAPVSHIWYFKGIPSRMGLVLDMSPRALEEVIYFASYVVTDPANTPLEKKQLLSEKEYRAYLDKYGNKFQASMGAEAIHKLLQDIDLVKEVDMLKEELKTSQGQRRTRAIKRLEVLEAFRNSGNKPSWMILDVLPVIPPELRPMVQLDGGRFATSDLNDLYRRVINRNNRLKRLLDLGAPSIIVQNEKRMLQEAVDALIDNGRRGRPVTGPGNRPLKSLSHMLKGKQGRFRQNLLGKRVDYSGRSVIVVGPHLKMYQCGLPKEMALELFKPFVMKELVEKGLAHNIKSAKRKIERVQPEVWDVLESVIKEHPVLLNRAPTLHRLGIQAFEPTLVEGRAIRLHPLVCTAYNADFDGDQMAVHVPLSAEAQAEARILMLAAQNILNPKDGKPVVTPSQDMVLGNYYLTLERAGAVGEGMVFKNTDEALLAYQNGYVHLHTRVAVAANSLKNVTFTEEQRSKLLITTVGKLVFNEILPESFPYMNEPTKSNIEEKTPDRFFLEKGADVKAVIAQQPINAPFKKGILGKIIAEIFKRFHITETSKMLDRMKNLGFKYSTKAGITVGVSDIVVLDDKQEILEEAQSKVDNVMKQFRRGLITEEERYERVISIWSAAKDVIQGKLMKSLDELNPIYMMSDSGARGNASNFTQLAGMRGLMANPAGRIIELPIKSSFREGLTVLEYFISTHGARKGLADTALKTADSGYLTRRLVDVAQDVIIRETDCGTDRGILAKPLKEGTETIERLEERLIGRFARKQVKHPETGEVLVNENELIDEDKALEIVEAGIEEVWIRSAFTCNTPHGVCKRCYGRNLATGSDVEVGEAVGIIAAQSIGEPGTQLTMRTFHTGGVAGDDITQGLPRIQELFEARNPKGQATITEIDGTVVEINEVRDKQQEIVVQGAVETRSYTAPYNSRLKVAEGDKITRGQVLTEGSIDPKELLKVTDLTTVQEYLLHEVQKVYRMQGVEIGDKHVEVMVRQMLRKVRVIDAGDTDVLPGTLLDIHQFTEANKKVLLEGNRPATGRPVLLGITKASLETDSFLSAASFQETTRVLTDAAIKGKRDELLGLKENVIIGKLVPAGTGMMKYRKVKPVSNVQPTDDMVPVE

Entity 6 Entity 6 polymer

Description description	DNA helicase
Molecular weight formula_weight	90052.5 kDa
EC 编号 ec_number	3.6.4.12
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,h

MNQQDKEWKEEQSRIDEVLKELEKKERFLETSAGGLKHDIIGLRKSFWEDVKVNFDDAHEAIETMASIKQQAELLSDREHNHRRMDQQLKRIHQLKKSPYFGRIDFIENGEEQAERIYIGLASCLDEKEEHFLIYDWRAPISSLYYNYSPGKAEYEVPGETIEGEMVLKRQFMIKNGTLKAMFNTDMTIGDEMLQEVLSHHSDTQMKNIVSTIQKEQNQIIRNEKSKILIVQGAAGSGKTSAALQRVAYLLYRHRGVIDAGQIVLFSPNFLFNSYVSSVLPELGEENMEQATFQEYIEHRLGRKFKCESPFDQLEYCLTETKGGDFPTRLAGITWKAGLSFQQFINEYVTRLSSEGMIFKNIIFRGQKLITKEQIQSYFYSLDQNHSIPNRMEQTAKWLLSELNKLEKKERRKDWVVHEAELLDKEDYLDVYKKLQERKRFSESTFNDYQREQQLLAAIIVKKAFKPLKQAVRLLAFLDVTQLYLQLFSGWGGKFQHEKMDAIGELTRSAFTDNKLLYEDAAPFLYMQDLIEGRKKNTKIKHLFIDEAQDYSPFQMAYMRSIFPAASMTVLGDINQSIYAHTINGDQRMDACFEDEPAEYVRLKRTYRSTRQIVEFTKAMLQDGADIEPFNRSGEMPLVVKTEGHESLCQKLAQEIGRLKKKGHETIAVICKTAHQCIQAHAHMSEYTDVRLIHKENQPFQKGVCVIPVYLAKGIEFDAVLVYDASEEHYHTEHDRRLLYTACTRAMHMLAVFYTGEASPFVTAVPPHLYQIAE

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 9 domains

CATH v4.4 (9 domains)

Domain ID domain_id	6zfbH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	6zfbX01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	6zfbY01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

Domain ID domain_id	6zfbY02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

Domain ID domain_id	6zfbh01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	6zfbu01
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	120 — RNA Polymerase Alpha Subunit; Chain A, domain 2
Homologous superfamily homologous superfamily	12 — DNA-directed RNA polymerase, insert domain

Domain ID domain_id	6zfbx01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	150 — RNA polymerase II, Rpb2 subunit, wall domain

Domain ID domain_id	6zfby01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	274 — Enzyme I; Chain A, domain 2
Homologous superfamily homologous superfamily	100 — RNA polymerase Rpb1, domain 3

Domain ID domain_id	6zfby02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	132 — Topoisomerase I; Chain A, domain 4
Homologous superfamily homologous superfamily	30 — RNA polymerase Rpb1 funnel domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	176374
