SAXSdb — 6wy1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dengue 2 soluble recombinant envelope

Dengue virus 2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 281–677	Mutation：G106D, A259W, T262R, F279W, T280P	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.5；296 K；15% PEG 3350 pH 4.4, 0.1M Sodium Acetate Trihydrate + 0.1M Sodium Iodide	Resolution 3.42 Å R-free 0.337

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6WY1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3J35 Cryo-EM reconstruction of Dengue virus at 37 C Deposited 2013-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 180 PDB declaration: 180-meric	Chain A 281–675（395 aa） Fragment：UNP residues 281-675 Chain B 281–675（395 aa） Fragment：UNP residues 281-675 Chain C 281–675（395 aa） Fragment：UNP residues 281-675	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer NTE；pH 7.3；NTE cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane using a homemade plunger.	Resolution 35.00 Å
3J35 Cryo-EM reconstruction of Dengue virus at 37 C Deposited 2013-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 281–675（395 aa） Fragment：UNP residues 281-675 Chain B 281–675（395 aa） Fragment：UNP residues 281-675 Chain C 281–675（395 aa） Fragment：UNP residues 281-675	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer NTE；pH 7.3；NTE cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane using a homemade plunger.	Resolution 35.00 Å
3J35 Cryo-EM reconstruction of Dengue virus at 37 C Deposited 2013-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 15 PDB declaration: pentadecameric	Chain A 281–675（395 aa） Fragment：UNP residues 281-675 Chain B 281–675（395 aa） Fragment：UNP residues 281-675 Chain C 281–675（395 aa） Fragment：UNP residues 281-675	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer NTE；pH 7.3；NTE cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane using a homemade plunger.	Resolution 35.00 Å
3J35 Cryo-EM reconstruction of Dengue virus at 37 C Deposited 2013-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 18 PDB declaration: octadecameric	Chain A 281–675（395 aa） Fragment：UNP residues 281-675 Chain B 281–675（395 aa） Fragment：UNP residues 281-675 Chain C 281–675（395 aa） Fragment：UNP residues 281-675	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer NTE；pH 7.3；NTE cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane using a homemade plunger.	Resolution 35.00 Å
3J35 Cryo-EM reconstruction of Dengue virus at 37 C Deposited 2013-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 281–675（395 aa） Fragment：UNP residues 281-675 Chain B 281–675（395 aa） Fragment：UNP residues 281-675 Chain C 281–675（395 aa） Fragment：UNP residues 281-675	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer NTE；pH 7.3；NTE cryo-EM vitrification conditions 100 K；Cryogen ETHANE；Plunged into liquid ethane using a homemade plunger.	Resolution 35.00 Å
6WER DENV2 NS1 in complex with neutralizing 2B7 Fab fragment Deposited 2020-04-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 775–1127（353 aa） Chain B 775–1127（353 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；293 K；23% PEG 3350, 0.25 M MgCl2, 0.1 M sodium acetate pH 5.2	Resolution 3.96 Å R-free 0.311
6ZQU Cryo-EM structure of mature Dengue virus 2 at 3.1 angstrom resolution Deposited 2020-07-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 360 PDB declaration: 360-meric	Chain A 281–775（495 aa） Chain C 281–775（495 aa） Chain E 281–775（495 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 360	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；PBS buffer cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
7K93 DENV2 NS1 in complex with neutralizing 2B7 single chain Fab variable region (scFv) Deposited 2020-09-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 775–1127（353 aa） Chain B 775–1127（353 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；50 mM Tris pH 8.5, 50 mM (NH4)2SO4, 10% (v/v) glycerol	Resolution 2.89 Å R-free 0.269
7K93 DENV2 NS1 in complex with neutralizing 2B7 single chain Fab variable region (scFv) Deposited 2020-09-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 775–1127（353 aa） Chain D 775–1127（353 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；50 mM Tris pH 8.5, 50 mM (NH4)2SO4, 10% (v/v) glycerol	Resolution 2.89 Å R-free 0.269

4 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	D0EPS0_9FLAV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–397； UniProt 281–677

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6wy1
Deposition date deposition_date	2020-05-12
Structure title title	Crystal structure of an engineered thermostable dengue virus 2 envelope protein dimer
Keywords keywords	Dengue virus, envelope protein, thermostable, computational protein design, protein engineering, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.39 Å
Radius of gyration Rg (electron density) rg_electron	34.75 Å
Forward intensity I(0) i0	30435600.00
Molecular weight molecular_weight	43140.0 kDa
Excluded volume excluded_volume	53993 Å³
Envelope volume envelope_volume	74253 Å³
Hydration-shell volume shell_volume	21061 Å³
Envelope diameter envelope_diameter	129.9 Å
Shell Rg shell_rg	34.72 Å
Envelope Rg envelope_rg	34.73 Å
Shape Rg shape_rg	34.77 Å
Total Rg total_rg	34.71 Å
Total atoms total_atoms	3018
Residues n_residues	383
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

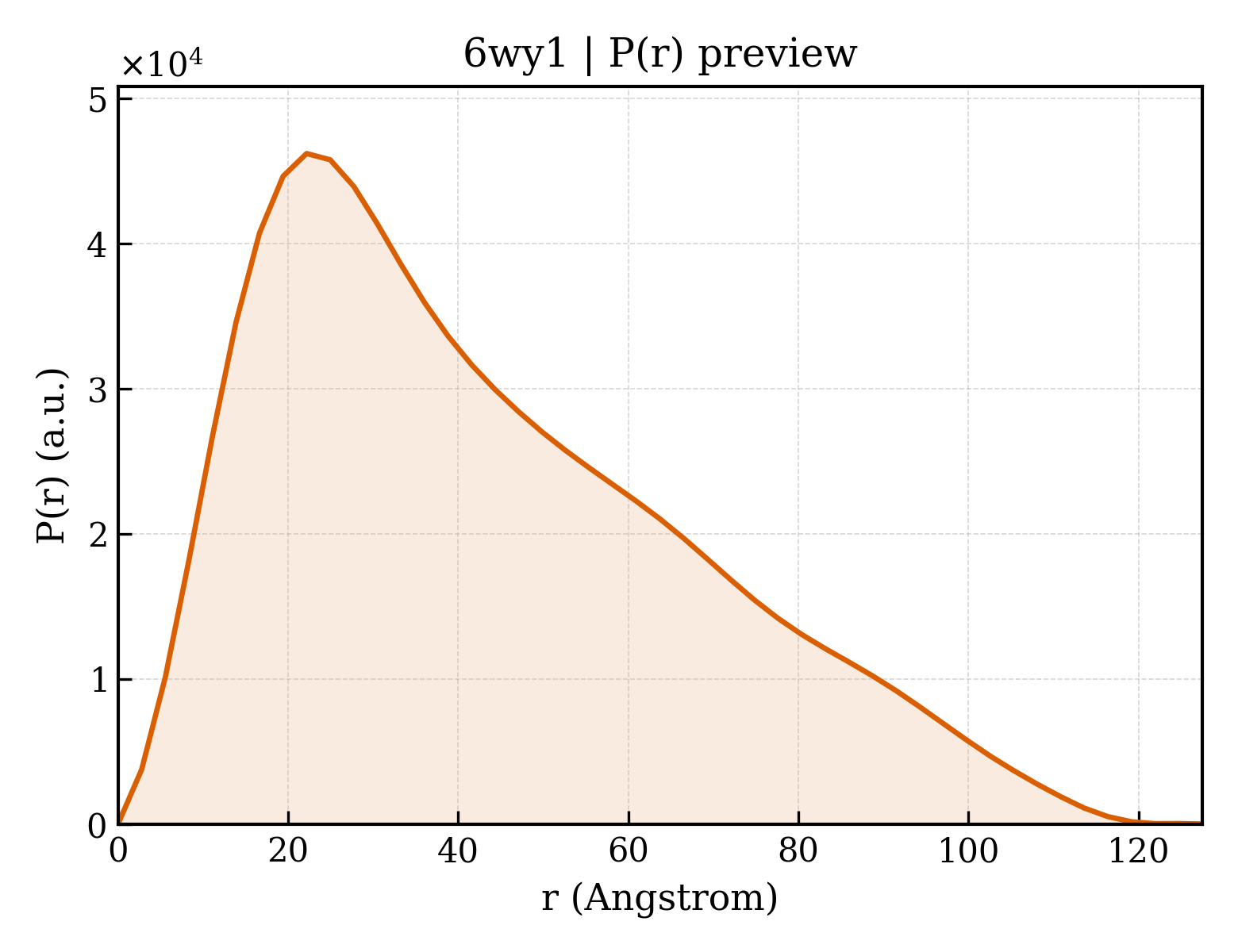

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	127.5 Å
Rg (real space) rg_real	35.05 Å
Rg uncertainty (real space) rg_real_error	1.71 Å
I(0) (real space) i0_real	3.0440e+07
I(0) uncertainty (real space) i0_real_error	5.4980e+05
Rg (reciprocal space) rg_reciprocal	34.64 Å
I(0) (reciprocal space) i0_reciprocal	30420000.0000
Solution quality estimate total_estimate	0.6787
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.2 Å
Skewness Skewness skewness	0.650
Kurtosis Kurtosis kurtosis	-0.375
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2760000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.291; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.117; Smooth: 0.828

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Dengue 2 soluble recombinant envelope
Molecular weight formula_weight	45694.3 kDa
Mutation mutation	G106D, A259W, T262R, F279W, T280P
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3018

MRCIGMSNRDFVEGVSGGSWVDIVLEHGSCVTTMAKNKPTLDFELIKTEAKQPATLRKYCIEAKLTNTTTESRCPTQGEPSLNEEQDKRFVCKHSMVDRGWGNGCDLFGKGGIVTCAMFRCKKNMEGKVVQPENLEYTIVITPHSGEEHAVGNDTGKHGKEIKITPQSSITEAELTGYGTVTMECSPRTGLDFNEMVLLQMENKAWLVHRQWFLDLPLPWLPGADTQGSNWIQKETLVTFKNPHAKKQDVVVLGSQEGWMHRALTGATEIQMSSGNLLWPGHLKCRLRMDKLQLKGMSYSMCTGKFKVVKEIAETQHGTIVIRVQYEGDGSPCKIPFEIMDLEKRHVLGRLITVNPIVTEKDSPVNIEAEPPFGDSYIIIGVEPGQLKLNWFKKGSSGGSHHHHHHHH

来源 Source

来源生物 organism	Dengue virus 2
NCBI Class编号 ncbi_taxonomy_id	11060
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	125.800 Å
Unit-cell length b length_b	125.800 Å
Unit-cell length c length_c	142.637 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 6 2 2
Space-group number int_tables_number	177
Crystal system crystal_system	hexagonal

Resolution resolution	3.420 Å
Low-resolution limit resolution_low	59.670 Å
R factor r_factor	0.3187
R_work r_work	0.3175
R_free r_free	0.3366

fit	/app/data/saxs_computation/wy/6wy1/6wy1.fit
pddf	/app/data/pr_computation/wy/6wy1/6wy1.pr.out
profile	/app/data/saxs_computation/wy/6wy1/6wy1.dat
