6xp6

3C11-DQ2-glia-a2 complex

Method: X-RAY DIFFRACTION D_max: 213.2 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class II HLA-DQ-alpha chain

Homo sapiens

UniProt O19705

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 2 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 1–183	Not recorded	MHC class II HLA-DQ-beta-1 × 1 （O19712） 3.C11 IgH Fab × 1 3.C11 IgK Fab × 1 DQ2-glia-a2 peptide × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 IPA ISOPROPYL ALCOHOL × 7 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；10% PEG 4000 20% 2-propanol 0.1M HEPES	Resolution 2.40 Å R-free 0.212
2	Other combination Heteromer Protein × 5 其他Polymer 3 PDB declaration: pentameric（5） Consistent with protein copy count	Chain D； UniProt 1–183	Not recorded	MHC class II HLA-DQ-beta-1 × 1 （O19712） 3.C11 IgH Fab × 1 3.C11 IgK Fab × 1 DQ2-glia-a2 peptide × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;beta-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 IPA ISOPROPYL ALCOHOL × 5 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；10% PEG 4000 20% 2-propanol 0.1M HEPES	Resolution 2.40 Å R-free 0.212

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6XP6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5KSV Crystal structure of HLA-DQ2.5-CLIP2 Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–193（193 aa） Fragment：UNP residues 1-193	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M BIS-TRIS, pH 5.5, 22% PEG 3350	Resolution 2.19 Å R-free 0.210
6U3N LS2.8/3.15 - DQ2-P.fluor-alpha1a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–183（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；22% PEG3350, 0.2M Na-K Tartrate, 0.1M MES pH6.5	Resolution 2.80 Å
6U3O JR51 DQ2-p.aeru-alpha2a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–183（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23%PEG3350, 0.01mM Na-Acetate, 0.1 M Tris pH8.0	Resolution 2.74 Å
6U3O JR51 DQ2-p.aeru-alpha2a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–183（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23%PEG3350, 0.01mM Na-Acetate, 0.1 M Tris pH8.0	Resolution 2.74 Å

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O19705_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–183； UniProt 1–183 Author chain D； PDBConstruct 1–183； UniProt 1–183

MHC class II HLA-DQ-beta-1

Homo sapiens

UniProt O19712

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 2 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 1–192	Not recorded	MHC class II HLA-DQ-alpha chain × 1 （O19705） 3.C11 IgH Fab × 1 3.C11 IgK Fab × 1 DQ2-glia-a2 peptide × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 ;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 IPA ISOPROPYL ALCOHOL × 7 CL CHLORIDE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；10% PEG 4000 20% 2-propanol 0.1M HEPES	Resolution 2.40 Å R-free 0.212
2	Other combination Heteromer Protein × 5 其他Polymer 3 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 1–192	Not recorded	MHC class II HLA-DQ-alpha chain × 1 （O19705） 3.C11 IgH Fab × 1 3.C11 IgK Fab × 1 DQ2-glia-a2 peptide × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ;beta-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 IPA ISOPROPYL ALCOHOL × 5 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293.15 K；10% PEG 4000 20% 2-propanol 0.1M HEPES	Resolution 2.40 Å R-free 0.212

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 6XP6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5KSU Crystal structure of HLA-DQ2.5-CLIP1 at 2.73 resolution Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–198（198 aa） Fragment：UNP residues 1-198	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000, ammonium sulphate, sodium cacodylate, glycerol	Resolution 2.73 Å R-free 0.249
5KSU Crystal structure of HLA-DQ2.5-CLIP1 at 2.73 resolution Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 1–198（198 aa） Fragment：UNP residues 1-198	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000, ammonium sulphate, sodium cacodylate, glycerol	Resolution 2.73 Å R-free 0.249
5KSV Crystal structure of HLA-DQ2.5-CLIP2 Deposited 2016-07-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–198（198 aa） Fragment：UNP residues 1-198	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M BIS-TRIS, pH 5.5, 22% PEG 3350	Resolution 2.19 Å R-free 0.210
6MFF HLA-DQ2-glia-omega1 Deposited 2018-09-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23% PEG3350 and 0.1 M NaH2PO4, pH 6	Resolution 2.60 Å R-free 0.250
6MFG HLA-DQ2-glia-alpha1 Deposited 2018-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–192（192 aa） Chain F 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；23% PEG3350 and 0.1 M NaH2PO4, pH 6	Resolution 2.00 Å R-free 0.222
6U3M DQ2-P.fluor-alpha1a Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–192（192 aa）	Not recorded	GOL GLYCEROL × 2 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG3350 and 0.15M NH4H2PO4	Resolution 1.90 Å R-free 0.220
6U3M DQ2-P.fluor-alpha1a Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–192（192 aa）	Not recorded	GOL GLYCEROL × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；18% PEG3350 and 0.15M NH4H2PO4	Resolution 1.90 Å R-free 0.220
6U3N LS2.8/3.15 - DQ2-P.fluor-alpha1a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；22% PEG3350, 0.2M Na-K Tartrate, 0.1M MES pH6.5	Resolution 2.80 Å
6U3O JR51 DQ2-p.aeru-alpha2a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 1–192（192 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23%PEG3350, 0.01mM Na-Acetate, 0.1 M Tris pH8.0	Resolution 2.74 Å
6U3O JR51 DQ2-p.aeru-alpha2a complex Deposited 2019-08-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 1–192（192 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；23%PEG3350, 0.01mM Na-Acetate, 0.1 M Tris pH8.0	Resolution 2.74 Å
7SG0 W316 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；24% PEG3350, 0.25 M (NH4)2SO4 and 0.1 M Tris/HCl at pH 8.0	Resolution 3.00 Å R-free 0.230
7SG1 XPA5 TCR in complex with HLA-DQ2-alpha1 Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.258
7SG1 XPA5 TCR in complex with HLA-DQ2-alpha1 Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.258
7SG2 XPA5 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.259
7SG2 XPA5 TCR in complex with HLA-DQ2-omega1 Deposited 2021-10-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；Mother liquor: 16-18% PEG3350, 0.12-0.14 M CaOAc, 0.1 M Tris/HCl at pH 8.0, Additives: 2 mM reduced and oxidised Glutathione	Resolution 3.10 Å R-free 0.259
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain L 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W83 HLA-DQ2.5-alpha1 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；294 K；0.1 M HEPES (pH7.5), 25.0 %w/v Polyethylene glycol 1,000, and 20 %v/v Glycerol as cryoprotectant	Resolution 2.82 Å R-free 0.321
8W84 HLA-DQ2.5-alpha2 gliadin peptide in complex with DQN0344AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；80 mM di-Sodium malonate (pH4.0), 9.6 %w/v Polyethylene glycol 3,350, and 25 %v/v Ethylene glycol as cryoprotectant	Resolution 2.10 Å R-free 0.325
8W85 HLA-DQ2.5-gamma2 gliadin peptide in complex with DQN0385AE01 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Ammonium sulfate, 10.0 %w/v Polyethylene glycol 3,350, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.77 Å R-free 0.300
8W85 HLA-DQ2.5-gamma2 gliadin peptide in complex with DQN0385AE01 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；294 K；0.1 M Ammonium sulfate, 10.0 %w/v Polyethylene glycol 3,350, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.77 Å R-free 0.300
8W86 HLA-DQ2.5-B/C hordein peptide in complex with DQN0385AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；0.1 M MES monohydrate (pH5.5), 12.0 %w/v Polyethylene glycol 8,000, 0.1 M Calcium acetate hydrate, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.24 Å R-free 0.280
8W86 HLA-DQ2.5-B/C hordein peptide in complex with DQN0385AE02 Deposited 2023-08-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain H 1–190（190 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；294 K；0.1 M MES monohydrate (pH5.5), 12.0 %w/v Polyethylene glycol 8,000, 0.1 M Calcium acetate hydrate, and 30 %v/v Ethylene glycol as cryoprotectant	Resolution 2.24 Å R-free 0.280
9EJG Peptide-independent T cell receptor recognition of HLA-DQ2 Deposited 2024-11-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–194（194 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 FMT FORMIC ACID × 5 GOL GLYCEROL × 2 ACT ACETATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% Tacsimate, pH 8.0, 20-24% w/v PEG3350	Resolution 2.20 Å R-free 0.225
9EJH Peptide-independent T cell receptor recognition of HLA-DQ2 Deposited 2024-11-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 1–192（192 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ACT ACETATE ION × 4 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；8% Tacsimate, pH 8.0, 20-24% w/v PEG3350	Resolution 2.45 Å R-free 0.232

16 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	O19712_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–193； UniProt 1–192 Author chain E； PDBConstruct 2–193； UniProt 1–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

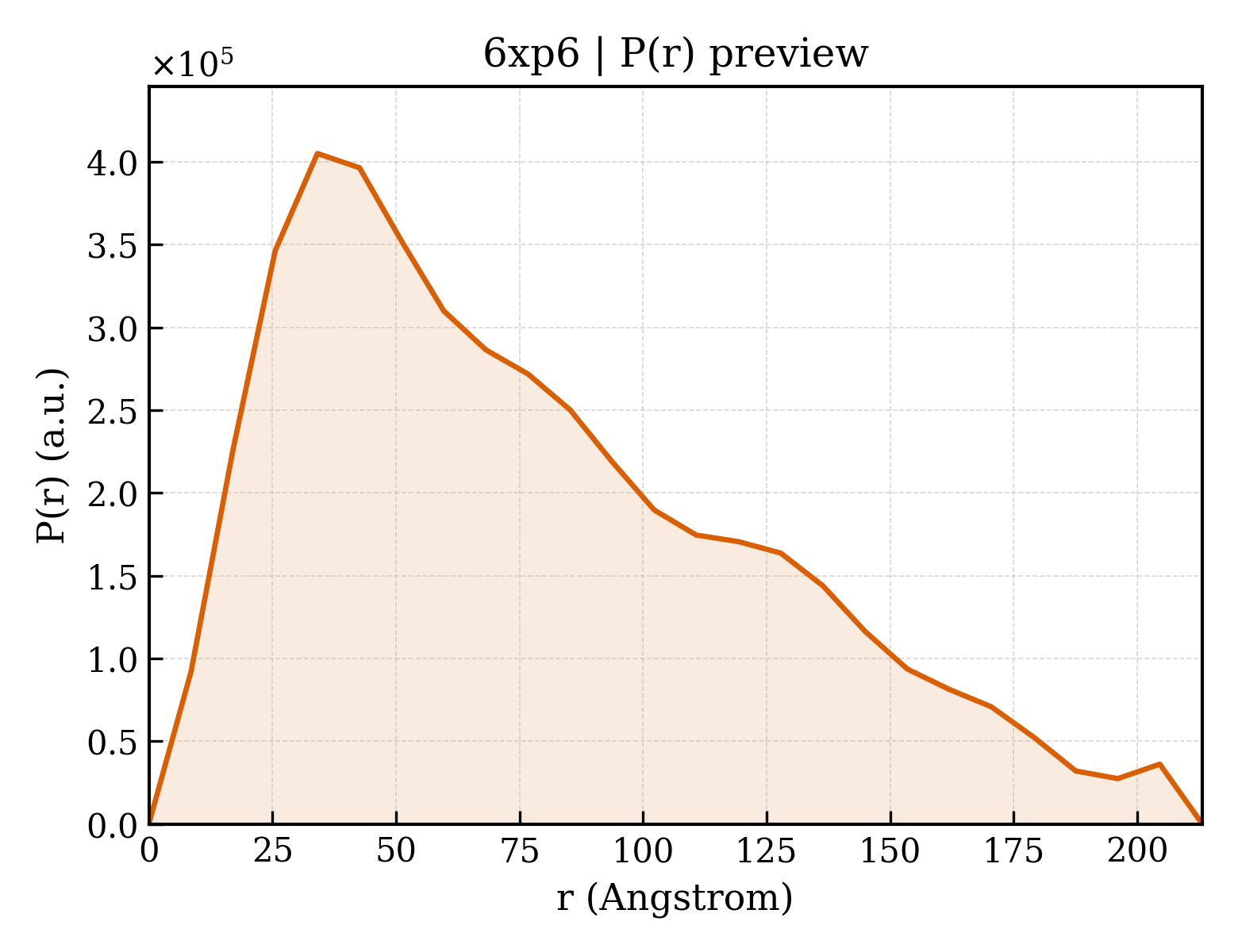

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6xp6
Deposition date deposition_date	2020-07-08
Structure title title	3C11-DQ2-glia-a2 complex
Keywords keywords	Complex Antibody Human Leucocyte Antigen, PEPTIDE BINDING PROTEIN; PEPTIDE BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	61.85 Å
Radius of gyration Rg (electron density) rg_electron	63.98 Å
Forward intensity I(0) i0	483072000.00
Molecular weight molecular_weight	181700.0 kDa
Excluded volume excluded_volume	227060 Å³
Envelope volume envelope_volume	341670 Å³
Hydration-shell volume shell_volume	53579 Å³
Envelope diameter envelope_diameter	233.2 Å
Shell Rg shell_rg	48.26 Å
Envelope Rg envelope_rg	64.83 Å
Shape Rg shape_rg	63.93 Å
Total Rg total_rg	63.61 Å
Total atoms total_atoms	12792
Residues n_residues	1605
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	213.2 Å
Rg (real space) rg_real	63.47 Å
Rg uncertainty (real space) rg_real_error	2.56 Å
I(0) (real space) i0_real	4.8290e+08
I(0) uncertainty (real space) i0_real_error	1.0590e+07
Rg (reciprocal space) rg_reciprocal	60.39 Å
I(0) (reciprocal space) i0_reciprocal	480600000.0000
Solution quality estimate total_estimate	0.6702
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.1 Å
Skewness Skewness skewness	0.680
Kurtosis Kurtosis kurtosis	-0.336
Angular range angular_range	— – 0.1250 Å⁻¹
Current regularization parameter α current_alpha	0.0004
Highest regularization parameter α highest_alpha	16210000.0000
Real-space data points n_real_points	26
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.326; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.349; Smooth: 0.390

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	MHC class II HLA-DQ-alpha chain
Molecular weight formula_weight	21517.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	13695

EDIVADHVASYGVNLYQSYGPSGQYTHEFDGDEQFYVDLGRKETVWCLPVLRQFRFDPQFALTNIAVLKHNLNSLIKRSNSTAATNEVPEVTVFSKSPVTLGQPNILICLVDNIFPPVVNITWLSNGHSVTEGVSETSFLSKSDHSFFKISYLTLLPSAEESYDCKVEHWGLDKPLLKHWEPETSGDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	MHC class II HLA-DQ-beta-1
Molecular weight formula_weight	23374.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

SRDSPEDFVYQFKGMCYFTNGTERVRLVSRSIYNREEIVRFDSDVGEFRAVTLLGLPAAEYWNSQKDILERKRAAVDRVCRHNYQLELRTTLQRRVEPTVTISPSRTEALNHHNLLVCSVTDFYPAQIKVRWFRNDQEETAGVVSTPLIRNGDWTFQILVMLEMTPQRGDVYTCHVEHPSLQSPITVEWRAQSTGGDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	3.C11 IgH Fab
Molecular weight formula_weight	23575.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,J

QVQLVQSGAEVKKPGSSVKVSCKASGGTVRSRVHAISWVRQAPGQGLEWMGGIIPIFGTANYAQKFQGRVTITADESTSTAYMELSSLRSEDTAVYYCARDVQRMGMDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	3.C11 IgK Fab
Molecular weight formula_weight	23426.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,I

DIQMTQSPSSVSTSVGDRVTITCRASQDISNWLAWYQQKPGKAPKLLIYDSSTLQSGVPSRFSGSGSGTDFTLTISTLQPEDFATYYCQQFNSYPLTFGGGTKVDIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DQ2-glia-a2 peptide
Molecular weight formula_weight	2438.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

AAPQPELPYPQPGSGGSIEGRGGSGA

来源 Source

来源生物 organism	Triticum aestivum
NCBI Class编号 ncbi_taxonomy_id	4565
宿主生物 host_organism	Trichoplusia ni

Entity 6 Entity 6 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 branched

Description description	;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	1203.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 branched

Description description	;beta-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 10 Entity 10 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	man
Copy count entity_count	12

Entity 11 Entity 11 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 12 Entity 12 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	815

▼

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d6xp6a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d6xp6a2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6xp6b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d6xp6b2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6xp6d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d6xp6d2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

Domain ID domain_id	d6xp6e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.19 — MHC antigen-recognition domain
Superfamily Superfamily superfamily	d.19.1 — MHC antigen-recognition domain
Family Family family	d.19.1.0 — automated matches

Domain ID domain_id	d6xp6e2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6xp6g_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6xp6h_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6xp6i_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d6xp6j_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

CATH v4.4 (8 domains)

Domain ID domain_id	6xp6G01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6G02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6H01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6H02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6I01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6I02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6J01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	6xp6J02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.847 Å
Unit-cell length b length_b	143.047 Å
Unit-cell length c length_c	170.153 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	47.030 Å
R factor r_factor	0.1770
R_work r_work	0.1762
R_free r_free	0.2124

fit	/app/data/saxs_computation/xp/6xp6/6xp6.fit
pddf	/app/data/pr_computation/xp/6xp6/6xp6.pr.out
profile	/app/data/saxs_computation/xp/6xp6/6xp6.dat

3C11-DQ2-glia-a2 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class II HLA-DQ-alpha chain

State in the Current Structure

Other States of the Same Protein in the Database

MHC class II HLA-DQ-beta-1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 branched

Entity 7 Entity 7 branched

Entity 8 Entity 8 branched

Entity 9 Entity 9 non-polymer

Entity 10 Entity 10 non-polymer

Entity 11 Entity 11 non-polymer

Entity 12 Entity 12 water

7. Fold Classification (SCOP + CATH) 20 domains

SCOP 2.08 (12 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
