7bu0

Crystal structure of a OTU deubiquitinase in complex with Ub-PA

Method: X-RAY DIFFRACTION D_max: 128.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein

Legionella pneumophila subsp. pneumophila (strain Philadelphia 1 / ATCC 33152 / DSM 7513)

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–420 Chain B； UniProt 1–420	Not recorded	Polyubiquitin-B × 2 （J3QS39） AYE prop-2-en-1-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；289.15 K；0.1M Magnesium formate dihydrate 15% w/v PEG 3350	Resolution 2.43 Å R-free 0.255

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7BU0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6YK8 OTU-like deubiquitinase from Legionella -Lpg2529 Deposited 2020-04-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 14–310（297 aa） Chain B 14–310（297 aa）	Not recorded	PT PLATINUM (II) ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25 % PEG3350, 100 mM Tris-HCl pH 8.5, 200 mM NaCl	Resolution 2.42 Å R-free 0.283

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q5ZSI8_LEGPH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–420； UniProt 1–420 Author chain B； PDBConstruct 1–420； UniProt 1–420

Polyubiquitin-B

Homo sapiens

UniProt J3QS39

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 1–75 Chain D； UniProt 1–75	Not recorded	Uncharacterized protein × 2 （Q5ZSI8） AYE prop-2-en-1-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；289.15 K；0.1M Magnesium formate dihydrate 15% w/v PEG 3350	Resolution 2.43 Å R-free 0.255

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7BU0	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DEN Solution Structure of the Ubiquitin-Associated Domain of Human BMSC-UbP and its Complex with Ubiquitin Deposited 2006-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；298 K；Pressure ambient NMR sample composition 1mM HGB1-UBA \| 20mM phosphate, 100mM NaCl, pH6.5 NMR sample composition 1mM Ubiquitin \| 20mM phosphate, 100mM NaCl, pH6.5	Resolution not provided
2MBH NMR structure of EKLF(22-40)/Ubiquitin Complex Deposited 2013-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.5；300 K；Ionic strength (raw mmCIF value) 20 NMR sample composition 4 mM Ubi_unl, 0.8 mM [U-100% 15N] EKLF, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 4 mM EKLF_unl, 0.8 mM [U-100% 15N] Ubiquitin, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 4 mM EKLF_unl, 0.8 mM [U-100% 13C; U-100% 15N] Ubiquitin, 100% D2O \| 100% D2O NMR sample composition 4 mM Ubi_unl, 0.8 mM [U-100% 13C; U-100% 15N] EKLF, 100% D2O \| 100% D2O	Resolution not provided
3PRM Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-26% PEG 8000, 0.1 M Na cacodylate, 0.2 M Mg acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.267
3PRM Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-26% PEG 8000, 0.1 M Na cacodylate, 0.2 M Mg acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.30 Å R-free 0.267
3PRP Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-28% PEG 8000, 100 mM Na cacodylate pH 6.5, 100-250 mM Mg acetate, and 2% n-Octyl- -D-glucoside, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.212
3PRP Structural analysis of a viral OTU domain protease from the Crimean-Congo Hemorrhagic Fever virus in complex with human ubiquitin Deposited 2010-11-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；22-28% PEG 8000, 100 mM Na cacodylate pH 6.5, 100-250 mM Mg acetate, and 2% n-Octyl- -D-glucoside, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.212
5TXK CRYSTAL STRUCTURE OF USP35 C450S IN COMPLEX WITH UBIQUITIN Deposited 2016-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Not recorded	SO4 SULFATE ION × 3 EDO 1,2-ETHANEDIOL × 3 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；296 K；0.95 M ammonium sulphate 0.1 M HEPES	Resolution 1.84 Å R-free 0.183
5YDR Structure of DNMT1 RFTS domain in complex with ubiquitin Deposited 2017-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–73（73 aa） Fragment：UNP residues 1-73 Chain D 1–73（73 aa） Fragment：UNP residues 1-73	Not recorded	PO4 PHOSPHATE ION × 2 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；291 K；20mM Tris-HCl, 200mM sodium acetate, 25% PEG 4000	Resolution 2.00 Å R-free 0.233
6K4I The partially disordered conformation of ubiquitin (Q41N variant) Deposited 2019-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Mutation：Q41N	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4；278 K；Ionic strength (raw mmCIF value) 30；Pressure 2500 NMR sample composition 1.0 mM [U-99% 13C; U-99% 15N] ubiquitin, 30 mM D D-acetate, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.3 mM [U-99% 15N] ubiquitin, 30 mM D D-acetate, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6KOW Retracted state of S65/T66 double-phosphorylated ubiquitin Deposited 2019-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 150；Pressure 760 NMR sample composition 20 mM HEPES, 150 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6KOX Relaxed state of S65/T66 double-phosphorylated ubiquitin Deposited 2019-08-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 150；Pressure 760 NMR sample composition 20 mM HEPES, 150 mM sodium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
6NJG Ubiquitin Variant in Complex with Ubiquitin Interacting Motif Deposited 2019-01-03	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–78（78 aa）	Mutation：K6Q, L8I, G10V, K11M, T12R, T14A, K48M, Q62K, K63R, E64D, T66N, H68Y, L71S, R72S, G75S, G76L, M77R, Q78A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；2.1 M DL-Malic acid	Resolution 2.35 Å R-free 0.244
6NOG Poised-state Dot1L bound to the H2B-Ubiquitinated nucleosome Deposited 2019-01-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–76（76 aa）	Mutation：G76C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Solutions were prepared on the day of freezing and filtered though a 0.2 um filter prior to use. cryo-EM vitrification conditions Cryogen ETHANE；Blot once for 3.5 seconds before freezing	Resolution 3.90 Å
6O96 Dot1L bound to the H2BK120 Ubiquitinated nucleosome Deposited 2019-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–76（76 aa）	Mutation：G76C	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen PROPANE；blotted for 3s before plunging	Resolution 3.50 Å
6OAM Crystal Structure of ChlaDUB2 DUB domain Deposited 2019-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES sodium pH 7.5, 0.8 M sodium phosphate monobasic monohydrate, 0.8 M sodium phosphate monobasic, 0.1M Cesium chloride	Resolution 2.50 Å R-free 0.306
6OAM Crystal Structure of ChlaDUB2 DUB domain Deposited 2019-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1 M HEPES sodium pH 7.5, 0.8 M sodium phosphate monobasic monohydrate, 0.8 M sodium phosphate monobasic, 0.1M Cesium chloride	Resolution 2.50 Å R-free 0.306
6PZV Crystal Structure of Bovine DNMT1 RFTS domain in complex with H3K9me3 and Ubiquitin Deposited 2019-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–76（76 aa） Chain B 1–76（76 aa）	Not recorded	FLC CITRATE ANION × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；277 K；0.1M citric acid (pH 3.5), 28% PEG8000	Resolution 3.01 Å R-free 0.272
6PZV Crystal Structure of Bovine DNMT1 RFTS domain in complex with H3K9me3 and Ubiquitin Deposited 2019-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–76（76 aa） Chain F 1–76（76 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 3.5；277 K；0.1M citric acid (pH 3.5), 28% PEG8000	Resolution 3.01 Å R-free 0.272
6QF8 Solution NMR ensemble for human ubiquitin at 298K compiled using the CoMAND method Deposited 2019-01-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.8；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition 1.0 mM [U-99% 13C; U-99% 15N] human ubiquitin, 40 mM sodium phosphate, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
6TBM Structure of SAGA bound to TBP, including Spt8 and DUB Deposited 2019-11-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 18 PDB declaration: octadecameric	Chain R 1–75（75 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 20.00 Å
6UH5 Structural basis of COMPASS eCM recognition of the H2Bub nucleosome Deposited 2019-09-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 17 PDB declaration: nonadecameric	Chain Q 1–76（76 aa）	Mutation：G76C	ZN ZINC ION × 1 SAM S-ADENOSYLMETHIONINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
6XAA SARS CoV-2 PLpro in complex with ubiquitin propargylamide Deposited 2020-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–76（76 aa）	Mutation：G76 replaced with propargylamide Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；30% PEG4000, 0.2 M sodium acetate, 0.1 M Tris chloride, pH 8.5	Resolution 2.70 Å R-free 0.260
6XQC UbKEKS Deposited 2020-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–76（76 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition 500 uM [U-13C; U-15N] UbKEKS, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 500 uM [U-13C; U-15N] UbKEKS, 100% D2O \| 100% D2O	Resolution not provided
7BBD Crystal structure of monoubiquitinated TRIM21 RING (Ub-RING) In complex with ubiquitin charged Ube2N (Ube2N~Ub) and Ube2V2 Deposited 2020-12-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–74（74 aa）	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290.15 K；MOPSO, Bis-Tris, PEG 4K, 1,2,6-hexanetriol, Li, Na, K	Resolution 2.20 Å R-free 0.252
7E8I Structural insight into BRCA1-BARD1 complex recruitment to damaged chromatin Deposited 2021-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–76（76 aa）	Mutation：G76C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7NBB Branched Lys48- and Lys63-linked tri-ubiquitin (K48-K63-Ub3) in complex with synthetic nanobody NbSL3 Deposited 2021-01-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–72（72 aa） Chain B 1–76（76 aa） Chain C 1–76（76 aa）	Mutation：K48R K63R Mutation：K48R K63R	MG MAGNESIUM ION × 4 GOL GLYCEROL × 1 CL CHLORIDE ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277.15 K；0.1 M Bis-Tris pH 7.2 0.28 M MgCl2 21% PEG3350 0.15 M NaCl 0.05 M Tris/HCl pH 7.5	Resolution 1.55 Å R-free 0.212
7NBB Branched Lys48- and Lys63-linked tri-ubiquitin (K48-K63-Ub3) in complex with synthetic nanobody NbSL3 Deposited 2021-01-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–72（72 aa） Chain F 1–76（76 aa） Chain G 1–76（76 aa）	Mutation：K48R K63R Mutation：K48R K63R	MG MAGNESIUM ION × 3 GOL GLYCEROL × 1 CL CHLORIDE ION × 5 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；277.15 K；0.1 M Bis-Tris pH 7.2 0.28 M MgCl2 21% PEG3350 0.15 M NaCl 0.05 M Tris/HCl pH 7.5	Resolution 1.55 Å R-free 0.212
7NPO Branched K48-K63-Ub3 Deposited 2021-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 1–72（72 aa） Chain B 1–76（76 aa） Chain C 1–76（76 aa）	Mutation：K48R K63R Mutation：K48R K63R	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.2 M Ammonium acetate, 20 mM Tris pH 7.5, 50 mM NaCl, 0.1 M Sodium citrate tribasic dihydrate pH 5.6, 30% w/v PEG 4000; 22 mg/ml	Resolution 2.19 Å R-free 0.284
7QO4 26S proteasome WT-Ubp6-UbVS complex in the si state (ATPases, Rpn1, Ubp6, and UbVS) Deposited 2021-12-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain 9 1–76（76 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.00 Å
7QO6 26S proteasome Rpt1-RK -Ubp6-UbVS complex in the s2 state Deposited 2021-12-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 49 PDB declaration: 49-meric	Chain 9 1–76（76 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.30 Å
7UD5 Complex between MLL1-WRAD and an H2B-ubiquitinated nucleosome Deposited 2022-03-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 15 PDB declaration: heptadecameric	Chain O 1–76（76 aa）	Mutation：G76C	SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.25 Å
7US1 Structure of parkin (R0RB) bound to two phospho-ubiquitin molecules Deposited 2022-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–74（74 aa） Chain C 1–74（74 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 6 PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277.15 K；0.1M Bis-Tris propane pH 7.5, 20.5% PEG3350, 0.2M NaI	Resolution 2.48 Å R-free 0.258
7W3U USP34 catalytic domain in complex with UbPA Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–75（75 aa）	Not recorded	ZN ZINC ION × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 3350, 0.8M Magnesium chloride hexahydrate, 0.6mM Lyso PG, 1 mM Facade R-EPC	Resolution 3.13 Å R-free 0.245
7W3U USP34 catalytic domain in complex with UbPA Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–75（75 aa）	Not recorded	ZN ZINC ION × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 3350, 0.8M Magnesium chloride hexahydrate, 0.6mM Lyso PG, 1 mM Facade R-EPC	Resolution 3.13 Å R-free 0.245
7W3U USP34 catalytic domain in complex with UbPA Deposited 2021-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–75（75 aa）	Not recorded	ZN ZINC ION × 1 AYE prop-2-en-1-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；15% w/v PEG 3350, 0.8M Magnesium chloride hexahydrate, 0.6mM Lyso PG, 1 mM Facade R-EPC	Resolution 3.13 Å R-free 0.245
7W54 Crystal structure of a bacterial OTU DUB with Ub-PA Deposited 2021-11-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 1–75（75 aa） Chain D 1–75（75 aa） Chain E 1–75（75 aa） Chain F 1–75（75 aa）	Not recorded	AYE prop-2-en-1-amine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；299 K；100 mM Magnesium formate, 15% (w/v) PEG 3350, pH 8.0	Resolution 2.64 Å R-free 0.253
7YQK cryo-EM structure of gammaH2AXK15ub-H4K20me2 nucleosome bound to 53BP1 Deposited 2022-08-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain O 1–75（75 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
8A67 Branched Lys48- and Lys63-linked tri-ubiquitin (K48-K63-Ub3) in complex with matured synthetic nanobody NbSL3.3Q (3rd generation) Deposited 2022-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–72（72 aa） Chain B 1–76（76 aa） Chain C 1–76（76 aa）	Mutation：K48R K63R Mutation：K48R K63R	GOL GLYCEROL × 1 IPA ISOPROPYL ALCOHOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；Protein concentrated to 14.5 mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl. Mixed 200 nl protein with 100 nl mother liquor (0.1 M HEPES pH 7.5, 10% 2-propanol, 20% PEG4000). Crystals harvested and cryo-protected with Mother liquor supplemented with 30% glycerol.	Resolution 1.86 Å R-free 0.245
8A67 Branched Lys48- and Lys63-linked tri-ubiquitin (K48-K63-Ub3) in complex with matured synthetic nanobody NbSL3.3Q (3rd generation) Deposited 2022-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 1–72（72 aa） Chain F 1–76（76 aa） Chain G 1–76（76 aa）	Mutation：K48R K63R Mutation：K48R K63R	GOL GLYCEROL × 1 IPA ISOPROPYL ALCOHOL × 1 ZN ZINC ION × 1 CL CHLORIDE ION × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293.15 K；Protein concentrated to 14.5 mg/ml in 20 mM HEPES pH 7.5, 150 mM NaCl. Mixed 200 nl protein with 100 nl mother liquor (0.1 M HEPES pH 7.5, 10% 2-propanol, 20% PEG4000). Crystals harvested and cryo-protected with Mother liquor supplemented with 30% glycerol.	Resolution 1.86 Å R-free 0.245
8DU4 Complex between RbBP5-WDR5 and an H2B-ubiquitinated nucleosome Deposited 2022-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 11 PDB declaration: tridecameric	Chain O 1–76（76 aa）	Mutation：G76C	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.55 Å
8HQY Cryo-EM structure of SSX1 bound to the H2AK119Ub nucleosome at a resolution of 3.05 angstrom Deposited 2022-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain U 1–74（74 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å
8K6E LnaB-Actin-PRUb ternary complex Deposited 2023-07-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–75（75 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 AR6 [(2R,3S,4R,5R)-5-(6-AMINOPURIN-9-YL)-3,4-DIHYDROXY-OXOLAN-2-YL]METHYL[HYDROXY-[[(2R,3S,4R,5S)-3,4,5-TRIHYDROXYOXOLAN-2-YL]METHOXY]PHOSPHORYL] HYDROGEN PHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；289 K；PEG 8000; Sodium chloride; Sodium HEPES	Resolution 2.74 Å R-free 0.245
8T2D Ubiquitin variant i53:Mutant T12Y.T14E.L67R with 53BP1 Tudor domain Deposited 2023-06-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–74（74 aa）	Mutation：T12Y, T14E, L67R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；290 K；0.1 M MES pH 6.0, 0.2 M Trimethylamine N-oxide dehydrate, 13% w/v PEG MME 2000	Resolution 1.75 Å R-free 0.273
8WG5 Cryo-EM structure of USP16 bound to H2AK119Ub nucleosome Deposited 2023-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain U 1–75（75 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.05 Å
9KQO cryo-EM structure of RNF20/RNF40-RAD6A-Ub in complex with H2BS112GlcNAc nucleosome Deposited 2024-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 12 PDB declaration: tetradecameric	Chain B 1–75（75 aa）	Not recorded	ZN ZINC ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.48 Å
9NY4 USP21 bound to H2AK119ub nucleosome Deposited 2025-03-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: 12-meric	Chain U 1–76（76 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.98 Å

38 other PDB entries and 46 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	J3QS39_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–75； UniProt 1–75 Author chain D； PDBConstruct 1–75； UniProt 1–75

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

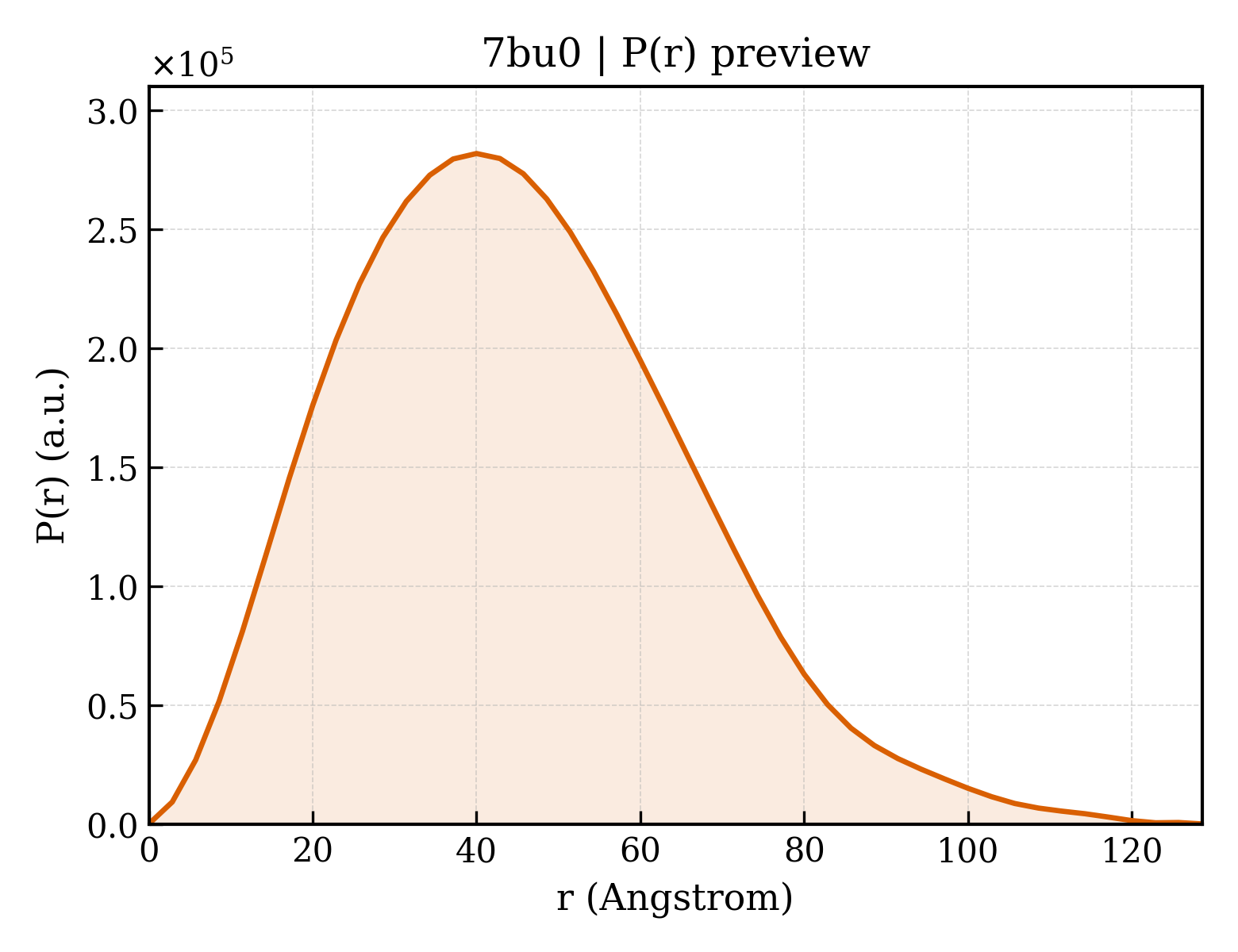

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7bu0
Deposition date deposition_date	2020-04-03
Structure title title	Crystal structure of a OTU deubiquitinase in complex with Ub-PA
Keywords keywords	complex, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.90 Å
Radius of gyration Rg (electron density) rg_electron	34.88 Å
Forward intensity I(0) i0	184959000.00
Molecular weight molecular_weight	110130.0 kDa
Excluded volume excluded_volume	138430 Å³
Envelope volume envelope_volume	182920 Å³
Hydration-shell volume shell_volume	44728 Å³
Envelope diameter envelope_diameter	135.5 Å
Shell Rg shell_rg	40.10 Å
Envelope Rg envelope_rg	35.17 Å
Shape Rg shape_rg	34.83 Å
Total Rg total_rg	35.44 Å
Total atoms total_atoms	7757
Residues n_residues	964
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.6 Å
Rg (real space) rg_real	35.00 Å
Rg uncertainty (real space) rg_real_error	1.36 Å
I(0) (real space) i0_real	1.8500e+08
I(0) uncertainty (real space) i0_real_error	3.2070e+06
Rg (reciprocal space) rg_reciprocal	34.94 Å
I(0) (reciprocal space) i0_reciprocal	184900000.0000
Solution quality estimate total_estimate	0.8392
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	40.0 Å
Skewness Skewness skewness	0.492
Kurtosis Kurtosis kurtosis	0.050
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	35030000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.681; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.935

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Uncharacterized protein
Molecular weight formula_weight	48711.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7957

MVRVLNLQKGVNMFNVDNSGKGNCLYYAYSISLMYYLRAKNNVKITEDIFNKLGLKEEDRARLRKLLSKDPDRAFTRDEIKTIIEPILGRATRDLAAEHTKVEFKSSPHDTPLFSSLHYAVEFGFKRSLQINESELTLLIDNDFSNPDYTEAEIYKVSGLLDALQEYILTRTPSVIEEFNRQWENKKQELKEQSLTEKEIQVHQATILDNILRKETIDFLLAENEKHLDEYREHLRREFVWGSEETLMVLHRAIQGERMVRNHEGRIEPVYDHEIILHVHRNGASPSYQAGSPEMILNNEGNVHWTSIIPDAIFTSKLTDKEEKLLDMLERMQSEYGSKELGVEKYSSISDWLSDLMKQIELIKTSPTAVTKQKEIELFFQLLAKATPKLASEPALRMSLGTLFSNFLECIPALMVENKL

来源 Source

来源生物 organism	Legionella pneumophila subsp. pneumophila (strain Philadelphia 1 / ATCC 33152 / DSM 7513)
NCBI Class编号 ncbi_taxonomy_id	272624
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Polyubiquitin-B
Molecular weight formula_weight	8519.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	prop-2-en-1-amine
Molecular weight formula_weight	57.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	200

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d7bu0c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d7bu0d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (2 domains)

Domain ID domain_id	7bu0C01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	7bu0D01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	66.930 Å
Unit-cell length b length_b	119.230 Å
Unit-cell length c length_c	84.530 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.31 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.430 Å
Low-resolution limit resolution_low	48.615 Å
R factor r_factor	0.2166
R_work r_work	0.2149
R_free r_free	0.2552

fit	/app/data/saxs_computation/bu/7bu0/7bu0.fit
pddf	/app/data/pr_computation/bu/7bu0/7bu0.pr.out
profile	/app/data/saxs_computation/bu/7bu0/7bu0.dat

Crystal structure of a OTU deubiquitinase in complex with Ub-PA

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uncharacterized protein

State in the Current Structure

Other States of the Same Protein in the Database

Polyubiquitin-B

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
