SAXSdb — 7ct3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mutual gliding motility protein C (MglC)

Myxococcus xanthus DK 1622

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–120	Non-standard monomer：Yes (specific site not provided by mmCIF)	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.5；291.15 K；0.2 M Lithium Sulfate Monohydrate, 0.1 M Tris-HCl pH 8.5, 30% w/v PEG 4000	Resolution 1.85 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7CT3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7CY1 Crystal Structure of MglC from Myxococcus xanthus Deposited 2020-09-03	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–120（120 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；291.15 K；2.8 M Sodium Acetate Trihydrate pH 7.0	Resolution 2.19 Å R-free 0.227

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q1D0B6_MYXXD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–120； UniProt 1–120

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ct3
Deposition date deposition_date	2020-08-17
Structure title title	Crystal Structure of MglC from Myxococcus xanthus
Keywords keywords	Roadblock/LC7 domain, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.77 Å
Radius of gyration Rg (electron density) rg_electron	13.35 Å
Forward intensity I(0) i0	3608230.00
Molecular weight molecular_weight	13267.0 kDa
Excluded volume excluded_volume	16520 Å³
Envelope volume envelope_volume	18355 Å³
Hydration-shell volume shell_volume	11656 Å³
Envelope diameter envelope_diameter	45.4 Å
Shell Rg shell_rg	19.19 Å
Envelope Rg envelope_rg	13.68 Å
Shape Rg shape_rg	13.36 Å
Total Rg total_rg	14.57 Å
Total atoms total_atoms	922
Residues n_residues	117
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.9 Å
Rg (real space) rg_real	14.67 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	3.6080e+06
I(0) uncertainty (real space) i0_real_error	3.7090e+04
Rg (reciprocal space) rg_reciprocal	14.68 Å
I(0) (reciprocal space) i0_reciprocal	3608000.0000
Solution quality estimate total_estimate	0.8842
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.6 Å
Skewness Skewness skewness	0.116
Kurtosis Kurtosis kurtosis	-0.362
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1100000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.993

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Mutual gliding motility protein C (MglC)
Molecular weight formula_weight	13275.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	991

MSFRTHLESVVNQVEGALACSVMGFDGISVDTFQKDESAELDLNGAWVEYANLLTQLRNAAETLKTGTVSEVSVNSEKVLTVMRLVSPDYFLVLALHADGNFGKGRYVLRVTAPKVRAEL

来源 Source

来源生物 organism	Myxococcus xanthus DK 1622
NCBI Class编号 ncbi_taxonomy_id	246197
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	69

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7ct3A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

▶

8. Citations (1)

▶

Unit-cell length a length_a	96.690 Å
Unit-cell length b length_b	96.690 Å
Unit-cell length c length_c	58.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	27.540 Å
R factor r_factor	0.1604
R_work r_work	0.1578
R_free r_free	0.2153

fit	/app/data/saxs_computation/ct/7ct3/7ct3.fit
pddf	/app/data/pr_computation/ct/7ct3/7ct3.pr.out
profile	/app/data/saxs_computation/ct/7ct3/7ct3.dat

Crystal Structure of MglC from Myxococcus xanthus

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mutual gliding motility protein C (MglC)

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

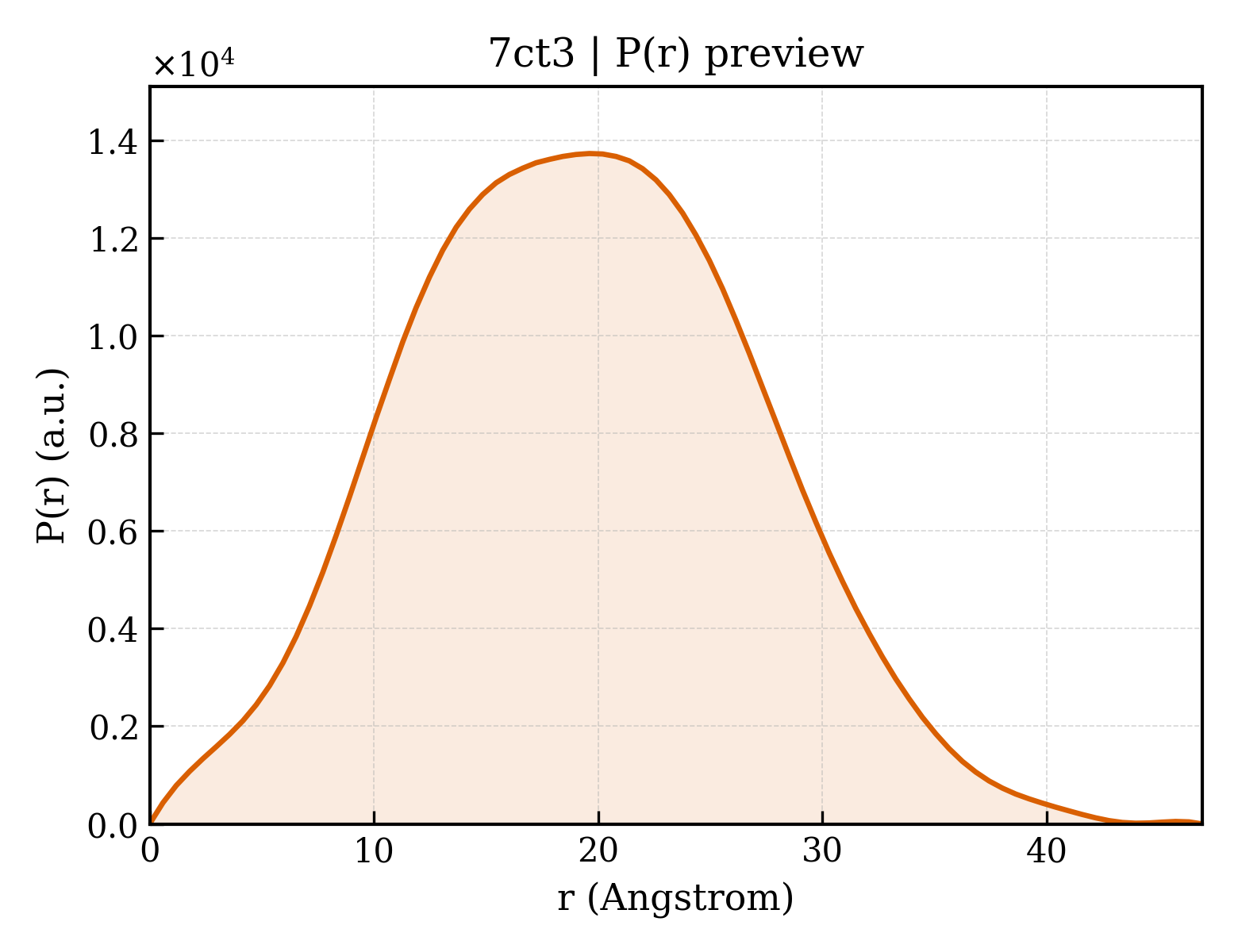

P(r) Distance Distribution P(r) Distribution
