SAXSdb — 7df7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myotrophin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–118	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.2 mM ammonium acetate, 20% PEG 3350	Resolution 2.30 Å R-free 0.248
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–118	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.2 mM ammonium acetate, 20% PEG 3350	Resolution 2.30 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7DF7	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3AAA Crystal Structure of Actin capping protein in complex with V-1 Deposited 2009-11-12	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–118（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.35；293 K；10% PEG 4000, 20% ISOPROPANOL, 20MM EDTA, 0.1M TRIS-HCL, pH 8.35, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.20 Å R-free 0.237
7DSA Crystal structure of actin capping protein in complex with V-1 (space group P62) Deposited 2020-12-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–118（118 aa）	Not recorded	MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20% (w/v) PEG 3350, 0.2M Magnesium Acetate	Resolution 2.80 Å R-free 0.254
7DSB Crystal structure of actin capping protein in complex with V-1 and twinfilin C-terminal tail Deposited 2020-12-30	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 1–118（118 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；10% (w/v) PEG 3350, 5% (v/v) isopropanol, 0.1M HEPES-NaOH (pH = 7.5)	Resolution 2.44 Å R-free 0.248

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MTPN_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–123； UniProt 1–118 Author chain B； PDBConstruct 6–123； UniProt 1–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7df7
Deposition date deposition_date	2020-11-06
Structure title title	Crystal structure of human V-1 in the apo form
Keywords keywords	actin dynamics, ankyrin repeat protein, actin capping protein, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.44 Å
Radius of gyration Rg (electron density) rg_electron	24.82 Å
Forward intensity I(0) i0	11340700.00
Molecular weight molecular_weight	25633.0 kDa
Excluded volume excluded_volume	32231 Å³
Envelope volume envelope_volume	39081 Å³
Hydration-shell volume shell_volume	14959 Å³
Envelope diameter envelope_diameter	83.4 Å
Shell Rg shell_rg	28.52 Å
Envelope Rg envelope_rg	24.88 Å
Shape Rg shape_rg	24.82 Å
Total Rg total_rg	25.32 Å
Total atoms total_atoms	1800
Residues n_residues	236
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	84.2 Å
Rg (real space) rg_real	24.86 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	1.1340e+07
I(0) uncertainty (real space) i0_real_error	1.6900e+05
Rg (reciprocal space) rg_reciprocal	24.77 Å
I(0) (reciprocal space) i0_reciprocal	11340000.0000
Solution quality estimate total_estimate	0.7230
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	18.7 Å
Skewness Skewness skewness	0.562
Kurtosis Kurtosis kurtosis	-0.525
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8103000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.432; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.200; Smooth: 0.899

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d7df7a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.211 — beta-hairpin-alpha-hairpin repeat
Superfamily Superfamily superfamily	d.211.1 — Ankyrin repeat
Family Family family	d.211.1.1 — Ankyrin repeat

Domain ID domain_id	d7df7b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.211 — beta-hairpin-alpha-hairpin repeat
Superfamily Superfamily superfamily	d.211.1 — Ankyrin repeat
Family Family family	d.211.1.1 — Ankyrin repeat

Domain ID domain_id	d7df7b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.620 Å
Unit-cell length b length_b	56.280 Å
Unit-cell length c length_c	81.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	46.240 Å
R factor r_factor	0.2197
R_work r_work	0.2181
R_free r_free	0.2484

Description description	Myotrophin
Molecular weight formula_weight	13324.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1830

Crystal structure of human V-1 in the apo form

1. Protein Identity and Related Structures Protein Identity & Related Structures

Myotrophin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

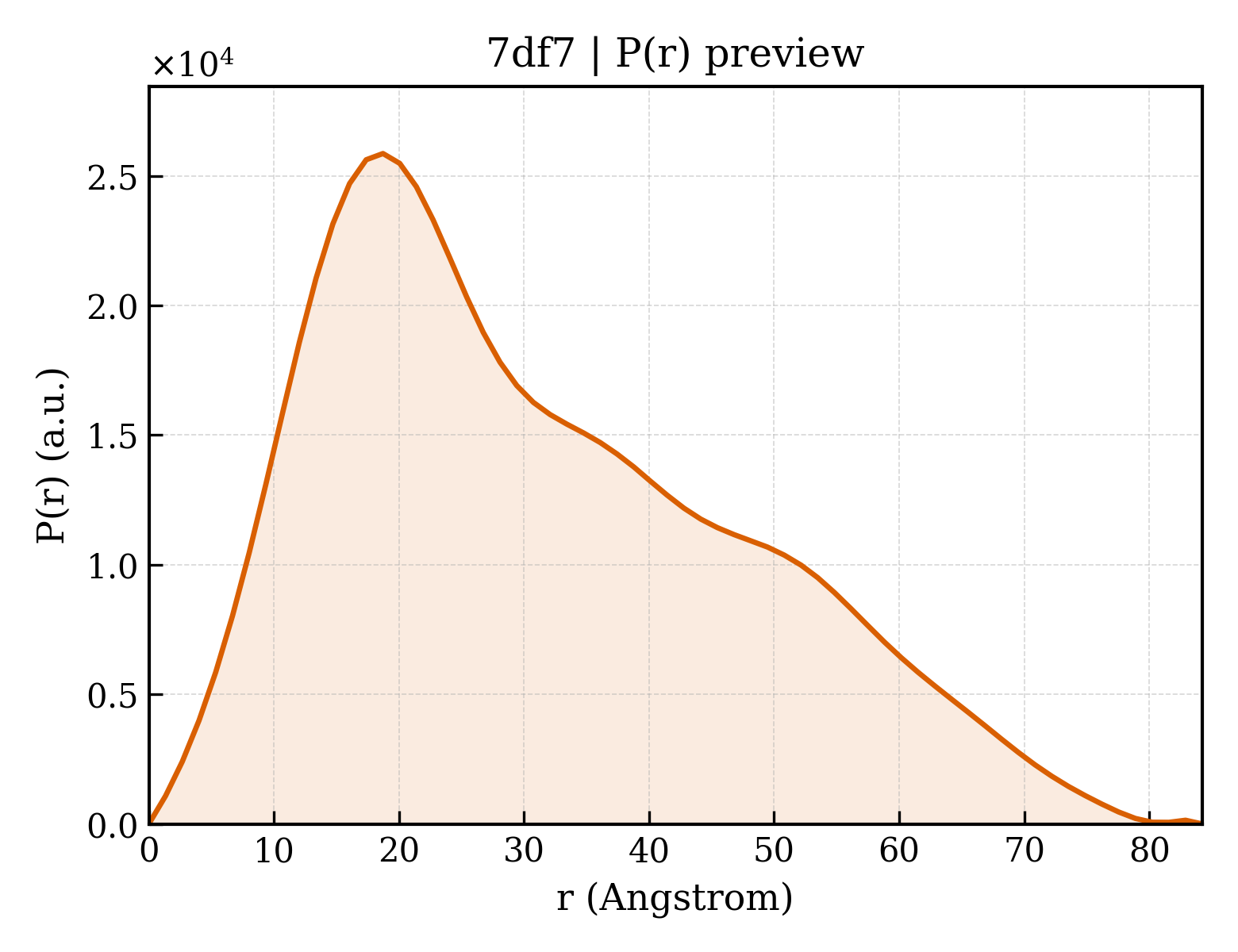

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	29

fit	/app/data/saxs_computation/df/7df7/7df7.fit
pddf	/app/data/pr_computation/df/7df7/7df7.pr.out
profile	/app/data/saxs_computation/df/7df7/7df7.dat
