SAXSdb — 7eob

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinesin-like protein KIF1A

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–382	Mutation：E239K	AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350, Ammonium acetate, Bis-Tris	Resolution 1.76 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7EOB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1I5S CRYSTAL STRUCTURE OF THE KIF1A MOTOR DOMAIN COMPLEXED WITH MG-ADP Deposited 2001-02-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：MOTOR DOMAIN	Mutation：P202A	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；296 K；30% PEG4000, 100mM Tris-HCl pH 8.5, 200mM sodium acetate, 8% (w/v) sucrose, 4mM MgCl2, 10mM ADP, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.20 Å R-free 0.225
1I6I CRYSTAL STRUCTURE OF THE KIF1A MOTOR DOMAIN COMPLEXED WITH MG-AMPPCP Deposited 2001-03-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：MOTOR DOMAIN	Mutation：P202A	MG MAGNESIUM ION × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；296 K；27% PEG4000, 100MM MES-NAOH PH 6.5, 200MM SODIUM ACETATE. 20MM AMPPCP AND 40MM MGCL2 WERE ADDED 24 HOURS BEFORE COLLECTING X-RAY DATA, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.00 Å R-free 0.230
1IA0 KIF1A HEAD-MICROTUBULE COMPLEX STRUCTURE IN ATP-FORM Deposited 2001-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain K 3–355（353 aa） Fragment：MOTOR DOMAIN	Mutation：P202A	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TXL TAXOTERE × 1 MG MAGNESIUM ION × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer buf1；pH 7.4；IMIDAZOLE 50 MM, MG-ACETATE 5 MM, EGTA 1 MM, K-ACETATE 50 MM, DTT 10 MM, PACLITAXEL 10 MICRO M cryo-EM vitrification conditions PLUNGED INTO ETHANE X-ray crystallization conditions polymerization of the microtubule；pH 6.8；296 K；pH 6.8, polymerization of the microtubule, temperature 296K	Resolution 15.00 Å
1VFV Crystal Structure of the Kif1A Motor Domain Complexed With Mg-AMPPNP Deposited 2004-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：Motor Domain OF Kinesin-like protein KIF1A and RESIDUES 329-334 OF Kinesin heavy chain isoform 5C	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；297 K；PEG4000, Sodium acetate, Tris-HCl, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 297.0K	Resolution 1.85 Å R-free 0.245
1VFW Crystal Structure of the Kif1A Motor Domain Complexed With Mg-AMPPNP Deposited 2004-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：Motor Domain OF Kinesin-like protein KIF1A and RESIDUES 329-334 OF Kinesin heavy chain isoform 5C	Not recorded	MG MAGNESIUM ION × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；297 K；PEG4000, SODIUM ACETATE, Tris-HCl, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 297.0K	Resolution 2.30 Å R-free 0.244
1VFX Crystal Structure of the Kif1A Motor Domain Complexed With ADP-Mg-AlFx Deposited 2004-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：Motor Domain OF Kinesin-like protein KIF1A and RESIDUES 329-334 OF Kinesin heavy chain isoform 5C	Not recorded	MG MAGNESIUM ION × 1 AF3 ALUMINUM FLUORIDE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；297 K；PEG4000, Sodium acetate, Tris-HCl, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 297.0K	Resolution 2.55 Å R-free 0.294
1VFZ Crystal Structure of the Kif1A Motor Domain Complexed With ADP-Mg-VO4 Deposited 2004-04-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：Motor Domain OF Kinesin-like protein KIF1A and RESIDUES 329-334 OF Kinesin heavy chain isoform 5C	Not recorded	VO4 VANADATE ION × 1 MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；297 K；PEG4000, Sodium acetate, Tris-HCl, Xylitol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 297.0K	Resolution 2.24 Å R-free 0.249
2HXF KIF1A head-microtubule complex structure in amppnp-form Deposited 2006-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–355（355 aa） Fragment：KIF1A HEAD DOMAIN	Mutation：P202A	MG MAGNESIUM ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TA1 TAXOL × 1 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1	ELECTRON MICROSCOPY cryo-EM buffer IMIDAZOLE；pH 7.4；IMIDAZOLE cryo-EM vitrification conditions Ethan slash	Resolution 10.00 Å
2HXH KIF1A head-microtubule complex structure in adp-form Deposited 2006-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–355（355 aa） Fragment：KIF1A head domain	Mutation：P202A	MG MAGNESIUM ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 TA1 TAXOL × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer imidazole；pH 7.4；imidazole cryo-EM vitrification conditions Ethan slash	Resolution 11.00 Å
2ZFI Crystal Structure of the Kif1A Motor Domain Before Mg Release Deposited 2008-01-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：KIF1A (residues 1-355), KIF5C (residues 329-334)	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.55 Å R-free 0.224
2ZFJ Crystal Structure of the Kif1A Motor Domain during Mg release: Mg-releasing Transition-1 Deposited 2008-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：KIF1A (residues 1-355), KIF5C (residues 329-334)	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.20 Å R-free 0.298
2ZFK Crystal Structure of the Kif1A Motor Domain during Mg release: Mg-releasing Transition-2 Deposited 2008-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：KIF1A (residues 1-355), KIF5C (residues 329-334)	Not recorded	MG MAGNESIUM ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 3.61 Å R-free 0.349
2ZFL Crystal Structure of the Kif1A Motor Domain during Mg release: Mg-releasing Transition-3 Deposited 2008-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：KIF1A (residues 1-355), KIF5C (residues 329-334)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.70 Å R-free 0.325
2ZFM Crystal Structure of the Kif1A Motor Domain After Mg Release Deposited 2008-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–355（355 aa） Fragment：KIF1A (residues 1-355), KIF5C (residues 329-334)	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.31 Å R-free 0.256
7EO9 Crystal structure of KIF1A Motor-Neck domain with ADP-Mg-AlFx Deposited 2021-04-21	Different mutation/modification Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–382（382 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；PEG 3350, Ammonium acetate, Bis-Tris	Resolution 2.57 Å R-free 0.239

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KIF1A_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–382； UniProt 1–382

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7eob
Deposition date deposition_date	2021-04-21
Structure title title	Crystal structure of KIF1A Motor-Neck domain E239K mutant with ADP-Mg-AlFx
Keywords keywords	kinesin, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.82 Å
Radius of gyration Rg (electron density) rg_electron	22.09 Å
Forward intensity I(0) i0	29387800.00
Molecular weight molecular_weight	39580.0 kDa
Excluded volume excluded_volume	48743 Å³
Envelope volume envelope_volume	59879 Å³
Hydration-shell volume shell_volume	23398 Å³
Envelope diameter envelope_diameter	91.7 Å
Shell Rg shell_rg	28.17 Å
Envelope Rg envelope_rg	22.93 Å
Shape Rg shape_rg	22.10 Å
Total Rg total_rg	22.80 Å
Total atoms total_atoms	2769
Residues n_residues	349
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

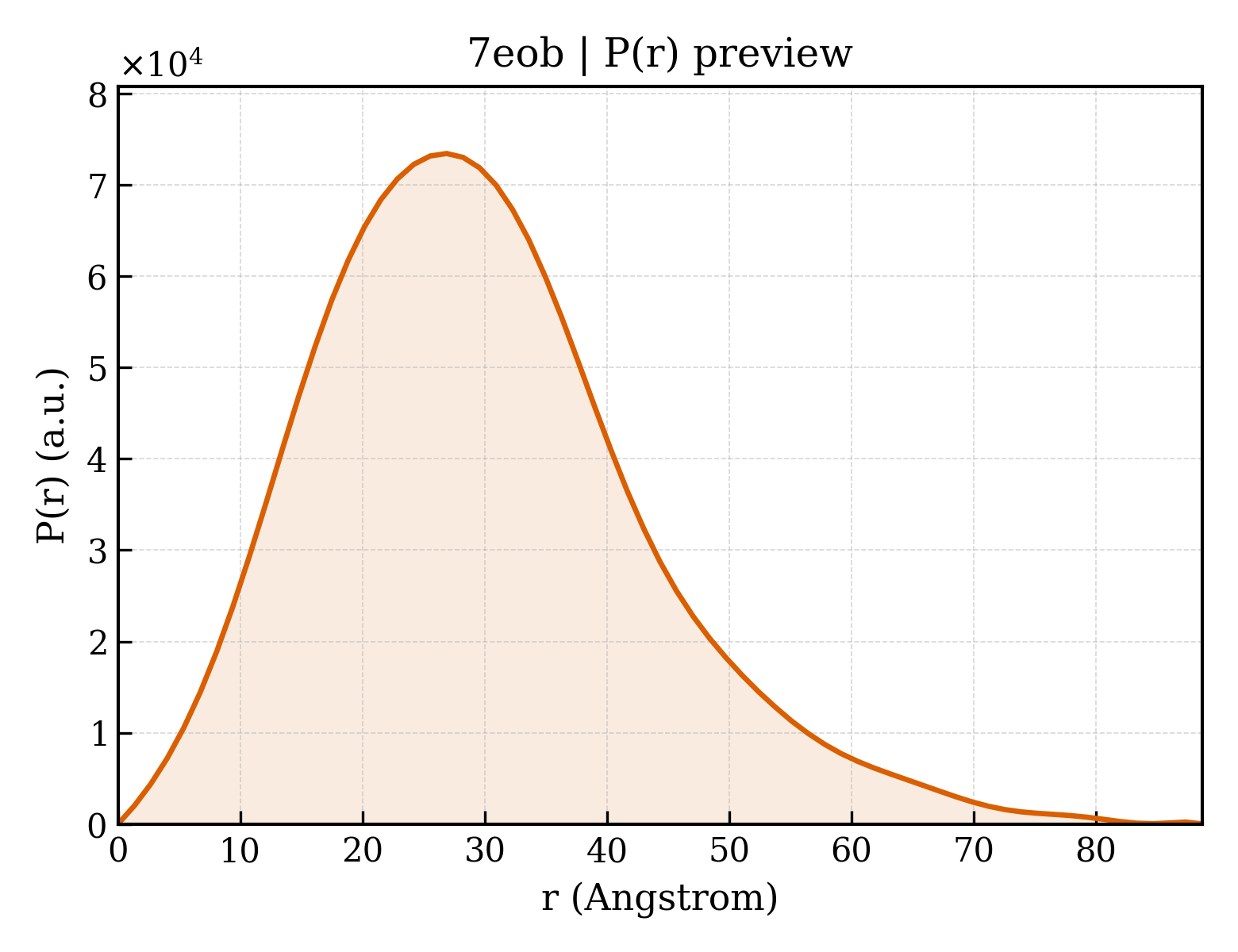

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	88.7 Å
Rg (real space) rg_real	22.94 Å
Rg uncertainty (real space) rg_real_error	0.87 Å
I(0) (real space) i0_real	2.9390e+07
I(0) uncertainty (real space) i0_real_error	4.5810e+05
Rg (reciprocal space) rg_reciprocal	22.91 Å
I(0) (reciprocal space) i0_reciprocal	29390000.0000
Solution quality estimate total_estimate	0.7793
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.9 Å
Skewness Skewness skewness	0.638
Kurtosis Kurtosis kurtosis	0.474
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5683000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.436; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.839; Smooth: 0.979

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Kinesin-like protein KIF1A
Molecular weight formula_weight	43972.5 kDa
Mutation mutation	E239K
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2876

MAGASVKVAVRVRPFNSREMSRDSKCIIQMSGSTTTIVNPKQPKETPKSFSFDYSYWSHTSPEDINYASQKQVYRDIGEEMLQHAFEGYNVCIFAYGQTGAGKSYTMMGKQEKDQQGIIPQLCEDLFSRINDTTNDNMSYSVEVSYMEIYCERVRDLLNPKNKGNLRVREHPLLGPYVEDLSKLAVTSYNDIQDLMDSGNKPRTVAATNMNETSSRSHAVFNIIFTQKRHDAETNITTKKVSKISLVDLAGSERADSTGAKGTRLKEGANINKSLTTLGKVISALAEMDSGPNKNKKKKKTDFIPYRDSVLTWLLRENLGGNSRTAMVAALSPADINYDETLSTLRYADRAKQIRCNAIINEDPNNKLIRELKDEVTRLRDLHHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ALUMINUM FLUORIDE
Molecular weight formula_weight	84.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	107

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7eobA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	850 — Kinesin
Homologous superfamily homologous superfamily	10 — Kinesin motor domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	41.655 Å
Unit-cell length b length_b	57.249 Å
Unit-cell length c length_c	155.041 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.760 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2150
R_free r_free	0.2400

fit	/app/data/saxs_computation/eo/7eob/7eob.fit
pddf	/app/data/pr_computation/eo/7eob/7eob.pr.out
profile	/app/data/saxs_computation/eo/7eob/7eob.dat

Crystal structure of KIF1A Motor-Neck domain E239K mutant with ADP-Mg-AlFx
