7epu

Crystal structure of HsALC1

Method: X-RAY DIFFRACTION Dmax: 130.5 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chromodomain-helicase-DNA-binding protein 1-like

Homo sapiens

UniProt Q86WJ1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 1–880 Not recorded non-immunized human scFv × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；277 K；MPD, sodium chloride, magnesium chloride, acetate Resolution 3.50 Å R-free 0.316

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7EPU Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6ZHX Cryo-EM structure of the regulatory linker of ALC1 bound to the nucleosome's acidic patch: nucleosome class. Deposited 2020-06-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain K 604–639（36 aa）
Chain L 604–639（36 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 2.5 s, blot force 0. Two sample applications and blots were performed before vitrification.
Resolution 2.50 Å
6ZHY Cryo-EM structure of the regulatory linker of ALC1 bound to the nucleosome's acidic patch: hexasome class. Deposited 2020-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 7 PDB declaration: nonameric
Chain K 604–639（36 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；Blot time 2.5 s, blot force 0. Two sample applications and blots were performed before vitrification.
Resolution 3.00 Å
7ENN The structure of ALC1 bound to the nucleosome Deposited 2021-04-18 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain K 1–897（897 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.80 Å
7OTQ Cryo-EM structure of ALC1/CHD1L bound to a PARylated nucleosome Deposited 2021-06-10 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain K 16–879（864 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL were applied on grid and immediately blotted for 2.5 s at blot force 0.
Resolution 4.80 Å
8B0A Cryo-EM structure of ALC1 bound to an asymmetric, site-specifically PARylated nucleosome Deposited 2022-09-07 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain K 16–879（864 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.00 Å
9T4V ALC1/CHD1L in an intermediate conformation, bound to a PARylated nucleosome Deposited 2025-11-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: 11-meric
Chain K 16–879（864 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE；3 uL were applied on grid and immediately blotted for 2.5 s at blot force 0.
Resolution 6.60 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name CHD1L_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 1–880； UniProt 1–880

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7epu

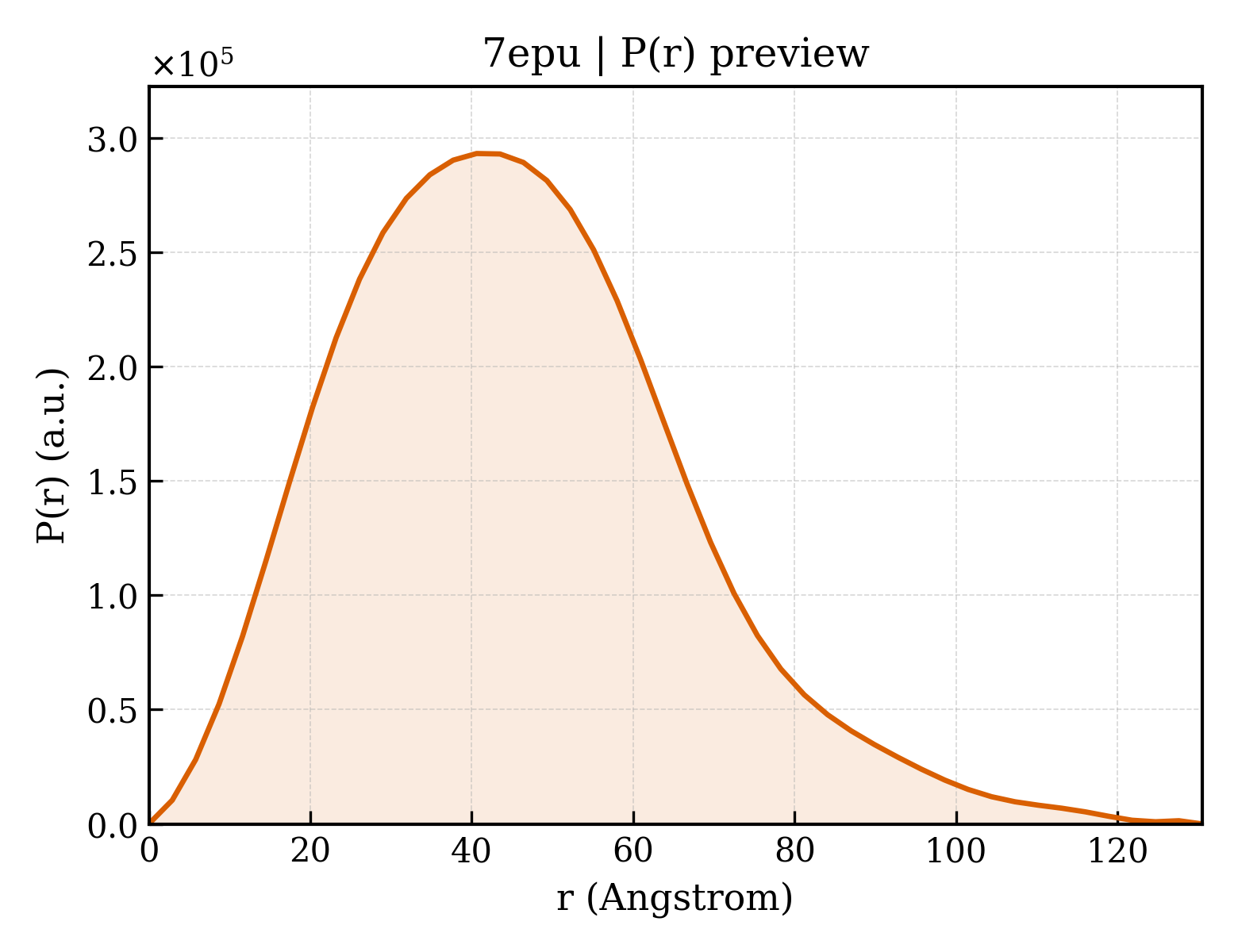

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7epu
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7epu
Deposition date deposition_date2021-04-27
Structure title titleCrystal structure of HsALC1
Keywords keywordsmacrodomain, autoinhibition, DNA damage, PARP1, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier35.09 Å
Radius of gyration Rg (electron density) rg_electron34.72 Å
Forward intensity I(0) i0193093000.00
Molecular weight molecular_weight110570.0 kDa
Excluded volume excluded_volume138330 ų
Envelope volume envelope_volume197010 ų
Hydration-shell volume shell_volume47772 ų
Envelope diameter envelope_diameter141.6 Å
Shell Rg shell_rg40.22 Å
Envelope Rg envelope_rg35.71 Å
Shape Rg shape_rg34.71 Å
Total Rg total_rg35.19 Å
Total atoms total_atoms7789
Residues n_residues978
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax130.5 Å
Rg (real space) rg_real35.23 Å
Rg uncertainty (real space) rg_real_error1.39 Å
I(0) (real space) i0_real1.9310e+08
I(0) uncertainty (real space) i0_real_error3.5240e+06
Rg (reciprocal space) rg_reciprocal35.14 Å
I(0) (reciprocal space) i0_reciprocal193100000.0000
Solution quality estimate total_estimate0.8244
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary40.6 Å
Skewness Skewness skewness0.560
Kurtosis Kurtosis kurtosis0.282
Angular range angular_range— – 0.2250 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha61210000.0000
Real-space data points n_real_points46
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.617; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.928; Smooth: 0.935
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id7epuB01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology50 — Rossmann fold
Homologous superfamily homologous superfamily10810 — Tandem AAA-ATPase domain
▶

8. Citations (1)

▶

9. Files and Curves (10)
