SAXSdb — 7jt0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

3C-like proteinase

Severe acute respiratory syndrome coronavirus 2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	thiophene-2-carbaldehyde × 2 PHOSPHATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	R1AB_SARS2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–306； UniProt 3264–3569

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7jt0
Deposition date deposition_date	2020-08-16
Structure title title	Crystal structure of SARS-CoV-2 3CL protease in complex with MAC5576
Keywords keywords	SARS-CoV-2 3CL protease, VIRAL PROTEIN, HYDROLASE-INHIBITOR complex; VIRAL PROTEIN, HYDROLASE/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7jt0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7jt0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

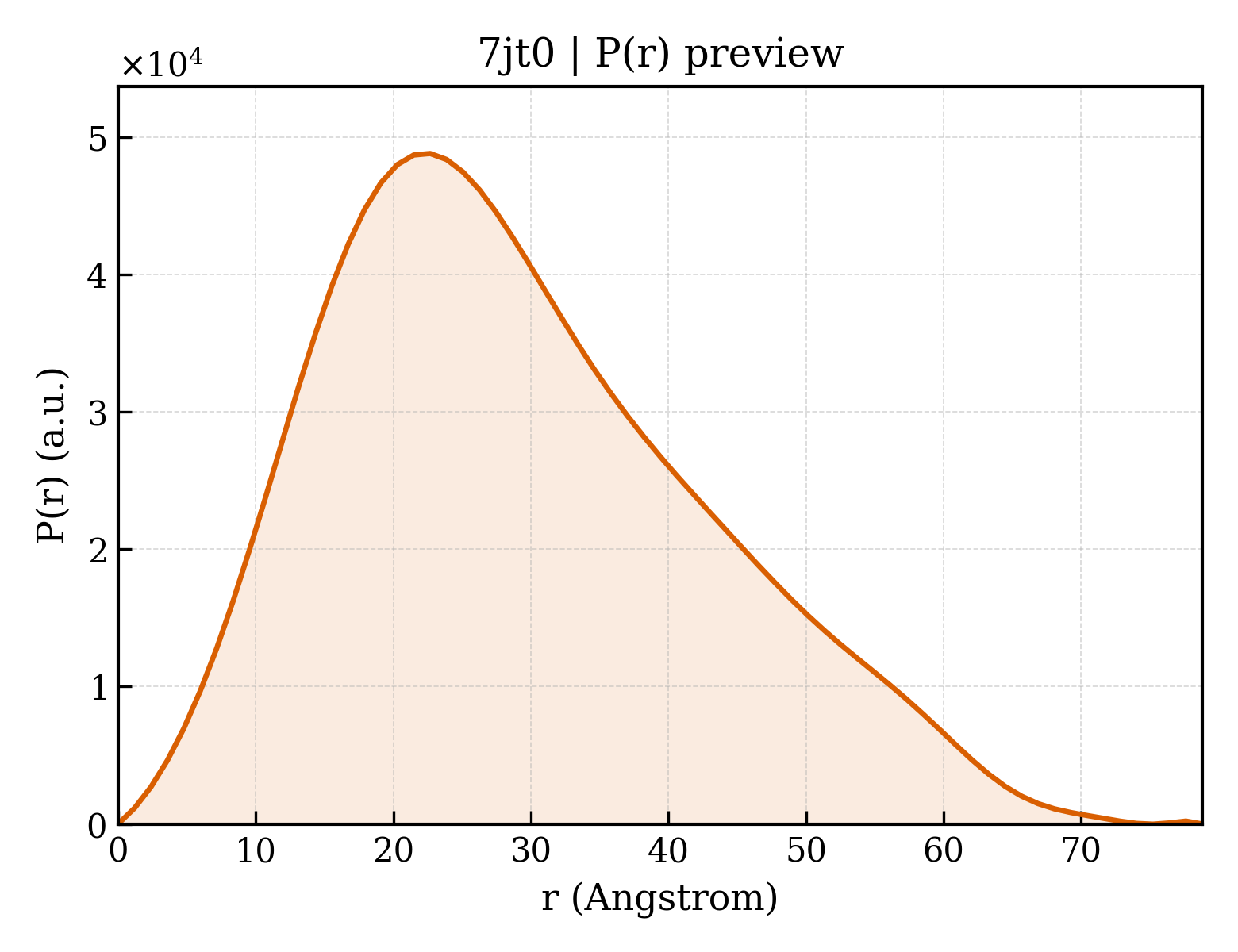

7jt0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.49 Å
Rg (electron density)	25.52 Å
Total Rg	26.34 Å
Atom count	4658
Residues	600
Excluded volume	82639 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7jt0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	3C-like proteinase
Molecular weight formula_weight	33825.5 kDa
EC 编号 ec_number	3.4.22.69
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2564

SGFRKMAFPSGKVEGCMVQVTCGTTTLNGLWLDDVVYCPRHVICTSEDMLNPNYEDLLIRKSNHNFLVQAGNVQLRVIGHSMQNCVLKLKVDTANPKTPKYKFVRIQPGQTFSVLACYNGSPSGVYQCAMRPNFTIKGSFLNGSCGSVGFNIDYDCVSFCYMHHMELPTGVHAGTDLEGNFYGPFVDRQTAQAAGTDTTITVNVLAWLYAAVINGDRWFLNRFTTTLNDFNLVAMKYNYEPLTQDHVDILGPLSAQTGIAVLDMCASLKELLQNGMNGRTILGSALLEDEFTPFDVVRQCSGVTFQ

Source Source

Source organism organism	Severe acute respiratory syndrome coronavirus 2
Common name common_name	2019-nCoV, SARS-CoV-2, COVID-19 virus
NCBI taxonomy ID ncbi_taxonomy_id	2697049
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	thiophene-2-carbaldehyde
Molecular weight formula_weight	112.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	235

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d7jt0a_
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.4 — Viral cysteine protease of trypsin fold

CATH v4.4 (2 domains)

Domain ID domain_id	7jt0A01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	7jt0A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1840 — main proteinase (3clpro) structure, domain 3
Homologous superfamily homologous superfamily	10 — main proteinase (3clpro) structure, domain 3

▶

Unit-cell length a length_a	98.329 Å
Unit-cell length b length_b	82.496 Å
Unit-cell length c length_c	51.821 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.83 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.730 Å
Low-resolution limit resolution_low	47.030 Å
R factor r_factor	0.1691
R_work r_work	0.1666
R_free r_free	0.1917

Crystal structure of SARS-CoV-2 3CL protease in complex with MAC5576
