SAXSdb — 7kpk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Speckle-type POZ protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 28–166	Fragment：MATH domain	Pdx1 peptide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；295 K；50 mM sodium cacodylate, pH 6.5, 0.08 M magnesium acetate, 30% (w/v) PEG 4000	Resolution 1.71 Å R-free 0.227

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7KPK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7KPI Crystal structure of the SPOP MATH domain Deposited 2020-11-11	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.1 M HEPES, pH 7.5, 23% (w/v) PME 550, 5 mM DTT	Resolution 1.70 Å R-free 0.196
9HFU Caprin1 peptide bound to SPOP MATH domain Deposited 2024-11-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M sodium fluoride, 0.03 M sodium bromide, 0.03 M sodium iodide, 0.1 M bicine/Trizma base pH 8.5	Resolution 1.70 Å R-free 0.204
9HFU Caprin1 peptide bound to SPOP MATH domain Deposited 2024-11-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–166（139 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M sodium fluoride, 0.03 M sodium bromide, 0.03 M sodium iodide, 0.1 M bicine/Trizma base pH 8.5	Resolution 1.70 Å R-free 0.204
9HFW SRC-3 (NCoA-3) peptide bound to SPOP MATH domain Deposited 2024-11-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M sodium fluoride, 0.03 M sodium bromide, 0.03 M sodium iodide, 0.1 M bicine/Trizma base pH 8.5	Resolution 1.70 Å R-free 0.223
9HGH MyD88 peptide_1 bound to SPOP MATH domain Deposited 2024-11-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 28–166（139 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；12.5% w/v PEG 1000, 12.5% w/v PEG 3350, 12.5% v/v MPD, 0.03 M diethyleneglycol, 0.03 M triethyleneglycol, 0.03 M tetraethyleneglycol, 0.03 M pentaethyleneglycol, 0.1 M bicine/Trizma base pH 8.5	Resolution 1.90 Å R-free 0.232

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	D6RDG8_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–142； UniProt 28–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7kpk
Deposition date deposition_date	2020-11-11
Structure title title	Crystal structure of the SPOP MATH domain in complex with a fragment of Pdx1
Keywords keywords	ubiquitin, ligase, adaptor, protein, diabetes, transcription factor, GENE REGULATION; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.59 Å
Radius of gyration Rg (electron density) rg_electron	15.19 Å
Forward intensity I(0) i0	4629850.00
Molecular weight molecular_weight	16025.0 kDa
Excluded volume excluded_volume	20344 Å³
Envelope volume envelope_volume	23074 Å³
Hydration-shell volume shell_volume	13084 Å³
Envelope diameter envelope_diameter	54.6 Å
Shell Rg shell_rg	20.91 Å
Envelope Rg envelope_rg	15.67 Å
Shape Rg shape_rg	15.15 Å
Total Rg total_rg	16.47 Å
Total atoms total_atoms	1130
Residues n_residues	141
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	55.6 Å
Rg (real space) rg_real	16.54 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	4.6300e+06
I(0) uncertainty (real space) i0_real_error	5.3460e+04
Rg (reciprocal space) rg_reciprocal	16.55 Å
I(0) (reciprocal space) i0_reciprocal	4630000.0000
Solution quality estimate total_estimate	0.7237
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.5 Å
Skewness Skewness skewness	0.305
Kurtosis Kurtosis kurtosis	-0.254
Angular range angular_range	— – 0.4800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	969000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.801; Stabil: 1.000; Sysdev: 0.338; Positv: 1.000; Valcen: 0.998; Smooth: 0.990

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Speckle-type POZ protein
Molecular weight formula_weight	16352.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1238

GPGKVVKFSYMWTINNFSFCREEMGEVIKSSTFSSGANDKLKWCLRVNPKGLDEESKDYLSLYLLLVSCPKSEVRAKFKFSILNAKGEETKAMESQRAYRFVQGKDWGFKKFIRRDFLLDEANGLLPDDKLTLFCEVSVVQD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Pdx1 peptide
Molecular weight formula_weight	2063.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LSASPQPSSVAPRRPQEPR

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	108

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.796 Å
Unit-cell length b length_b	53.985 Å
Unit-cell length c length_c	41.556 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.43 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.710 Å
Low-resolution limit resolution_low	30.750 Å
R factor r_factor	0.1835
R_work r_work	0.1810
R_free r_free	0.2271

fit	/app/data/saxs_computation/kp/7kpk/7kpk.fit
pddf	/app/data/pr_computation/kp/7kpk/7kpk.pr.out
profile	/app/data/saxs_computation/kp/7kpk/7kpk.dat

Crystal structure of the SPOP MATH domain in complex with a fragment of Pdx1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Speckle-type POZ protein

State in the Current Structure

Other States of the Same Protein in the Database

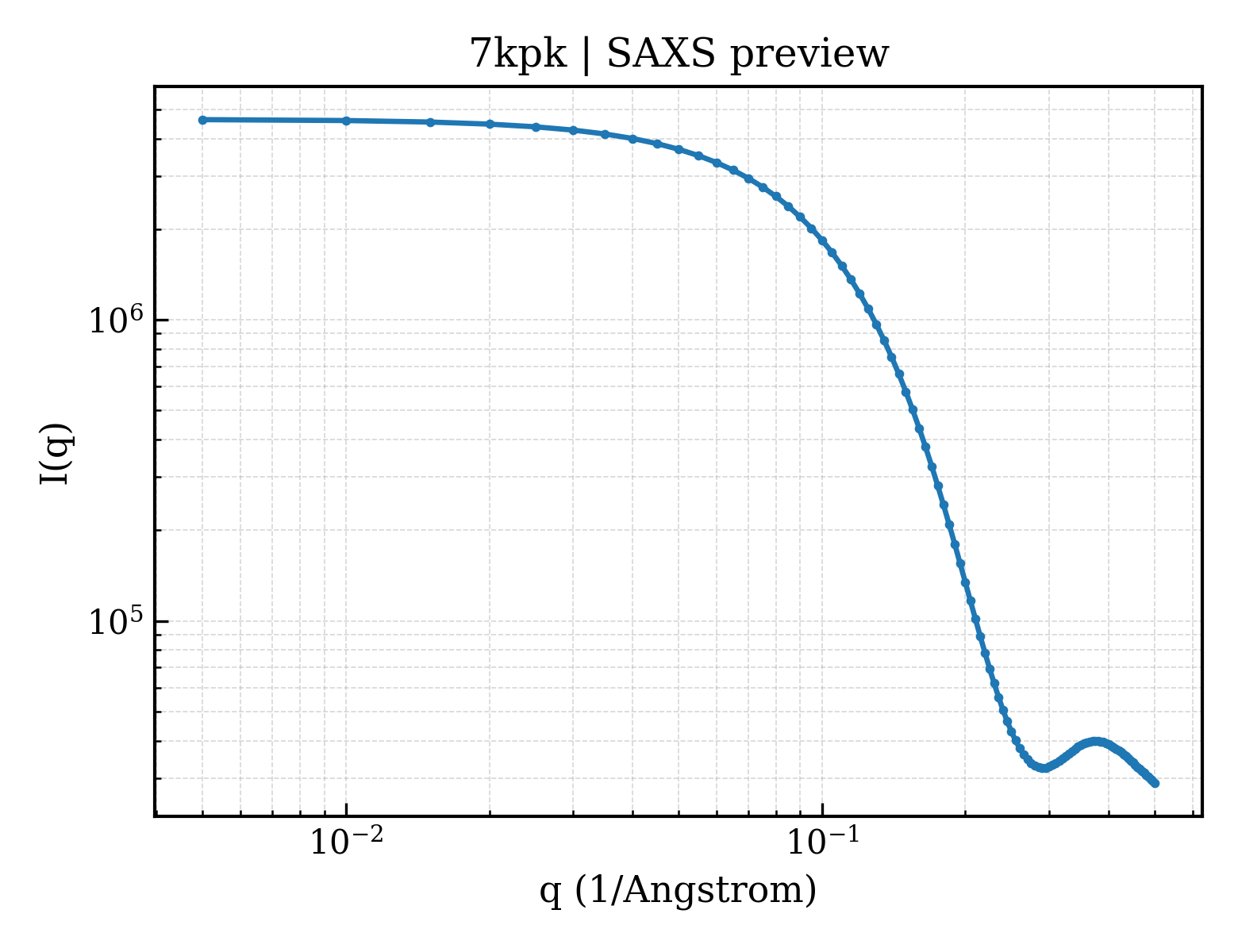

SAXS scattering curve SAXS Profile
