SAXSdb — 7m3r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Coat protein

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 60 PDB declaration: 60-meric（60） Consistent with protein copy count	Chain A； UniProt 1–159 Chain B； UniProt 1–159 Chain C； UniProt 1–159 Chain D； UniProt 1–159 Chain E； UniProt 1–159 Chain F； UniProt 1–159 Chain G； UniProt 1–159 Chain GG； UniProt 1–159 Chain H； UniProt 1–159 Chain HH； UniProt 1–159 Chain I； UniProt 1–159 Chain II； UniProt 1–159 Chain J； UniProt 1–159 Chain JJ； UniProt 1–159 Chain K； UniProt 1–159 Chain KK； UniProt 1–159 Chain L； UniProt 1–159 Chain M； UniProt 1–159 Chain N； UniProt 1–159 Chain O； UniProt 1–159	Not recorded	BR BROMIDE ION × 573 MG MAGNESIUM ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates with 0.6 ml reservoirs and 6 to 8 ul drops. The drops were equal amounts of a 5 mg/ml virus stock solution buffered at pH 6.5 with 0.1 M phosphate. The reservoirs were 5% w/v NaBr in 0.1 M phosphate at pH 6.0. Crystallization was at 4 degrees C and the time of development was about 10 days.	Resolution 2.10 Å R-free 0.208

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7M3R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 180-MERIC	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 60 U5P URIDINE-5'-MONOPHOSPHATE × 60	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 1 U5P URIDINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Homooligomer；Protein × 5 PDB declaration: pentadecameric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 5 U5P URIDINE-5'-MONOPHOSPHATE × 5	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–RNA Homooligomer；Protein × 6 PDB declaration: octadecameric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 6 U5P URIDINE-5'-MONOPHOSPHATE × 6	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 1 U5P URIDINE-5'-MONOPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
1A34 SATELLITE TOBACCO MOSAIC VIRUS/RNA COMPLEX Deposited 1998-01-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein–RNA Homooligomer；Protein × 15 PDB declaration: 45-meric	Chain A 1–159（159 aa）	Not recorded	SO4 SULFATE ION × 15 U5P URIDINE-5'-MONOPHOSPHATE × 15	X-RAY DIFFRACTION X-ray crystallization conditions liquid diffusion in microgravity；pH 6.5；PROTEIN WAS FOUR TIMES RECRYSTALLIZED FROM BULK SOLUTION BY ADDITION AF AMMONIUM SULFATE TO 15% SATURATION. SPACE CRYSTALS WERE GROWN BY LIQUID-LIQUID DIFFUSION IN A MICROGRAVITY ENVIRONMENT OVER 12 DAYS ABOARD IML-I MISSION OF THE US SPACE SHUTTLE., pH 6.50, liquid diffusion in microgravity	Resolution 1.81 Å R-free 0.184
4NIA Satellite Tobacco Mosaic Virus Refined at room temperature to 1.8 A Resolution using NCS Restraints Deposited 2013-11-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 240-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain H 1–159（159 aa） Chain I 1–159（159 aa） Chain J 1–159（159 aa） Chain K 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	MG MAGNESIUM ION × 12 PO4 PHOSPHATE ION × 12 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 6.5；296 K；9 crystals were grown in microgravity aboard IML-I mission of the U.S. Space Shuttle over 12 days using 20% ammonium sulfate as precipitant, pH 6.50, LIQUID DIFFUSION, temperature 296K X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；12 crystals grown from 8% ammonium sulfate on earth with a reservoir of 14-16% ammonium sulfate, pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.82 Å R-free 0.156
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 240-meric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 60 SO4 SULFATE ION × 120 MG MAGNESIUM ION × 60	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Homooligomer；Protein × 5 PDB declaration: eicosameric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 5 SO4 SULFATE ION × 10 MG MAGNESIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–RNA Homooligomer；Protein × 6 PDB declaration: 24-meric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 6 SO4 SULFATE ION × 12 MG MAGNESIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein–RNA Monomer；Protein × 1 PDB declaration: tetrameric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 1 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ8 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using icosahedral constraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein–RNA Homooligomer；Protein × 15 PDB declaration: 60-meric	Chain A 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 15 SO4 SULFATE ION × 30 MG MAGNESIUM ION × 15	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.279
4OQ9 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using non-crystallographic symmetry restraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 240-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain H 1–159（159 aa） Chain I 1–159（159 aa） Chain J 1–159（159 aa） Chain K 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 12 SO4 SULFATE ION × 72 NA SODIUM ION × 68 MG MAGNESIUM ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.250
4OQ9 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using non-crystallographic symmetry restraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Homooligomer；Protein × 15 PDB declaration: 60-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain H 1–159（159 aa） Chain I 1–159（159 aa） Chain J 1–159（159 aa） Chain K 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 3 SO4 SULFATE ION × 18 NA SODIUM ION × 17 MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.250
4OQ9 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using non-crystallographic symmetry restraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–RNA Homooligomer；Protein × 15 PDB declaration: 60-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain H 1–159（159 aa） Chain I 1–159（159 aa） Chain J 1–159（159 aa） Chain K 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 3 SO4 SULFATE ION × 18 NA SODIUM ION × 17 MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.250
4OQ9 Satellite Tobacco Mosaic Virus Refined to 1.4 A Resolution using non-crystallographic symmetry restraints Deposited 2014-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein–RNA Homooligomer；Protein × 15 PDB declaration: 60-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain H 1–159（159 aa） Chain I 1–159（159 aa） Chain J 1–159（159 aa） Chain K 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 3 SO4 SULFATE ION × 18 NA SODIUM ION × 17 MG MAGNESIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；296 K；crystals grown from 15% ammonium sulfate on earth with a reservoir of 15% ammonium sulfate over 14 days., pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 296K	Resolution 1.45 Å R-free 0.250
5BKL Crystallographic structure of the cubic crystal form of STMV (77.9 degree rotation) grown from NaCl Deposited 2021-03-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 117-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	CL CHLORIDE ION × 120 MG MAGNESIUM ION × 39	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. The drops were composed of equal amounts of a 5 mg/ml stock virus solution buffered at pH6.5 with 0.1 M phosphate, and the reservoir solution which was 8% w/v NaCl buffered with 0.1 M phosphate at pH 6.0. Crystallization was carried out at 4 degrees C.	Resolution 2.94 Å R-free 0.256
5BKN Crystallographic structure of a cubic crystal form of STMV (84.5 degree rotation) grown from chloride Deposited 2021-03-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 117-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	CL CHLORIDE ION × 78 MG MAGNESIUM ION × 42	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using .6 ml reservoirs. The drops were composed of equal volumes of a 5 mg/ml virus stock solution of 0.1 M phosphate at pH 6.5, and the reservoir solution, which was 8% NaCl w/v in 0.1 M phosphate at pH 6.0. Crystallization was at 4 degrees C.	Resolution 3.00 Å R-free 0.255
5BKQ Crystallographic structure of a cubic form of STMV grown from nitrate Deposited 2021-03-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 60 PDB declaration: 60-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	NO3 NITRATE ION × 306 MG MAGNESIUM ION × 27	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. Drops were equal amounts of a 5 mg/ml virus stock solution buffered with 0.1 M phosphate at pH 6.5, and the reservoir solution which was 20% w/v sodium nitrate in 0.1 M phosphate at pH 6.0. Crystallization was carried out at 4 degrees C.	Resolution 3.19 Å R-free 0.273
7M2T Crystallographic Structure of the Monoclinic Form of Satellite Tobacco Mosaic Virus Deposited 2021-03-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 218-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain BB 1–159（159 aa） Chain C 1–159（159 aa） Chain CC 1–159（159 aa） Chain D 1–159（159 aa） Chain DD 1–159（159 aa） Chain E 1–159（159 aa） Chain EE 1–159（159 aa） Chain F 1–159（159 aa） Chain FF 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain LL 1–159（159 aa） Chain M 1–159（159 aa） Chain MM 1–159（159 aa） Chain N 1–159（159 aa） Chain NN 1–159（159 aa） Chain O 1–159（159 aa） Chain OO 1–159（159 aa） Chain PP 1–159（159 aa）	Not recorded	MG MAGNESIUM ION × 12 PO4 PHOSPHATE ION × 12 SO4 SULFATE ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；279 K；Crystals grown by vapor diffusion as sitting drops. Drops were equal volumes of a 6 mg/ml STMV stock solution buffered at pH 6.5 with 0.1 M phosphate. The reservoirs were 16% saturated ammonium sulfate in 0.1 M phosphate at pH 6.5. Drops were 6 to 8 ul with 0.60 ml reservoirs. Crystals were grown at 4 degrees C over a weeks time.	Resolution 2.71 Å R-free 0.177
7M2V Crystallographic Structure of the Rhombohedral Crystal Form of STMV Grown from Chloride Deposited 2021-03-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 120-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain FX 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain NN 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	CL CHLORIDE ION × 39 MG MAGNESIUM ION × 24 PO4 PHOSPHATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals grown by sitting drop vapor diffusion in Cryschem plates with 0.6 ml reservoirs and 6 to 8 ul drops. Drops were equal amounts of a 5 mg/ml virus stock solution buffered at pH 6.5 with 0.1 M phosphate, and the reservoir solution. The reservoir solution was 4% w/v NaCl in 0.1 M phosphate at pH 6.0. Crystallization was at 4 degrees C.	Resolution 1.80 Å R-free 0.217
7M3T Crystallographic structure of a cubic crystal of STMV (80.7 degree rotation about 111) grown from chloride Deposited 2021-03-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 117-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 21 CL CHLORIDE ION × 42 MG MAGNESIUM ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. The drops were equal volumes of 5 mg/ml STMV in 0.1 M phosphate at pH 6.5 and the reservoir solution, which was 8% w/v NaCl in 0.1 M phosphate at pH 6.0. Crystallization was carried out at 4 degrees C.	Resolution 3.20 Å R-free 0.254
7M50 Crystallographic structure of a cubic crystal form of STMV grown from ammonium sulfate Deposited 2021-03-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 117-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 15 MG MAGNESIUM ION × 15 CL CHLORIDE ION × 3 SO4 SULFATE ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. Drops were 6 to 8 ul and were composed of equal volumes of a 5 mg/ml virus stock solution containing 0.1 M phosphate at pH 6.5, and the reservoir solution. The reservoir solution was 18% ammonium sulfate in 0.1 M phosphate at pH 6.0. Crystallization was carried out at 4 degrees C.	Resolution 2.31 Å R-free 0.271
7M54 Crystallographic structure of a cubic crystal form of STMV grown from bromide Deposited 2021-03-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 60 PDB declaration: 60-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain C 1–159（159 aa） Chain D 1–159（159 aa） Chain E 1–159（159 aa） Chain F 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain M 1–159（159 aa） Chain N 1–159（159 aa） Chain O 1–159（159 aa）	Not recorded	CA CALCIUM ION × 18 BR BROMIDE ION × 546 MG MAGNESIUM ION × 27 CL CHLORIDE ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；279 K；crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. Drops were 6 to 8 ul and composed of equal volumes of a 5 mg/ml virus stock solution buffered at pH 6.5 with 0.1M phosphate, and the reservoir solution. The reservoir solution was 18% w/v NaBr buffered with 0.1 M phosphate at pH 6.0. Crystallization was carried out at 4 degrees C.	Resolution 3.80 Å R-free 0.285
7M57 Crystallographic structure of a primitive orthorhombic crystal form of STMV Deposited 2021-03-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 60 PDB declaration: 218-meric	Chain A 1–159（159 aa） Chain B 1–159（159 aa） Chain BB 1–159（159 aa） Chain C 1–159（159 aa） Chain CC 1–159（159 aa） Chain D 1–159（159 aa） Chain DD 1–159（159 aa） Chain E 1–159（159 aa） Chain EE 1–159（159 aa） Chain F 1–159（159 aa） Chain FF 1–159（159 aa） Chain G 1–159（159 aa） Chain GG 1–159（159 aa） Chain H 1–159（159 aa） Chain HH 1–159（159 aa） Chain I 1–159（159 aa） Chain II 1–159（159 aa） Chain J 1–159（159 aa） Chain JJ 1–159（159 aa） Chain K 1–159（159 aa） Chain KK 1–159（159 aa） Chain L 1–159（159 aa） Chain LL 1–159（159 aa） Chain M 1–159（159 aa） Chain MM 1–159（159 aa） Chain N 1–159（159 aa） Chain NN 1–159（159 aa） Chain O 1–159（159 aa） Chain OO 1–159（159 aa） Chain PP 1–159（159 aa）	Not recorded	PO4 PHOSPHATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；298 K；Crystals were grown by sitting drop vapor diffusion in Cryschem plates using 0.6 ml reservoirs. The drops were 6 to 8 ul and composed of equal volumes of a 5 mg/ml virus stock solution buffered with 0.1 M phosphate at pH 6.5, and the reservoir. The reservoirs were 16% ammonium sulfate buffered at pH 6.0 with 0.1 M phosphate. Crystallization was a room temperature.	Resolution 4.00 Å

13 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COAT_STMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–159； UniProt 1–159 Author chain B； PDBConstruct 1–159； UniProt 1–159 Author chain C； PDBConstruct 1–159； UniProt 1–159 Author chain D； PDBConstruct 1–159； UniProt 1–159 Author chain E； PDBConstruct 1–159； UniProt 1–159 Author chain F； PDBConstruct 1–159； UniProt 1–159 Author chain G； PDBConstruct 1–159； UniProt 1–159 Author chain GG； PDBConstruct 1–159； UniProt 1–159 Author chain H； PDBConstruct 1–159； UniProt 1–159 Author chain HH； PDBConstruct 1–159； UniProt 1–159 Author chain I； PDBConstruct 1–159； UniProt 1–159 Author chain II； PDBConstruct 1–159； UniProt 1–159 Author chain J； PDBConstruct 1–159； UniProt 1–159 Author chain JJ； PDBConstruct 1–159； UniProt 1–159 Author chain K； PDBConstruct 1–159； UniProt 1–159 Author chain KK； PDBConstruct 1–159； UniProt 1–159 Author chain L； PDBConstruct 1–159； UniProt 1–159 Author chain M； PDBConstruct 1–159； UniProt 1–159 Author chain N； PDBConstruct 1–159； UniProt 1–159 Author chain O； PDBConstruct 1–159； UniProt 1–159

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7m3r
Deposition date deposition_date	2021-03-18
Structure title title	Crystallographic Structure of the Rhombohedral Crystal Form of STMV Grown from Bromide
Keywords keywords	halide, RNA, twinning, absence, bromide ions, axis ions, ion channel, decapsidation, VIRUS; VIRUS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	58.95 Å
Radius of gyration Rg (electron density) rg_electron	58.53 Å
Forward intensity I(0) i0	1942080000.00
Molecular weight molecular_weight	337100.0 kDa
Excluded volume excluded_volume	406260 Å³
Envelope volume envelope_volume	796910 Å³
Hydration-shell volume shell_volume	112870 Å³
Envelope diameter envelope_diameter	174.1 Å
Shell Rg shell_rg	63.81 Å
Envelope Rg envelope_rg	55.08 Å
Shape Rg shape_rg	58.47 Å
Total Rg total_rg	58.83 Å
Total atoms total_atoms	44901
Residues n_residues	2915
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

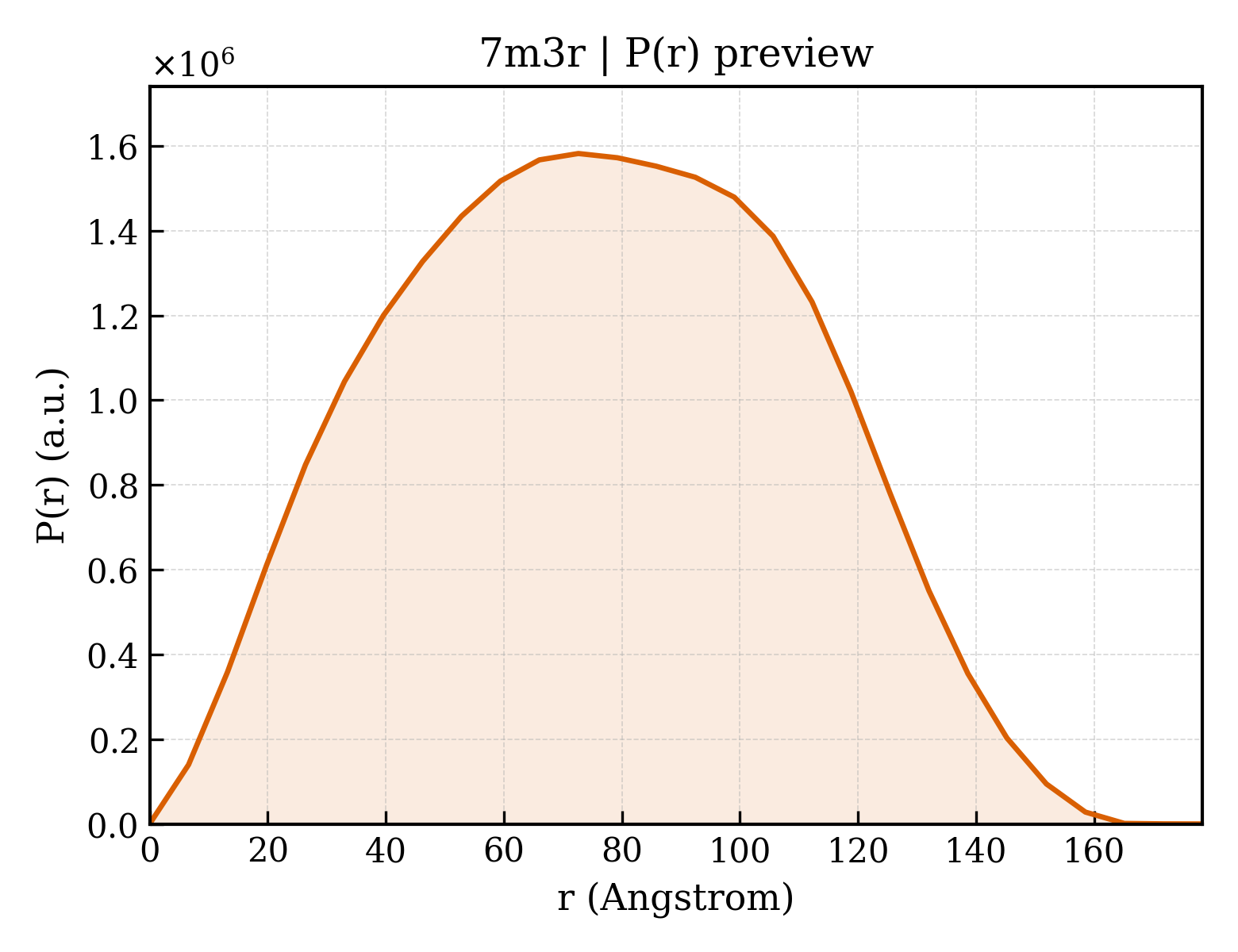

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	178.3 Å
Rg (real space) rg_real	58.72 Å
Rg uncertainty (real space) rg_real_error	1.44 Å
I(0) (real space) i0_real	1.9420e+09
I(0) uncertainty (real space) i0_real_error	3.9280e+07
Rg (reciprocal space) rg_reciprocal	59.10 Å
I(0) (reciprocal space) i0_reciprocal	1943000000.0000
Solution quality estimate total_estimate	0.8530
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	72.6 Å
Skewness Skewness skewness	0.036
Kurtosis Kurtosis kurtosis	-0.779
Angular range angular_range	— – 0.1350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	67630000.0000
Real-space data points n_real_points	28
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.985; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.134

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Coat protein
Molecular weight formula_weight	17533.9 kDa
Source method src_method	nat
Copy count entity_count	20

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,GG,HH,II,JJ,KK
Atom count atom_count	49952

MGRGKVKPNRKSTGDNSNVVTMIRAGSYPKVNPTPTWVRAIPFEVSVQSGIAFKVPVGSLFSANFRTDSFTSVTVMSVRAWTQLTPPVNEYSFVRLKPLFKTGDSTEEFEGRASNINTRASVGYRIPTNLRQNTVAADNVCEVRSNCRQVALVISCCFN

Entity 2 Entity 2 non-polymer

Description description	BROMIDE ION
Molecular weight formula_weight	79.9 kDa
Source method src_method	syn
Copy count entity_count	191

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	4465

▶

8. Citations (1)

▶

Unit-cell length a length_a	166.491 Å
Unit-cell length b length_b	166.491 Å
Unit-cell length c length_c	435.839 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	180

Space group space_group	H 3
Space-group number int_tables_number	146
Crystal system crystal_system	trigonal

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	54.080 Å
R factor r_factor	0.1805
R_work r_work	0.1710
R_free r_free	0.2082

fit	/app/data/saxs_computation/m3/7m3r/7m3r.fit
pddf	/app/data/pr_computation/m3/7m3r/7m3r.pr.out
profile	/app/data/saxs_computation/m3/7m3r/7m3r.dat
