SAXSdb — 7mby

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Cholecystokinin-8 × 1 （P06307） Cholecystokinin receptor type A × 1 （P32238） ;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ; × 1 （P63092,P63096） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–340； UniProt 1–340

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Homo sapiens

UniProt P59768

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Cholecystokinin-8 × 1 （P06307） Cholecystokinin receptor type A × 1 （P32238） ;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ; × 1 （P63092,P63096） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–71； UniProt 1–71

Cholecystokinin-8

OrganismNot specified

UniProt P06307

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Cholecystokinin receptor type A × 1 （P32238） ;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ; × 1 （P63092,P63096） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCKN_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain P； PDBConstruct 1–8； UniProt 96–103

Cholecystokinin receptor type A

Homo sapiens

UniProt P32238

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Cholecystokinin-8 × 1 （P06307） ;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ; × 1 （P63092,P63096） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCKAR_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain R； PDBConstruct 1–427； UniProt 2–428

;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ;

Homo sapiens

UniProt P63092

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Cholecystokinin-8 × 1 （P06307） Cholecystokinin receptor type A × 1 （P32238） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAS2_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 38–64； UniProt 38–64 Author chain A； PDBConstruct 73–253； UniProt 204–394

;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ;

Homo sapiens

UniProt P63096

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P54311） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 1 （P59768） Cholecystokinin-8 × 1 （P06307） Cholecystokinin receptor type A × 1 （P32238） CHOLESTEROL HEMISUCCINATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAI1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain A； PDBConstruct 9–37； UniProt 2–30

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7mby
Deposition date deposition_date	2021-04-01
Structure title title	Human Cholecystokinin 1 receptor (CCK1R) Gq chimera (mGsqi) complex
Keywords keywords	GPCR, MEMBRANE PROTEIN, MEMBRANE PROTEIN-SIGNALING PROTEIN complex; MEMBRANE PROTEIN/SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7mby__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7mby__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

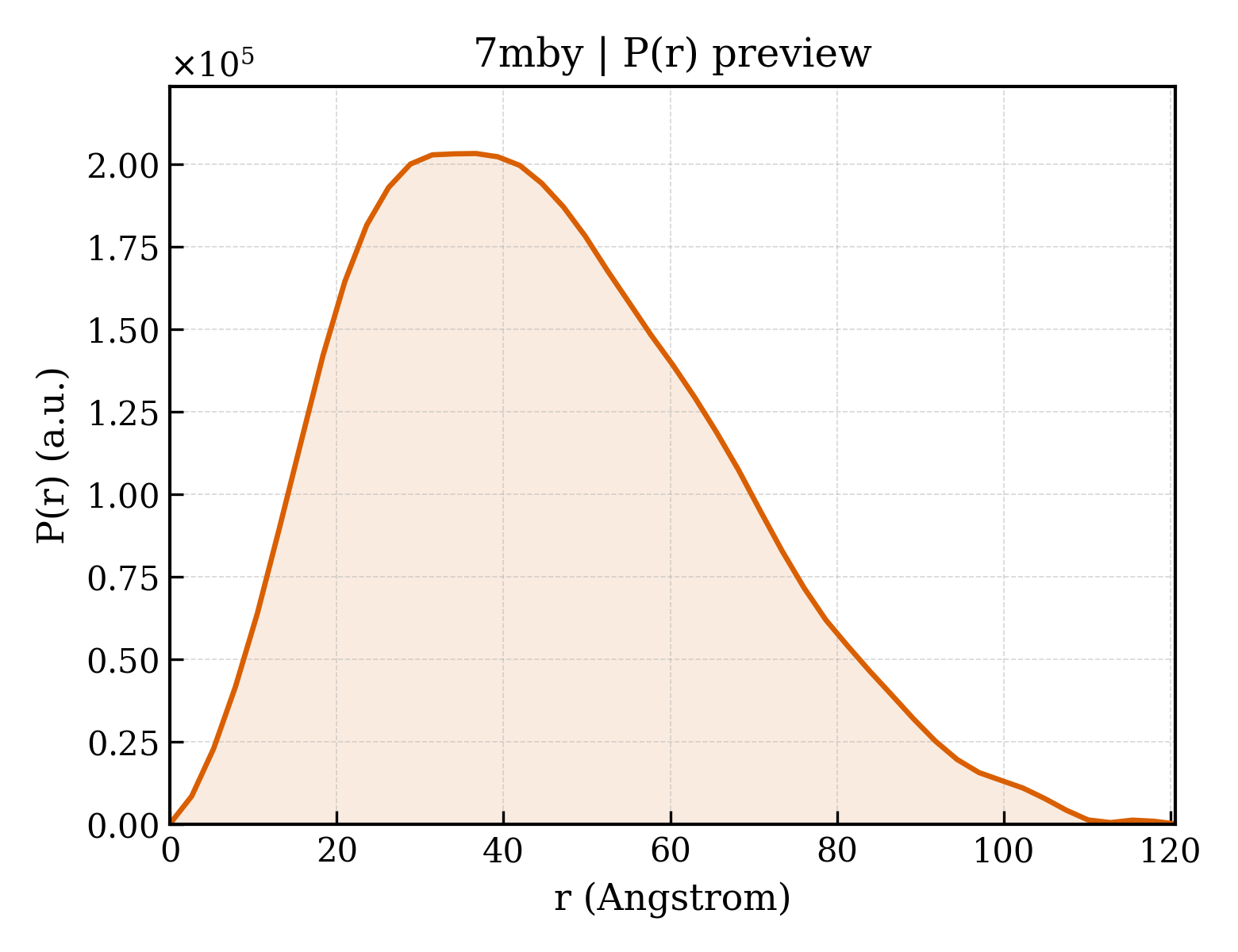

7mby__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.70 Å
Rg (electron density)	34.48 Å
Total Rg	34.84 Å
Atom count	6881
Residues	890
Excluded volume	123540 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7mby__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37416.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	6881

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	7861.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Cholecystokinin-8
Molecular weight formula_weight	1142.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

DYMGWMDFX

Entity 4 Entity 4 polymer

Description description	Cholecystokinin receptor type A
Molecular weight formula_weight	47754.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

DVVDSLLVNGSNITPPCELGLENETLFCLDQPRPSKEWQPAVQILLYSLIFLLSVLGNTLVITVLIRNKRMRTVTNIFLLSLAVSDLMLCLFCMPFNLIPNLLKDFIFGSAVCKTTTYFMGTSVSVSTFNLVAISLERYGAICKPLQSRVWQTKSHALKVIAATWCLSFTIMTPYPIYSNLVPFTKNNNQTANMCRFLLPNDVMQQSWHTFLLLILFLIPGIVMMVAYGLISLELYQGIKFEASQKKSAKERKPSTTSSGKYEDSDGCYLQKTRPPRKLELRQLSTGSSSRANRIRSNSSAANLMAKKRVIRMLIVIVVLFFLCWMPIFSANAWRAYDTASAERRLSGTPISFILLLSYTSSCVNPIIYCFMNKRFRLGFMATFPCCPNPGPPGARGEVGEEEEGGTTGASLSRFSYSHMSASVPPQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	;Guanine nucleotide-binding protein G(i) subunit alpha-1,Guanine nucleotide-binding protein G(s) subunit alpha isoforms short,with certain residues mutated to match Guanine nucleotide-binding protein G(q) subunit ;
Molecular weight formula_weight	29145.0 kDa
Mutation mutation	R39, L41, K343, V346, D347, I358, K380, L384, Q385, N387, E390, N392, V394 represent residues from G(q)
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

HHHHHHHHGCTLSAEDKAAVERSKMIDRNLREDGEKARRTLRLLLLGADNSGKSTIVKQMRILHGGSGGSGGTSGIFETKFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIFVVDSSDYNRLQEALNDFKSIWNNRWLRTISVILFLNKQDLLAEKVLAGKSKIEDYFPEFARYTTPEDATPEPGEDPRVTRAKYFIRKEFVDISTASGDGRHICYPHFTCAVDTENARRIFNDCKDIILQMNLREYNLV

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	7mbyA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	7mbyB01
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	10 — YVTN repeat-like/Quinoprotein amine dehydrogenase

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.44 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	444000

Human Cholecystokinin 1 receptor (CCK1R) Gq chimera (mGsqi) complex
