7oz2

Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA showing a transient P-pocket

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Reverse transcriptase/ribonuclease H

Human immunodeficiency virus type 1 group M subtype B (isolate BH10)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA (28-MER) × 1 ;DNA (5'-D(APCPAPGPTPCPCPCPTPGPTPTPCPGPGPGPCPGPCPCP*G)-3') ; × 1 CADMIUM ION × 16 SULFATE ION × 2 water × 4	Consistent with all polymers
2	Protein–DNA	Homooligomer	Protein 2 DNA 2	DNA (28-MER) × 1 ;DNA (5'-D(APCPAPGPTPCPCPCPTPGPTPTPCPGPGPGPCPGPCPCP*G)-3') ; × 1 CADMIUM ION × 11 MAGNESIUM ION × 1 water × 4	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POL_HV1B1
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 3–556； UniProt 600–1153 Author chain C； PDBConstruct 3–556； UniProt 600–1153 Author chain B； PDBConstruct 17–444； UniProt 600–1027 Author chain D； PDBConstruct 17–444； UniProt 600–1027

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7oz2
Deposition date deposition_date	2021-06-25
Structure title title	Crystal structure of HIV-1 reverse transcriptase with a double stranded DNA showing a transient P-pocket
Keywords keywords	Reverse Transcriptase, RT-DNA complex, RT sliding, Transferase-DNA complex, P-1 complex, P51, P66, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7oz2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7oz2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

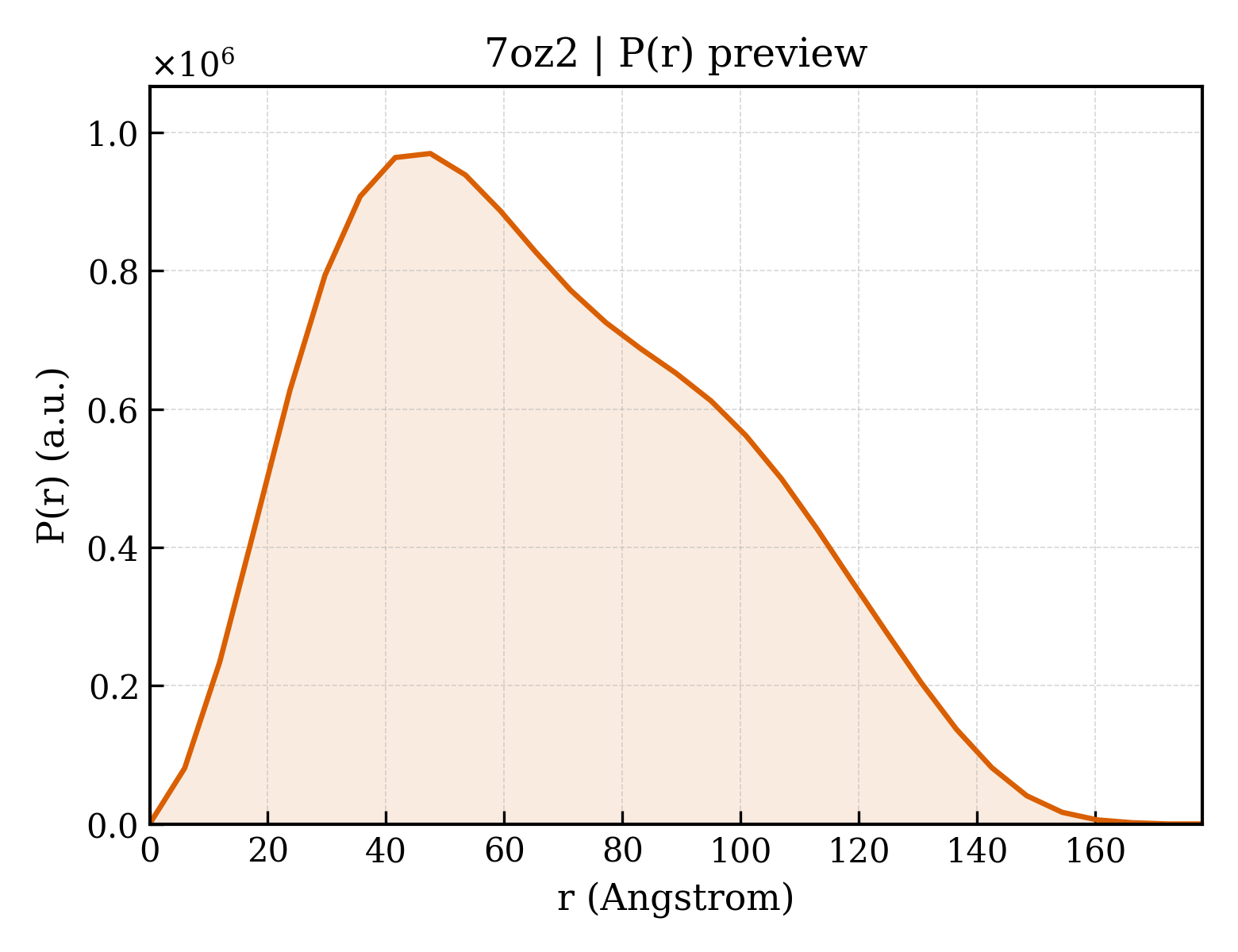

7oz2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.48 Å
Rg (electron density)	33.17 Å
Total Rg	33.83 Å
Atom count	8931
Residues	1018
Excluded volume	157840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7oz2__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`7oz2__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Reverse transcriptase/ribonuclease H
Molecular weight formula_weight	64038.4 kDa
EC 编号 ec_number	2.7.7.49,2.7.7.7,3.1.26.13,3.1.13.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	17868

MVPISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFACKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQLEKEPIVGAETFYVDGAANRETKLGKAGYVTNKGRQKVVPLTNTTNQKTELQAIYLALQDSGLEVNIVTDSQYALGIIQAQPDKSESELVNQIIEQLIKKEKVYLAWVPAHKGIGGNEQVDKLVSA

Source Source

Source organism organism	Human immunodeficiency virus type 1 group M subtype B (isolate BH10)
Common name common_name	HIV-1
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Gag-Pol polyprotein
Molecular weight formula_weight	51928.6 kDa
EC 编号 ec_number	3.4.23.16,2.7.7.49,2.7.7.7,3.1.26.13,3.1.13.2,2.7.7.-,3.1.-.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAHHHHHHALEVLFQGPISPIETVPVKLKPGMDGPKVKQWPLTEEKIKALVEICTEMEKEGKISKIGPENPYNTPVFAIKKKDSTKWRKLVDFRELNKRTQDFWEVQLGIPHPAGLKKKKSVTVLDVGDAYFSVPLDEDFRKYTAFTIPSINNETPGIRYQYNVLPQGWKGSPAIFQSSMTKILEPFKKQNPDIVIYQYMDDLYVGSDLEIGQHRTKIEELRQHLLRWGLTTPDKKHQKEPPFLWMGYELHPDKWTVQPIVLPEKDSWTVNDIQKLVGKLNWASQIYPGIKVRQLSKLLRGTKALTEVIPLTEEAELELAENREILKEPVHGVYYDPSKDLIAEIQKQGQGQWTYQIYQEPFKNLKTGKYARMRGAHTNDVKQLTEAVQKITTESIVIWGKTPKFKLPIQKETWETWWTEYWQATWIPEWEFVNTPPLVKLWYQ

Source Source

Source organism organism	Human immunodeficiency virus type 1 BH10
NCBI taxonomy ID ncbi_taxonomy_id	11678
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	DNA (28-MER)
Molecular weight formula_weight	8680.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T,E

ATGAATCGGCGCCCGAACAGGGACTGTG

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(APCPAPGPTPCPCPCPTPGPTPTPCPGPGPGPCPGPCPCP*G)-3') ;
Molecular weight formula_weight	6416.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P,F

ACAGTCCCTGTTCGGGCGCCG

Entity 5 Entity 5 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	27

Entity 6 Entity 6 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	160

▶

Unit-cell length a length_a	310.638 Å
Unit-cell length b length_b	62.070 Å
Unit-cell length c length_c	168.239 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	104.51 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.850 Å
Low-resolution limit resolution_low	81.440 Å
R factor r_factor	0.2190
R_work r_work	0.2170
R_free r_free	0.2570
