SAXSdb — 7rav

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 1e

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–1403	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.30 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RAV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6B5B Cryo-EM structure of the NAIP5-NLRC4-flagellin inflammasome Deposited 2017-09-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–1403（1403 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.6 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.20 Å
8FML Cryo-EM structure of NLR family apoptosis inhibitory protein 5 (NAIP5) in complex with a full-length flagellin (FliC) ligand Deposited 2022-12-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–1403（1402 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.93 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIR1E_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 11–1412； UniProt 2–1403

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rav
Deposition date deposition_date	2021-07-02
Structure title title	Cryo-EM structure of the unliganded form of NLR family apoptosis inhibitory protein 5 (NAIP5)
Keywords keywords	pre-liganded NAIP5, inflammasome, innate immunity, host-pathogen interaction, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.94 Å
Radius of gyration Rg (electron density) rg_electron	31.78 Å
Forward intensity I(0) i0	121085000.00
Molecular weight molecular_weight	88365.0 kDa
Excluded volume excluded_volume	111030 Å³
Envelope volume envelope_volume	146350 Å³
Hydration-shell volume shell_volume	39708 Å³
Envelope diameter envelope_diameter	124.1 Å
Shell Rg shell_rg	37.18 Å
Envelope Rg envelope_rg	32.14 Å
Shape Rg shape_rg	31.79 Å
Total Rg total_rg	32.19 Å
Total atoms total_atoms	6215
Residues n_residues	773
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.0 Å
Rg (real space) rg_real	32.13 Å
Rg uncertainty (real space) rg_real_error	1.15 Å
I(0) (real space) i0_real	1.2110e+08
I(0) uncertainty (real space) i0_real_error	2.1100e+06
Rg (reciprocal space) rg_reciprocal	32.05 Å
I(0) (reciprocal space) i0_reciprocal	121100000.0000
Solution quality estimate total_estimate	0.8422
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.8 Å
Skewness Skewness skewness	0.571
Kurtosis Kurtosis kurtosis	0.121
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	30160000.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.687; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.940

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Baculoviral IAP repeat-containing protein 1e
Molecular weight formula_weight	161128.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6215

MDYKDDDDKLAEHGESSEDRISEIDYEFLPELSALLGVDAFQVAKSQEEEEHKERMKMKKGFNSQMRSEAKRLKTFETYDTFRSWTPQEMAAAGFYHTGVRLGVQCFCCSLILFGNSLRKLPIERHKKLRPECEFLQGKDVGNIGKYDIRVKRPEKMLRGGKARYHEEEARLESFEDWPFYAHGTSPRVLSAAGFVFTGKRDTVQCFSCGGSLGNWEEGDDPWKEHAKWFPKCEFLQSKKSSEEIAQYIQSYEGFVHVTGEHFVKSWVRRELPMVSAYCNDSVFANEELRMDMFKDWPQESPVGVEALVRAGFFYTGKKDIVRCFSCGGCLEKWAEGDDPMEDHIKFFPECVFLQTLKSSAEVIPTLQSQYALPEATETTRESNHGDAAAVHSTVVDLGRSEAQWFQEARSLSEQLRDNYTKATFRHMNLPEVCSSLGTDHLLSCDVSIISKHISQPVQEALTIPEVFSNLNSVMCVEGETGSGKTTFLKRIAFLWASGCCPLLYRFQLVFYLSLSSITPDQGLANIICAQLLGAGGCISEVCLSSSIQQLQHQVLFLLDDYSGLASLPQALHTLITKNYLSRTCLLIAVHTNRVRDIRLYLGTSLEIQEFPFYNTVSVLRKFFSHDIICVEKLIIYFIDNKDLQGVYKTPLFVAAVCTDWIQNASAQDKFQDVTLFQSYMQYLSLKYKATAEPLQATVSSCGQLALTGLFSSCFEFNSDDLAEAGVDEDEKLTTLLMSKFTAQRLRPVYRFLGPLFQEFLAAVRLTELLSSDRQEDQDLGLYYLRQIDSPLKAINSFNIFLYYVSSHSSSKAAPTVVSHLLQLVDEKESLENMSENEDYMKLHPQTFLWFQFVRGLWLVSPESSSSFVSEHLLRLALIFAYESNTVAECSPFILQFLRGKTLALRVLNLQYFRDHPESLLLLRSLKVSINGNKMSSYVDYSFKTYFENLQPPAIDEEYTSAFEHISEWRRNFAQDEEIIKNYENIRPRALPDISEGYWKLSPKPCKIPKLEVQVNNTDAADQALLQVLMEVFSASQSIEFRLFNSSGFLESICPALELSKASVTKCSMSRLELSRAEQELLLTLPALQSLEVSETNQLPEQLFHNLHKFLGLKELCVRLDGKPNVLSVLPREFPNLLHMEKLSIQTSTESDLSKLVKFIQNFPNLHVFHLKCDFLSNCESLMAVLASCKKLREIEFSGRCFEAMTFVNILPNFVSLKILNLKDQQFPDKETSEKFAQALGSLRNLEELLVPTGDGIHQVAKLIVRQCLQLPCLRVLTFHDILDDDSVIEIARAATSGGFQKLENLDISMNHKITEEGYRNFFQALDNLPNLQELNICRNIPGRIQVQATTVKALGQCVSRLPSLIRLHMLSWLLDEEDMKVINDVKERHPQSKRLIIFWKLIVPFSPVILE

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.30 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	159513

fit	/app/data/saxs_computation/ra/7rav/7rav.fit
pddf	/app/data/pr_computation/ra/7rav/7rav.pr.out
profile	/app/data/saxs_computation/ra/7rav/7rav.dat

Cryo-EM structure of the unliganded form of NLR family apoptosis inhibitory protein 5 (NAIP5)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Baculoviral IAP repeat-containing protein 1e

State in the Current Structure

Other States of the Same Protein in the Database

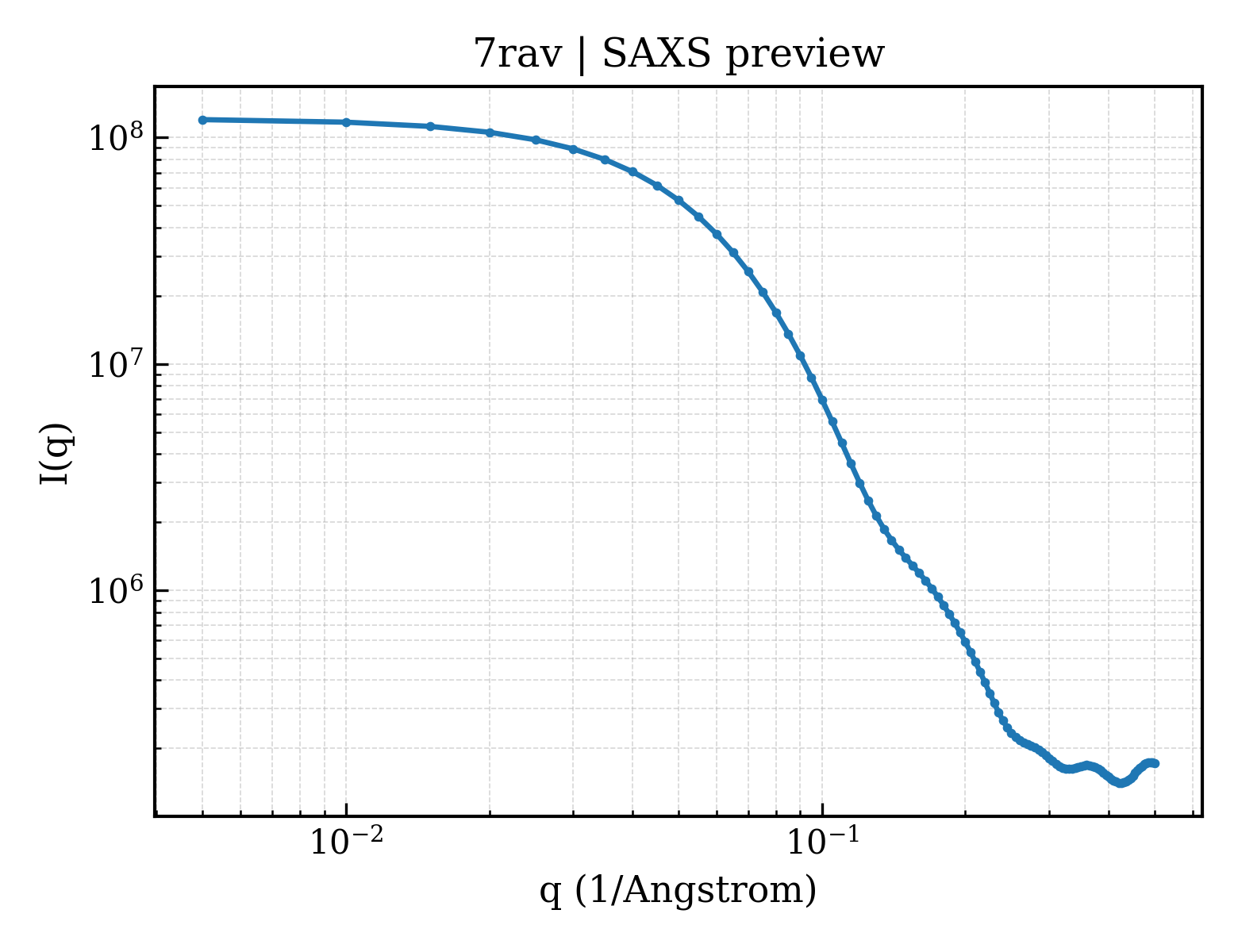

SAXS scattering curve SAXS Profile

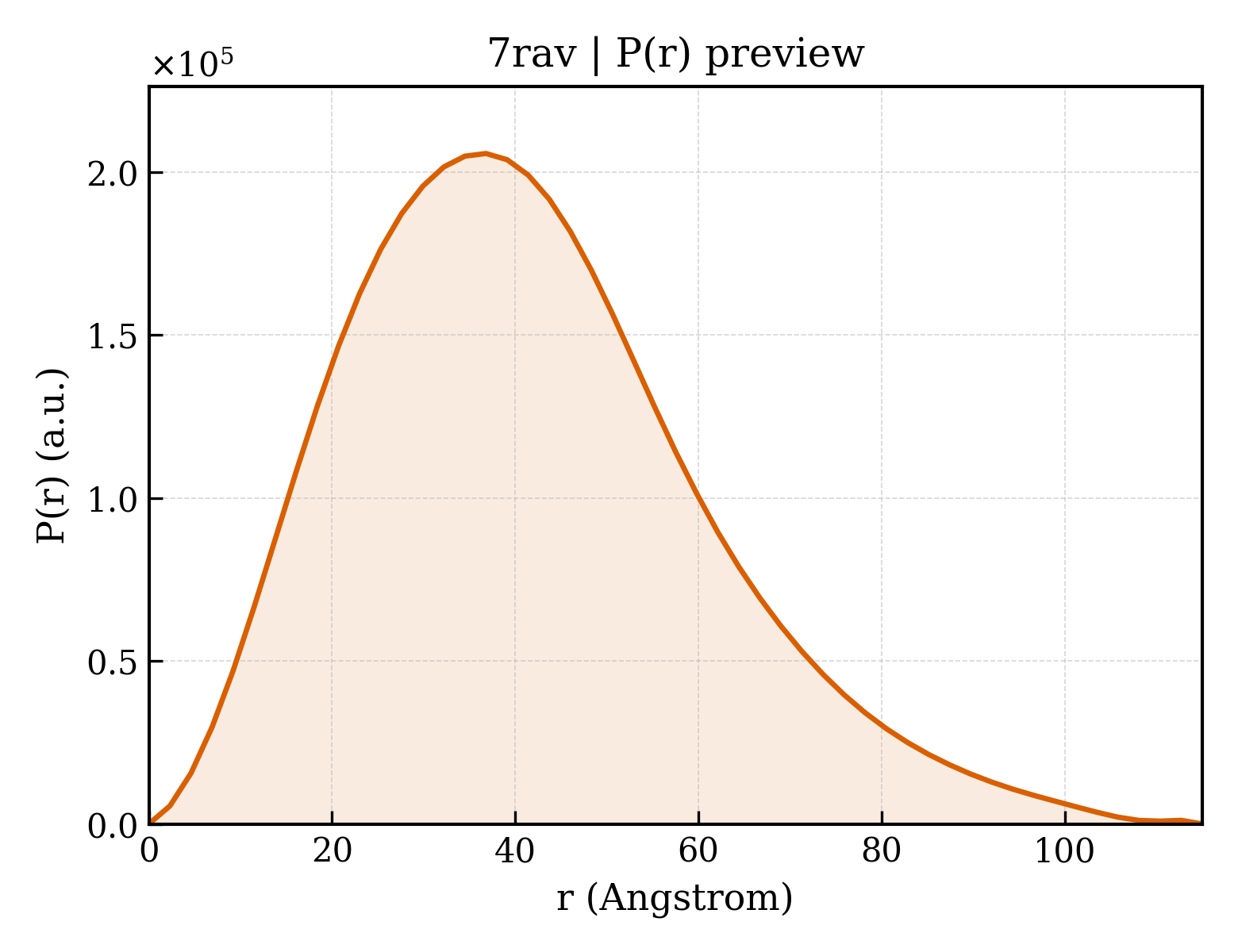

P(r) Distance Distribution P(r) Distribution
