1. Protein Identity and Related Structures Protein Identity & Related Structures

H-2 class II histocompatibility antigen, A-D alpha chain

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 28–205	Not recorded	H-2 class II histocompatibility antigen, A-D beta chain × 1 （P01921） TFH TCR alpha chain × 1 TFH TCR beta chain × 1 Aggrecan core peptide × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；0.1M Sodium Cacodylate pH6.0 15% w/v PEG4000	Resolution 2.90 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RDV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ES0 CRYSTAL STRUCTURE OF THE MURINE CLASS II ALLELE I-A(G7) COMPLEXED WITH THE GLUTAMIC ACID DECARBOXYLASE (GAD65) PEPTIDE 207-220 Deposited 2000-04-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–205（182 aa） Fragment：ALPHA CHAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；16-18% PEG 4000, 0.2 M LICL (PH 6.6), 1% MPD, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.60 Å R-free 0.258
1F3J HISTOCOMPATIBILITY ANTIGEN I-AG7 Deposited 2000-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 27–208（182 aa） Fragment：A-D ALPHA CHAIN Chain D 27–208（182 aa） Fragment：A-D ALPHA CHAIN	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.4；pH 4.4	Resolution 3.10 Å R-free 0.299
1IAO CLASS II MHC I-AD IN COMPLEX WITH OVALBUMIN PEPTIDE 323-339 Deposited 1998-03-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 24–209（186 aa） Chain B 28–216（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；32% PEG 600, 0.1 IMIDAZOLE MALATE, PH 5.5	Resolution 2.60 Å R-free 0.320
1IAO CLASS II MHC I-AD IN COMPLEX WITH OVALBUMIN PEPTIDE 323-339 Deposited 1998-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–209（186 aa） Chain B 28–216（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；32% PEG 600, 0.1 IMIDAZOLE MALATE, PH 5.5	Resolution 2.60 Å R-free 0.320
2IAD CLASS II MHC I-AD IN COMPLEX WITH AN INFLUENZA HEMAGGLUTININ PEPTIDE 126-138 Deposited 1998-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 24–209（186 aa） Fragment：RESIDUES 126P - 138P OF CHAIN B ARE COVALENTLY LINKED INFLUENZA HEMAGGLUTININ PEPTIDE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；19% PEG 8000 0.2 M TRIS, PH 7.4	Resolution 2.40 Å R-free 0.308
2IAD CLASS II MHC I-AD IN COMPLEX WITH AN INFLUENZA HEMAGGLUTININ PEPTIDE 126-138 Deposited 1998-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–209（186 aa） Fragment：RESIDUES 126P - 138P OF CHAIN B ARE COVALENTLY LINKED INFLUENZA HEMAGGLUTININ PEPTIDE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；19% PEG 8000 0.2 M TRIS, PH 7.4	Resolution 2.40 Å R-free 0.308
3CUP Crystal structure of the MHC class II molecule I-Ag7 in complex with the peptide GAD221-235 Deposited 2008-04-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–205（182 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；295 K；0.1M Hepes pH 7.5, 28% PEG 8000, 2% Jeffamine 900, VAPOR DIFFUSION, SITTING DROP, temperature 295K, pH 7.50	Resolution 3.09 Å R-free 0.286
3MBE TCR 21.30 in complex with MHC class II I-Ag7HEL(11-27) Deposited 2010-03-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–205（182 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；20% PEG4000, 0.2M K formate, 0.1M Na Cacodylate., pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.89 Å R-free 0.281
3MBE TCR 21.30 in complex with MHC class II I-Ag7HEL(11-27) Deposited 2010-03-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 24–205（182 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；20% PEG4000, 0.2M K formate, 0.1M Na Cacodylate., pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 2.89 Å R-free 0.281
5DMK Crystal Structure of IAg7 in complex with RLGL-WE14 Deposited 2015-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–198（173 aa）	Not recorded	FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1M Ammonium Citrate	Resolution 2.45 Å R-free 0.260
5DMK Crystal Structure of IAg7 in complex with RLGL-WE14 Deposited 2015-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 26–198（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1M Ammonium Citrate	Resolution 2.45 Å R-free 0.260
5DMK Crystal Structure of IAg7 in complex with RLGL-WE14 Deposited 2015-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 26–198（173 aa）	Not recorded	FLC CITRATE ANION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1M Ammonium Citrate	Resolution 2.45 Å R-free 0.260
5DMK Crystal Structure of IAg7 in complex with RLGL-WE14 Deposited 2015-09-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 26–198（173 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1M Ammonium Citrate	Resolution 2.45 Å R-free 0.260
6BLQ Crystal Structure of IAg7 in complex with insulin mimotope p8E9E Deposited 2017-11-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 24–208（185 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 IPA ISOPROPYL ALCOHOL × 4 EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；20% PEG3350, 100mM sodium citrate at pH5.0, 5% isopropanol	Resolution 1.80 Å R-free 0.203
6BLR Crystal Structure of IAg7 in complex with insulin mimotope p8E9E6SS Deposited 2017-11-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–208（183 aa）	Mutation：N64C	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；278 K；15% PEG4000, 10mM sodium citrate at pH5.0, 100 mM MgCl2	Resolution 1.96 Å R-free 0.228
6BLX Crystal structure of IAg7 in complex with insulin mimotope p8G9E Deposited 2017-11-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–208（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 4 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；278 K；18% PEG20000, 100mM sodium citrate at pH5.0	Resolution 2.32 Å R-free 0.220
6DFS mouse TCR I.29 in complex with IAg7-p8E9E6ss Deposited 2018-05-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 26–208（183 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；12% PEG 20000, 100mM bicine pH9.0, 20% ethylene glycol	Resolution 3.10 Å R-free 0.285
6DFW TCR 8F10 in complex with IAg7-p8G9E Deposited 2018-05-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–208（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；11% PEG 3350, 100mM formate pH7.0	Resolution 3.20 Å R-free 0.297
6DFW TCR 8F10 in complex with IAg7-p8G9E Deposited 2018-05-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 26–208（183 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；11% PEG 3350, 100mM formate pH7.0	Resolution 3.20 Å R-free 0.297
7QHP Structure of I-Ag7 with a bound hybrid insulin peptide Deposited 2021-12-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 24–218（195 aa）	Mutation：I91C	GOL GLYCEROL × 2 SO4 SULFATE ION × 1 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M ammonium sulfate, 25% w/v PEG 4000, 15% glycerol	Resolution 1.82 Å R-free 0.219
7Z50 Structure of the highly diabetogenic 4.1-T cell receptor targeting a hybrid insulin peptide bound to I-Ag7. Deposited 2022-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 24–218（195 aa）	Mutation：I91C	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 EDO 1,2-ETHANEDIOL × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1 M MgCl2, 0.1 M Na HEPES pH 7.0, 15% w/v PEG 4000	Resolution 2.65 Å R-free 0.261
7Z50 Structure of the highly diabetogenic 4.1-T cell receptor targeting a hybrid insulin peptide bound to I-Ag7. Deposited 2022-03-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 24–218（195 aa）	Mutation：I91C	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 EDO 1,2-ETHANEDIOL × 3 NA SODIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.1 M MgCl2, 0.1 M Na HEPES pH 7.0, 15% w/v PEG 4000	Resolution 2.65 Å R-free 0.261

14 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HA2D_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–178； UniProt 28–205

H-2 class II histocompatibility antigen, A-D beta chain

Mus musculus

UniProt P01921

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain B； UniProt 31–216	Not recorded	H-2 class II histocompatibility antigen, A-D alpha chain × 1 （P04228） TFH TCR alpha chain × 1 TFH TCR beta chain × 1 Aggrecan core peptide × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；0.1M Sodium Cacodylate pH6.0 15% w/v PEG4000	Resolution 2.90 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7RDV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2IAD CLASS II MHC I-AD IN COMPLEX WITH AN INFLUENZA HEMAGGLUTININ PEPTIDE 126-138 Deposited 1998-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 28–216（189 aa） Fragment：RESIDUES 126P - 138P OF CHAIN B ARE COVALENTLY LINKED INFLUENZA HEMAGGLUTININ PEPTIDE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；19% PEG 8000 0.2 M TRIS, PH 7.4	Resolution 2.40 Å R-free 0.308
2IAD CLASS II MHC I-AD IN COMPLEX WITH AN INFLUENZA HEMAGGLUTININ PEPTIDE 126-138 Deposited 1998-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 28–216（189 aa） Fragment：RESIDUES 126P - 138P OF CHAIN B ARE COVALENTLY LINKED INFLUENZA HEMAGGLUTININ PEPTIDE	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.4；19% PEG 8000 0.2 M TRIS, PH 7.4	Resolution 2.40 Å R-free 0.308

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HB2D_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–186； UniProt 31–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7rdv
Deposition date deposition_date	2021-07-11
Structure title title	TFH TCR bound to MHC Class II IAd presenting aggrecan epitope
Keywords keywords	Immune receptor, MHC class II, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	35.16 Å
Radius of gyration Rg (electron density) rg_electron	35.43 Å
Forward intensity I(0) i0	120761000.00
Molecular weight molecular_weight	85513.0 kDa
Excluded volume excluded_volume	105690 Å³
Envelope volume envelope_volume	141840 Å³
Hydration-shell volume shell_volume	36060 Å³
Envelope diameter envelope_diameter	137.6 Å
Shell Rg shell_rg	38.12 Å
Envelope Rg envelope_rg	36.35 Å
Shape Rg shape_rg	35.43 Å
Total Rg total_rg	35.63 Å
Total atoms total_atoms	6045
Residues n_residues	783
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

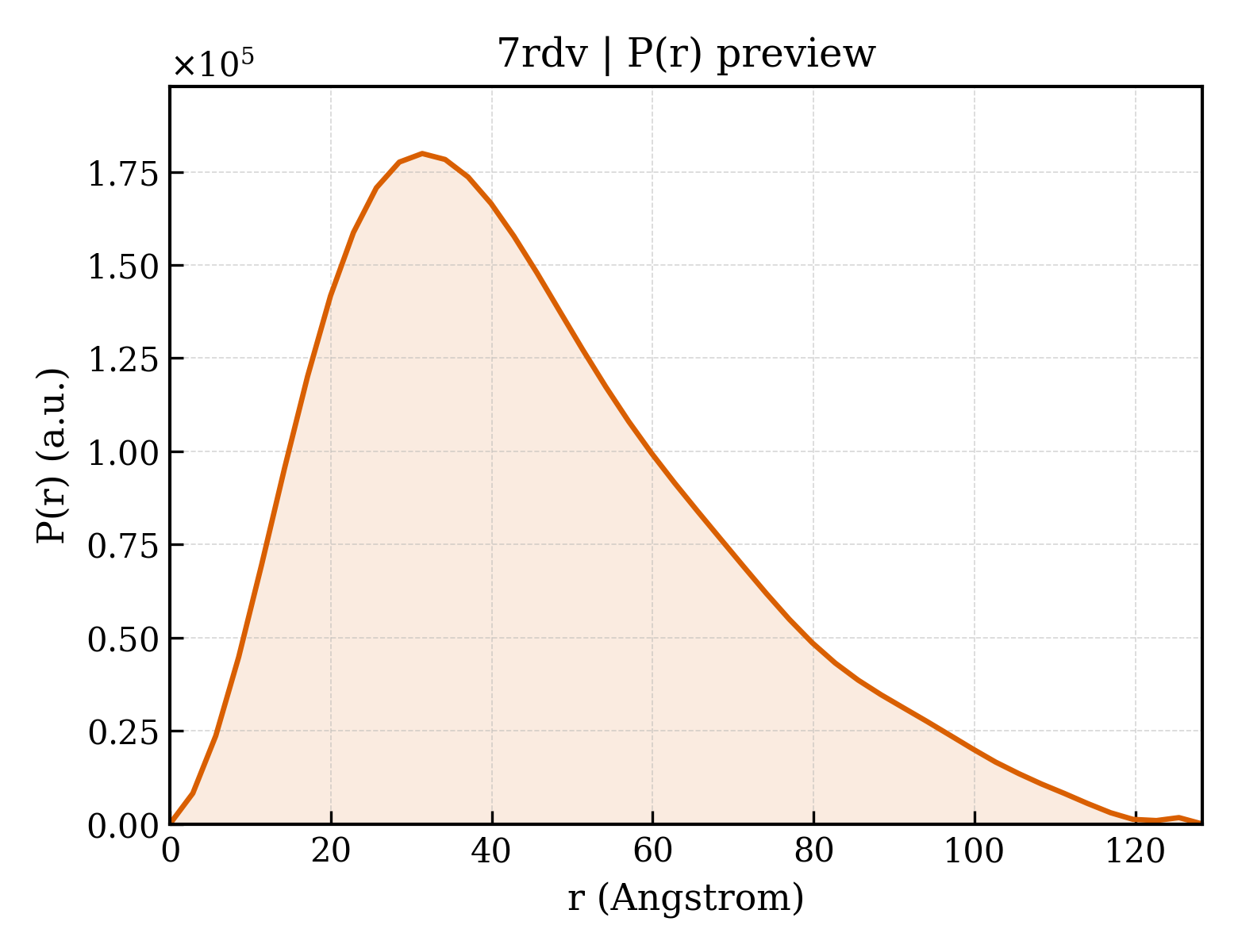

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.3 Å
Rg (real space) rg_real	35.64 Å
Rg uncertainty (real space) rg_real_error	1.52 Å
I(0) (real space) i0_real	1.2080e+08
I(0) uncertainty (real space) i0_real_error	2.2690e+06
Rg (reciprocal space) rg_reciprocal	35.34 Å
I(0) (reciprocal space) i0_reciprocal	120700000.0000
Solution quality estimate total_estimate	0.7828
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.4 Å
Skewness Skewness skewness	0.681
Kurtosis Kurtosis kurtosis	-0.022
Angular range angular_range	— – 0.2250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	19000000.0000
Real-space data points n_real_points	46
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.580; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.583; Smooth: 0.848

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	H-2 class II histocompatibility antigen, A-D alpha chain
Molecular weight formula_weight	20569.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6052

EADHVGFYGTTVYQSPGDIGQYTHEFDGDELFYVDLDKKKTVWRLPEFGQLILFEPQGGLQNIAAEKHNLGILTKRSNFTPATNEAPQATVFPKSPVLLGQPNTLICFVDNIFPPVINITWLRNSKSVTDGVYETSFLVNRDHSFHKLSYLTFIPSDDDIYDCKVEHWGLEEPVLKHWTSG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Baculovirus expression vector pFastBac1-HM

Entity 2 Entity 2 polymer

Description description	H-2 class II histocompatibility antigen, A-D beta chain
Molecular weight formula_weight	21848.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

ERHFVVQFKGECYYTNGTQRIRLVTRYIYNREEYVRYDSDVGEYRAVTELGRPDAEYWNSQPEILERTRAEVDTACRHNYEGPETSTSLRRLEQPNVAISLSRTEALNHHNTLVCSVTDFYPAKIKVRWFRNGQEETVGVSSTQLIRNGDWTFQVLVMLEMTPHQGEVYTCHVEHPSLKSPITVEW

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Baculovirus expression vector pFastBac1-HM

Entity 3 Entity 3 polymer

Description description	TFH TCR alpha chain
Molecular weight formula_weight	23023.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

EQVEQLPSILRVQEGSSASINCTYENSASNYFPWYKQEPGENPKLIIDIRSNMERKQTQGLIVLLDKKAKRFSLHITDTQPGDSAMYFCAASDDNNNRIFFGDGTQLVVKPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESS

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 polymer

Description description	TFH TCR beta chain
Molecular weight formula_weight	26829.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

AVTQSPRNKVAVTGGKVTLSCNQTNNHNNMYWYRQDTGHGLRLIHYSYGAGSTEKGDIPDGYKASRPSQENFSLILELATPSQTSVYFCASGGQSNERLFFGHGTKLSVLEDLNKVFPPEVAVFEPSEAEISHTQKATLVCLATGFFPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	Mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	Aggrecan core peptide
Molecular weight formula_weight	1367.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EGRVRVNSAYQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Baculovirus expression vector pFastBac1-HM

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	7

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7rdvC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	102.562 Å
Unit-cell length b length_b	102.562 Å
Unit-cell length c length_c	195.695 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	trigonal

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	49.606 Å
R factor r_factor	0.2386
R_work r_work	0.2373
R_free r_free	0.2645

fit	/app/data/saxs_computation/rd/7rdv/7rdv.fit
pddf	/app/data/pr_computation/rd/7rdv/7rdv.pr.out
profile	/app/data/saxs_computation/rd/7rdv/7rdv.dat
