SAXSdb — 7sbg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Profilin-2

Hevea brasiliensis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 3 其他Polymer 1 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–131	Not recorded	Fab/IgE Heavy chain × 1 Fab/IgE Light chain × 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8.4；291 K；0.2 M lithium acetate, 20% PEG3350	Resolution 3.34 Å R-free 0.298

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7SBG	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5FDS Crystal structure of the monomeric allergen profilin (Hev b 8) Deposited 2015-12-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–131（131 aa）	Not recorded	GOL GLYCEROL × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；291 K；0.1M TRIS-HCL, pH 9.0, 1.6 M Ammonium Sulfate	Resolution 1.90 Å R-free 0.197
5FEG Crystal structure of the dimeric allergen profilin (Hev b 8) Deposited 2015-12-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–131（131 aa） Chain B 1–131（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1M TRIS-HCl, pH 9.0; 2.0 M Ammonium Sulfate	Resolution 2.80 Å R-free 0.250
7SBD Murine Fab/IgE in complex with profilin from Hevea brasieliensis (Hev b 8) Deposited 2021-09-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–131（131 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；291 K；2% Tacsimate, pH 6.0, 0.1 M Bis-Tris, pH 6.5, 20% w/v PEG3350	Resolution 3.04 Å R-free 0.254

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PROF2_HEVBR
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 5–135； UniProt 1–131

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7sbg
Deposition date deposition_date	2021-09-24
Structure title title	Murine Fab/IgE in complex with profilin from Hevea brasieliensis (Hev b 8)
Keywords keywords	Antibody, Allergen, IgE/Fab fragment, complex, ALLERGEN-IMMUNE SYSTEM complex; ALLERGEN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.80 Å
Radius of gyration Rg (electron density) rg_electron	27.43 Å
Forward intensity I(0) i0	49798000.00
Molecular weight molecular_weight	53043.0 kDa
Excluded volume excluded_volume	65190 Å³
Envelope volume envelope_volume	84008 Å³
Hydration-shell volume shell_volume	27208 Å³
Envelope diameter envelope_diameter	102.2 Å
Shell Rg shell_rg	32.77 Å
Envelope Rg envelope_rg	27.61 Å
Shape Rg shape_rg	27.44 Å
Total Rg total_rg	27.93 Å
Total atoms total_atoms	3759
Residues n_residues	547
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

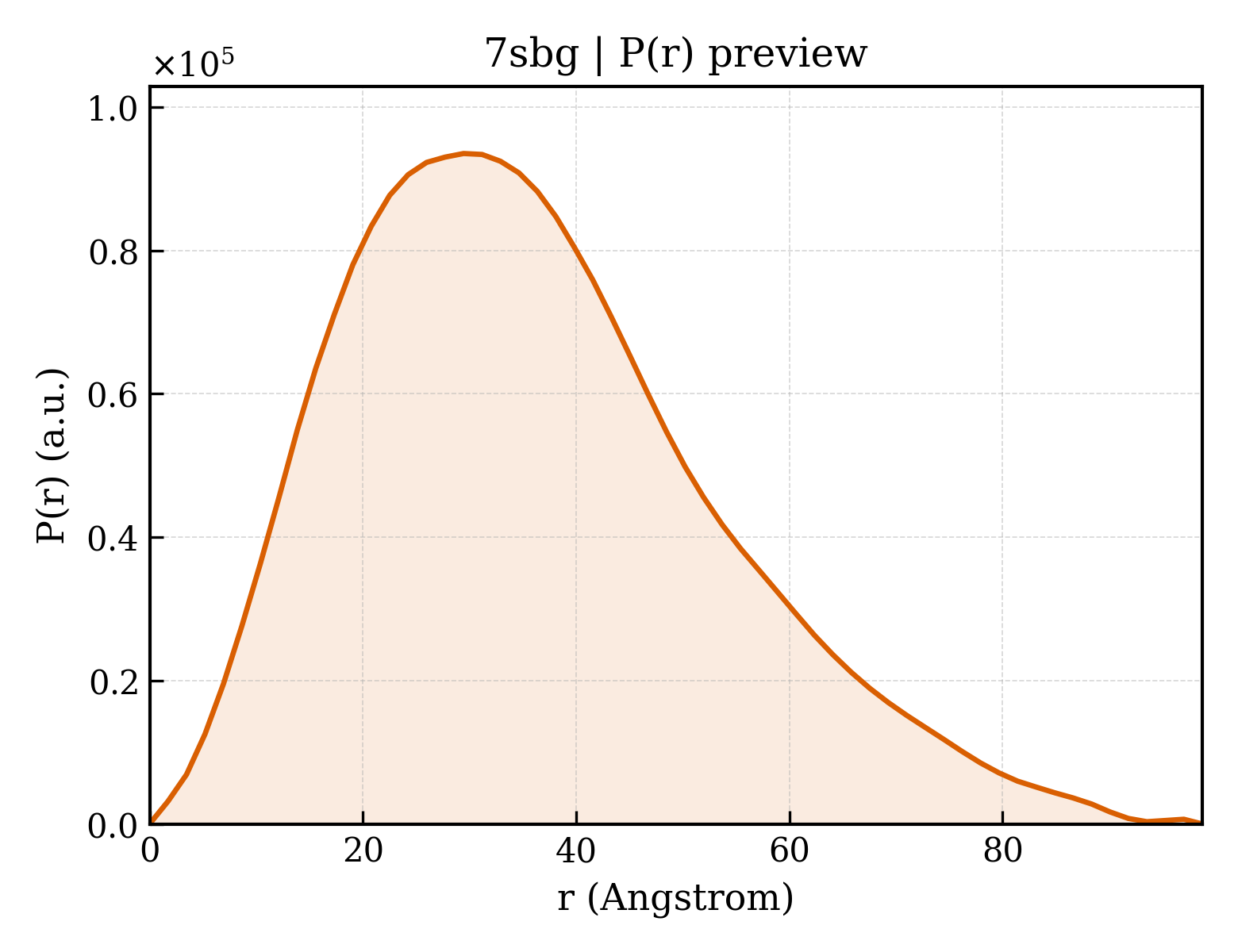

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.7 Å
Rg (real space) rg_real	28.05 Å
Rg uncertainty (real space) rg_real_error	0.92 Å
I(0) (real space) i0_real	4.9800e+07
I(0) uncertainty (real space) i0_real_error	8.1480e+05
Rg (reciprocal space) rg_reciprocal	27.97 Å
I(0) (reciprocal space) i0_reciprocal	49800000.0000
Solution quality estimate total_estimate	0.8396
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.4 Å
Skewness Skewness skewness	0.586
Kurtosis Kurtosis kurtosis	-0.012
Angular range angular_range	— – 0.2850 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10780000.0000
Real-space data points n_real_points	58
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.814; Smooth: 0.945

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Fab/IgE Heavy chain
Molecular weight formula_weight	23226.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	3759

EVQLVESGGGLVQPKGSLKLSCAASGFTFNTYAMNWVRQAPGKGLEWVARIRTKTNNYVTYYADSVKDRFTISRDDSQSMLYLQMNNLKTEDTAMYYCVRHVGDYWGQGTSVTVSSASIRNPQLYPLKPCKGTASMTLGCLVKDYFPGPVTVTWYSDSLNMSTVNFPALGSELKVTTSQVTSWGKSAKNFTCHVTHPPSFNESRTILVR

Entity 2 Entity 2 polymer

Description description	Fab/IgE Light chain
Molecular weight formula_weight	23616.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPASLSASVGETVTITCRASGNIHNYLAWFQQKQGKSPQLLVYNAKTLADGVPSRFSGSGSGTQYSLKINSLQPEDFGSYYCQHFWSTPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 3 Entity 3 polymer

Description description	Profilin-2
Molecular weight formula_weight	14636.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

DDDKMSWQAYVDDHLMCEIEGNHLSAAAIIGQDGSVWAQSANFPQFKSEEITGIMSDFHEPGTLAPTGLYIGGTKYMVIQGEPGAVIRGKKGPGGVTVKKTNQALIIGIYDEPMTPGQCNMIVERLGDYLIDQGY

来源 Source

来源生物 organism	Hevea brasiliensis
通用名 common_name	rubber tree
NCBI Class编号 ncbi_taxonomy_id	3981
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7sbgH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7sbgH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7sbgL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7sbgL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (3)

▶

Unit-cell length a length_a	52.325 Å
Unit-cell length b length_b	71.450 Å
Unit-cell length c length_c	132.518 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	3.340 Å
Low-resolution limit resolution_low	37.570 Å
R factor r_factor	0.2525
R_work r_work	0.2453
R_free r_free	0.2978

fit	/app/data/saxs_computation/sb/7sbg/7sbg.fit
pddf	/app/data/pr_computation/sb/7sbg/7sbg.pr.out
profile	/app/data/saxs_computation/sb/7sbg/7sbg.dat
