SAXSdb — 7uac

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Meprin A subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 4 PDB declaration: monomeric（1） Consistent with protein copy count	Chain H； UniProt 22–600	Not recorded	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CA CALCIUM ION × 2 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE；3 s blot, -3 force	Resolution 2.70 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7UAC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7UAB Human pro-meprin alpha (zymogen state) Deposited 2022-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 22–600（579 aa） Chain D 22–600（579 aa） Chain E 22–600（579 aa） Chain H 22–600（579 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 CA CALCIUM ION × 7 ZN ZINC ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 s blot, -3 force	Resolution 3.70 Å
7UAE Human meprin alpha (active state) Deposited 2022-03-12	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–600（579 aa）	Not recorded	CA CALCIUM ION × 2 ZN ZINC ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 s blot, -3 force	Resolution 2.60 Å
7UAF Human meprin alpha inhibitory complex with compound 10d (N~3~,N~3~-bis[(2H-1,3-benzodioxol-5-yl)methyl]-N-hydroxy-beta-alaninamide) Deposited 2022-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 22–600（579 aa） Chain B 22–600（579 aa） Chain C 22–600（579 aa） Chain D 22–600（579 aa）	Not recorded	M6X N~3~,N~3~-bis[(2H-1,3-benzodioxol-5-yl)methyl]-N-hydroxy-beta-alaninamide × 4 CA CALCIUM ION × 8 ZN ZINC ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 s blot, -3 force	Resolution 2.40 Å
7UAI Meprin alpha helix in complex with fetuin-B Deposited 2022-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 22–600（579 aa） Chain C 22–600（579 aa） Chain D 22–600（579 aa） Chain E 22–600（579 aa）	Not recorded	CA CALCIUM ION × 8 ZN ZINC ION × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；3 s blot, -3 force	Resolution 2.80 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MEP1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain H； PDBConstruct 9–587； UniProt 22–600

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7uac
Deposition date deposition_date	2022-03-12
Structure title title	Human pro-meprin alpha (zymogen state)
Keywords keywords	Metalloprotease, complex, helical, extracellular, ONCOPROTEIN; ONCOPROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.53 Å
Radius of gyration Rg (electron density) rg_electron	25.23 Å
Forward intensity I(0) i0	71372900.00
Molecular weight molecular_weight	64509.0 kDa
Excluded volume excluded_volume	79979 Å³
Envelope volume envelope_volume	98399 Å³
Hydration-shell volume shell_volume	31962 Å³
Envelope diameter envelope_diameter	86.2 Å
Shell Rg shell_rg	32.93 Å
Envelope Rg envelope_rg	25.42 Å
Shape Rg shape_rg	25.23 Å
Total Rg total_rg	26.05 Å
Total atoms total_atoms	4540
Residues n_residues	546
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

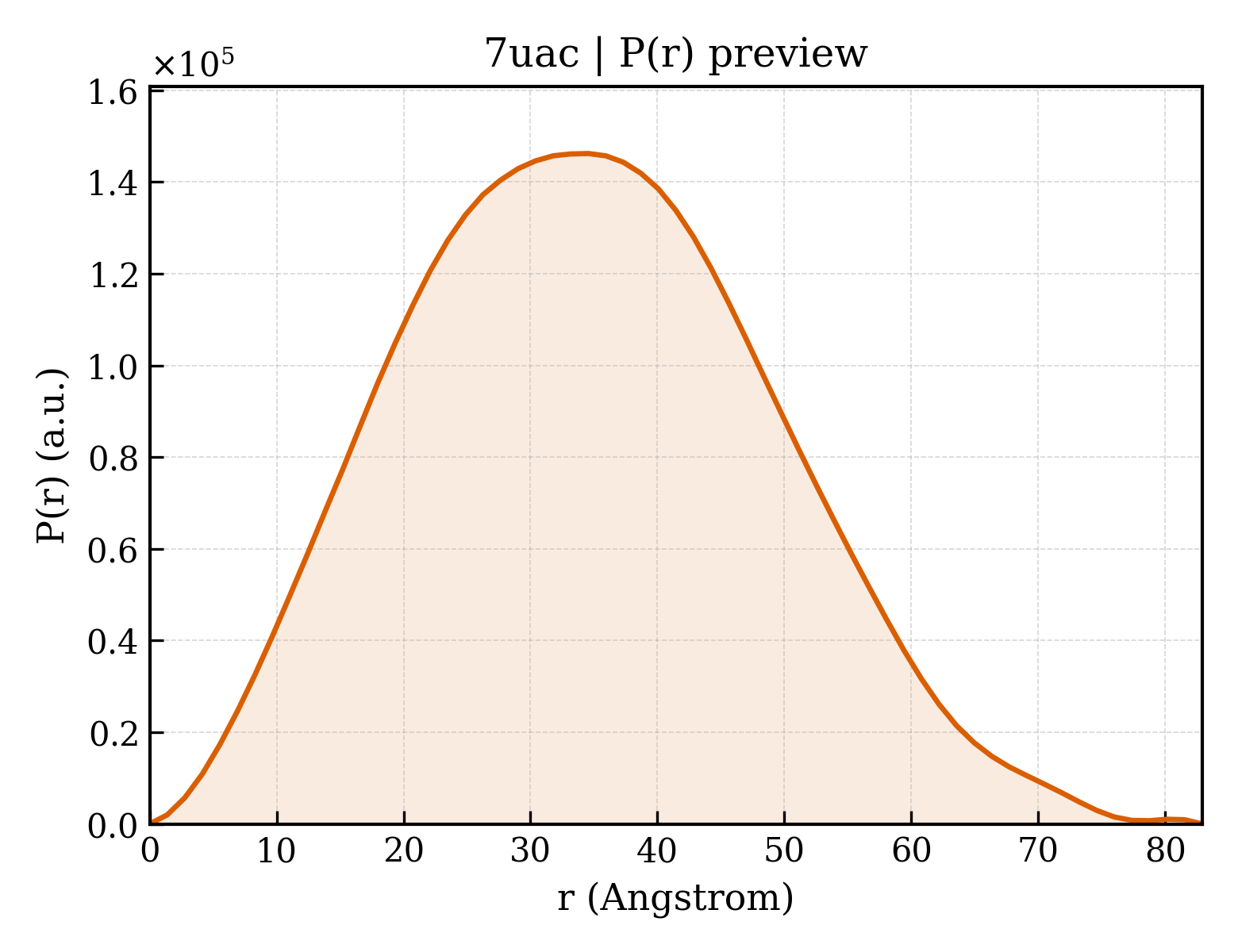

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.9 Å
Rg (real space) rg_real	26.41 Å
Rg uncertainty (real space) rg_real_error	0.59 Å
I(0) (real space) i0_real	7.1370e+07
I(0) uncertainty (real space) i0_real_error	1.0270e+06
Rg (reciprocal space) rg_reciprocal	26.45 Å
I(0) (reciprocal space) i0_reciprocal	71370000.0000
Solution quality estimate total_estimate	0.9059
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.5 Å
Skewness Skewness skewness	0.201
Kurtosis Kurtosis kurtosis	-0.420
Angular range angular_range	— – 0.3000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12230000.0000
Real-space data points n_real_points	61
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Meprin A subunit alpha
Molecular weight formula_weight	67285.8 kDa
EC 编号 ec_number	3.4.24.18
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	4540

WSHPQFEKVPIKYLPEENVHDADFGEQKDISEINLAAGLDLFQGDILLQKSRNGLRDPNTRWTFPIPYILADNLGLNAKGAILYAFEMFRLKSCVDFKPYEGESSYIIFQQFDGCWSEVGDQHVGQNISIGQGCAYKAIIEHEILHALGFYHEQSRTDRDDYVNIWWDQILSGYQHNFDTYDDSLITDLNTPYDYESLMHYQPFSFNKNASVPTITAKIPEFNSIIGQRLDFSAIDLERLNRMYNCTTTHTLLDHCTFEKANICGMIQGTRDDTDWAHQDSAQAGEVDHTLLGQCTGAGYFMQFSTSSGSAEEAALLESRILYPKRKQQCLQFFYKMTGSPSDRLVVWVRRDDSTGNVRKLVKVQTFQGDDDHNWKIAHVVLKEEQKFRYLFQGTKGDPQNSTGGIYLDDITLTETPCPTGVWTVRNFSQVLENTSKGDKLQSPRFYNSEGYGFGVTLYPNSRESSGYLRLAFHVCSGENDAILEWPVENRQVIITILDQEPDVRNRMSSSMVFTTSKSHTSPAINDTVIWDRPSRVGTYHTDCNCFRSIDLGWSGFISHQMLKRRSFLKNDDLIIFVDFEDITHLS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Drosophila melanogaster

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 branched

Description description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	732.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.70 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	338429

fit	/app/data/saxs_computation/ua/7uac/7uac.fit
pddf	/app/data/pr_computation/ua/7uac/7uac.pr.out
profile	/app/data/saxs_computation/ua/7uac/7uac.dat
