SAXSdb — 7um4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

5-hydroxytryptamine receptor 5A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 22–357	Mutation：D65N, I278A	PGS × 1 PGE TRIETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 3 PG4 TETRAETHYLENE GLYCOL × 1 1PE PENTAETHYLENE GLYCOL × 1 NN6 ~{N}-[azanyl(azanylidene)methylidene]-5-fluoranyl-8-[2,4,6-tris(fluoranyl)phenyl]-3,4-dihydro-1~{H}-isoquinoline-2-carboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions：LIPIDIC CUBIC PHASE；293 K；0.1 M Sodium chloride, 0.1 M Lithium sulfate, 0.1 M DL-Malic acid pH 5.9, 30 % v/v PEG 400	Resolution 2.80 Å R-free 0.271

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7UM4	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7UM5 CryoEM structure of Go-coupled 5-HT5AR in complex with 5-CT Deposited 2022-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 32–357（326 aa）	Mutation：H146P	8K3 3-(2-azanylethyl)-1H-indole-5-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.73 Å
7UM6 CryoEM structure of Go-coupled 5-HT5AR in complex with Lisuride Deposited 2022-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 32–357（326 aa）	Mutation：H146P	H8G N,N-diethyl-N'-[(8alpha)-6-methyl-9,10-didehydroergolin-8-yl]urea × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.79 Å
7UM7 CryoEM structure of Go-coupled 5-HT5AR in complex with Methylergometrine Deposited 2022-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 32–357（326 aa）	Mutation：H146P	H8D (8beta)-N-[(2S)-1-hydroxybutan-2-yl]-6-methyl-9,10-didehydroergoline-8-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.75 Å
7X5H Serotonin 5A (5-HT5A) receptor-Gi protein complex Deposited 2022-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–357（356 aa）	Not recorded	8K3 3-(2-azanylethyl)-1H-indole-5-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
9W6W 5-CT-bound serotonin 5A (5-HT5A) receptor-Gi protein complex Deposited 2025-08-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 9–357（349 aa）	Not recorded	8K3 3-(2-azanylethyl)-1H-indole-5-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	5HT5A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–336； UniProt 22–357

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7um4
Deposition date deposition_date	2022-04-06
Structure title title	Crystal structure of inactive 5-HT5AR in complex with AS2674723
Keywords keywords	GPCR, inactive state, MEMBRANE PROTEIN, 5-HT5AR, HTR5A; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.71 Å
Radius of gyration Rg (electron density) rg_electron	30.66 Å
Forward intensity I(0) i0	37465500.00
Molecular weight molecular_weight	51482.0 kDa
Excluded volume excluded_volume	65946 Å³
Envelope volume envelope_volume	82584 Å³
Hydration-shell volume shell_volume	24498 Å³
Envelope diameter envelope_diameter	105.2 Å
Shell Rg shell_rg	34.80 Å
Envelope Rg envelope_rg	30.66 Å
Shape Rg shape_rg	30.67 Å
Total Rg total_rg	31.03 Å
Total atoms total_atoms	3622
Residues n_residues	453
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

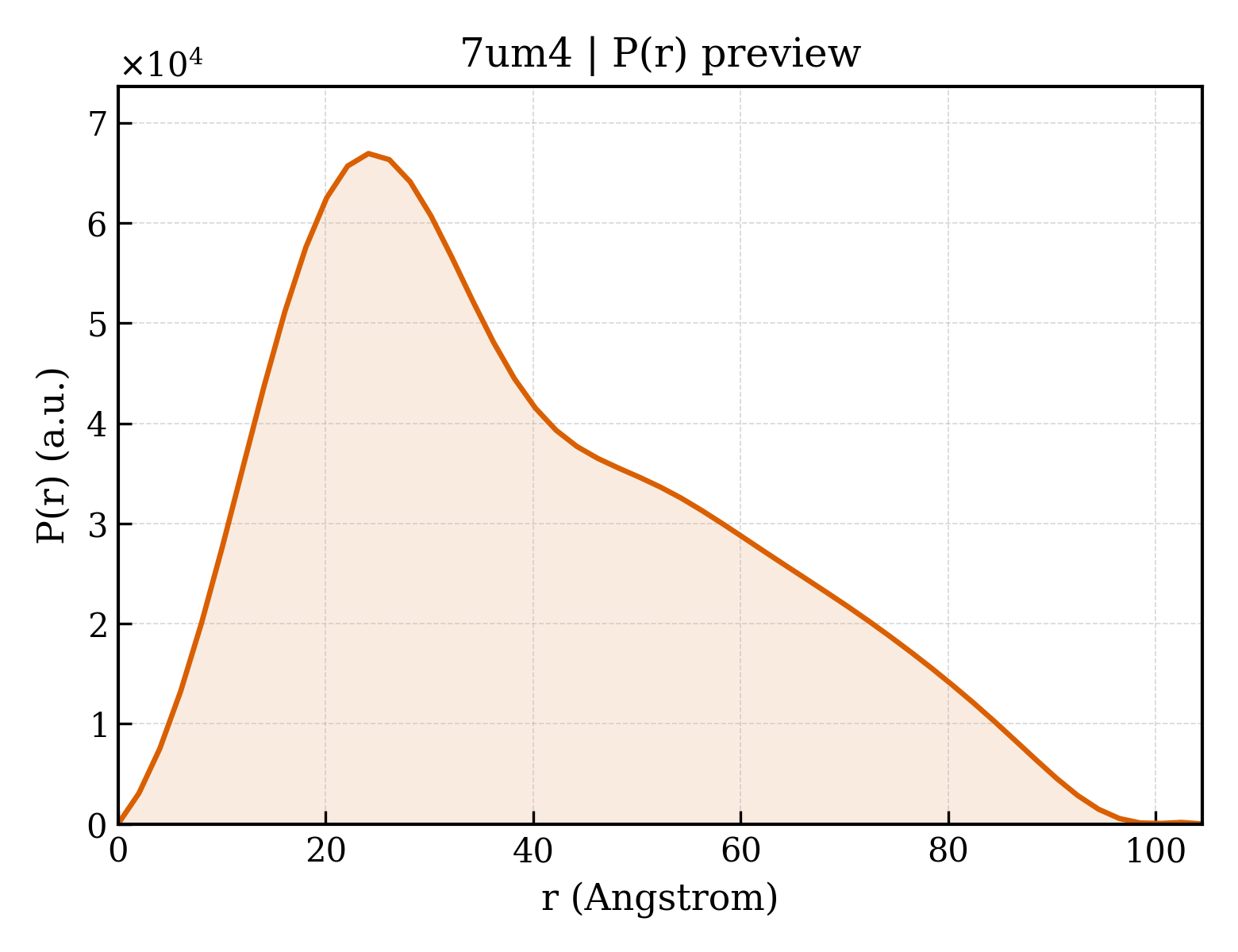

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	104.5 Å
Rg (real space) rg_real	31.15 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	3.7470e+07
I(0) uncertainty (real space) i0_real_error	6.1140e+05
Rg (reciprocal space) rg_reciprocal	30.97 Å
I(0) (reciprocal space) i0_reciprocal	37460000.0000
Solution quality estimate total_estimate	0.7553
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.1 Å
Skewness Skewness skewness	0.548
Kurtosis Kurtosis kurtosis	-0.569
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	9215000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.526; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.385; Smooth: 0.850

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	5-hydroxytryptamine receptor 5A
Molecular weight formula_weight	38004.4 kDa
Mutation mutation	D65N, I278A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3630

HSLGKDDLRPSSPLLSVFGVLILTLLGFLVAATFAWNLLVLATILRVRTFHRVPHNLVASMAVSNVLVAALVMPLSLVHELSGRRWQLGRRLCQLWIACDVLCCTASIWNVTAIALDRYWSITRHMEYTLRTRKCVSNVMIALTWALSAVISLAPLLFGWGETYSEGSEECQVSREPSYAVFSTVGAFYLPLCVVLFVYWKIYKAAKFRVGSRKTNSVSPISEAVEVKDSAKQPQMVFTVRHATVTFQPEGDTWREQKEQRAALMVGILIGVFVLCWAPFFLTELISPLCSCDIPAIWKSIFLWLGYSNSFFNPLIYTAFNKNYNSAFKNFFSRQH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	PGS
Molecular weight formula_weight	22251.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSHNGIDCSFWNESYLTGSRDERKKSLLSKFGMDEGVTFMFIGRFDRGQKGVDVLLKAIEILSSKKEFQEMRFIIIGKGDPELEGWARSLEEKHGNVKVITEMLSREFVRELYGSVDFVIIPSYFEPFGLVALEAMCLGAIPIASAVGGLRDIITNETGILVKAGDPGELANAILKALELSRSDLSKFRENCKKRAMSFS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 Entity 3 non-polymer

Description description	TRIETHYLENE GLYCOL
Molecular weight formula_weight	150.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	~{N}-[azanyl(azanylidene)methylidene]-5-fluoranyl-8-[2,4,6-tris(fluoranyl)phenyl]-3,4-dihydro-1~{H}-isoquinoline-2-carboxamide
Molecular weight formula_weight	366.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	8

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7um4A01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1070 — Rhopdopsin 7-helix transmembrane proteins
Homologous superfamily homologous superfamily	10 — Rhodopsin 7-helix transmembrane proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	135.289 Å
Unit-cell length b length_b	42.460 Å
Unit-cell length c length_c	94.787 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	44.730 Å
R factor r_factor	0.2311
R_work r_work	0.2289
R_free r_free	0.2712

fit	/app/data/saxs_computation/um/7um4/7um4.fit
pddf	/app/data/pr_computation/um/7um4/7um4.pr.out
profile	/app/data/saxs_computation/um/7um4/7um4.dat
