7w7z

Crystal Structure of human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase

Method: X-RAY DIFFRACTION D_max: 78.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 5 of Focal adhesion kinase 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 902–1065	Fragment：Focal adhesion targeting domain	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；1.0 M Lithium sulfate 0.1 M MES pH 6.5	Resolution 2.15 Å R-free 0.239

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7W7Z	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K04 Crystal Structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 891–1052（162 aa）	Not recorded	CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；296 K；MES, NaCl, Na/K phosphate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 1.95 Å R-free 0.270
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 891–1052（162 aa） Chain B 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain B 891–1052（162 aa） Chain C 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1K05 Crystal structure of the Focal Adhesion Targeting Domain of Focal Adhesion Kinase Deposited 2001-09-18	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 7 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 891–1052（162 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；296 K；Hepes, NaCl, glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 296K	Resolution 2.90 Å R-free 0.285
1MP8 Crystal structure of Focal Adhesion Kinase (FAK) Deposited 2002-09-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa） Fragment：kinase domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；PEG 2000, citrate, pH 5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.230
1OW6 Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2003-03-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292 K；sodium chloride, glycerol, Hepes, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.35 Å R-free 0.274
1OW6 Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2003-03-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292 K；sodium chloride, glycerol, Hepes, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.35 Å R-free 0.274
1OW6 Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2003-03-28	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292 K；sodium chloride, glycerol, Hepes, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.35 Å R-free 0.274
1OW7 Paxillin LD4 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2003-03-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain Chain B 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain Chain C 892–1052（161 aa） Fragment：Focal Adhesion Targeting Domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292 K；sodium chloride, glycerol, Hepes, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.60 Å R-free 0.269
1OW8 Paxillin LD2 motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2003-03-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 892–1052（161 aa） Fragment：Focal Adhesion Targeting Chain B 892–1052（161 aa） Fragment：Focal Adhesion Targeting Chain C 892–1052（161 aa） Fragment：Focal Adhesion Targeting	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.3；292 K；sodium chloride, glycerol, Hepes, pH 6.3, VAPOR DIFFUSION, HANGING DROP, temperature 292K	Resolution 2.85 Å R-free 0.275
2ETM Crystal Structure of Focal Adhesion Kinase Domain Complexed with 7H-Pyrrolo [2,3-d] pyrimidine Derivative Deposited 2005-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa） Fragment：kinase domain	Not recorded	7PY 7-PYRIDIN-2-YL-N-(3,4,5-TRIMETHOXYPHENYL)-7H-PYRROLO[2,3-D]PYRIMIDIN-2-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；30% (w/v) PEG-600, 10% glycerol, HEPES pH 7.5, 0.05M Li2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277.15K	Resolution 2.30 Å R-free 0.295
2ETM Crystal Structure of Focal Adhesion Kinase Domain Complexed with 7H-Pyrrolo [2,3-d] pyrimidine Derivative Deposited 2005-10-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa） Fragment：kinase domain	Not recorded	7PY 7-PYRIDIN-2-YL-N-(3,4,5-TRIMETHOXYPHENYL)-7H-PYRROLO[2,3-D]PYRIMIDIN-2-AMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277.15 K；30% (w/v) PEG-600, 10% glycerol, HEPES pH 7.5, 0.05M Li2SO4 , VAPOR DIFFUSION, HANGING DROP, temperature 277.15K	Resolution 2.30 Å R-free 0.295
2IJM Crystal Structure of Focal Adhesion Kinase Domain with 2 molecules in the Asymmetric Unit Complexed with ADP and ATP Deposited 2006-09-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa） Fragment：catalytic domain	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；30% (v/v) PEG-600, 10% glycerol, 0.1M HEPES pH 7.5, 0.05M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.19 Å R-free 0.271
2IJM Crystal Structure of Focal Adhesion Kinase Domain with 2 molecules in the Asymmetric Unit Complexed with ADP and ATP Deposited 2006-09-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa） Fragment：catalytic domain	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；278 K；30% (v/v) PEG-600, 10% glycerol, 0.1M HEPES pH 7.5, 0.05M Li2SO4, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 2.19 Å R-free 0.271
3B71 CD4 endocytosis motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2007-10-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 891–1052（162 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；3.9 M NaCl, 2.5 % glycerol, 100 mM Hepes, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.82 Å R-free 0.307
3B71 CD4 endocytosis motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2007-10-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 891–1052（162 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；3.9 M NaCl, 2.5 % glycerol, 100 mM Hepes, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.82 Å R-free 0.307
3B71 CD4 endocytosis motif bound to the Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2007-10-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 891–1052（162 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；3.9 M NaCl, 2.5 % glycerol, 100 mM Hepes, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.82 Å R-free 0.307
3BZ3 Crystal Structure Analysis of Focal Adhesion Kinase with a Methanesulfonamide Diaminopyrimidine Inhibitor Deposited 2008-01-17	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 414–689（276 aa） Fragment：kinase domain	Not recorded	YAM N-methyl-N-{3-[({2-[(2-oxo-2,3-dihydro-1H-indol-5-yl)amino]-5-(trifluoromethyl)pyrimidin-4-yl}amino)methyl]pyridin-2-yl}methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；298 K；15% PEG 8000, 0.1M HEPES, 0.2M (NH4)2SO4, pH 7.5, vapor diffusion, temperature 298K	Resolution 2.20 Å R-free 0.234
3S9O The Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase showing N-terminal interactions in cis Deposited 2011-06-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 891–1052（162 aa） Fragment：focal adhesion targeting domain (UNP Residue 891-1052)	Not recorded	NA SODIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Hepes, 3.3M NaCl, 1% glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.287
3S9O The Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase showing N-terminal interactions in cis Deposited 2011-06-01	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 891–1052（162 aa） Fragment：focal adhesion targeting domain (UNP Residue 891-1052)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Hepes, 3.3M NaCl, 1% glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.287
3S9O The Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase showing N-terminal interactions in cis Deposited 2011-06-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 891–1052（162 aa） Fragment：focal adhesion targeting domain (UNP Residue 891-1052)	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；100 mM Hepes, 3.3M NaCl, 1% glycerol, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.287
4EBV Structure of Focal Adhesion Kinase catalytic domain in complex with novel allosteric inhibitor Deposited 2012-03-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa）	Not recorded	0O7 8-(4-ethylphenyl)-5-methyl-2,5-dihydropyrazolo[4,3-c][2,1]benzothiazine 4,4-dioxide × 1 IPA ISOPROPYL ALCOHOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG4000, 8% 2-Propanol, 12% Glycerol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.67 Å R-free 0.236
4EBW Structure of Focal Adhesion Kinase catalytic domain in complex with novel allosteric inhibitor Deposited 2012-03-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa） Fragment：unp residues 411-686	Not recorded	0PF 1-ethyl-8-(4-ethylphenyl)-5-methyl-1,5-dihydropyrazolo[4,3-c][2,1]benzothiazine 4,4-dioxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG4000, 8% 2-Propanol, 12% Glycerol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.65 Å R-free 0.273
4GU6 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-{3-[(5-Cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-ylamino)- methyl]-pyridin-2-yl}-N-methyl-methanesulfonamide Deposited 2012-08-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 411–689（279 aa） Fragment：Kinase domain, UNP residues 411-689 Chain B 411–689（279 aa） Fragment：Kinase domain, UNP residues 411-689	Not recorded	10N N-(3-{[(5-cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-yl)amino]methyl}pyridin-2-yl)-N-methylmethanesulfonamide × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；0.1 M tris, 16% PEG 3350, pH 8.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.194
4GU6 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-{3-[(5-Cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-ylamino)- methyl]-pyridin-2-yl}-N-methyl-methanesulfonamide Deposited 2012-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa） Fragment：Kinase domain, UNP residues 411-689	Not recorded	10N N-(3-{[(5-cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-yl)amino]methyl}pyridin-2-yl)-N-methylmethanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；0.1 M tris, 16% PEG 3350, pH 8.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.194
4GU6 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-{3-[(5-Cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-ylamino)- methyl]-pyridin-2-yl}-N-methyl-methanesulfonamide Deposited 2012-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa） Fragment：Kinase domain, UNP residues 411-689	Not recorded	10N N-(3-{[(5-cyano-2-phenyl-1H-pyrrolo[2,3-b]pyridin-4-yl)amino]methyl}pyridin-2-yl)-N-methylmethanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；0.1 M tris, 16% PEG 3350, pH 8.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.194
4GU9 Focal adhesion kinase catalytic domain in complex with (2-Fluoro-phenyl)-(1H-pyrazolo[3,4-d]pyrimidin-4-yl)-amine Deposited 2012-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–686（277 aa） Fragment：CATALYTIC Protein kinase domain resides 410-686	Not recorded	4GU N-(2-fluorophenyl)-1H-pyrazolo[3,4-d]pyrimidin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；0.1 M tris, 16% PEG3350, pH 8.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.221
4GU9 Focal adhesion kinase catalytic domain in complex with (2-Fluoro-phenyl)-(1H-pyrazolo[3,4-d]pyrimidin-4-yl)-amine Deposited 2012-08-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 410–686（277 aa） Fragment：CATALYTIC Protein kinase domain resides 410-686	Not recorded	4GU N-(2-fluorophenyl)-1H-pyrazolo[3,4-d]pyrimidin-4-amine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；293 K；0.1 M tris, 16% PEG3350, pH 8.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.221
4I4E Structure of Focal Adhesion Kinase catalytic domain in complex with hinge binding pyrazolobenzothiazine compound. Deposited 2012-11-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa） Fragment：Kinase Domain: unp residues 411-686	Not recorded	1BQ [4-(2-hydroxyethyl)piperidin-1-yl][4-(5-methyl-4,4-dioxido-1,5-dihydropyrazolo[4,3-c][2,1]benzothiazin-8-yl)phenyl]methanone × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG4000, 8% 2-Propanol, 12% Glycerol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.55 Å R-free 0.189
4I4F Structure of Focal Adhesion Kinase catalytic domain in complex with an allosteric binding pyrazolobenzothiazine compound. Deposited 2012-11-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa） Fragment：Kinase Domain: unp residues 411-686	Not recorded	IPA ISOPROPYL ALCOHOL × 1 1BR N-(4-tert-butylbenzyl)-1,5-dimethyl-1,5-dihydropyrazolo[4,3-c][2,1]benzothiazin-8-amine 4,4-dioxide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；20% PEG4000, 8% 2-Propanol, 12% Glycerol, 0.1M HEPES, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.75 Å R-free 0.228
4K8A Fragment-based discovery of Focal Adhesion Kinase Inhibitors Deposited 2013-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 410–686（277 aa） Fragment：KINASE DOMAIN, RESIDUES 410-686 Chain B 410–686（277 aa） Fragment：KINASE DOMAIN, RESIDUES 410-686	Not recorded	K8A 3-bromo-5-(2H-tetrazol-5-yl)pyridine × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M NaCitrat 6.0, 20% PEG MME 550, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.91 Å R-free 0.224
4K8A Fragment-based discovery of Focal Adhesion Kinase Inhibitors Deposited 2013-04-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 410–686（277 aa） Fragment：KINASE DOMAIN, RESIDUES 410-686	Not recorded	K8A 3-bromo-5-(2H-tetrazol-5-yl)pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M NaCitrat 6.0, 20% PEG MME 550, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.91 Å R-free 0.224
4K8A Fragment-based discovery of Focal Adhesion Kinase Inhibitors Deposited 2013-04-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–686（277 aa） Fragment：KINASE DOMAIN, RESIDUES 410-686	Not recorded	K8A 3-bromo-5-(2H-tetrazol-5-yl)pyridine × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M NaCitrat 6.0, 20% PEG MME 550, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.91 Å R-free 0.224
4K9Y FOCAL ADHESION KINASE Catalytic domain in complex with 1-[4-(6-Amino-purin-9-yl)-phenyl]-3-(5-tert-butyl-2-p-tolyl-2H-pyrazol-3-yl)-urea Deposited 2013-04-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–686（277 aa） Fragment：KINASE DOMAIN	Not recorded	K9Y 1-[4-(6-amino-9H-purin-9-yl)phenyl]-3-[3-tert-butyl-1-(4-methylphenyl)-1H-pyrazol-5-yl]urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M HEPES, 4.3 M NACL, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.189
4KAB FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 3-Methyl-1,4-dihydro-pyrazolo[4,5-c]pyrazole Deposited 2013-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–686（277 aa） Fragment：KINASE DOMAIN, UNP residues 410-686	Not recorded	4KA 3-methyl-1,5-dihydropyrazolo[4,3-c]pyrazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M sodium citrate, 18% PEG MME 2000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.71 Å R-free 0.219
4KAB FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 3-Methyl-1,4-dihydro-pyrazolo[4,5-c]pyrazole Deposited 2013-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 410–686（277 aa） Fragment：KINASE DOMAIN, UNP residues 410-686	Not recorded	4KA 3-methyl-1,5-dihydropyrazolo[4,3-c]pyrazole × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1 M sodium citrate, 18% PEG MME 2000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.71 Å R-free 0.219
4KAO FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 1-(5-tert-Butyl-2-p-tolyl-2H-pyrazol-3-yl)-3-(4-pyridin-3- yl-phenyl)-urea Deposited 2013-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–689（280 aa） Fragment：KINASE DOMAIN	Mutation：P410G	KAO 1-[3-tert-butyl-1-(4-methylphenyl)-1H-pyrazol-5-yl]-3-[4-(pyridin-3-yl)phenyl]urea × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；0.1 M TRIS, 16% PEG 3350, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.39 Å R-free 0.216
4KAO FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 1-(5-tert-Butyl-2-p-tolyl-2H-pyrazol-3-yl)-3-(4-pyridin-3- yl-phenyl)-urea Deposited 2013-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 410–689（280 aa） Fragment：KINASE DOMAIN	Mutation：P410G	KAO 1-[3-tert-butyl-1-(4-methylphenyl)-1H-pyrazol-5-yl]-3-[4-(pyridin-3-yl)phenyl]urea × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；293 K；0.1 M TRIS, 16% PEG 3350, pH 9.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.39 Å R-free 0.216
4NY0 Crystal structure of FERM domain of human focal adhesion kinase Deposited 2013-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 31–405（375 aa） Fragment：FERM domain, UNP RESIDUES 31-405 Chain D 31–405（375 aa） Fragment：FERM domain, UNP RESIDUES 31-405	Mutation：F85L, W181G Mutation：F85L, W181G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293.15 K；17% PEG 10000, 0.1M Ammonium Sulfate, 0.1M bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 2.80 Å R-free 0.230
4NY0 Crystal structure of FERM domain of human focal adhesion kinase Deposited 2013-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 31–405（375 aa） Fragment：FERM domain, UNP RESIDUES 31-405 Chain C 31–405（375 aa） Fragment：FERM domain, UNP RESIDUES 31-405	Mutation：F85L, W181G Mutation：F85L, W181G	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；293.15 K；17% PEG 10000, 0.1M Ammonium Sulfate, 0.1M bis-Tris, pH 5.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.15K	Resolution 2.80 Å R-free 0.230
4Q9S Crystal Structure of human Focal Adhesion Kinase (Fak) bound to Compound1 (3,5-DIHYDRO[1,2,4]TRIAZINO[3,4-C][1,4]BENZOXAZIN-2(1H)-ONE) Deposited 2014-05-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–686（276 aa） Fragment：unp residues 411-686	Not recorded	30G 3,5-dihydro[1,2,4]triazino[3,4-c][1,4]benzoxazin-2(1H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；290 K；Na acetate, PEG MME2000, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 290.0K	Resolution 2.07 Å R-free 0.216
6I8Z Crystal structure of PTK2 in complex with BI-4464. Deposited 2018-11-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	H82 3-methoxy-~{N}-(1-methylpiperidin-1-ium-4-yl)-4-[[4-[(3-oxidanylidene-1,2-dihydroinden-4-yl)oxy]-5-(trifluoromethyl)pyrimidin-2-yl]amino]benzamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；7%PEG1500, 100 mM SPG buffer, 5 mg/mL	Resolution 1.99 Å R-free 0.222
6LES 3D domain-swapped dimer of the maltose-binding protein fused to a fragment of the focal adhesion kinase Deposited 2019-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 805–832（28 aa） Chain B 805–832（28 aa）	Mutation：surface entropy reduction mutant,D83A,K84A,E173A,N174A,K240A,E360A,K363A,D364A Mutation：surface entropy reduction mutant,D83A,K84A,E173A,N174A,K240A,E360A,K363A,D364A	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10.5；298 K；2000mM Ammonium sulfate, 100mM CAPS/ Sodium hydroxide pH 10.5	Resolution 2.00 Å R-free 0.231
6LES 3D domain-swapped dimer of the maltose-binding protein fused to a fragment of the focal adhesion kinase Deposited 2019-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain X 805–832（28 aa） Chain Y 805–832（28 aa）	Mutation：surface entropy reduction mutant,D83A,K84A,E173A,N174A,K240A,E360A,K363A,D364A Mutation：surface entropy reduction mutant,D83A,K84A,E173A,N174A,K240A,E360A,K363A,D364A	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 10.5；298 K；2000mM Ammonium sulfate, 100mM CAPS/ Sodium hydroxide pH 10.5	Resolution 2.00 Å R-free 0.231
6PW8 Hydrocarbon-Stapled Paxillin Peptide Bound to the Focal Adhesion Targeting (FAT) Domain of the Focal Adhesion Kinase (FAK) Deposited 2019-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 749–874（126 aa） Fragment：focal adhesion targeting domain (UNP residues 749-874)	Not recorded	ZN ZINC ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.02 M zinc chloride, 20% PEG3350	Resolution 1.95 Å R-free 0.249
6YOJ FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 6-[4-(3-Methanesulfonyl-benzylamino)-5-trifluoromethyl-pyrimidin-2-ylamino]-3,4-dihydro-1H-quinolin-2-one Deposited 2020-04-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	P4N 6-[[4-[(3-methylsulfonylphenyl)methylamino]-5-(trifluoromethyl)pyrimidin-2-yl]amino]-3,4-dihydro-1~{H}-quinolin-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；16% PEG 3350, 0.1 M TRIS, pH 8.6	Resolution 1.36 Å R-free 0.198
6YQ1 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-1,2,3,4-tetrahydro-quinolin-6-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	P7N ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-3,4-dihydro-1~{H}-quinolin-6-yl)amino]-5-(trifluoromethyl)pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1 NA SODIUM ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.78 Å R-free 0.214
6YQ1 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-1,2,3,4-tetrahydro-quinolin-6-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	P7N ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-3,4-dihydro-1~{H}-quinolin-6-yl)amino]-5-(trifluoromethyl)pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.78 Å R-free 0.214
6YQ1 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-1,2,3,4-tetrahydro-quinolin-6-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 411–689（279 aa）	Not recorded	P7N ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-3,4-dihydro-1~{H}-quinolin-6-yl)amino]-5-(trifluoromethyl)pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.78 Å R-free 0.214
6YQ1 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-1,2,3,4-tetrahydro-quinolin-6-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 411–689（279 aa）	Not recorded	P7N ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-3,4-dihydro-1~{H}-quinolin-6-yl)amino]-5-(trifluoromethyl)pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.78 Å R-free 0.214
6YR9 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide Deposited 2020-04-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	P9K N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.93 Å R-free 0.218
6YR9 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide Deposited 2020-04-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	P9K N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.93 Å R-free 0.218
6YR9 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide Deposited 2020-04-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 411–689（279 aa）	Not recorded	P9K N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.93 Å R-free 0.218
6YR9 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide Deposited 2020-04-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 411–689（279 aa）	Not recorded	P9K N-Methyl-N-(2-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-5-trifluoromethyl-pyrimidin-4-ylamino]-methyl}-phenyl)-methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350, 0.2 M Na acetate	Resolution 1.93 Å R-free 0.218
6YT6 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	PKE ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-1,3-dihydroindol-5-yl)amino]pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；294 K；16-20 % PEG 3350, 0.1 M TRIS, pH 9.0	Resolution 1.54 Å R-free 0.212
6YT6 FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-(3-{[2-(2-oxo-2,3-dihydro-1H-indol-5-ylamino)-pyrimidin-4-ylamino]-methyl}-pyridin-2-yl)-methanesulfonamide Deposited 2020-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	PKE ~{N}-methyl-~{N}-[3-[[[2-[(2-oxidanylidene-1,3-dihydroindol-5-yl)amino]pyrimidin-4-yl]amino]methyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；294 K；16-20 % PEG 3350, 0.1 M TRIS, pH 9.0	Resolution 1.54 Å R-free 0.212
6YVS FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 5-{4-[(Pyridin-3-ylmethyl)-amino]-5-trifluoromethyl-pyrimidin-2-ylamino}-1,3-dihydro-indol-2-one Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	PVT 5-[[4-(pyridin-3-ylmethylamino)-5-(trifluoromethyl)pyrimidin-2-yl]amino]-1,3-dihydroindol-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.81 Å R-free 0.215
6YVS FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 5-{4-[(Pyridin-3-ylmethyl)-amino]-5-trifluoromethyl-pyrimidin-2-ylamino}-1,3-dihydro-indol-2-one Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	PVT 5-[[4-(pyridin-3-ylmethylamino)-5-(trifluoromethyl)pyrimidin-2-yl]amino]-1,3-dihydroindol-2-one × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.81 Å R-free 0.215
6YVS FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 5-{4-[(Pyridin-3-ylmethyl)-amino]-5-trifluoromethyl-pyrimidin-2-ylamino}-1,3-dihydro-indol-2-one Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 411–689（279 aa）	Not recorded	PVT 5-[[4-(pyridin-3-ylmethylamino)-5-(trifluoromethyl)pyrimidin-2-yl]amino]-1,3-dihydroindol-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.81 Å R-free 0.215
6YVS FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 5-{4-[(Pyridin-3-ylmethyl)-amino]-5-trifluoromethyl-pyrimidin-2-ylamino}-1,3-dihydro-indol-2-one Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 411–689（279 aa）	Not recorded	PVT 5-[[4-(pyridin-3-ylmethylamino)-5-(trifluoromethyl)pyrimidin-2-yl]amino]-1,3-dihydroindol-2-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.81 Å R-free 0.215
6YVY FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	P1E 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.92 Å R-free 0.235
6YVY FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	P1E 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.92 Å R-free 0.235
6YVY FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 411–689（279 aa）	Not recorded	P1E 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.92 Å R-free 0.235
6YVY FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide Deposited 2020-04-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 411–689（279 aa）	Not recorded	P1E 4-{[4-{[(1R,2R)-2-(dimethylamino)cyclopentyl]amino}-5-(trifluoromethyl)pyrimidin-2-yl]amino}-N-methylbenzenesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；15% PEG 3350	Resolution 1.92 Å R-free 0.235
6YXV FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-{3-[(2-phenylamino-5-trifluoromethyl-pyrimidin-4-ylamino)-methyl]-pyridin-2-yl}-methanesulfonamide Deposited 2020-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 411–689（279 aa）	Not recorded	Q2H ~{N}-methyl-~{N}-[3-[(~{E})-[2-phenylazanyl-5-(trifluoromethyl)pyrimidin-4-yl]iminomethyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；15% PEG 3350	Resolution 2.30 Å R-free 0.232
6YXV FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-{3-[(2-phenylamino-5-trifluoromethyl-pyrimidin-4-ylamino)-methyl]-pyridin-2-yl}-methanesulfonamide Deposited 2020-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 411–689（279 aa）	Not recorded	Q2H ~{N}-methyl-~{N}-[3-[(~{E})-[2-phenylazanyl-5-(trifluoromethyl)pyrimidin-4-yl]iminomethyl]pyridin-2-yl]methanesulfonamide × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；15% PEG 3350	Resolution 2.30 Å R-free 0.232
6YXV FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-{3-[(2-phenylamino-5-trifluoromethyl-pyrimidin-4-ylamino)-methyl]-pyridin-2-yl}-methanesulfonamide Deposited 2020-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 411–689（279 aa）	Not recorded	Q2H ~{N}-methyl-~{N}-[3-[(~{E})-[2-phenylazanyl-5-(trifluoromethyl)pyrimidin-4-yl]iminomethyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；15% PEG 3350	Resolution 2.30 Å R-free 0.232
6YXV FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH N-Methyl-N-{3-[(2-phenylamino-5-trifluoromethyl-pyrimidin-4-ylamino)-methyl]-pyridin-2-yl}-methanesulfonamide Deposited 2020-05-04	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 411–689（279 aa）	Not recorded	Q2H ~{N}-methyl-~{N}-[3-[(~{E})-[2-phenylazanyl-5-(trifluoromethyl)pyrimidin-4-yl]iminomethyl]pyridin-2-yl]methanesulfonamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；294 K；15% PEG 3350	Resolution 2.30 Å R-free 0.232
7PI4 FAK Protac GSK215 in complex with FAK and pVHL:ElonginC:ElonginB Deposited 2021-08-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain DDD 415–687（273 aa）	Not recorded	7QB (2S,4R)-4-hydroxy-1-((S)-2-(2-(4-(3-methoxy-4-((4-((2-(methylcarbamoyl)phenyl)amino)-5-(trifluoromethyl)pyridin-2-yl)amino)phenyl)piperazin-1-yl)acetamido)-3,3-dimethylbutanoyl)-N-((S)-1-(4-(4-methylthiazol-5-yl)phenyl)ethyl)pyrrolidine-2-carboxamide × 1 PEG DI(HYDROXYETHYL)ETHER × 4 EDO 1,2-ETHANEDIOL × 14 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.05M CaCl, 0.1M MES pH 6.5, 45%v/v, PEG200	Resolution 2.24 Å R-free 0.251
7W8B Crystal Structure of human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-07	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 902–1065（164 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；2500 mM Sodium chloride 100 mM Imidazole/ Hydrochloric acid pH 8.0	Resolution 2.09 Å R-free 0.286
7W8I Crystal structure of Zn bound human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 902–1065（164 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Zinc acetate dihydrate, 20% w/v Polyethylene glycol 3,350	Resolution 1.94 Å R-free 0.263
7W9U Crystal Structure of Zn bound human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 902–1065（164 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Zinc acetate dihydrate, 20% w/v Polyethylene glycol 3,350	Resolution 2.16 Å R-free 0.275
7W9U Crystal Structure of Zn bound human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 902–1065（164 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Zinc acetate dihydrate, 20% w/v Polyethylene glycol 3,350	Resolution 2.16 Å R-free 0.275
7W9U Crystal Structure of Zn bound human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 902–1065（164 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Zinc acetate dihydrate, 20% w/v Polyethylene glycol 3,350	Resolution 2.16 Å R-free 0.275
7W9U Crystal Structure of Zn bound human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase Deposited 2021-12-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 902–1065（164 aa） Fragment：Focal Adhesion Targeting domain	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.05 M Zinc acetate dihydrate, 20% w/v Polyethylene glycol 3,350	Resolution 2.16 Å R-free 0.275
9SDI FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 6-(1H-Pyrazol-4-yl)-nicotinic acid Deposited 2025-08-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 410–686（277 aa）	Not recorded	SO4 SULFATE ION × 4 A1JNJ 6-(1~{H}-pyrazol-4-yl)pyridine-3-carboxylic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% w/v PEG MME 2000, 0.1 M Tris, 0.2 M trimethylamine N.oxide	Resolution 2.53 Å R-free 0.241
9SDI FOCAL ADHESION KINASE CATALYTIC DOMAIN IN COMPLEX WITH 6-(1H-Pyrazol-4-yl)-nicotinic acid Deposited 2025-08-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 410–686（277 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；20% w/v PEG MME 2000, 0.1 M Tris, 0.2 M trimethylamine N.oxide	Resolution 2.53 Å R-free 0.241

38 other PDB entries and 81 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FAK1_HUMAN
Isoform	Q05397-5
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–164； UniProt 902–1065

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

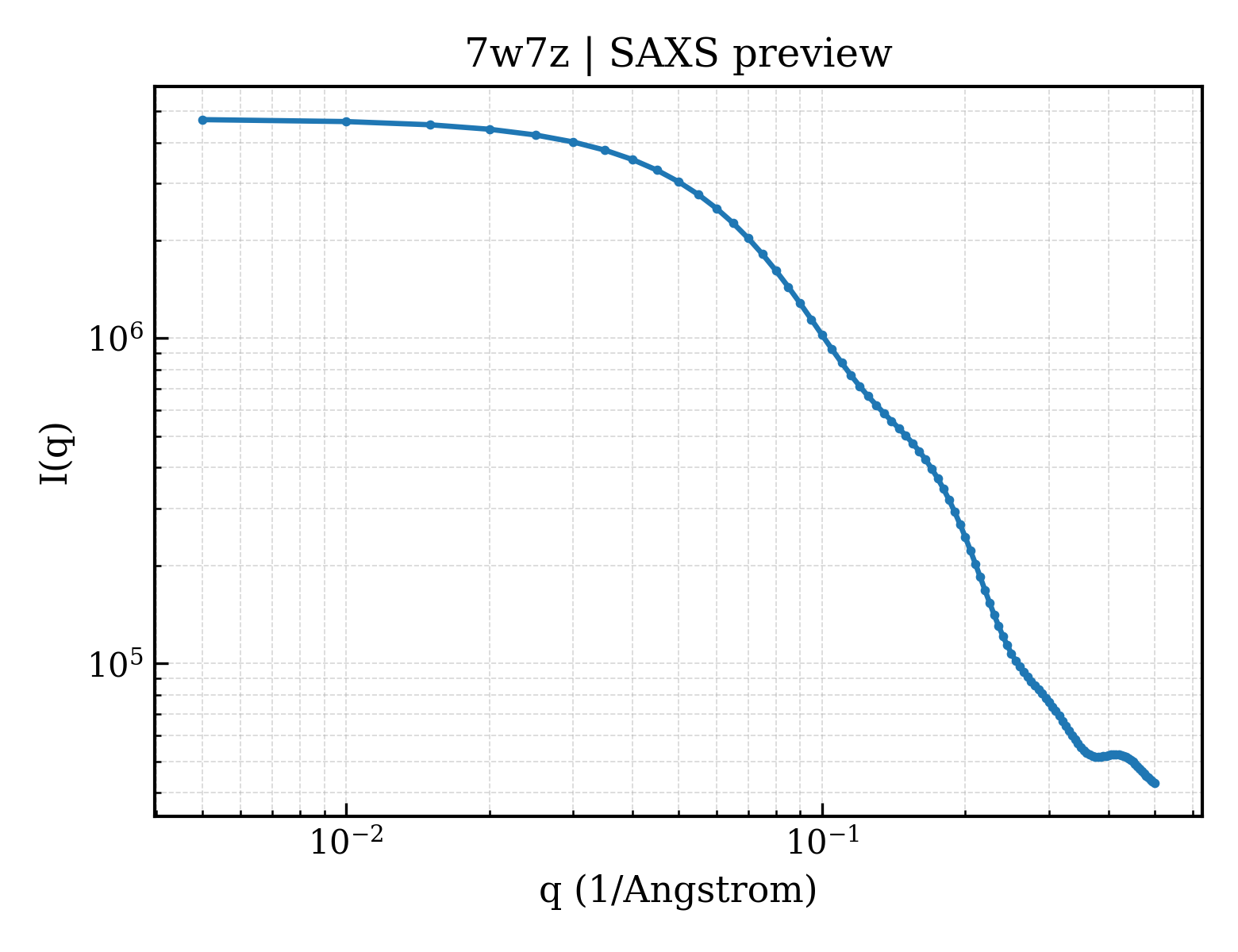

SAXS scattering curve SAXS Profile

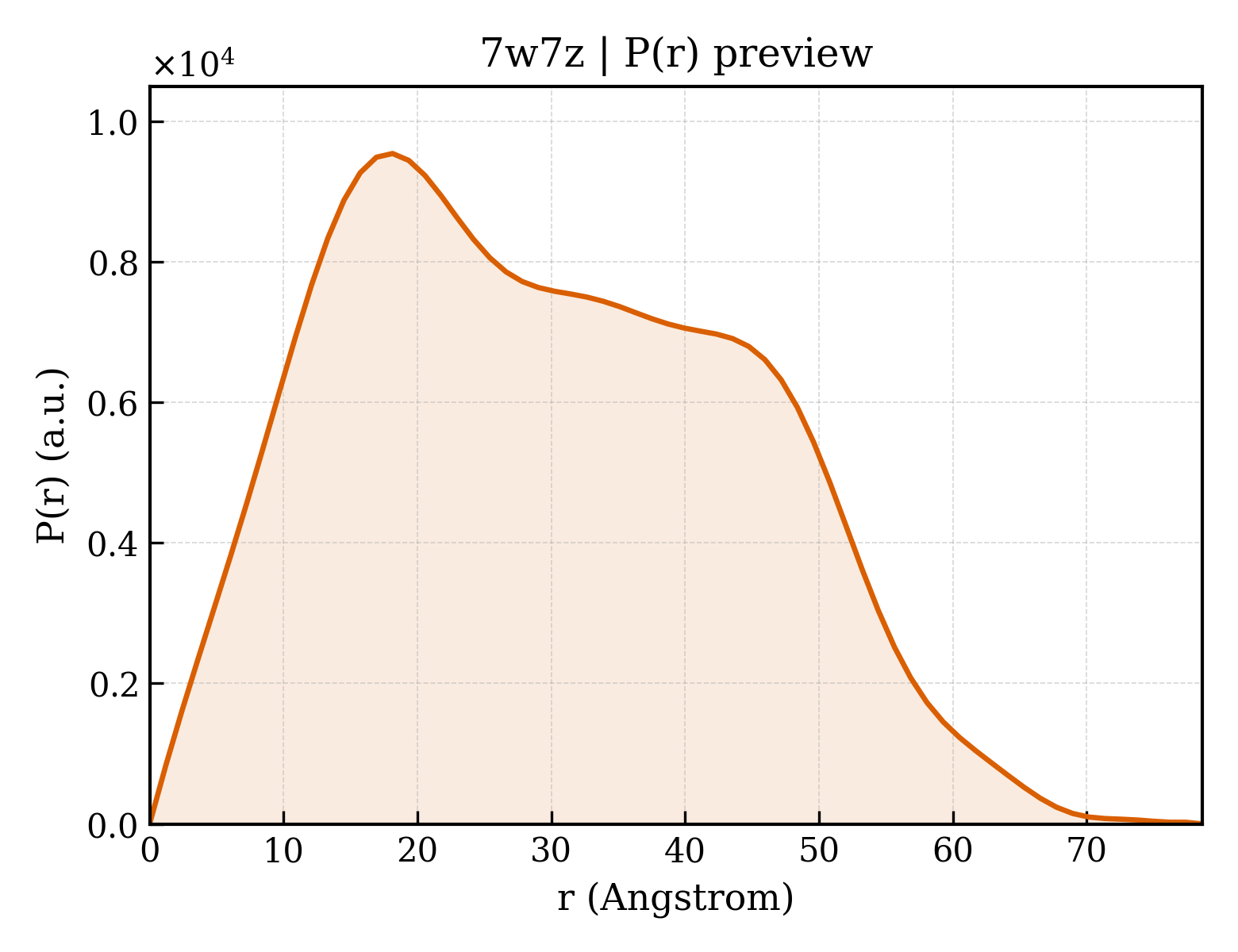

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7w7z
Deposition date deposition_date	2021-12-07
Structure title title	Crystal Structure of human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase
Keywords keywords	Focal adhesion kinase, Protein tyrosine kinase 2, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.20 Å
Radius of gyration Rg (electron density) rg_electron	22.43 Å
Forward intensity I(0) i0	4724040.00
Molecular weight molecular_weight	16087.0 kDa
Excluded volume excluded_volume	20346 Å³
Envelope volume envelope_volume	30317 Å³
Hydration-shell volume shell_volume	12675 Å³
Envelope diameter envelope_diameter	80.5 Å
Shell Rg shell_rg	26.67 Å
Envelope Rg envelope_rg	22.46 Å
Shape Rg shape_rg	22.44 Å
Total Rg total_rg	23.10 Å
Total atoms total_atoms	1125
Residues n_residues	145
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.6 Å
Rg (real space) rg_real	23.33 Å
Rg uncertainty (real space) rg_real_error	0.85 Å
I(0) (real space) i0_real	4.7240e+06
I(0) uncertainty (real space) i0_real_error	7.2590e+04
Rg (reciprocal space) rg_reciprocal	23.31 Å
I(0) (reciprocal space) i0_reciprocal	4724000.0000
Solution quality estimate total_estimate	0.8358
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	18.1 Å
Skewness Skewness skewness	0.255
Kurtosis Kurtosis kurtosis	-0.788
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	314400.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.590; Smooth: 0.982

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Unit-cell length a length_a	39.198 Å
Unit-cell length b length_b	94.429 Å
Unit-cell length c length_c	85.287 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	42.640 Å
R factor r_factor	—
R_work r_work	0.1952
R_free r_free	0.2392

Description description	Isoform 5 of Focal adhesion kinase 1
Molecular weight formula_weight	18277.1 kDa
EC 编号 ec_number	2.7.10.2
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1155

Crystal Structure of human Focal Adhesion Targeting (FAT) domain of the Focal Adhesion Kinase

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 5 of Focal adhesion kinase 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	23
