SAXSdb — 7wmq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 4 of Bromodomain-containing protein 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	;2-(2-cyclobutyl-1~{H}-imidazol-5-yl)-7-[2-(4-fluoranyl-2,6-dimethyl-phenoxy)-5-(2-oxidanylpropan-2-yl)phenyl]-5-methyl-furo[3,2-c]pyridin-4-one ; × 4 GLYCEROL × 6 FORMIC ACID × 15 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRD2_HUMAN
Isoform	P25440-4
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 25–136； UniProt 224–335 Author chain B； PDBConstruct 25–136； UniProt 224–335 Author chain C； PDBConstruct 25–136； UniProt 224–335 Author chain D； PDBConstruct 25–136； UniProt 224–335

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7wmq
Deposition date deposition_date	2022-01-16
Structure title title	Crystal Structure of the second bromodomain of human BRD2 in complex with the inhibitor Y13157
Keywords keywords	BRD2-BD2, Bromodomain, Inhibitor, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7wmq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7wmq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

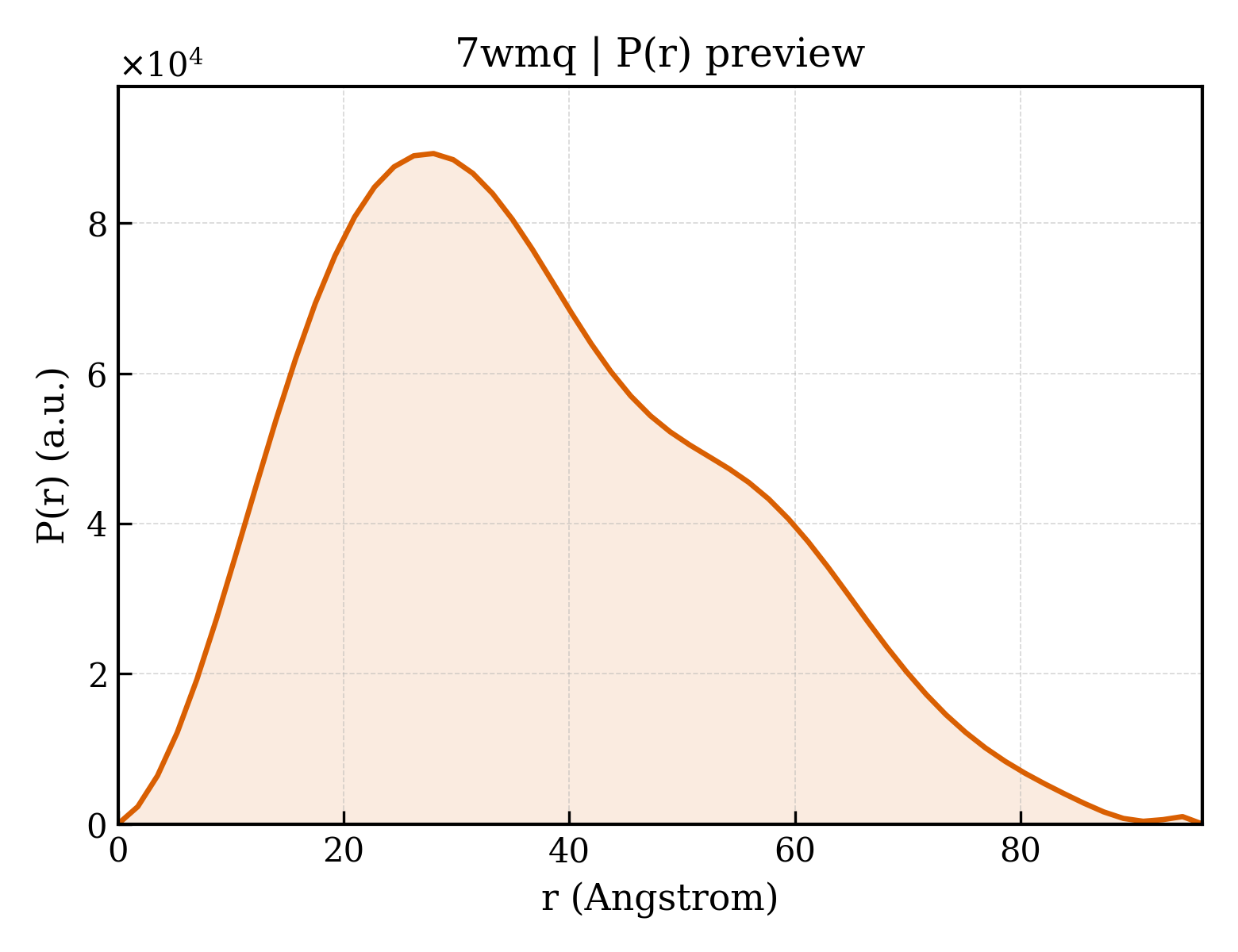

7wmq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.68 Å
Rg (electron density)	28.50 Å
Total Rg	29.06 Å
Atom count	3890
Residues	441
Excluded volume	69327 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7wmq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isoform 4 of Bromodomain-containing protein 2
Molecular weight formula_weight	15981.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4130

EGDIHMKKGHHHHHHENLYFQGGSGKLSEQLKHCNGILKELLSKKHAAYAWPFYKPVDASALGLHDYHDIIKHPMDLSTVKRKMENRDYRDAQEFAADVRLMFSNCYKYNPPDHDVVAMARKLQDVFEFRYAKMPD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;2-(2-cyclobutyl-1~{H}-imidazol-5-yl)-7-[2-(4-fluoranyl-2,6-dimethyl-phenoxy)-5-(2-oxidanylpropan-2-yl)phenyl]-5-methyl-furo[3,2-c]pyridin-4-one ;
Molecular weight formula_weight	541.6 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	210

▶

Unit-cell length a length_a	90.080 Å
Unit-cell length b length_b	95.080 Å
Unit-cell length c length_c	110.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.370 Å
Low-resolution limit resolution_low	72.040 Å
R factor r_factor	0.1885
R_work r_work	0.1874
R_free r_free	0.2109

Crystal Structure of the second bromodomain of human BRD2 in complex with the inhibitor Y13157
