7xlq

Structure of human R-type voltage-gated CaV2.3-alpha2/delta1-beta1 channel complex in the ligand-free (apo) state

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Voltage-dependent R-type calcium channel subunit alpha-1E

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 3	Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P54289） Voltage-dependent L-type calcium channel subunit beta-1 × 1 （Q02641） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL HEMISUCCINATE × 6 HEXADECANE × 7 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 CALCIUM ION × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAC1E_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2313； UniProt 1–2313

Voltage-dependent calcium channel subunit alpha-2/delta-1

Homo sapiens

UniProt P54289

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 3	Voltage-dependent R-type calcium channel subunit alpha-1E × 1 （Q15878） Voltage-dependent L-type calcium channel subunit beta-1 × 1 （Q02641） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL HEMISUCCINATE × 6 HEXADECANE × 7 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 CALCIUM ION × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CA2D1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–1077； UniProt 27–1103

Voltage-dependent L-type calcium channel subunit beta-1

Homo sapiens

UniProt Q02641

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 3	Voltage-dependent R-type calcium channel subunit alpha-1E × 1 （Q15878） Voltage-dependent calcium channel subunit alpha-2/delta-1 × 1 （P54289） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CHOLESTEROL HEMISUCCINATE × 6 HEXADECANE × 7 1,2-Distearoyl-sn-glycerophosphoethanolamine × 1 CALCIUM ION × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CACB1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–598； UniProt 1–598

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7xlq
Deposition date deposition_date	2022-04-22
Structure title title	Structure of human R-type voltage-gated CaV2.3-alpha2/delta1-beta1 channel complex in the ligand-free (apo) state
Keywords keywords	Voltage-gated calcium channel, CaV2.3, Complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7xlq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7xlq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

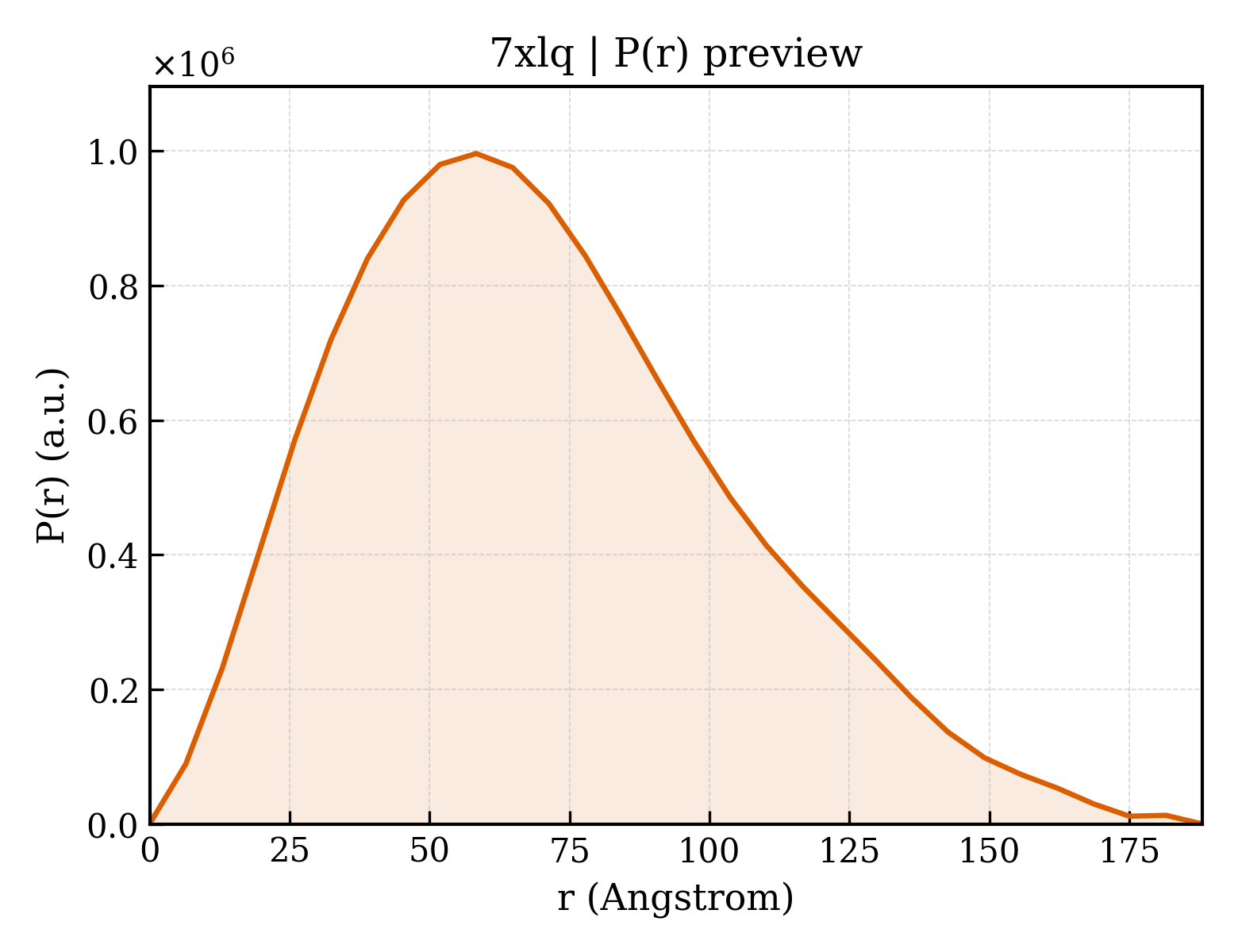

7xlq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.55 Å
Rg (electron density)	54.43 Å
Total Rg	54.49 Å
Atom count	20132
Residues	2436
Excluded volume	363980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7xlq__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Voltage-dependent R-type calcium channel subunit alpha-1E
Molecular weight formula_weight	262056.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	20132

MARFGEAVVARPGSGDGDSDQSRNRQGTPVPASGQAAAYKQTKAQRARTMALYNPIPVRQNCFTVNRSLFIFGEDNIVRKYAKKLIDWPPFEYMILATIIANCIVLALEQHLPEDDKTPMSRRLEKTEPYFIGIFCFEAGIKIVALGFIFHKGSYLRNGWNVMDFIVVLSGILATAGTHFNTHVDLRTLRAVRVLRPLKLVSGIPSLQIVLKSIMKAMVPLLQIGLLLFFAILMFAIIGLEFYSGKLHRACFMNNSGILEGFDPPHPCGVQGCPAGYECKDWIGPNDGITQFDNILFAVLTVFQCITMEGWTTVLYNTNDALGATWNWLYFIPLIIIGSFFVLNLVLGVLSGEFAKERERVENRRAFMKLRRQQQIERELNGYRAWIDKAEEVMLAEENKNAGTSALEVLRRATIKRSRTEAMTRDSSDEHCVDISSVGTPLARASIKSAKVDGVSYFRHKERLLRISIRHMVKSQVFYWIVLSLVALNTACVAIVHHNQPQWLTHLLYYAEFLFLGLFLLEMSLKMYGMGPRLYFHSSFNCFDFGVTVGSIFEVVWAIFRPGTSFGISVLRALRLLRIFKITKYWASLRNLVVSLMSSMKSIISLLFLLFLFIVVFALLGMQLFGGRFNFNDGTPSANFDTFPAAIMTVFQILTGEDWNEVMYNGIRSQGGVSSGMWSAIYFIVLTLFGNYTLLNVFLAIAVDNLANAQELTKDEQEEEEAFNQKHALQKAKEVSPMSAPNMPSIERDRRRRHHMSMWEPRSSHLRERRRRHHMSVWEQRTSQLRKHMQMSSQEALNREEAPTMNPLNPLNPLSSLNPLNAHPSLYRRPRAIEGLALGLALEKFEEERISRGGSLKGDGGDRSSALDNQRTPLSLGQREPPWLARPCHGNCDPTQQEAGGGEAVVTFEDRARHRQSQRRSRHRRVRTEGKESSSASRSRSASQERSLDEAMPTEGEKDHELRGNHGAKEPTIQEERAQDLRRTNSLMVSRGSGLAGGLDEADTPLVLPHPELEVGKHVVLTEQEPEGSSEQALLGNVQLDMGRVISQSEPDLSCITANTDKATTESTSVTVAIPDVDPLVDSTVVHISNKTDGEASPLKEAEIREDEEEVEKKKQKKEKRETGKAMVPHSSMFIFSTTNPIRRACHYIVNLRYFEMCILLVIAASSIALAAEDPVLTNSERNKVLRYFDYVFTGVFTFEMVIKMIDQGLILQDGSYFRDLWNILDFVVVVGALVAFALANALGTNKGRDIKTIKSLRVLRVLRPLKTIKRLPKLKAVFDCVVTSLKNVFNILIVYKLFMFIFAVIAVQLFKGKFFYCTDSSKDTEKECIGNYVDHEKNKMEVKGREWKRHEFHYDNIIWALLTLFTVSTGEGWPQVLQHSVDVTEEDRGPSRSNRMEMSIFYVVYFVVFPFFFVNIFVALIIITFQEQGDKMMEECSLEKNERACIDFAISAKPLTRYMPQNRHTFQYRVWHFVVSPSFEYTIMAMIALNTVVLMMKYYSAPCTYELALKYLNIAFTMVFSLECVLKVIAFGFLNYFRDTWNIFDFITVIGSITEIILTDSKLVNTSGFNMSFLKLFRAARLIKLLRQGYTIRILLWTFVQSFKALPYVCLLIAMLFFIYAIIGMQVFGNIKLDEESHINRHNNFRSFFGSLMLLFRSATGEAWQEIMLSCLGEKGCEPDTTAPSGQNENERCGTDLAYVYFVSFIFFCSFLMLNLFVAVIMDNFEYLTRDSSILGPHHLDEFVRVWAEYDRAACGRIHYTEMYEMLTLMSPPLGLGKRCPSKVAYKRLVLMNMPVAEDMTVHFTSTLMALIRTALDIKIAKGGADRQQLDSELQKETLAIWPHLSQKMLDLLVPMPKASDLTVGKIYAAMMIMDYYKQSKVKKQRQQLEEQKNAPMFQRMEPSSLPQEIIANAKALPYLQQDPVSGLSGRSGYPSMSPLSPQDIFQLACMDPADDGQFQERQSLEPEVSELKSVQPSNHGIYLPSDTQEHAGSGRASSMPRLTVDPQVVTDPSSMRRSFSTIRDKRSNSSWLEEFSMERSSENTYKSRRRSYHSSLRLSAHRLNSDSGHKSDTHRSGGRERGRSKERKHLLSPDVSRCNSEERGTQADWESPERRQSRSPSEGRSQTPNRQGTGSLSESSIPSVSDTSTPRRSRRQLPPVPPKPRPLLSYSSLIRHAGSISPPADGSEEGSPLTSQALESNNACLTESSNSPHPQQSQHASPQRYISEPYLALHEDSHASDCGEEETLTFEAAVATSLGRSNTIGSAPPLRHSWQMPNGHYRRRRRGGPGPGMMCGAVNNLLSDTEEDDKC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Voltage-dependent calcium channel subunit alpha-2/delta-1
Molecular weight formula_weight	122034.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

FPSAVTIKSWVDKMQEDLVTLAKTASGVNQLVDIYEKYQDLYTVEPNNARQLVEIAARDIEKLLSNRSKALVRLALEAEKVQAAHQWREDFASNEVVYYNAKDDLDPEKNDSEPGSQRIKPVFIEDANFGRQISYQHAAVHIPTDIYEGSTIVLNELNWTSALDEVFKKNREEDPSLLWQVFGSATGLARYYPASPWVDNSRTPNKIDLYDVRRRPWYIQGAASPKDMLILVDVSGSVSGLTLKLIRTSVSEMLETLSDDDFVNVASFNSNAQDVSCFQHLVQANVRNKKVLKDAVNNITAKGITDYKKGFSFAFEQLLNYNVSRANCNKIIMLFTDGGEERAQEIFNKYNKDKKVRVFTFSVGQHNYDRGPIQWMACENKGYYYEIPSIGAIRINTQEYLDVLGRPMVLAGDKAKQVQWTNVYLDALELGLVITGTLPVFNITGQFENKTNLKNQLILGVMGVDVSLEDIKRLTPRFTLCPNGYYFAIDPNGYVLLHPNLQPKPIGVGIPTINLRKRRPNIQNPKSQEPVTLDFLDAELENDIKVEIRNKMIDGESGEKTFRTLVKSQDERYIDKGNRTYTWTPVNGTDYSLALVLPTYSFYYIKAKLEETITQARYSETLKPDNFEESGYTFIAPRDYCNDLKISDNNTEFLLNFNEFIDRKTPNNPSCNADLINRVLLDAGFTNELVQNYWSKQKNIKGVKARFVVTDGGITRVYPKEAGENWQENPETYEDSFYKRSLDNDNYVFTAPYFNKSGPGAYESGIMVSKAVEIYIQGKLLKPAVVGIKIDVNSWIENFTKTSIRDPCAGPVCDCKRNSDVMDCVILDDGGFLLMANHDDYTNQIGRFFGEIDPSLMRHLVNISVYAFNKSYDYQSVCEPGAAPKQGAGHRSAYVPSVADILQIGWWATAAAWSILQQFLLSLTFPRLLEAVEMEDDDFTASLSKQSCITEQTQYFFDNDSKSFSGVLDCGNCSRIFHGEKLMNTNLIFIMVESKGTCPCDTRLLIQAEQTSDGPNPCDMVKQPRYRKGPDVCFDNNVLEDYTDCGGVSGLNPSLWYIIGIQFLLLWLVSGSTHRLL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Voltage-dependent L-type calcium channel subunit beta-1
Molecular weight formula_weight	65799.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MVQKTSMSRGPYPPSQEIPMEVFDPSPQGKYSKRKGRFKRSDGSTSSDTTSNSFVRQGSAESYTSRPSDSDVSLEEDREALRKEAERQALAQLEKAKTKPVAFAVRTNVGYNPSPGDEVPVQGVAITFEPKDFLHIKEKYNNDWWIGRLVKEGCEVGFIPSPVKLDSLRLLQEQKLRQNRLGSSKSGDNSSSSLGDVVTGTRRPTPPASAKQKQKSTEHVPPYDVVPSMRPIILVGPSLKGYEVTDMMQKALFDFLKHRFDGRISITRVTADISLAKRSVLNNPSKHIIIERSNTRSSLAEVQSEIERIFELARTLQLVALDADTINHPAQLSKTSLAPIIVYIKITSPKVLQRLIKSRGKSQSKHLNVQIAASEKLAQCPPEMFDIILDENQLEDACEHLAEYLEAYWKATHPPSSTPPNPLLNRTMATAALAASPAPVSNLQGPYLASGDQPLERATGEHASMHEYPGELGQPPGLYPSSHPPGRAGTLRALSRQDTFDADTPGSRNSAYTELGDSCVDMETDPSEGPGLGDPAGGGTPPARQGSWEDEEEDYEEELTDNRNRGRNKARYCAEGGGPVLGRNKNELEGWGRGVYIR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 branched

Description description	beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CHOLESTEROL HEMISUCCINATE
Molecular weight formula_weight	486.7 kDa
Source method src_method	man
Copy count entity_count	6

Entity 7 Entity 7 non-polymer

Description description	HEXADECANE
Molecular weight formula_weight	226.4 kDa
Source method src_method	man
Copy count entity_count	7

Entity 8 Entity 8 non-polymer

Description description	1,2-Distearoyl-sn-glycerophosphoethanolamine
Molecular weight formula_weight	748.1 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	man
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	8

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	7xlqD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	7xlqD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	410 — von Willebrand factor, type A domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	257473
