7zsc

Crystal structure of the heterodimeric human C-P4H-II with truncated alpha subunit (C-P4H-II delta281)

Method: X-RAY DIFFRACTION Dmax: 130.3 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prolyl 4-hydroxylase subunit alpha-2

Homo sapiens

UniProt O15460

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 282–535 Not recorded Protein disulfide-isomerase × 1 （P07237） SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；278 K；20% (w/v) PEG4000, 0.2 M lithium sulfate, 0.1 M MES, 3% methanol Resolution 3.85 Å R-free 0.278
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 282–535 Not recorded Protein disulfide-isomerase × 1 （P07237） SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；278 K；20% (w/v) PEG4000, 0.2 M lithium sulfate, 0.1 M MES, 3% methanol Resolution 3.85 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZSC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
6EVL Crystal structure of an unlignaded peptide-substrate-binding domain of human type II collagen prolyl 4-hydroxylase Deposited 2017-11-02 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 163–257（95 aa）
Not recorded SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 GLY GLYCINE × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2.45 M ammonium sulphate, 10% DMSO, 100 mM MOPS, pH 6.5
Resolution 1.87 Å R-free 0.224
6EVM Crystal structure of a Pro-9 complexed peptide-substrate-binding domain of human type II collagen prolyl 4-hydroxylase Deposited 2017-11-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 163–257（95 aa）
Not recorded SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2.45 M ammonium sulphate, 10% DMSO, 2.5 mM Pro-9, 4% hexenediol, 100 mM MOPS
Resolution 2.00 Å R-free 0.219
6EVN Crystal structure of peptide-substrate-binding domain of human type II collagen prolyl 4-hydroxylase complex with Pro-Pro-Gly-Pro-Ala-Gly-Pro-Pro-Gly. Deposited 2017-11-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 163–257（95 aa）
Not recorded SO4 SULFATE ION × 2 DMS DIMETHYL SULFOXIDE × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2.45 M ammonium sulphate, 10% DMSO, 5 mM PPGPAGPPG, 5% D-galactose, 100 mM MOPS, pH 6.5
Resolution 1.48 Å R-free 0.179
6EVO Crystal structure the peptide-substrate-binding domain of human type II collagen prolyl 4-hydroxylase complexed with Pro-Pro-Gly-Pro-Arg-Gly-Pro-Pro-Gly. Deposited 2017-11-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 163–257（95 aa）
Not recorded SO4 SULFATE ION × 2 DMS DIMETHYL SULFOXIDE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2.45 M ammonium sulphate, 10% DMSO, 5 mM PPGPRGPPG, 10 mM EDTA, 100 mM MOPS
Resolution 1.55 Å R-free 0.180
6EVP Crystal structure the peptide-substrate-binding domain of human type II collagen prolyl 4-hydroxylase complexed with Pro-Pro-Gly-Pro-Glu-Gly-Pro-Pro-Gly. Deposited 2017-11-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 163–257（95 aa）
Not recorded SO4 SULFATE ION × 1 DMS DIMETHYL SULFOXIDE × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；2.45 M ammonium sulphate, 10% DMSO, 100 mM MOPS, 5 mM PPGPEGPPG, 5% PEG 400, 100 mM MOPS.
Resolution 1.68 Å R-free 0.215
9HTD Peptide-substrate-binding (PSB) domain of human type II collagen prolyl 4-hydroxylase complexed with Pro-Hyp-Gly-Pro-Ala-Gly-Pro-Hyp-Gly. Deposited 2024-12-19 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 163–257（95 aa）
Not recorded GLY GLYCINE × 4 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；2M ammonium sulphate, 10% dioxane, 100 mM MES, 2 mM Pro-Hyp-Gly-Pro-Ala-Gly-Pro-Hyp-Gly.
Resolution 1.75 Å R-free 0.195

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name P4HA2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 9–262； UniProt 282–535 Author chain B； PDBConstruct 9–262； UniProt 282–535

Protein disulfide-isomerase

Homo sapiens

UniProt P07237

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain C； UniProt 18–508 Not recorded Prolyl 4-hydroxylase subunit alpha-2 × 1 （O15460） SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；278 K；20% (w/v) PEG4000, 0.2 M lithium sulfate, 0.1 M MES, 3% methanol Resolution 3.85 Å R-free 0.278
2 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain D； UniProt 18–508 Not recorded Prolyl 4-hydroxylase subunit alpha-2 × 1 （O15460） SO4 SULFATE ION × 1 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；278 K；20% (w/v) PEG4000, 0.2 M lithium sulfate, 0.1 M MES, 3% methanol Resolution 3.85 Å R-free 0.278

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 7ZSC Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1BJX HUMAN PROTEIN DISULFIDE ISOMERASE, NMR, 24 STRUCTURES Deposited 1998-06-29 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 136–245（110 aa） Fragment：B DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K
Resolution not provided
1MEK HUMAN PROTEIN DISULFIDE ISOMERASE, NMR, 40 STRUCTURES Deposited 1996-04-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–137（120 aa） Fragment：PROLYL 4-HYDROXYLASE BETA SUBUNIT
Not recorded No recorded non-water small molecule SOLUTION NMR mmCIF provides none of the parsed conditions Resolution not provided
1X5C The solution structure of the second thioredoxin-like domain of human Protein disulfide-isomerase Deposited 2005-05-15 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 368–475（108 aa） Fragment：Thioredoxin like domain
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient
NMR sample composition 1.2mM thioredoxin like domain U-15N,13C; 20mM d-Tris HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 10% D2O | 90% H2O/10% D2O
Resolution not provided
2BJX PROTEIN DISULFIDE ISOMERASE Deposited 1999-01-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 136–245（110 aa） Fragment：B DOMAIN
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 6.5；300 K；Pressure 1
Resolution not provided
2K18 Solution structure of bb' domains of human protein disulfide isomerase Deposited 2008-02-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 135–357（223 aa） Fragment：residues 135-357
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure 1
NMR sample composition 2 mM [U-99% 13C; U-99% 15N] hPDI-bb, 25 mM sodium phosphate, 70 mM sodium chloride, 0.5 mM EDTA, 5 mM DTT, 90% H2O/10% D2O | 90% H2O/10% D2O
NMR sample composition 2 mM hPDI-bb, 25 mM sodium phosphate, 70 mM sodium chloride, 0.5 mM EDTA, 5 mM DTT, 100% D2O | 100% D2O
NMR sample composition 0.5 mM [U-99% 15N] hPDI-bb, 25 mM sodium phosphate, 70 mM sodium chloride, 0.5 mM EDTA, 5 mM DTT, 12 mg/mL Pf1 phages, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
3BJ5 Alternative conformations of the x region of human protein disulphide-isomerase modulate exposure of the substrate binding b' domain Deposited 2007-12-03 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 230–368（139 aa） Fragment：;b'x domain, UNPR residues 230-368 ;
Mutation：I272A SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；295.15 K；2.95M Ammonium sulfate, 0.2M NaCl, 0.1M Tris-HCl pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 295.15K
Resolution 2.20 Å R-free 0.255
3UEM Crystal structure of human PDI bb'a' domains Deposited 2011-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 137–479（343 aa） Fragment：;bb'a' domains ;
Not recorded D1D (4S,5S)-1,2-DITHIANE-4,5-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；289 K；25%(w/v) PEG3350, 0.1M Tris-HCl, 0.2M ammonium acetate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 2.29 Å R-free 0.280
4EKZ Crystal structure of reduced hPDI (abb'xa') Deposited 2012-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–479（462 aa） Fragment：reduced full-length hPDI, UNP residues 18-479
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 9.8；294 K；25% PEG 3350, 0.1M Bis-Tris, 0.2M ammonium acetate, pH 9.8, EVAPORATION, temperature 294K
Resolution 2.51 Å R-free 0.250
4EL1 Crystal structure of oxidized hPDI (abb'xa') Deposited 2012-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–479（462 aa） Fragment：oxidized full-length hPDI, UNP residues 18-479
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 9.8；294 K；25% PEG 3350, 0.1M Bis-Tris, 0.2M ammonium acetate, pH 9.8, EVAPORATION, temperature 294K
Resolution 2.88 Å R-free 0.281
4EL1 Crystal structure of oxidized hPDI (abb'xa') Deposited 2012-04-10 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 18–479（462 aa） Fragment：oxidized full-length hPDI, UNP residues 18-479
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 9.8；294 K；25% PEG 3350, 0.1M Bis-Tris, 0.2M ammonium acetate, pH 9.8, EVAPORATION, temperature 294K
Resolution 2.88 Å R-free 0.281
4JU5 Crystal structure of the dimeric form of the bb' domains of human protein disulfide isomerase Deposited 2013-03-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 135–367（233 aa） Fragment：;bb' domain ;
Chain B 135–367（233 aa） Fragment：;bb' domain ;
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；295 K；25% (w/v) polyethylene glycol 1500, 25 mM sodium malonate, 37.5 mM imidazole, 37.5 mM boric acid, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K
Resolution 2.28 Å R-free 0.290
6I7S Microsomal triglyceride transfer protein Deposited 2018-11-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 18–508（491 aa）
Not recorded CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 11 PGE TRIETHYLENE GLYCOL × 1 SO4 SULFATE ION × 7 PEG DI(HYDROXYETHYL)ETHER × 2 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M Tris pH 8.25, 0.2 M Li2SO4, 32% v/v PEG 400, 2% Polypropylene glycol P425
Resolution 2.50 Å R-free 0.257
6I7S Microsomal triglyceride transfer protein Deposited 2018-11-17 Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 18–508（491 aa）
Not recorded CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 8 PGE TRIETHYLENE GLYCOL × 5 SO4 SULFATE ION × 4 PEG DI(HYDROXYETHYL)ETHER × 7 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1 M Tris pH 8.25, 0.2 M Li2SO4, 32% v/v PEG 400, 2% Polypropylene glycol P425
Resolution 2.50 Å R-free 0.257
8EOJ Microsomal triglyceride transfer protein Deposited 2022-10-03 Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–508（508 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.07 Å
8GDY Crystal structure of the human PDI first domain with 9 mutations Deposited 2023-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 18–137（120 aa）
Mutation：K31R, K42R, K57R, K65R, K69R, K71R, K114R, K130R, K131R SCN THIOCYANATE ION × 1 EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6；277 K；0.1 M potassium thiocyanate, 0.1 M MES, and 24% (w/v) PEG 20k
Resolution 2.05 Å R-free 0.239
8GDY Crystal structure of the human PDI first domain with 9 mutations Deposited 2023-03-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 18–137（120 aa）
Mutation：K31R, K42R, K57R, K65R, K69R, K71R, K114R, K130R, K131R SCN THIOCYANATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6；277 K；0.1 M potassium thiocyanate, 0.1 M MES, and 24% (w/v) PEG 20k
Resolution 2.05 Å R-free 0.239

13 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name PDIA1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain C； PDBConstruct 2–492； UniProt 18–508 Author chain D； PDBConstruct 2–492； UniProt 18–508

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 7zsc

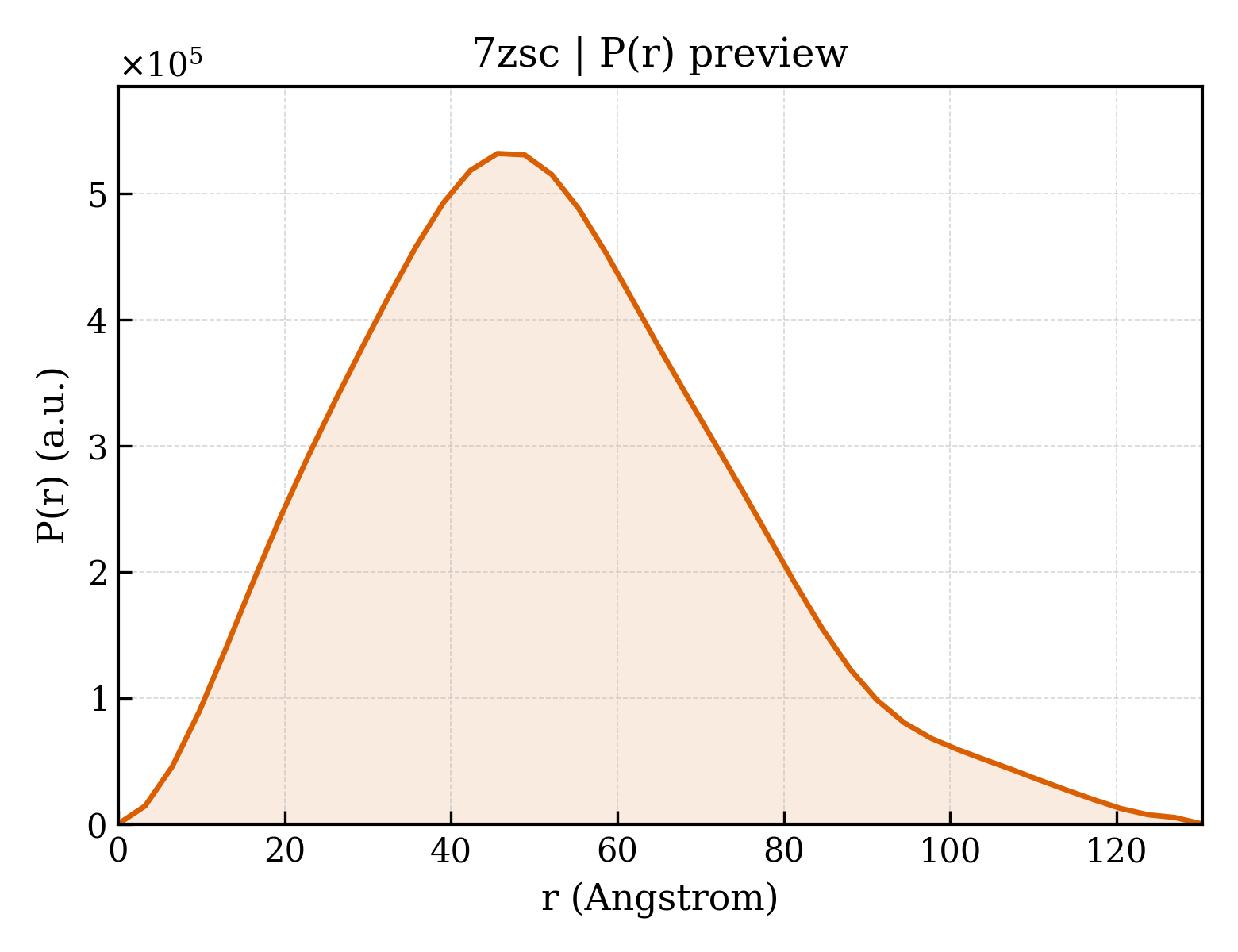

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 7zsc
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id7zsc
Deposition date deposition_date2022-05-06
Structure title titleCrystal structure of the heterodimeric human C-P4H-II with truncated alpha subunit (C-P4H-II delta281)
Keywords keywordsCollagen synthesis, PDI, DSBH fold, thioredoxin, dioxygenase, HYDROLASE; HYDROLASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier39.44 Å
Radius of gyration Rg (electron density) rg_electron39.07 Å
Forward intensity I(0) i0369939000.00
Molecular weight molecular_weight156980.0 kDa
Excluded volume excluded_volume196650 ų
Envelope volume envelope_volume270220 ų
Hydration-shell volume shell_volume58666 ų
Envelope diameter envelope_diameter136.9 Å
Shell Rg shell_rg43.88 Å
Envelope Rg envelope_rg38.62 Å
Shape Rg shape_rg39.08 Å
Total Rg total_rg39.32 Å
Total atoms total_atoms11091
Residues n_residues1384
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax130.3 Å
Rg (real space) rg_real39.50 Å
Rg uncertainty (real space) rg_real_error1.18 Å
I(0) (real space) i0_real3.6990e+08
I(0) uncertainty (real space) i0_real_error6.0690e+06
Rg (reciprocal space) rg_reciprocal39.47 Å
I(0) (reciprocal space) i0_reciprocal369900000.0000
Solution quality estimate total_estimate0.8564
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks1
Primary peak position r_peak_primary45.6 Å
Skewness Skewness skewness0.443
Kurtosis Kurtosis kurtosis-0.035
Angular range angular_range— – 0.2000 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha33700000.0000
Real-space data points n_real_points41
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.837; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.618
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

▼

7. Fold Classification (SCOP + CATH) 10 domains

CATH v4.4 (10 domains)

Domain ID domain_id7zscA01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology120 — Jelly Rolls
Homologous superfamily homologous superfamily620 — q2cbj1_9rhob like domain
Domain ID domain_id7zscB01
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology120 — Jelly Rolls
Homologous superfamily homologous superfamily620 — q2cbj1_9rhob like domain
Domain ID domain_id7zscC01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscC02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscC03
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscC04
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscD01
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscD02
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscD03
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
Domain ID domain_id7zscD04
Class class3 — Alpha Beta
Architecture architecture40 — 3-Layer(aba) Sandwich
Topology topology30 — Glutaredoxin
Homologous superfamily homologous superfamily10 — Glutaredoxin
▶

8. Citations (1)

▶

9. Files and Curves (10)
