1bjx
HUMAN PROTEIN DISULFIDE ISOMERASE, NMR, 24 STRUCTURES
SAXS Profile

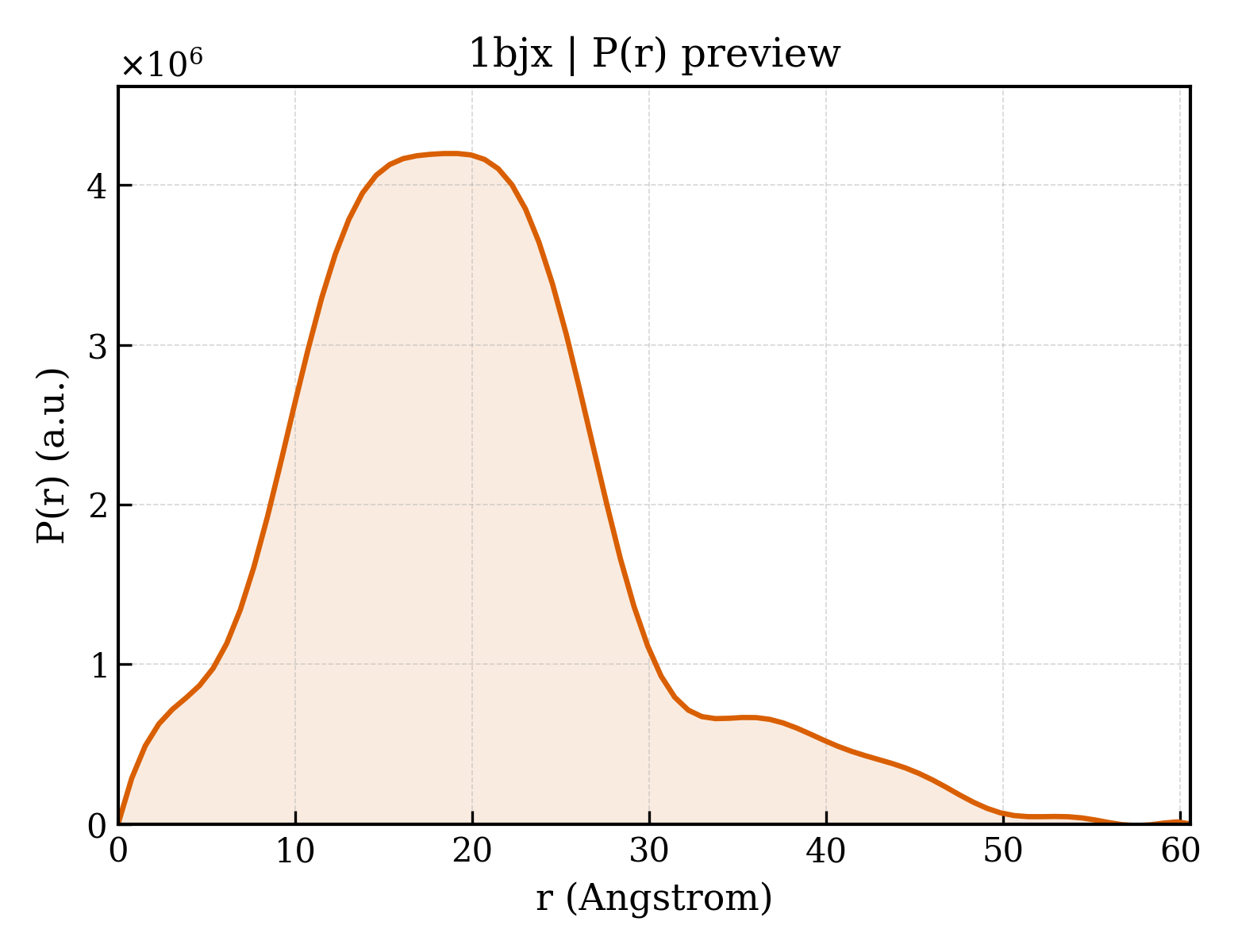

P(r) Distribution
1. Structure Basics
| entry_id | 1bjx |
| deposition_date | 1998-06-29 |
| title | HUMAN PROTEIN DISULFIDE ISOMERASE, NMR, 24 STRUCTURES |
| keywords | ELECTRON TRANSPORT, REDOX-ACTIVE CENTER, ISOMERASE, ENDOPLASMIC RETICULUM; ELECTRON TRANSPORT |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.18 Å |
| rg_electron | 14.79 Å |
| i0 | 1125620000.00 |
| molecular_weight | 289210.0 kDa |
| excluded_volume | 362910 ų |
| envelope_volume | 41822 ų |
| shell_volume | 17834 ų |
| envelope_diameter | 63.7 Å |
| shell_rg | 27.03 Å |
| envelope_rg | 22.30 Å |
| shape_rg | 14.76 Å |
| total_rg | 15.12 Å |
| total_atoms | 40224 |
| n_residues | 2640 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.6 Å |
| rg_real | 15.32 Å |
| rg_real_error | 0.58 Å |
| i0_real | 1.1260e+09 |
| i0_real_error | 1.3620e+07 |
| rg_reciprocal | 15.31 Å |
| i0_reciprocal | 1126000000.0000 |
| total_estimate | 0.6260 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 35.3 Å |
| skewness | 0.730 |
| kurtosis | 0.767 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 447600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.169; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.628; Smooth: 0.000 |
