SAXSdb — 7ztc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

actin, cytoplasmic 1

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain A； UniProt 1–375 Chain B； UniProt 1–375 Chain C； UniProt 1–375 Chain D； UniProt 1–375 Chain E； UniProt 1–375 Chain F； UniProt 1–375 Chain G； UniProt 1–375 Chain H； UniProt 1–375	Not recorded	Non-muscle tropomyosin 1.6 × 4 ADP ADENOSINE-5'-DIPHOSPHATE × 8	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.90 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7ZTC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7QJ5 Structure of recombinant human gamma-Tubulin Ring Complex (spokes 1-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 41 PDB declaration: 41-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ6 Structure of recombinant human gamma-Tubulin Ring Complex 10-spoked assembly intermediate (spokes 3-12, substoichiometric spokes 13-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 7.80 Å
7QJ7 Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 1-12 substoichiometric spokes 13-14) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ8 Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 3-14, substoichiometric spokes 1-2) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.70 Å
7QJ9 Structure of recombinant human gamma-Tubulin Ring Complex 10-spoked assembly intermediate (spokes 3-12, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 31 PDB declaration: 31-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 8.10 Å
7QJA Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 1-12, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 37 PDB declaration: 37-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.20 Å
7QJB Structure of recombinant human gamma-Tubulin Ring Complex 12-spoked assembly intermediate (spokes 3-14, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 35 PDB declaration: 35-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 9.20 Å
7QJC Structure of recombinant human gamma-Tubulin Ring Complex (spokes 1-14, homogeneous dataset) Deposited 2021-12-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 41 PDB declaration: 41-meric	Chain e 1–375（375 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 16.10 Å
7ZTD Non-muscle F-actin decorated with non-muscle tropomyosin 3.2 Deposited 2022-05-09	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–375（375 aa） Chain B 1–375（375 aa） Chain C 1–375（375 aa） Chain D 1–375（375 aa） Chain E 1–375（375 aa） Chain F 1–375（375 aa） Chain G 1–375（375 aa） Chain H 1–375（375 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.60 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6I9HGD1_GEOFO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–375； UniProt 1–375 Author chain B； PDBConstruct 1–375； UniProt 1–375 Author chain C； PDBConstruct 1–375； UniProt 1–375 Author chain D； PDBConstruct 1–375； UniProt 1–375 Author chain E； PDBConstruct 1–375； UniProt 1–375 Author chain F； PDBConstruct 1–375； UniProt 1–375 Author chain G； PDBConstruct 1–375； UniProt 1–375 Author chain H； PDBConstruct 1–375； UniProt 1–375

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ztc
Deposition date deposition_date	2022-05-09
Structure title title	Non-muscle F-actin decorated with non-muscle tropomyosin 1.6
Keywords keywords	actin, tropomyosin, non-muscle, complex, CYTOSOLIC PROTEIN; CYTOSOLIC PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	68.96 Å
Radius of gyration Rg (electron density) rg_electron	70.01 Å
Forward intensity I(0) i0	2012570000.00
Molecular weight molecular_weight	365370.0 kDa
Excluded volume excluded_volume	452400 Å³
Envelope volume envelope_volume	714000 Å³
Hydration-shell volume shell_volume	95259 Å³
Envelope diameter envelope_diameter	271.9 Å
Shell Rg shell_rg	56.59 Å
Envelope Rg envelope_rg	69.87 Å
Shape Rg shape_rg	70.02 Å
Total Rg total_rg	69.66 Å
Total atoms total_atoms	25652
Residues n_residues	3460
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

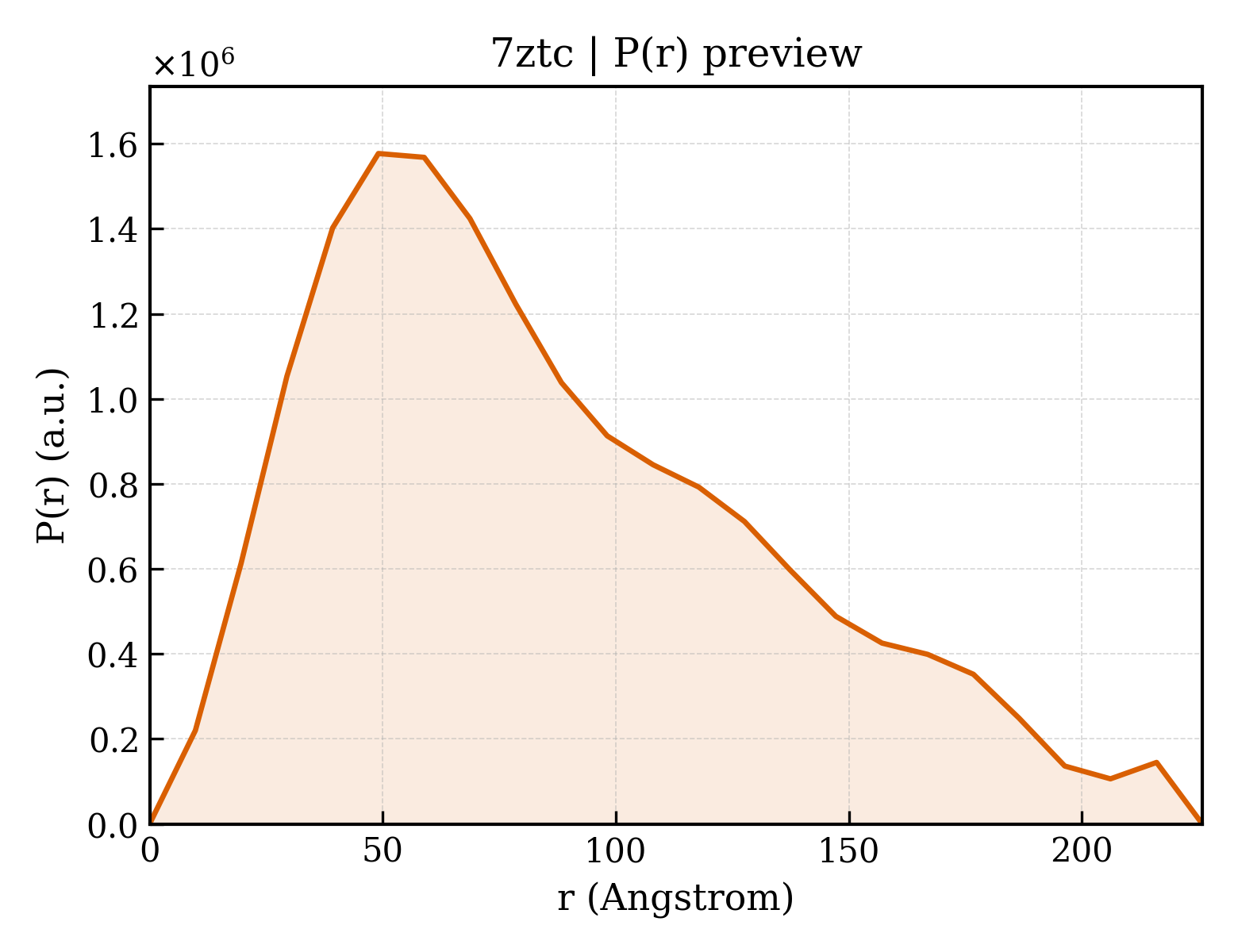

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	225.8 Å
Rg (real space) rg_real	69.18 Å
Rg uncertainty (real space) rg_real_error	2.17 Å
I(0) (real space) i0_real	2.0080e+09
I(0) uncertainty (real space) i0_real_error	4.5870e+07
Rg (reciprocal space) rg_reciprocal	66.35 Å
I(0) (reciprocal space) i0_reciprocal	2000000000.0000
Solution quality estimate total_estimate	0.7401
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	49.1 Å
Skewness Skewness skewness	0.673
Kurtosis Kurtosis kurtosis	-0.279
Angular range angular_range	— – 0.1150 Å⁻¹
Current regularization parameter α current_alpha	0.0068
Highest regularization parameter α highest_alpha	229000000.0000
Real-space data points n_real_points	24
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.577; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.729; Smooth: 0.159

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	actin, cytoplasmic 1
Molecular weight formula_weight	41782.7 kDa
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	25652

MDDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 2 Entity 2 polymer

Description description	Non-muscle tropomyosin 1.6
Molecular weight formula_weight	11507.2 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	W,X,Y,Z

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	8

▼

7. Fold Classification (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

Domain ID domain_id	7ztcA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcC01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcD01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcE01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcF01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcG01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	7ztcH01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	79298

fit	/app/data/saxs_computation/zt/7ztc/7ztc.fit
pddf	/app/data/pr_computation/zt/7ztc/7ztc.pr.out
profile	/app/data/saxs_computation/zt/7ztc/7ztc.dat
