SAXSdb — 8ctj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transmembrane protein 87A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–555	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 4.74 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8CTJ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8HSI Cryo-EM structure of human TMEM87A, PE-bound Deposited 2022-12-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–555（555 aa）	Not recorded	L9Q (1S)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(octadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate × 1 CLR CHOLESTEROL × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 9；50mM Tris pH 9.0, 250mM NaCl, 0.01% (w/v) LMNG, 0.002% (w/v) CHS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
8HTT Cryo-EM structure of human TMEM87A, gluconate-bound Deposited 2022-12-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–555（555 aa）	Not recorded	GCO D-gluconic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 9；50mM HEPES pH 7.5, 250mM NaCl, 0.01% (w/v) LMNG, 0.002% (w/v) CHS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8KB4 Cryo-EM structure of human TMEM87A A308M Deposited 2023-08-03	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–555（555 aa）	Mutation：A308M	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 65I (9R,12R)-15-amino-12-hydroxy-6,12-dioxo-7,11,13-trioxa-12lambda~5~-phosphapentadecan-9-yl undecanoate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 9；50mM HEPES pH 7.5, 250mM NaCl, 0.01% (w/v) LMNG, 0.002% (w/v) CHS cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TM87A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–555； UniProt 1–555

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ctj
Deposition date deposition_date	2022-05-15
Structure title title	Cryo-EM structure of TMEM87A
Keywords keywords	GOLD domain, transport, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.16 Å
Radius of gyration Rg (electron density) rg_electron	27.72 Å
Forward intensity I(0) i0	30544300.00
Molecular weight molecular_weight	46878.0 kDa
Excluded volume excluded_volume	60551 Å³
Envelope volume envelope_volume	78382 Å³
Hydration-shell volume shell_volume	25657 Å³
Envelope diameter envelope_diameter	100.2 Å
Shell Rg shell_rg	32.58 Å
Envelope Rg envelope_rg	27.78 Å
Shape Rg shape_rg	27.70 Å
Total Rg total_rg	28.40 Å
Total atoms total_atoms	3312
Residues n_residues	401
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

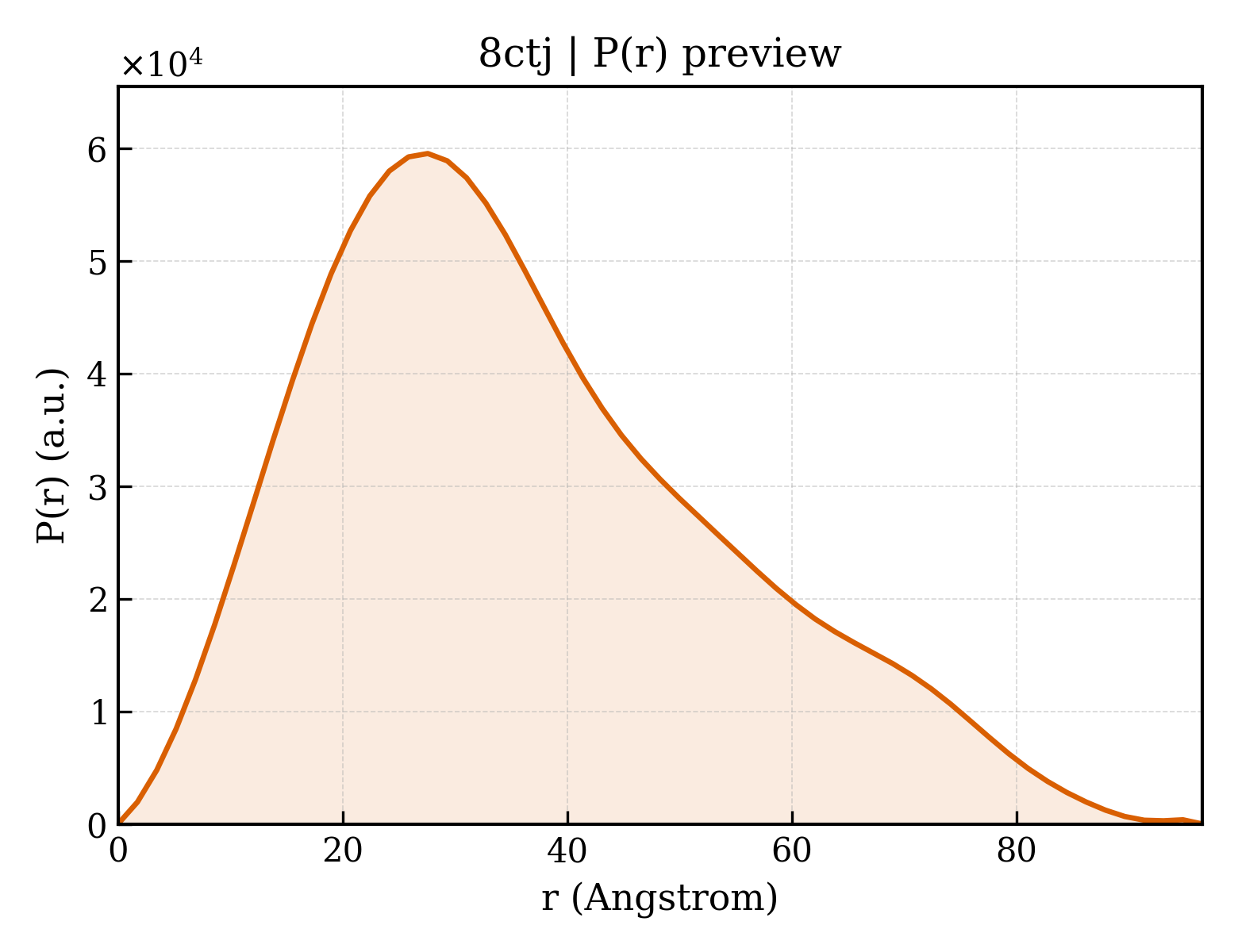

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.5 Å
Rg (real space) rg_real	28.51 Å
Rg uncertainty (real space) rg_real_error	0.86 Å
I(0) (real space) i0_real	3.0540e+07
I(0) uncertainty (real space) i0_real_error	5.1490e+05
Rg (reciprocal space) rg_reciprocal	28.40 Å
I(0) (reciprocal space) i0_reciprocal	30540000.0000
Solution quality estimate total_estimate	0.8263
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.6 Å
Skewness Skewness skewness	0.587
Kurtosis Kurtosis kurtosis	-0.266
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5365000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.699; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.744; Smooth: 0.898

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Transmembrane protein 87A
Molecular weight formula_weight	64512.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3312

MAAAAWLQVLPVILLLLGAHPSPLSFFSAGPATVAAADRSKWHIPIPSGKNYFSFGKILFRNTTIFLKFDGEPCDLSLNITWYLKSADCYNEIYNFKAEEVELYLEKLKEKRGLSGKYQTSSKLFQNCSELFKTQTFSGDFMHRLPLLGEKQEAKENGTNLTFIGDKTAMHEPLQTWQDAPYIFIVHIGISSSKESSKENSLSNLFTMTVEVKGPYEYLTLEDYPLMIFFMVMCIVYVLFGVLWLAWSACYWRDLLRIQFWIGAVIFLGMLEKAVFYAEFQNIRYKGESVQGALILAELLSAVKRSLARTLVIIVSLGYGIVKPRLGVTLHKVVVAGALYLLFSGMEGVLRVTGAQTDLASLAFIPLAFLDTALCWWIFISLTQTMKLLKLRRNIVKLSLYRHFTNTLILAVAASIVFIIWTTMKFRIVTCQSDWRELWVDDAIWRLLFSMILFVIMVLWRPSANNQRFAFSPLSEEEEEDEQKEPMLKESFEGMKMRSTKQEPNGNSKVNKAQEDDLKWVEENVPSSVTDVALPALLDSDEERMITHFERSKMESNSLEVLFQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	1,2-dioleoyl-sn-glycero-3-phosphoethanolamine
Molecular weight formula_weight	744.0 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.74 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	138217

fit	/app/data/saxs_computation/ct/8ctj/8ctj.fit
pddf	/app/data/pr_computation/ct/8ctj/8ctj.pr.out
profile	/app/data/saxs_computation/ct/8ctj/8ctj.dat
