Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | DDX42_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 9–444； UniProt 211–646 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 8dpe |
| Deposition date deposition_date | 2022-07-15 |
| Structure title title | Crystal structure of ATP-dependent RNA helicase DDX42 |
| Keywords keywords | DDX42, splicing factor, RNA helicase, SPLICING, HYDROLASE; SPLICING, HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

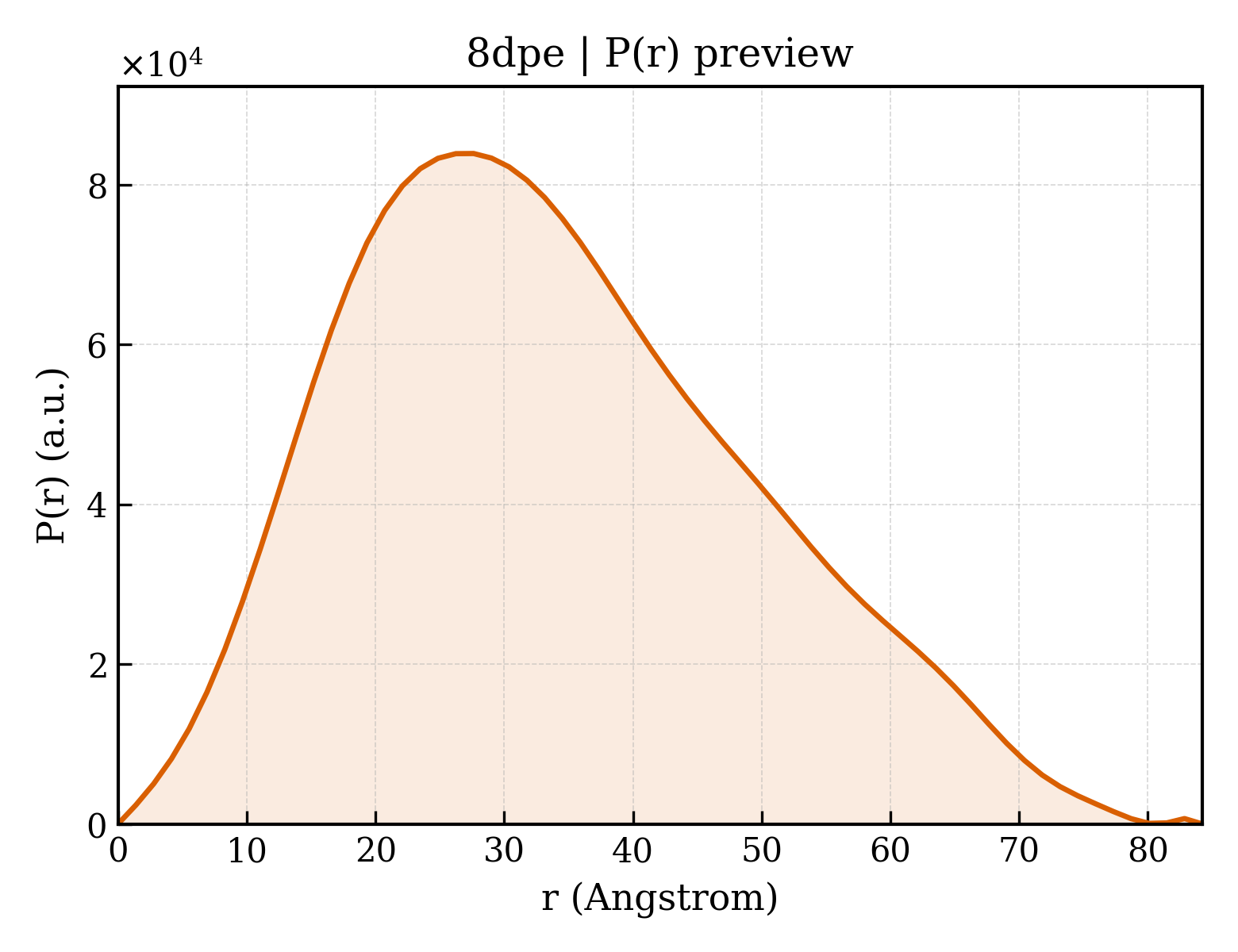

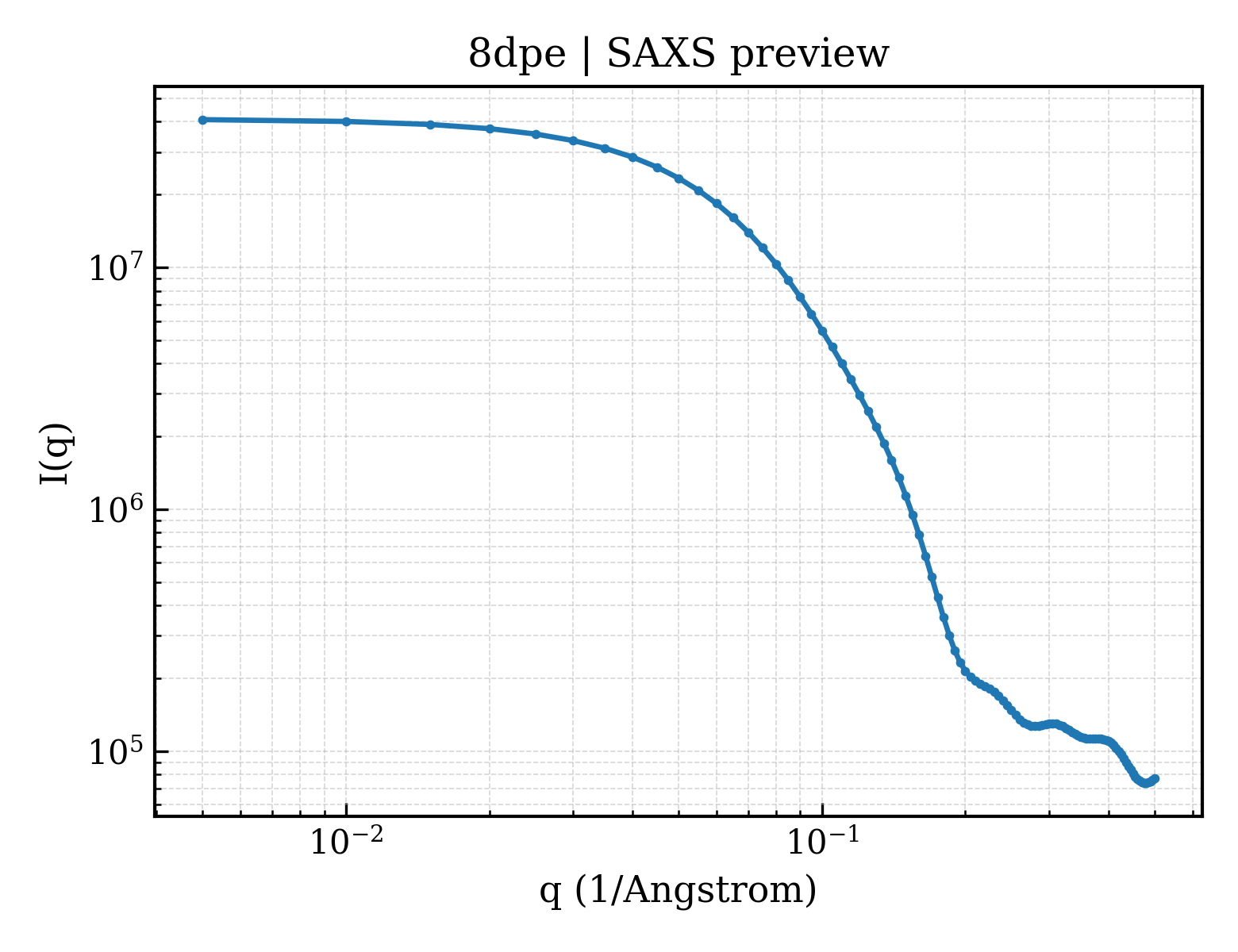

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 26.11 Å |
| Rg (electron density) | 25.29 Å |
| Total Rg | 26.05 Å |
| Atom count | 3449 |
| Residues | 436 |
| Excluded volume | 61208 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 8dpeA01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| Domain ID domain_id | 8dpeA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
