8dwx

Chikungunya VLP in complex with neutralizing Fab 506.C01 (asymmetric unit)

Method: ELECTRON MICROSCOPY D_max: 286.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

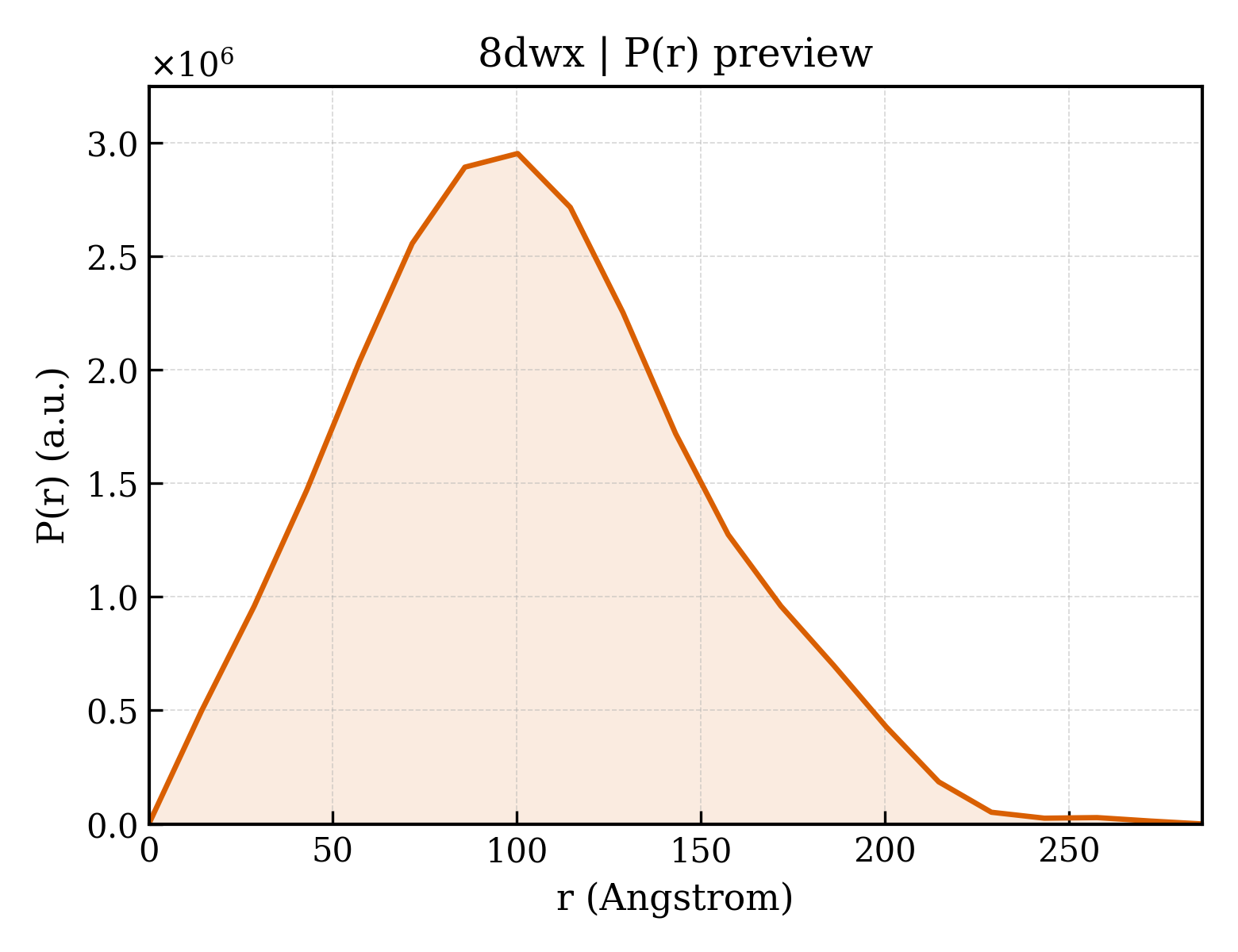

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8dwx
沉积日期 deposition_date	2022-08-02
结构标题 title	Chikungunya VLP in complex with neutralizing Fab 506.C01 (asymmetric unit)
关键词 keywords	Antibody, VIRAL PROTEIN-IMMUNE SYSTEM complex, CSGID, Structural Genomics, Center for Structural Genomics of Infectious Diseases; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	78.66 Å
回转半径 Rg (电子) rg_electron	78.85 Å
零角强度 I(0) i0	4256490000.00
分子量 molecular_weight	544360.0 kDa
排除体积 excluded_volume	678210 Å³
包络体积 envelope_volume	1382500 Å³
水化壳体积 shell_volume	154710 Å³
包络直径 envelope_diameter	256.2 Å
壳层 Rg shell_rg	71.29 Å
包络 Rg envelope_rg	75.19 Å
形状 Rg shape_rg	78.84 Å
总 Rg total_rg	78.75 Å
总原子数 total_atoms	38228
残基数 n_residues	4956
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	286.2 Å
Rg (实空间) rg_real	79.43 Å
Rg 误差 (实空间) rg_real_error	2.60 Å
I(0) (实空间) i0_real	4.2640e+09
I(0) 误差 (实空间) i0_real_error	1.0070e+08
Rg (倒空间) rg_reciprocal	78.69 Å
I(0) (倒空间) i0_reciprocal	4257000000.0000
解质量估计 total_estimate	0.8504
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	100.2 Å
偏度 Skewness skewness	0.337
峰度 Kurtosis kurtosis	-0.201
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.1405
最高正则化参数 α highest_alpha	219100000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.743; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.841

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	E1 glycoprotein
分子量 formula_weight	47346.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	38228

YEHVTVIPNTVGVPYKTLVNRPGYSPMVLEMELQSVTLEPTLSLDYITCEYKTVIPSPYVKCCGTAECKDKSLPDYSCKVFTGVYPFMWGGAYCFCDAENTQLSEAHVEKSESCKTEFASAYRAHTASASAKLRVLYQGNNITVAAYANGDHAVTVKDAKFVVGPMSSAWTPFDNKIVVYKGDVYNMDYPPFGAGRPGQFGDIQSRTPESKDVYANTQLVLQRPAAGTVHVPYSQAPSGFKYWLKERGASLQHTAPFGCQIATNPVRAVNCAVGNIPISIDIPDAAFTRVVDAPSVTDMSCEVPACTHSSDFGGVAIIKYTASKKGKCAVHSMTNAVTIREADVEVEGNSQLQISFSTALASAEFRVQVCSTQVHCAAACHPPKDHIVNYPASHTTLGVQDISTTAMSWVQKITGGVGLIVAVAALILIVVLCVSFSRH

来源 Source

来源生物 organism	Chikungunya virus strain Senegal 37997
NCBI 分类编号 ncbi_taxonomy_id	371095
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	E2 glycoprotein
分子量 formula_weight	46858.3 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,N,O,P

NFNVYKATRPYLAHCPDCGEGHSCHSPIALERIRNEATDGTLKIQVSLQIGIKTDDSHDWTKLRYMDSHTPADAERAGLLVRTSAPCTITGTMGHFILARCPKGETLTVGFTDSRKISHTCTHPFHHEPPVIGRERFHSRPQHGKELPCSTYVQSTAATAEEIEVHMPPDTPDRTLMTQQSGNVKITVNGQTVRYKCNCGGSNEGLTTTDKVINNCKIDQCHAAVTNHKNWQYNSPLVPRNAELGDRKGKIHIPFPLANVTCRVPKARNPTVTYGKNQVTMLLYPDHPTLLSYRNMGQEPNYHEEWVTHKKEVTLTVPTEGLEVTWGNNEPYKYWPQMSTNGTAHGHPHEIILYYYELYPTMTVVIVSVASFVLLSMVGTAVGMCVCARRRCITPYELTPGATVPFLLSLLCCVRTTKA

来源 Source

来源生物 organism	Chikungunya virus strain Senegal 37997
NCBI 分类编号 ncbi_taxonomy_id	371095
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Capsid protein
分子量 formula_weight	16458.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q,R,S,T

NDCIFEVKHEGKVMGYACLVGDKVMKPAHVKGTIDNADLAKLAFKRSSKYDLECAQIPVHMKSDASKFTHEKPEGYYNWHHGAVQYSGGRFTIPTGAGKPGDSGRPIFDNKGRVVAIVLGGANEGARTALSVVTWNKDIVTKITPEGAEEW

来源 Source

来源生物 organism	Chikungunya virus strain Senegal 37997
NCBI 分类编号 ncbi_taxonomy_id	371095
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	506.C01 light chain
分子量 formula_weight	11486.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,U,W,Y

DIQMTQSPSSVSASVGDRVTITCRASQGISSWLGWYQQKPGKAPKLLIYAASSLQSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQANSFPRTFGQGTKVEIK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	506.C01 heavy chain
分子量 formula_weight	14082.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,V,X,Z

QVQLQESGPGLVKPSQTLSLTCTVSGGSISSDDYYWTWIRLPPGKGLEWIGYIFYTGGTYYNPSLKSRVTISLDRSKNQFSLKLSSVTAADTAVYFCARAPETYCSTTNCYKGYFDSWGQGTLVTVSS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

▼

6. 折叠分类 (SCOP + CATH) 16 domains

CATH v4.4 (16 domains)

结构域编号 domain_id	8dwxA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	8dwxB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	8dwxC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	8dwxD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	8dwxH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxL01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxM01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	3200 — Alphavirus E2 glycoprotein, A domain

结构域编号 domain_id	8dwxN01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	3200 — Alphavirus E2 glycoprotein, A domain

结构域编号 domain_id	8dwxO01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	3200 — Alphavirus E2 glycoprotein, A domain

结构域编号 domain_id	8dwxP01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	3200 — Alphavirus E2 glycoprotein, A domain

结构域编号 domain_id	8dwxU01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxV01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxW01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxX01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxY01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8dwxZ01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.27 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	866369

fit	/app/data/saxs_computation/dw/8dwx/8dwx.fit
pddf	/app/data/pr_computation/dw/8dwx/8dwx.pr.out
profile	/app/data/saxs_computation/dw/8dwx/8dwx.dat
