8e20

Cryo-EM structure of the full-length human NF1 dimer

Method: ELECTRON MICROSCOPY D_max: 236.7 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform I of Neurofibromin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–2818 Chain B； UniProt 1–2818	Not recorded	No other associated polymer	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8E20	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1NF1 THE GAP RELATED DOMAIN OF NEUROFIBROMIN Deposited 1998-07-08	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 864–1196（333 aa） Fragment：GAP RELATED DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；S. REF. DESCRIBING THE STRUCTURE, pH 8	Resolution 2.50 Å R-free 0.369
2D4Q Crystal structure of the Sec-PH domain of the human neurofibromatosis type 1 protein Deposited 2005-10-22	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1581–1837（257 aa） Fragment：Sec14 homology domain Chain B 1581–1837（257 aa） Fragment：Sec14 homology domain	Not recorded	OXN OXTOXYNOL-10 × 2 POP PYROPHOSPHATE 2- × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；Na4P2O7, MES, PEG 4000, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 291K X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；NaH2PO, NaCl, sodium acetate, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.30 Å R-free 0.280
2E2X Sec14 Homology Module of Neurofibromin in complex with phosphatitylethanolamine Deposited 2006-11-18	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1566–1837（272 aa） Fragment：NF1 Chain B 1566–1837（272 aa） Fragment：NF1	Not recorded	PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 2 POP PYROPHOSPHATE 2- × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；291 K；5% PEG 4000, 0.25M NaPP, MES, pH 6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.50 Å R-free 0.283
3P7Z Crystal structure of the Neurofibromin Sec14-PH module containing the patient derived mutation I1584V Deposited 2010-10-13	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1566–1837（272 aa） Chain B 1566–1837（272 aa）	Mutation：I1584V Mutation：I1584V	PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 2 NA SODIUM ION × 1 POP PYROPHOSPHATE 2- × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；289 K；0.1M MES, 7.5% PEG 4000, 0.2M Na4P207, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.65 Å R-free 0.266
3PEG Crystal structure of Neurofibromins Sec14-PH module containing a patient derived duplication (TD) Deposited 2010-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1566–1733（168 aa） Chain A 1720–1733（14 aa） Chain A 1734–1837（104 aa）	Mutation：insertion mutant Mutation：insertion mutant Mutation：insertion mutant	SO4 SULFATE ION × 5 MG MAGNESIUM ION × 1 PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289.15 K；0.05M HEPES, 39% PEG 400, 0.2M (NH4)2SO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.15K	Resolution 2.52 Å R-free 0.264
3PEG Crystal structure of Neurofibromins Sec14-PH module containing a patient derived duplication (TD) Deposited 2010-10-26	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1566–1733（168 aa） Chain A 1720–1733（14 aa） Chain A 1734–1837（104 aa）	Mutation：insertion mutant Mutation：insertion mutant Mutation：insertion mutant	SO4 SULFATE ION × 10 MG MAGNESIUM ION × 2 PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；289.15 K；0.05M HEPES, 39% PEG 400, 0.2M (NH4)2SO4, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 289.15K	Resolution 2.52 Å R-free 0.264
3PG7 Crystal structure of the H. sapiens NF1 SEC-PH domain (del1750 mutant) Deposited 2010-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1581–1837（257 aa）	Mutation：K1771 deletion mutant	PTY PHOSPHATIDYLETHANOLAMINE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.19 Å R-free 0.249
3PG7 Crystal structure of the H. sapiens NF1 SEC-PH domain (del1750 mutant) Deposited 2010-10-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1581–1837（257 aa）	Mutation：K1771 deletion mutant	PTY PHOSPHATIDYLETHANOLAMINE × 1 POP PYROPHOSPHATE 2- × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.19 Å R-free 0.249
6OB2 Crystal structure of wild-type KRAS (GMPPNP-bound) in complex with GAP-related domain (GRD) of neurofibromin (NF1) Deposited 2019-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1209–1463（255 aa）	Not recorded	GOL GLYCEROL × 2 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 IMD IMIDAZOLE × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Tris pH 8.0 and 19% PAA-co-maleic acid	Resolution 2.85 Å R-free 0.247
6OB2 Crystal structure of wild-type KRAS (GMPPNP-bound) in complex with GAP-related domain (GRD) of neurofibromin (NF1) Deposited 2019-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1209–1463（255 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M Tris pH 8.0 and 19% PAA-co-maleic acid	Resolution 2.85 Å R-free 0.247
6OB3 Crystal structure of G13D-KRAS (GMPPNP-bound) in complex with GAP-related domain (GRD) of neurofibromin (NF1) Deposited 2019-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1209–1463（255 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0 and 25% Pentaerythritol propoxylate (5/4 PO/OH)	Resolution 2.10 Å R-free 0.226
6OB3 Crystal structure of G13D-KRAS (GMPPNP-bound) in complex with GAP-related domain (GRD) of neurofibromin (NF1) Deposited 2019-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1209–1463（255 aa）	Not recorded	GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1 CL CHLORIDE ION × 1 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1 M MES pH 6.0 and 25% Pentaerythritol propoxylate (5/4 PO/OH)	Resolution 2.10 Å R-free 0.226
6V65 Crystal structure of KRAS(GMPPNP)-NF1(GRD)-SPRED1 complex Deposited 2019-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1203–1530（328 aa）	Not recorded	ZN ZINC ION × 1 FMT FORMIC ACID × 4 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；277 K；100 mM Tris pH7.8 100 mM ammonium sulfate 300 mM sodium formate 3% PEG3350, 3.5% PGA-LM 10% detergent ANAPOE-80	Resolution 2.76 Å R-free 0.241
6V6F Crystal structure of Q61L KRAS(GMPPNP)-NF1(GRD)-SPRED1(EVH1) complex Deposited 2019-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1203–1530（328 aa）	Not recorded	ZN ZINC ION × 1 FMT FORMIC ACID × 4 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.8；277 K；100 mM Tris pH 7.8, 100 mM ammonium sulfate, 300 mM sodium formate, 3% PEG3350, 3.5% PGA-LM 10% detergent ANAPOE-80	Resolution 2.54 Å R-free 0.265
7MOC Neurofibromin core Deposited 2021-05-01	Different construct Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–2818（2817 aa） Chain B 2–2818（2817 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.56 Å
7MP5 Autoinhibited neurofibrobmin Deposited 2021-05-04	Different construct Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–2818（2817 aa） Chain B 2–2818（2817 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.60 Å
7MP6 Neurofibromin homodimer Deposited 2021-05-04	Different construct Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–2818（2817 aa） Chain B 2–2818（2817 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 6.25 Å
7PGP The core structure of human neurofibromin isoform 2 Deposited 2021-08-15	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
7PGQ GAP-SecPH region of human neurofibromin isoform 2 in closed conformation. Deposited 2021-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 1 ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
7PGR The structure of human neurofibromin isoform 2 in closed conformation Deposited 2021-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
7PGS Consensus structure of human Neurofibromin isoform 2 Deposited 2021-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7PGT The structure of human neurofibromin isoform 2 in opened conformation. Deposited 2021-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	ZN ZINC ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.80 Å
7PGU Autoinhibited structure of human neurofibromin isoform 2 stabilized by Zinc. Deposited 2021-08-15	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain F 1–2839（2839 aa） Chain N 1–2839（2839 aa）	Not recorded	PEV (1S)-2-{[(2-AMINOETHOXY)(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE × 2 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
7R03 Neurofibromin occluded conformation Deposited 2022-02-01	Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–2818（2818 aa） Chain B 1–2818（2818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
7R04 Neurofibromin in open conformation Deposited 2022-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–2818（2818 aa） Chain B 1–2818（2818 aa）	Not recorded	GSP 5'-GUANOSINE-DIPHOSPHATE-MONOTHIOPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.70 Å
8EDL Cryo-EM structure of the full-length human NF1 dimer Deposited 2022-09-05	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–2818（2818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8EDM Cryo-EM structure of the full-length human NF1 dimer Deposited 2022-09-05	Parsed fields agree	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–2818（2818 aa） Chain B 1–2818（2818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8EDN Cryo-EM structure of the full-length human NF1 dimer Deposited 2022-09-05	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–2818（2818 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8EDO Cryo-EM structure of the full-length human NF1 dimer Deposited 2022-09-05	Different construct Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1039–2302（1264 aa） Chain B 1039–2302（1264 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

25 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NF1_HUMAN
Isoform	P21359-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2818； UniProt 1–2818 Author chain B； PDBConstruct 1–2818； UniProt 1–2818

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8e20
Deposition date deposition_date	2022-08-12
Structure title title	Cryo-EM structure of the full-length human NF1 dimer
Keywords keywords	GTPase activating protein, Ras signaling, Cancer, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	83.02 Å
Radius of gyration Rg (electron density) rg_electron	84.42 Å
Forward intensity I(0) i0	2563100000.00
Molecular weight molecular_weight	412750.0 kDa
Excluded volume excluded_volume	507800 Å³
Envelope volume envelope_volume	1036500 Å³
Hydration-shell volume shell_volume	109220 Å³
Envelope diameter envelope_diameter	301.4 Å
Shell Rg shell_rg	71.59 Å
Envelope Rg envelope_rg	82.00 Å
Shape Rg shape_rg	84.45 Å
Total Rg total_rg	84.14 Å
Total atoms total_atoms	29341
Residues n_residues	4515
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

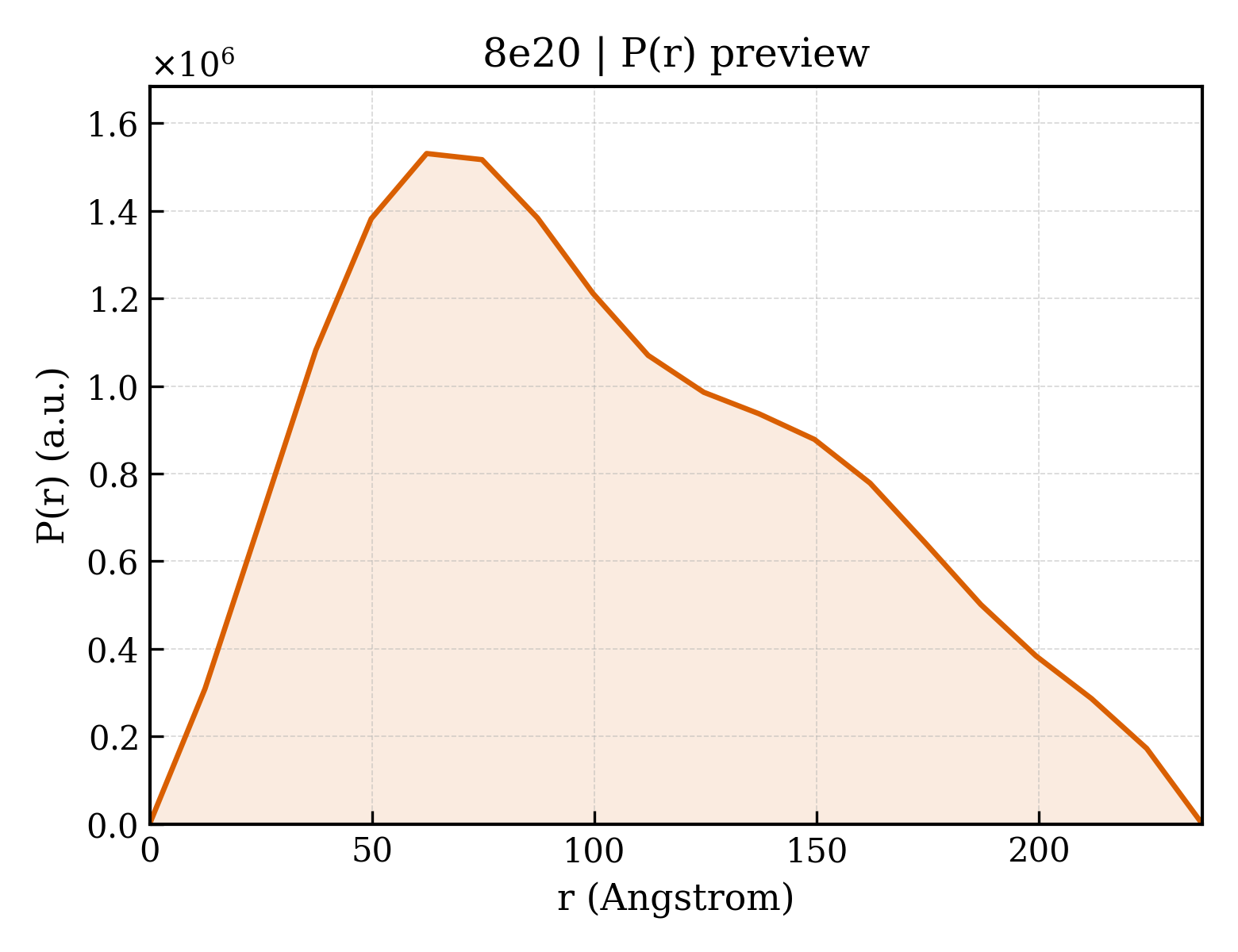

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	236.7 Å
Rg (real space) rg_real	80.20 Å
Rg uncertainty (real space) rg_real_error	1.02 Å
I(0) (real space) i0_real	2.4650e+09
I(0) uncertainty (real space) i0_real_error	4.7370e+07
Rg (reciprocal space) rg_reciprocal	79.27 Å
I(0) (reciprocal space) i0_reciprocal	2536000000.0000
Solution quality estimate total_estimate	0.9033
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	62.3 Å
Skewness Skewness skewness	0.406
Kurtosis Kurtosis kurtosis	-0.706
Angular range angular_range	— – 0.0950 Å⁻¹
Current regularization parameter α current_alpha	1.9010
Highest regularization parameter α highest_alpha	158000000.0000
Real-space data points n_real_points	20
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 0.970; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.003

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Description description	Isoform I of Neurofibromin
Molecular weight formula_weight	317410.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	29341

MAAHRPVEWVQAVVSRFDEQLPIKTGQQNTHTKVSTEHNKECLINISKYKFSLVISGLTTILKNVNNMRIFGEAAEKNLYLSQLIILDTLEKCLAGQPKDTMRLDETMLVKQLLPEICHFLHTCREGNQHAAELRNSASGVLFSLSCNNFNAVFSRISTRLQELTVCSEDNVDVHDIELLQYINVDCAKLKRLLKETAFKFKALKKVAQLAVINSLEKAFWNWVENYPDEFTKLYQIPQTDMAECAEKLFDLVDGFAESTKRKAAVWPLQIILLILCPEIIQDISKDVVDENNMNKKLFLDSLRKALAGHGGSRQLTESAAIACVKLCKASTYINWEDNSVIFLLVQSMVVDLKNLLFNPSKPFSRGSQPADVDLMIDCLVSCFRISPHNNQHFKICLAQNSPSTFHYVLVNSLHRIITNSALDWWPKIDAVYCHSVELRNMFGETLHKAVQGCGAHPAIRMAPSLTFKEKVTSLKFKEKPTDLETRSYKYLLLSMVKLIHADPKLLLCNPRKQGPETQGSTAELITGLVQLVPQSHMPEIAQEAMEALLVLHQLDSIDLWNPDAPVETFWEISSQMLFYICKKLTSHQMLSSTEILKWLREILICRNKFLLKNKQADRSSCHFLLFYGVGCDIPSSGNTSQMSMDHEELLRTPGASLRKGKGNSSMDSAAGCSGTPPICRQAQTKLEVALYMFLWNPDTEAVLVAMSCFRHLCEEADIRCGVDEVSVHNLLPNYNTFMEFASVSNMMSTGRAALQKRVMALLRRIEHPTAGNTEAWEDTHAKWEQATKLILNYPKAKMEDGQAAESLHKTIVKRRMSHVSGGGSIDLSDTDSLQEWINMTGFLCALGGVCLQQRSNSGLATYSPPMGPVSERKGSMISVMSSEGNADTPVSKFMDRLLSLMVCNHEKVGLQIRTNVKDLVGLELSPALYPMLFNKLKNTISKFFDSQGQVLLTDTNTQFVEQTIAIMKNLLDNHTEGSSEHLGQASIETMMLNLVRYVRVLGNMVHAIQIKTKLCQLVEVMMARRDDLSFCQEMKFRNKMVEYLTDWVMGTSNQAADDDVKCLTRDLDQASMEAVVSLLAGLPLQPEEGDGVELMEAKSQLFLKYFTLFMNLLNDCSEVEDESAQTGGRKRGMSRRLASLRHCTVLAMSNLLNANVDSGLMHSIGLGYHKDLQTRATFMEVLTKILQQGTEFDTLAETVLADRFERLVELVTMMGDQGELPIAMALANVVPCSQWDELARVLVTLFDSRHLLYQLLWNMFSKEVELADSMQTLFRGNSLASKIMTFCFKVYGATYLQKLLDPLLRIVITSSDWQHVSFEVDPTRLEPSESLEENQRNLLQMTEKFFHAIISSSSEFPPQLRSVCHCLYQVVSQRFPQNSIGAVGSAMFLRFINPAIVSPYEAGILDKKPPPRIERGLKLMSKILQSIANHVLFTKEEHMRPFNDFVKSNFDAARRFFLDIASDCPTSDAVNHSLSFISDGNVLALHRLLWNNQEKIGQYLSSNRDHKAVGRRPFDKMATLLAYLGPPEHKPVADTHWSSLNLTSSKFEEFMTRHQVHEKEEFKALKTLSIFYQAGTSKAGNPIFYYVARRFKTGQINGDLLIYHVLLTLKPYYAKPYEIVVDLTHTGPSNRFKTDFLSKWFVVFPGFAYDNVSAVYIYNCNSWVREYTKYHERLLTGLKGSKRLVFIDCPGKLAEHIEHEQQKLPAATLALEEDLKVFHNALKLAHKDTKVSIKVGSTAVQVTSAERTKVLGQSVFLNDIYYASEIEEICLVDENQFTLTIANQGTPLTFMHQECEAIVQSIIHIRTRWELSQPDSIPQHTKIRPKDVPGTLLNIALLNLGSSDPSLRSAAYNLLCALTCTFNLKIEGQLLETSGLCIPANNTLFIVSISKTLAANEPHLTLEFLEECISGFSKSSIELKHLCLEYMTPWLSNLVRFCKHNDDAKRQRVTAILDKLITMTINEKQMYPSIQAKIWGSLGQITDLLDVVLDSFIKTSATGGLGSIKAEVMADTAVALASGNVKLVSSKVIGRMCKIIDKTCLSPTPTLEQHLMWDDIAILARYMLMLSFNNSLDVAAHLPYLFHVVTFLVATGPLSLRASTHGLVINIIHSLCTCSQLHFSEETKQVLRLSLTEFSLPKFYLLFGISKVKSAAVIAFRSSYRDRSFSPGSYERETFALTSLETVTEALLEIMEACMRDIPTCKWLDQWTELAQRFAFQYNPSLQPRALVVFGCISKRVSHGQIKQIIRILSKALESCLKGPDTYNSQVLIEATVIALTKLQPLLNKDSPLHKALFWVAVAVLQLDEVNLYSAGTALLEQNLHTLDSLRIFNDKSPEEVFMAIRNPLEWHCKQMDHFVGLNFNSNFNFALVGHLLKGYRHPSPAIVARTVRILHTLLTLVNKHRNCDKFEVNTQSVAYLAALLTVSEEVRSRCSLKHRKSLLLTDISMENVPMDTYPIHHGDPSYRTLKETQPWSSPKGSEGYLAATYPTVGQTSPRARKSMSLDMGQPSQANTKKLLGTRKSFDHLISDTKAPKRQEMESGITTPPKMRRVAETDYEMETQRISSSQQHPHLRKVSVSESNVLLDEEVLTDPKIQALLLTVLATLVKYTTDEFDQRILYEYLAEASVVFPKVFPVVHNLLDSKINTLLSLCQDPNLLNPIHGIVQSVVYHEESPPQYQTSYLQSFGFNGLWRFAGPFSKQTQIPDYAELIVKFLDALIDTYLPGIDEETSEESLLTPTSPYPPALQSQLSITANLNLSNSMTSLATSQHSPGIDKENVELSPTTGHCNSGRTRHGSASQVQKQRSAGSFKRNSIKKIV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.60 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	692875
