6v6f

Crystal structure of Q61L KRAS(GMPPNP)-NF1(GRD)-SPRED1(EVH1) complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sprouty-related, EVH1 domain-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Neurofibromin × 1 （P21359） GTPase KRas × 1 （P01116） ZINC ION × 1 FORMIC ACID × 4 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPRE1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–113； UniProt 13–125

Neurofibromin

Homo sapiens

UniProt P21359

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Sprouty-related, EVH1 domain-containing protein 1 × 1 （Q7Z699） GTPase KRas × 1 （P01116） ZINC ION × 1 FORMIC ACID × 4 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NF1_HUMAN
Isoform	P21359-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–329； UniProt 1203–1530

GTPase KRas

Homo sapiens

UniProt P01116

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Sprouty-related, EVH1 domain-containing protein 1 × 1 （Q7Z699） Neurofibromin × 1 （P21359） ZINC ION × 1 FORMIC ACID × 4 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MAGNESIUM ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RASK_HUMAN
Isoform	P01116-2
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 2–170； UniProt 1–169

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6v6f
Deposition date deposition_date	2019-12-05
Structure title title	Crystal structure of Q61L KRAS(GMPPNP)-NF1(GRD)-SPRED1(EVH1) complex
Keywords keywords	Neurofibromin, RAS, Legius syndrome, RasGAP, GAP, SPRED, K-Ras, EVH1, GRD, ONCOPROTEIN; ONCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6v6f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

6v6f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

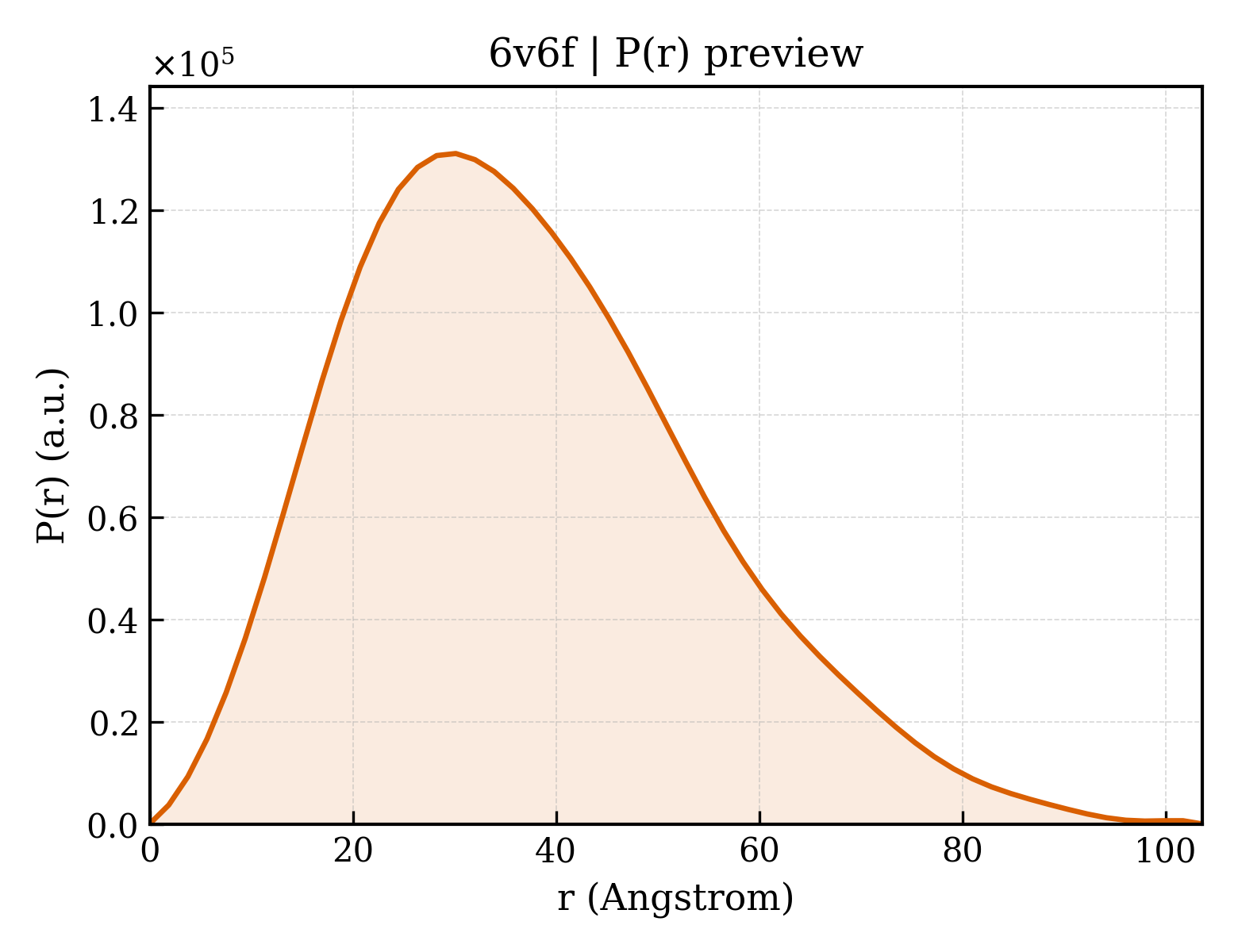

6v6f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.17 Å
Rg (electron density)	27.43 Å
Total Rg	28.06 Å
Atom count	4611
Residues	579
Excluded volume	82153 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6v6f__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Sprouty-related, EVH1 domain-containing protein 1
Molecular weight formula_weight	12853.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4636

SYARVRAVVMTRDDSSGGWLPLGGSGLSSVTVFKVPHQEENGCADFFIRGERLRDKMVVLECMLKKDLIYNKVTPTFHHWKIDDKKFGLTFQSPADARAFDRGIRRAIEDISQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	unidentified baculovirus

Entity 2 Entity 2 polymer

Description description	Neurofibromin
Molecular weight formula_weight	37570.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GDRFERLVELVTMMGDQGELPIAMALANVVPCSQWDELARVLVTLFDSRHLLYQLLWNMFSKEVELADSMQTLFRGNSLASKIMTFCFKVYGATYLQKLLDPLLRIVITSSDWQHVSFEVDPTRLEPSESLEENQRNLLQMTEKFFHAIISSSSEFPPQLRSVCHCLYQVVSQRFPQNSIGAVGSAMFLRFINPAIVSPYEAGILDKKPPPRIERGLKLMSKILQSIANHVLFTKEEHMRPFNDFVKSNFDAARRFFLDIASDCPTSDAVNHSLSFISDGNVLALHRLLWNNQEKIGQYLSSNRDHKAVGRRPFDKMATLLAYLGPPEH

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	GTPase KRas
Molecular weight formula_weight	19313.8 kDa
Mutation mutation	Q61L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

GMTEYKLVVVGAGGVGKSALTIQLIQNHFVDEYDPTIEDSYRKQVVIDGETCLLDILDTAGLEEYSAMRDQYMRTGEGFLCVFAINNTKSFEDIHHYREQIKRVKDSEDVPMVLVGNKCDLPSRTVDTKQAQDLARSYGIPFIETSAKTRQGVDDAFYTLVREIRKHKEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d6v6fa_
Class class	b — All beta proteins
Fold Fold fold	b.55 — PH domain-like barrel
Superfamily Superfamily superfamily	b.55.1 — PH domain-like
Family Family family	b.55.1.4 — Enabled/VASP homology 1 domain (EVH1 domain)

Domain ID domain_id	d6v6fb_
Class class	a — All alpha proteins
Fold Fold fold	a.116 — GTPase activation domain, GAP
Superfamily Superfamily superfamily	a.116.1 — GTPase activation domain, GAP
Family Family family	a.116.1.2 — p120GAP domain-like

Domain ID domain_id	d6v6fc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (2 domains)

Domain ID domain_id	6v6fA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

Domain ID domain_id	6v6fC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	72.011 Å
Unit-cell length b length_b	70.240 Å
Unit-cell length c length_c	79.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.67 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.542 Å
Low-resolution limit resolution_low	78.321 Å
R factor r_factor	0.2202
R_work r_work	0.2164
R_free r_free	0.2647
