SAXSdb — 6cch

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Apolipoprotein A-I

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	GTPase KRas × 1 （P01116） 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 64 O-[(S)-({(2R)-2,3-bis[(9Z)-octadec-9-enoyloxy]propyl}oxy)(hydroxy)phosphoryl]-L-serine × 16 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	APOA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–200； UniProt 68–265 Author chain C； PDBConstruct 3–200； UniProt 68–265

GTPase KRas

Homo sapiens

UniProt P01116

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Apolipoprotein A-I × 2 （P02647） 1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 64 O-[(S)-({(2R)-2,3-bis[(9Z)-octadec-9-enoyloxy]propyl}oxy)(hydroxy)phosphoryl]-L-serine × 16 PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1 MAGNESIUM ION × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RASK_HUMAN
Isoform	P01116-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–187； UniProt 1–185

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6cch
Deposition date deposition_date	2018-02-07
Structure title title	NMR data-driven model of GTPase KRas-GMPPNP tethered to a nanodisc (E3 state)
Keywords keywords	protein-bilayer-compound complex, MEMBRANE PROTEIN-ONCOPROTEIN complex; MEMBRANE PROTEIN/ONCOPROTEIN
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

6cch__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

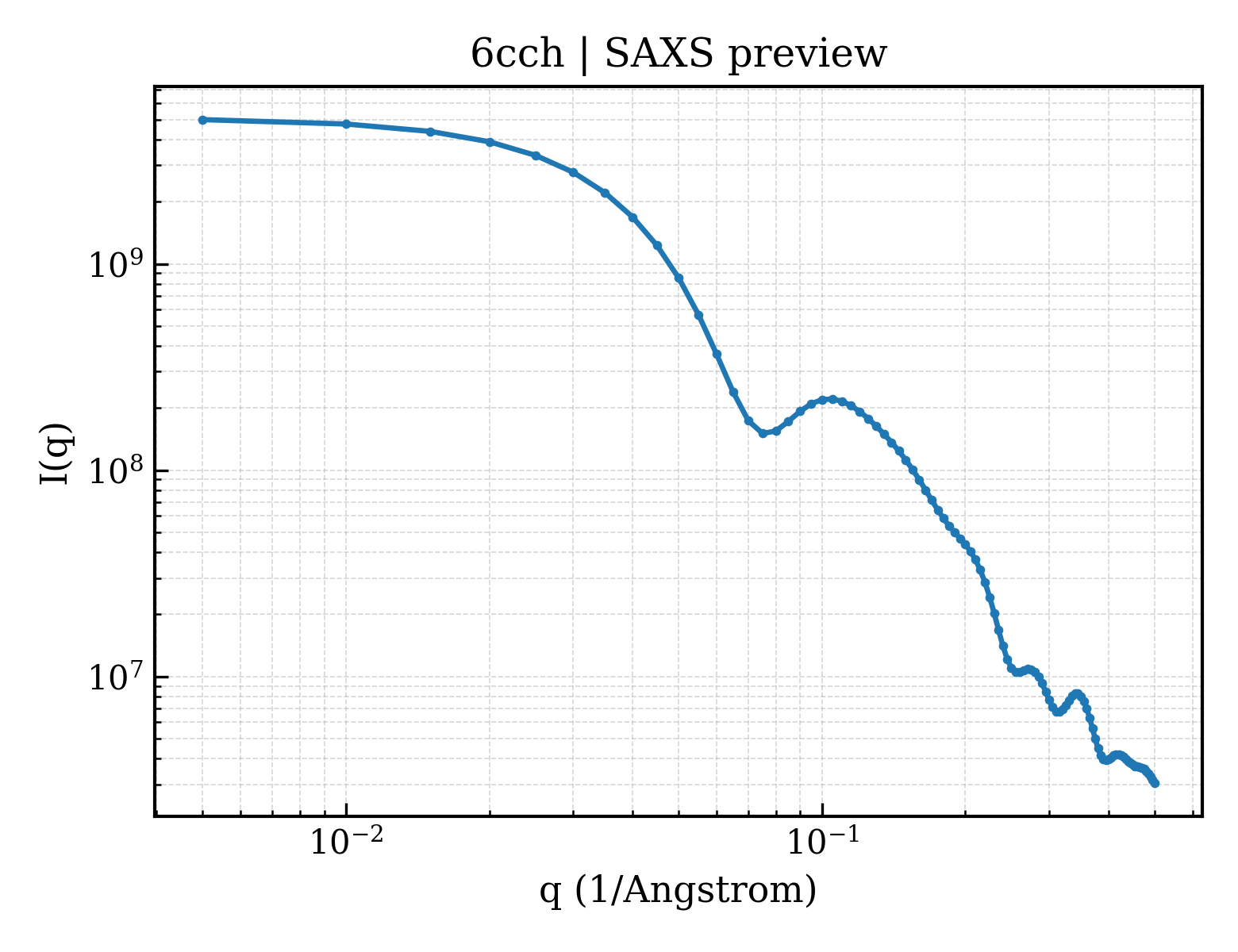

6cch__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

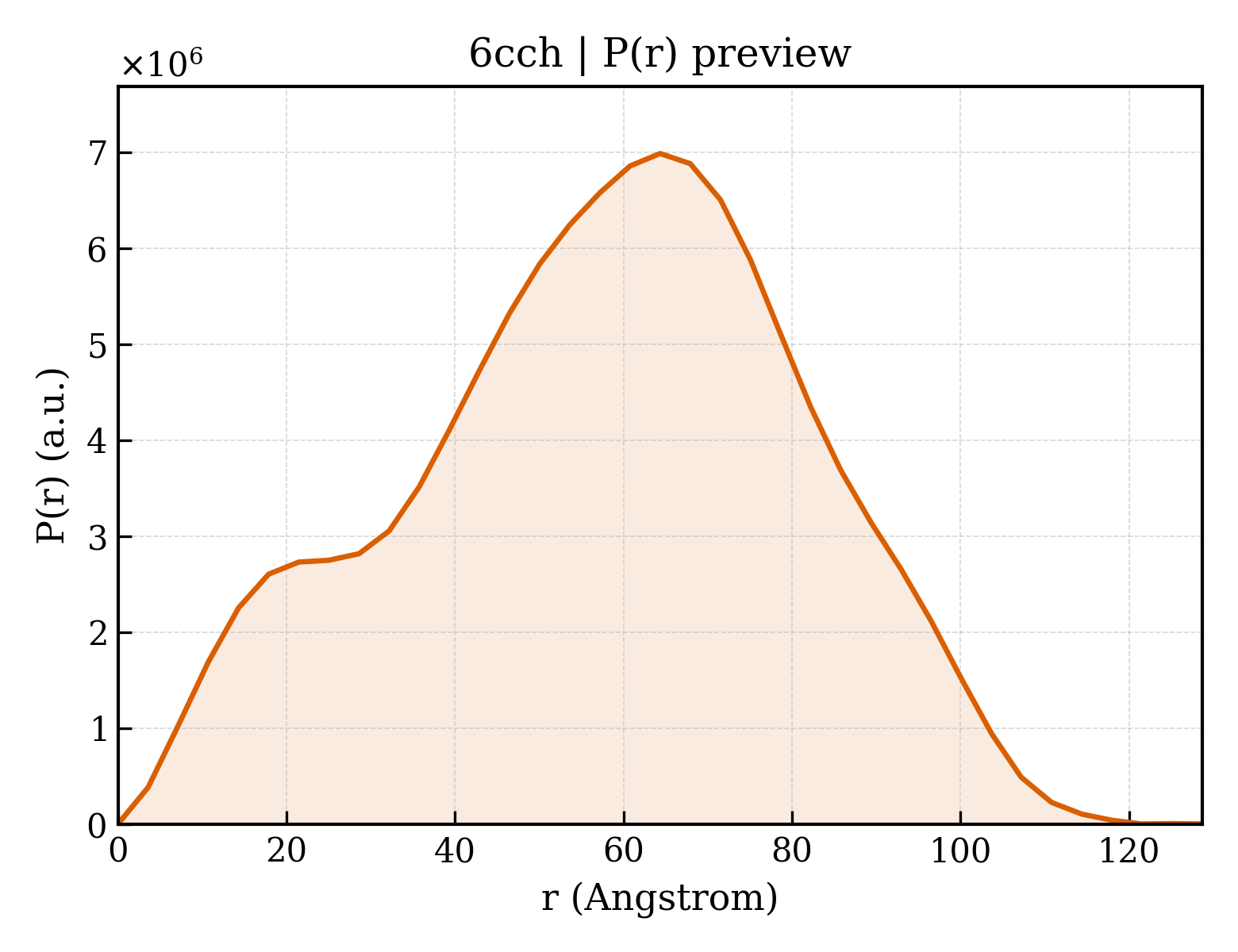

6cch__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.60 Å
Rg (electron density)	38.16 Å
Total Rg	37.75 Å
Atom count	9487
Residues	581
Excluded volume	182550 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`6cch__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`6cch__assembly_1__model_2`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`6cch__assembly_1__model_3`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`6cch__assembly_1__model_4`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`6cch__assembly_1__model_5`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`6cch__assembly_1__model_6`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`6cch__assembly_1__model_7`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Apolipoprotein A-I
Molecular weight formula_weight	23234.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	66409

GPLKLLDNWDSVTSTFSKLREQLGPVTQEFWDNLEKETEGLRQEMSKDLEEVKAKVQPYLDDFQKKWQEEMELYRQKVEPLRAELQEGARQKLHELQEKLSPLGEEMRDRARAHVDALRTHLAPYSDELRQRLAARLEALKENGGARLAEYHAKATEHLSTLSEKAKPALEDLRQGLLPVLESFKVSFLSALEEYTKKLN

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	GTPase KRas
Molecular weight formula_weight	21302.3 kDa
Mutation mutation	G12V
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GSMTEYKLVVVGAVGVGKSALTIQLIQNHFVDEYDPTIEDSYRKQVVIDGETCLLDILDTAGQEEYSAMRDQYMRTGEGFLCVFAINNTKSFEDIHHYREQIKRVKDSEDVPMVLVGNKCDLPSRTVDTKQAQDLARSYGIPFIETSAKTRQGVDDAFYTLVREIRKHKEKMSKDGKKKKKKSKTKC

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	1,2-DIOLEOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	787.1 kDa
Source method src_method	syn
Copy count entity_count	64

Entity 4 Entity 4 non-polymer

Description description	O-[(S)-({(2R)-2,3-bis[(9Z)-octadec-9-enoyloxy]propyl}oxy)(hydroxy)phosphoryl]-L-serine
Molecular weight formula_weight	788.0 kDa
Source method src_method	syn
Copy count entity_count	16

Entity 5 Entity 5 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	6cchB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

NMR data-driven model of GTPase KRas-GMPPNP tethered to a nanodisc (E3 state)
