Structure of KRAS-G12C bound to 1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one (compound 15)

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 2B of GTPase KRas

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	anti-KRAS heavy chain × 1 anti-KRAS light chain × 1 MAGNESIUM ION × 1 GUANOSINE-5'-DIPHOSPHATE × 1 ;1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one ; × 1 DI(HYDROXYETHYL)ETHER × 7 GLYCEROL × 1 DIMETHYL SULFOXIDE × 3 ACETATE ION × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RASK_HUMAN
Isoform	P01116-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–171； UniProt 1–169

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9piz
Deposition date deposition_date	2025-07-11
Structure title title	Structure of KRAS-G12C bound to 1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one (compound 15)
Keywords keywords	Oncoprotein, inhibitor, covalent; ONCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9piz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

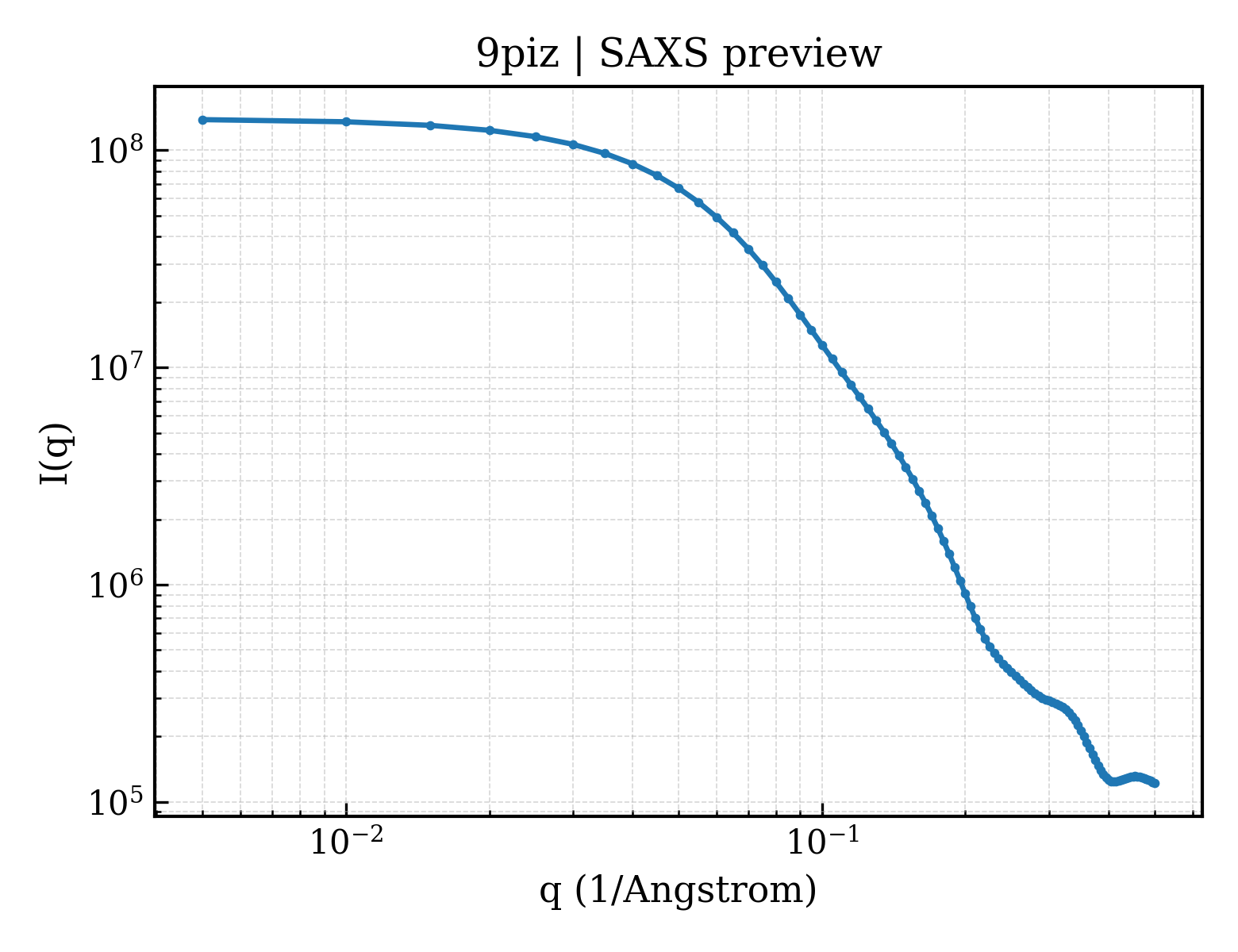

9piz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

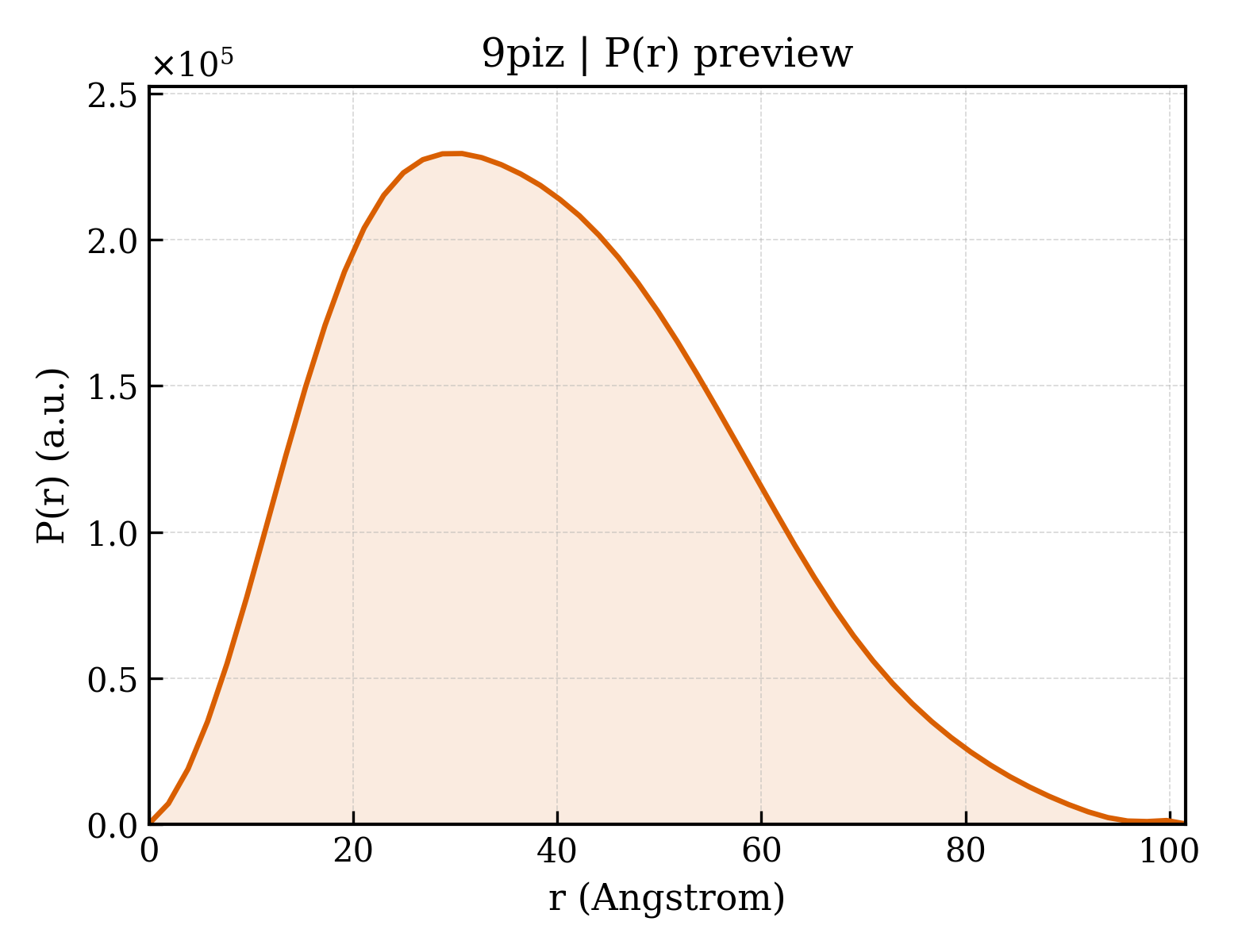

9piz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.02 Å
Rg (electron density)	29.55 Å
Total Rg	30.17 Å
Atom count	4820
Residues	603
Excluded volume	83416 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9piz__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Isoform 2B of GTPase KRas
Molecular weight formula_weight	19462.0 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	G12C
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5012

GSMTEYKLVVVGACGVGKSALTIQLIQNHFVDEYDPTIEDSYRKQVVIDGETCLLDILDTAGQEEYSAMRDQYMRTGEGFLCVFAINNTKSFEDIHHYREQIKRVKDSEDVPMVLVGNKCDLPSRTVDTKQAQDLARSYGIPFIETSAKTRQGVDDAFYTLVREIRKHKEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	anti-KRAS heavy chain
Molecular weight formula_weight	23833.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLQESGPGLVKPPGTLSLTCAVSGGSISSSNWWSWVRQPPGKGLEWIGEIYHSGSTNYNPSLKSRVTISVDKSKNQFSLKLSSVTAADTAVYYCARGSSSWYDLGPFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	anti-KRAS light chain
Molecular weight formula_weight	22878.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

SVLTQPPSASGTPGQRVTISCSGSSSNIGSNYVYWYQQLPGTAPKLLIYRNNQRPSGVPDRFSGSKSGTSASLAISGLRSEDEADYYCAAWDERLSGWVFGGGTKLTVLGQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	;1-[(4aR,10P,13R)-10-[5-amino-4-fluoro-3-methyl-2-(trifluoromethyl)phenyl]-11-chloro-9-fluoro-1,2,4a,5-tetrahydropyrazino[1',2':4,5][1,4]oxazino[2,3-c]quinolin-3(4H)-yl]prop-2-en-1-one ;
Molecular weight formula_weight	538.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 8 Entity 8 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 non-polymer

Description description	DIMETHYL SULFOXIDE
Molecular weight formula_weight	78.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 10 Entity 10 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	162

▶

Unit-cell length a length_a	149.767 Å
Unit-cell length b length_b	69.000 Å
Unit-cell length c length_c	100.987 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.19 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.940 Å
Low-resolution limit resolution_low	40.660 Å
R factor r_factor	0.1879
R_work r_work	0.1863
R_free r_free	0.2182
