SAXSdb — 9qq1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Isoform 2B of GTPase KRas

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 ;(2~{S})-4-[(1~{R},5~{S})-3-[7-(8-ethynyl-7-fluoranyl-3-oxidanyl-naphthalen-1-yl)-8-fluoranyl-2-[[(2~{R},8~{S})-2-fluoranyl-1,2,3,5,6,7-hexahydropyrrolizin-8-yl]methoxy]pyrido[4,3-d]pyrimidin-4-yl]-3,8-diazabicyclo[3.2.1]octan-8-yl]-2-methyl-2-(oxan-4-ylmethyl)-4-oxidanylidene-butanoic acid ; × 1 GUANOSINE-5'-DIPHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RASK_HUMAN
Isoform	P01116-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–170； UniProt 1–169

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9qq1
Deposition date deposition_date	2025-03-31
Structure title title	KRAS-G12D(1-169) - GDP IN covalent COMPLEX with compound (3S,4R)-8
Keywords keywords	K-RAS G12D, GTPASE, GDP BOUND, SWITCH 2 POCKET, COVALENT BINDING, SIGNALING PROTEIN, SMALL G- PROTEIN, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9qq1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

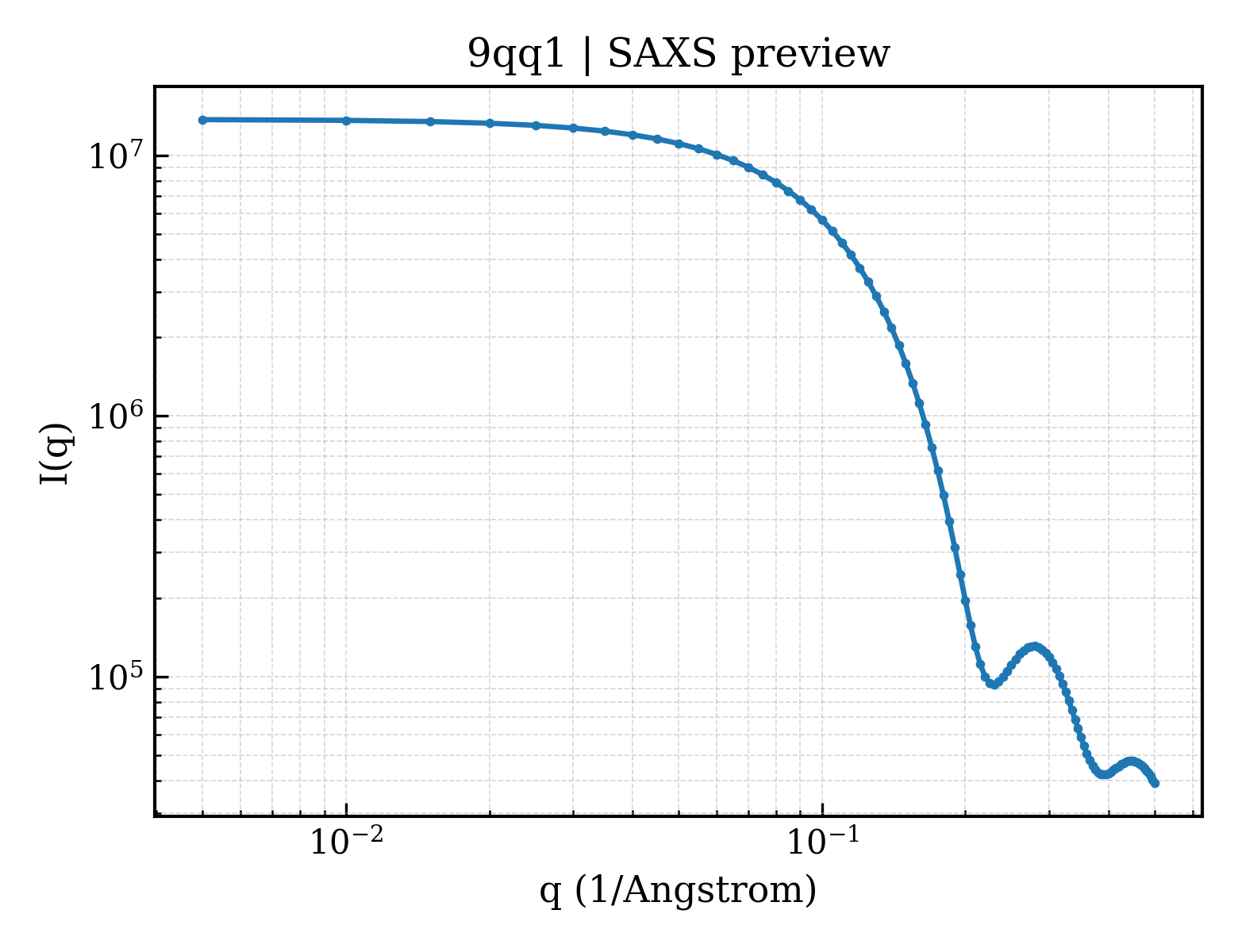

9qq1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9qq1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.29 Å
Rg (electron density)	14.95 Å
Total Rg	16.02 Å
Atom count	1393
Residues	166
Excluded volume	24333 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9qq1__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Isoform 2B of GTPase KRas
Molecular weight formula_weight	19364.7 kDa
EC 编号 ec_number	3.6.5.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1636

GMTEYKLVVVGADGVGKSALTIQLIQNHFVDEYDPTIEDSYRKQVVIDGETSLLDILDTAGQEEYSAMRDQYMRTGEGFLLVFAINNTKSFEDIHHYREQIKRVKDSEDVPMVLVGNKSDLPSRTVDTKQAQDLARSYGIPFIETSAKTRQGVDDAFYTLVREIRKHKEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	;(2~{S})-4-[(1~{R},5~{S})-3-[7-(8-ethynyl-7-fluoranyl-3-oxidanyl-naphthalen-1-yl)-8-fluoranyl-2-[[(2~{R},8~{S})-2-fluoranyl-1,2,3,5,6,7-hexahydropyrrolizin-8-yl]methoxy]pyrido[4,3-d]pyrimidin-4-yl]-3,8-diazabicyclo[3.2.1]octan-8-yl]-2-methyl-2-(oxan-4-ylmethyl)-4-oxidanylidene-butanoic acid ;
Molecular weight formula_weight	812.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	211

▶

Unit-cell length a length_a	40.242 Å
Unit-cell length b length_b	52.993 Å
Unit-cell length c length_c	89.772 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	24.010 Å
R factor r_factor	0.1972
R_work r_work	0.1967
R_free r_free	0.2075
