SAXSdb — 8el8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(olf) subunit alpha

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–381	Not recorded	Isoform 1 of Synembryn-B × 1 （Q80XE1）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EL8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8IW1 Cryo-EM structure of the PEA-bound mTAAR9-Golf complex Deposited 2023-03-29	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Mutation：G51D,E52N,A236D,S239D,L259D,I359A,V362I Mutation：G51D,E52N,A236D,S239D,L259D,I359A,V362I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8KGK Cryo-EM structure of the GPR61-Gs complex Deposited 2023-08-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 7–66（60 aa）	Mutation：G13R,V14N,D15E,E18A,R19Q,E33D,R34K,L35Q,A36V,K38R,G49D,E50N,A249D,S252D,I362A,V365I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å
8KH4 Cryo-EM structure of the GPR161-Gs complex Deposited 2023-08-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain B 7–66（60 aa）	Mutation：G13R,V14N,D15E,E18A,R19Q,E33D,R34K,L35Q,A36V,K38R,G49D,E50N,A249D,S252D,I362A,V365I	CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9LDV Consensus olfactory receptor consOR6 in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	A1EJQ ethyl (2~{R},3~{S})-3-methyl-3-phenyl-oxirane-2-carboxylate × 1 CLR CHOLESTEROL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å
9LDW Consensus olfactory receptor consOR6 bound to alpha-hexyl cinnamaldehyde and in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	CLR CHOLESTEROL × 1 A1EJG (2~{E})-2-(phenylmethylidene)octanal × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.62 Å
9LDX Consensus olfactory receptor consOR6 in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	CLR CHOLESTEROL × 1 BZQ DIPHENYLMETHANONE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å
9LE0 Consensus olfactory receptor bmOR6A2 in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	OYA OCTANAL × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.54 Å
9LE1 Consensus olfactory receptor bmOR6A2 in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	A1EJH (~{E})-dec-2-enal × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9LE2 Consensus olfactory receptor bmOR6A2 in complex with mini-Golf trimeric protein Deposited 2025-01-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 28–66（39 aa） Chain A 191–381（191 aa）	Not recorded	A1EJH (~{E})-dec-2-enal × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GNAL_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–381； UniProt 1–381

Isoform 1 of Synembryn-B

Mus musculus

UniProt Q80XE1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–560	Non-standard monomer：Yes (specific site not provided by mmCIF)	Guanine nucleotide-binding protein G(olf) subunit alpha × 1 （P38405）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.20 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8EL8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8EL7 CryoEM structure of Resistance to Inhibitors of Cholinesterase-8B (Ric-8B) in complex with G alpha s Deposited 2022-09-23	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–560（560 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RIC8B_MOUSE
Isoform	Q80XE1-1
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–563； UniProt 1–560

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8el8
Deposition date deposition_date	2022-09-23
Structure title title	CryoEM structure of Resistance to Inhibitors of Cholinesterase-8B (Ric-8B) in complex with olfactory G protein alpha olf
Keywords keywords	chaperone, armadillo repeat, GEF, Ras, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.56 Å
Radius of gyration Rg (electron density) rg_electron	30.00 Å
Forward intensity I(0) i0	62509500.00
Molecular weight molecular_weight	63529.0 kDa
Excluded volume excluded_volume	80365 Å³
Envelope volume envelope_volume	109780 Å³
Hydration-shell volume shell_volume	31394 Å³
Envelope diameter envelope_diameter	102.8 Å
Shell Rg shell_rg	36.05 Å
Envelope Rg envelope_rg	29.79 Å
Shape Rg shape_rg	30.03 Å
Total Rg total_rg	30.53 Å
Total atoms total_atoms	4467
Residues n_residues	595
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

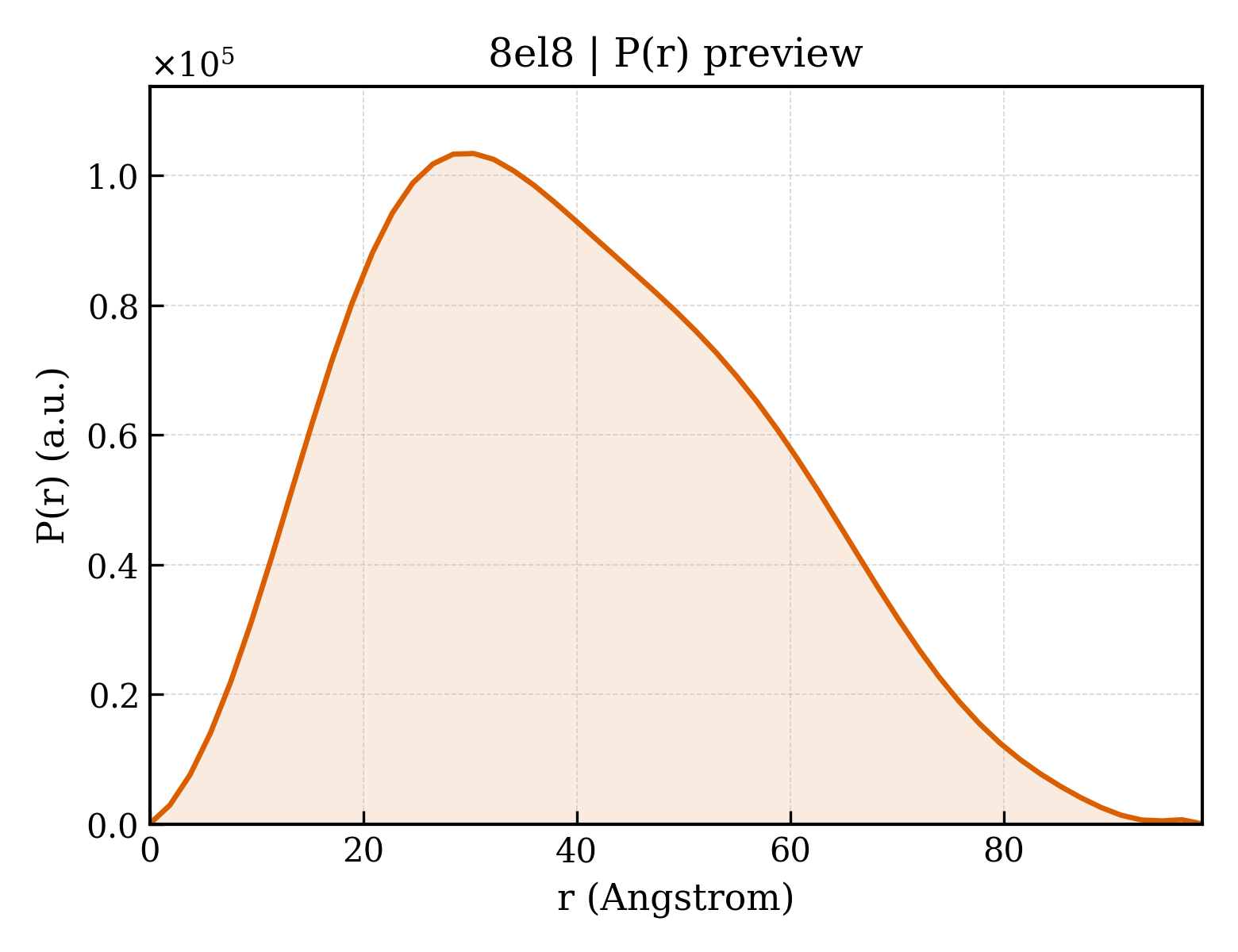

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.6 Å
Rg (real space) rg_real	30.62 Å
Rg uncertainty (real space) rg_real_error	0.81 Å
I(0) (real space) i0_real	6.2510e+07
I(0) uncertainty (real space) i0_real_error	1.0210e+06
Rg (reciprocal space) rg_reciprocal	30.60 Å
I(0) (reciprocal space) i0_reciprocal	62510000.0000
Solution quality estimate total_estimate	0.8884
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.3 Å
Skewness Skewness skewness	0.338
Kurtosis Kurtosis kurtosis	-0.543
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	21650000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.914; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.944; Smooth: 0.859

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(olf) subunit alpha
Molecular weight formula_weight	44370.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4467

MGCLGGNSKTTEDQGVDEKERREANKKIEKQLQKERLAYKATHRLLLLGAGESGKSTIVKQMRILHVNGFNPEEKKQKILDIRKNVKDAIVTIVSAMSTIIPPVPLANPENQFRSDYIKSIAPITDFEYSQEFFDHVKKLWDDEGVKACFERSNEYQLIDCAQYFLERIDSVSLVDYTPTDQDLLRCRVLTSGIFETRFQVDKVNFHMFDVGGQRDERRKWIQCFNDVTAIIYVAACSSYNMVIREDNNTNRLRESLDLFESIWNNRWLRTISIILFLNKQDMLAEKVLAGKSKIEDYFPEYANYTVPEDATPDAGEDPKVTRAKFFIRDLFLRISTATGDGKHYCYPHFTCAVDTENIRRVFNDCRDIIQRMHLKQYELL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Isoform 1 of Synembryn-B
Molecular weight formula_weight	63928.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GEFMDEERALYIVRAGEAGAIERVLRDYSDKHRATFKFESADEDKRKKLCEGIFKVLVKEVPTTCQVSCLEVLRILSRDKKILVPVTTKENMQILLRLAKLHESDDSLEKVSEFPVIVESLKCLCNIVFNSQMAQQLSLELNLAAKLCNLLRKCKDRKFINDIKCFDLRLLFVLSLLHTDIRSQLRYELQGLPLLTQILESAFSIKWTDEYESAIDHNGPPLSPQETDCAIEALKALFNVTVDSWKVHKESDSHQFRVMAAVLRHCLLIVGPTEDKTEELHSNAVNLLSNVPVSCLDVLICPLTHEETAQEAATLDELPSDKTTEKDTALKNSTMVYNGMNMEAIHVLLNFMEKRIDKGSSYREGLTPVLSLLTECSRAHRNIRKFLKDQVLPPLRDVTNRPEVGSTVRNKLVRLMTHVDLGVKQIAAEFLFVLCKERVDSLLKYTGYGNAAGLLAARGLLAGGRGDNWYSEDEDTDTEEYKNAKPNINLITGHLEEPMPNPIDEMTEEQKEYEAMKLVNMLDKLSREELLKPMGLKPDGTITPLEEALSQYSVIEETSSDTD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Trichoplusia ni

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.20 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	247416

fit	/app/data/saxs_computation/el/8el8/8el8.fit
pddf	/app/data/pr_computation/el/8el8/8el8.pr.out
profile	/app/data/saxs_computation/el/8el8/8el8.dat
