SAXSdb — 8eys

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Tryptophan synthase alpha chain

Salmonella typhimurium (strain LT2 / SGSC1412 / ATCC 700720)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tryptophan synthase beta chain × 2 （P0A2K1） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPA_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–268； UniProt 1–268

Tryptophan synthase beta chain

Salmonella typhimurium (strain LT2 / SGSC1412 / ATCC 700720)

UniProt P0A2K1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Tryptophan synthase alpha chain × 2 （P00929） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRPB_SALTY
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–397； UniProt 1–397

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8eys
Deposition date deposition_date	2022-10-28
Structure title title	X-ray crystal structure of salmonella typhimurium Tryptophan synthase internal aldimine at pH 5.0
Keywords keywords	beta-elimination, PLP-dependent, LYASE; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8eys__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8eys__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

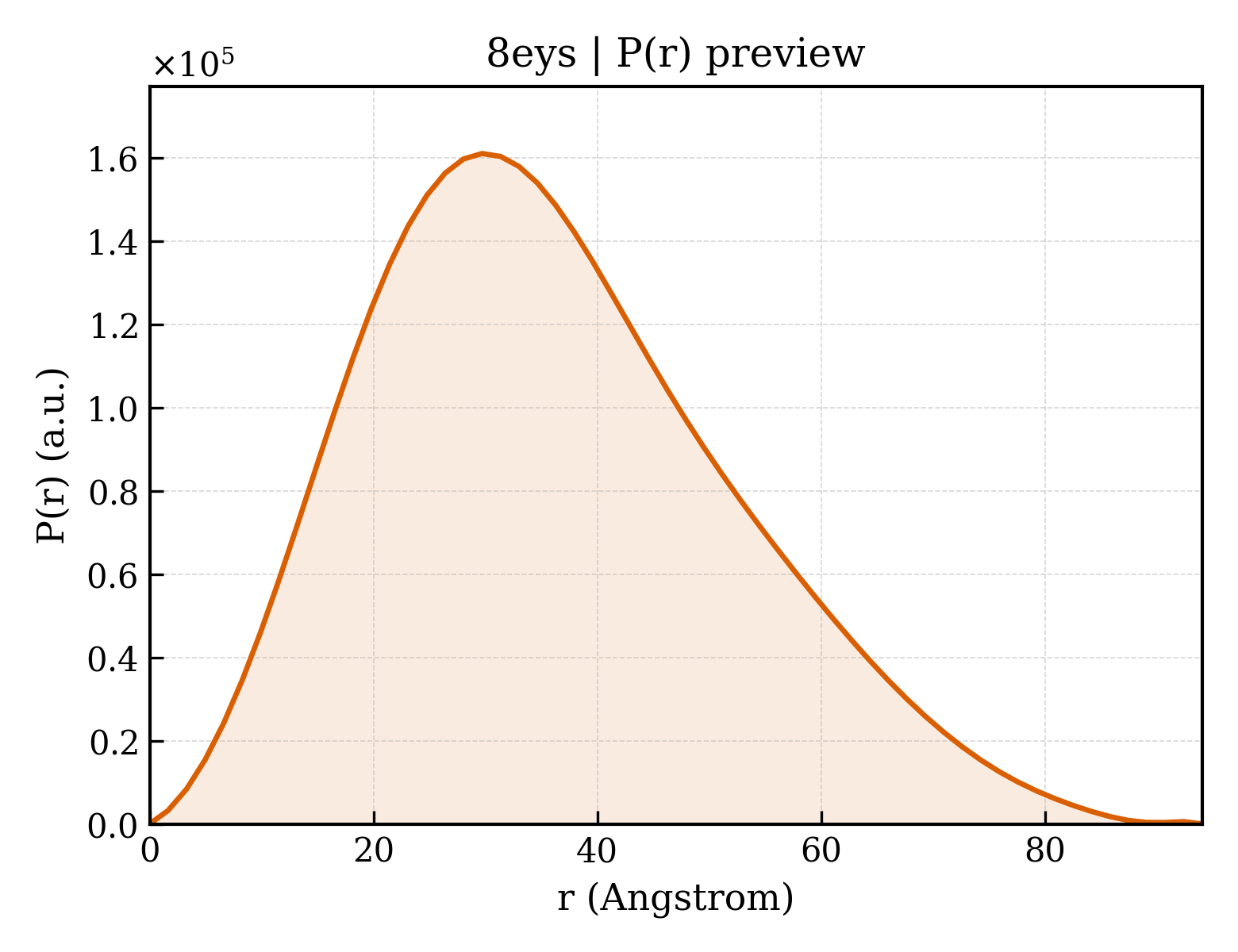

8eys__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.75 Å
Rg (electron density)	40.27 Å
Total Rg	40.29 Å
Atom count	9872
Residues	1298
Excluded volume	175720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8eys__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tryptophan synthase alpha chain
Molecular weight formula_weight	28698.8 kDa
EC 编号 ec_number	4.2.1.20
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5112

MERYENLFAQLNDRREGAFVPFVTLGDPGIEQSLKIIDTLIDAGADALELGVPFSDPLADGPTIQNANLRAFAAGVTPAQCFEMLALIREKHPTIPIGLLMYANLVFNNGIDAFYARCEQVGVDSVLVADVPVEESAPFRQAALRHNIAPIFICPPNADDDLLRQVASYGRGYTYLLSRSGVTGAENRGALPLHHLIEKLKEYHAAPALQGFGISSPEQVSAAVRAGAAGAISGSAIVKIIEKNLASPKQMLAELRSFVSAMKAASRA

Source Source

Source organism organism	Salmonella typhimurium (strain LT2 / SGSC1412 / ATCC 700720)
NCBI taxonomy ID ncbi_taxonomy_id	99287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Tryptophan synthase beta chain
Molecular weight formula_weight	43147.0 kDa
EC 编号 ec_number	4.2.1.20
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MTTLLNPYFGEFGGMYVPQILMPALNQLEEAFVSAQKDPEFQAQFADLLKNYAGRPTALTKCQNITAGTRTTLYLKREDLLHGGAHKTNQVLGQALLAKRMGKSEIIAETGAGQHGVASALASALLGLKCRIYMGAKDVERQSPNVFRMRLMGAEVIPVHSGSATLKDACNEALRDWSGSYETAHYMLGTAAGPHPYPTIVREFQRMIGEETKAQILDKEGRLPDAVIACVGGGSNAIGMFADFINDTSVGLIGVEPGGHGIETGEHGAPLKHGRVGIYFGMKAPMMQTADGQIEESYSISAGLDFPSVGPQHAYLNSIGRADYVSITDDEALEAFKTLCRHEGIIPALESSHALAHALKMMREQPEKEQLLVVNLSGRGDKDIFTVHDILKARGEI

Source Source

Source organism organism	Salmonella typhimurium (strain LT2 / SGSC1412 / ATCC 700720)
NCBI taxonomy ID ncbi_taxonomy_id	99287
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	158

▶

Unit-cell length a length_a	184.659 Å
Unit-cell length b length_b	61.810 Å
Unit-cell length c length_c	67.733 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.74 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	16.540 Å
R factor r_factor	—
R_work r_work	0.1625
R_free r_free	0.1973
