1cx9

;CRYSTAL STRUCTURE OF THE COMPLEX OF BACTERIAL TRYPTOPHAN SYNTHASE WITH THE TRANSITION STATE ANALOGUE INHIBITOR 4-(2-AMINOPHENYLTHIO)-BUTYLPHOSPHONIC ACID ;

Method: X-RAY DIFFRACTION D_max: 108.4 Å Quality: REASONABLE

SAXS Profile

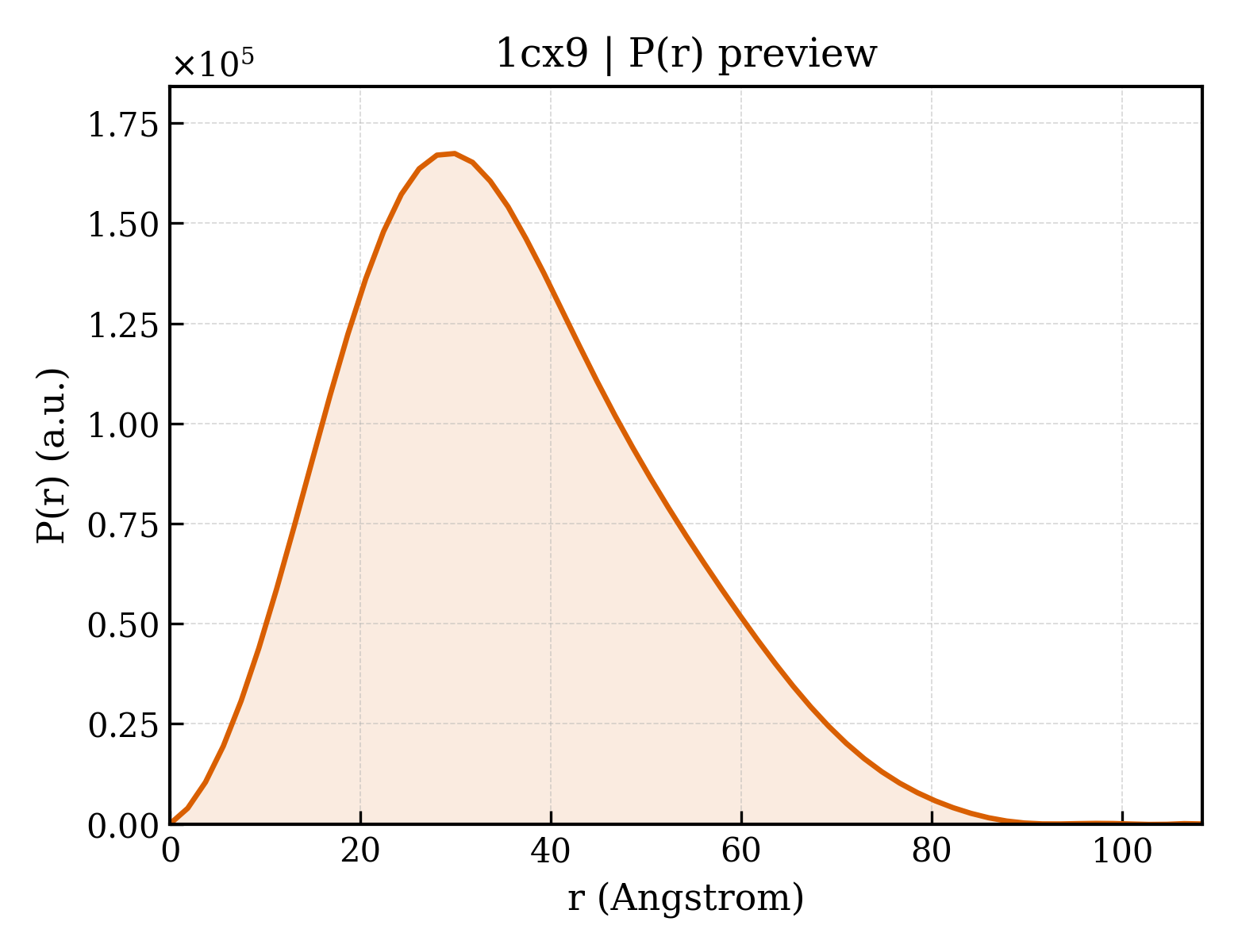

P(r) Distribution

▼

1. Structure Basics

entry_id	1cx9
deposition_date	1999-08-29
title	;CRYSTAL STRUCTURE OF THE COMPLEX OF BACTERIAL TRYPTOPHAN SYNTHASE WITH THE TRANSITION STATE ANALOGUE INHIBITOR 4-(2-AMINOPHENYLTHIO)-BUTYLPHOSPHONIC ACID ;
keywords	8-FOLD ALPHA-BETA BARREL, ENZYME-INHIBITOR COMPLEX, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.34 Å
rg_electron	26.50 Å
i0	81948900.00
molecular_weight	70574.0 kDa
excluded_volume	88136 Å³
envelope_volume	102420 Å³
shell_volume	32361 Å³
envelope_diameter	97.9 Å
shell_rg	33.90 Å
envelope_rg	26.83 Å
shape_rg	26.48 Å
total_rg	27.26 Å
total_atoms	4958
n_residues	651
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	108.4 Å
rg_real	27.42 Å
rg_real_error	1.16 Å
i0_real	8.1950e+07
i0_real_error	1.3480e+06
rg_reciprocal	27.39 Å
i0_reciprocal	81950000.0000
total_estimate	0.6999
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	29.9 Å
skewness	0.468
kurtosis	-0.218
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	31450000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.445; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.760; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	TRYPTOPHAN SYNTHASE (ALPHA CHAIN)
formula_weight	28698.8 kDa
ec_number	4.2.1.20
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5115

MERYENLFAQLNDRREGAFVPFVTLGDPGIEQSLKIIDTLIDAGADALELGVPFSDPLADGPTIQNANLRAFAAGVTPAQCFEMLALIREKHPTIPIGLLMYANLVFNNGIDAFYARCEQVGVDSVLVADVPVEESAPFRQAALRHNIAPIFICPPNADDDLLRQVASYGRGYTYLLSRSGVTGAENRGALPLHHLIEKLKEYHAAPALQGFGISSPEQVSAAVRAGAAGAISGSAIVKIIEKNLASPKQMLAELRSFVSAMKAASRA

Source

organism	Salmonella typhimurium
ncbi_taxonomy_id	602
host_organism	Escherichia coli

Entity 2 polymer

description	TRYPTOPHAN SYNTHASE (BETA CHAIN)
formula_weight	42989.0 kDa
ec_number	4.2.1.20
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MTTLLNPYFGEFGGMYVPQILMPALNQLEEAFVRAQKDPEFQAQFADLLKNYAGRPTALTKCQNITAGTRTTLYLKREDLLHGGAHKTNQVLGQALLAKRMGKSEIIAETGAGQHGVASALASALLGLKCRIYMGAKDVERQSPNVFRMRLMGAEVIPVHSGSATLKDACNEALRDWSGSYETAHYMLGTAAGPHPYPTIVREFQRMIGEETKAQILDKEGRLPDAVIACVGGGSNAIGMFADFINDTSVGLIGVEPGGHGIETGEHGAPLKHGRVGIYFGMKAPMMQTADGQIEESYSISAGLDFPSVGPQHAYLNSIGRADYVSITDDEALEAFKTLCRHEGIIPALESSHALAHALKMMREQPEKEQLLVVNLSGRGDKDIFTVHDILKARGEI

Source

organism	Salmonella typhimurium
ncbi_taxonomy_id	602
host_organism	Escherichia coli

Entity 3 non-polymer

description	4-(2-AMINOPHENYLTHIO)-BUTYLPHOSPHONIC ACID
formula_weight	261.3 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	PYRIDOXAL-5'-PHOSPHATE
formula_weight	247.1 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	157

▶

6. Citations (3)

▶

length_a	182.650 Å
length_b	59.340 Å
length_c	67.300 Å
angle_alpha	90.00 °
angle_beta	94.50 °
angle_gamma	90.00 °
z_pdb	4

space_group	C 1 2 1
int_tables_number	5
crystal_system	—

resolution	2.300 Å
resolution_low	30.000 Å
r_factor	0.2190
r_work	0.2100
r_free	0.2760

fit	/app/data/saxs_computation/cx/1cx9/1cx9.fit
pddf	/app/data/pr_computation/cx/1cx9/1cx9.pr.out
profile	/app/data/saxs_computation/cx/1cx9/1cx9.dat
