8fs6

Structure of S. cerevisiae Rad24-RFC loading the 9-1-1 clamp onto a 10-nt gapped DNA in step 4 (partially closed 9-1-1 and stably bound chamber DNA)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Checkpoint protein RAD24

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAD24_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–545； UniProt 1–545

Replication factor C subunit 4

Saccharomyces cerevisiae

UniProt P40339

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–323； UniProt 1–323

Replication factor C subunit 3

Saccharomyces cerevisiae

UniProt P38629

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC3_YEAST
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–336； UniProt 1–336

Replication factor C subunit 2

Saccharomyces cerevisiae

UniProt P40348

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC2_YEAST
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–353； UniProt 1–353

Replication factor C subunit 5

Saccharomyces cerevisiae

UniProt P38251

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RFC5_YEAST
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–354； UniProt 1–354

DNA damage checkpoint control protein MEC3

Saccharomyces cerevisiae

UniProt Q02574

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MEC3_YEAST
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–474； UniProt 1–474

DNA damage checkpoint control protein RAD17

Saccharomyces cerevisiae

UniProt A0A8H4BW58

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DDC1 isoform 1 × 1 （A0A8H4BUG7） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H4BW58_YEASX
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain G； PDBConstruct 1–401； UniProt 1–401

DDC1 isoform 1

Saccharomyces cerevisiae

UniProt A0A8H4BUG7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 3	Checkpoint protein RAD24 × 1 （P32641） Replication factor C subunit 4 × 1 （P40339） Replication factor C subunit 3 × 1 （P38629） Replication factor C subunit 2 × 1 （P40348） Replication factor C subunit 5 × 1 （P38251） DNA damage checkpoint control protein MEC3 × 1 （Q02574） DNA damage checkpoint control protein RAD17 × 1 （A0A8H4BW58） Template strand × 1 Primer strand 1 × 1 Primer strand 2 × 1 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 4 MAGNESIUM ION × 4 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8H4BUG7_YEASX
Isoform	—
PDB entities	8
Chains and sequence ranges	Author chain H； PDBConstruct 1–612； UniProt 1–612

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fs6
Deposition date deposition_date	2023-01-09
Structure title title	Structure of S. cerevisiae Rad24-RFC loading the 9-1-1 clamp onto a 10-nt gapped DNA in step 4 (partially closed 9-1-1 and stably bound chamber DNA)
Keywords keywords	;DNA damage repair, Rad24-RFC, 9-1-1 clamp, DNA clamp, alternative clamp loader, DNA damage signaling, DNA BINDING PROTEIN-DNA complex, CELL CYCLE-DNA complex ;; CELL CYCLE/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8fs6__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8fs6__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

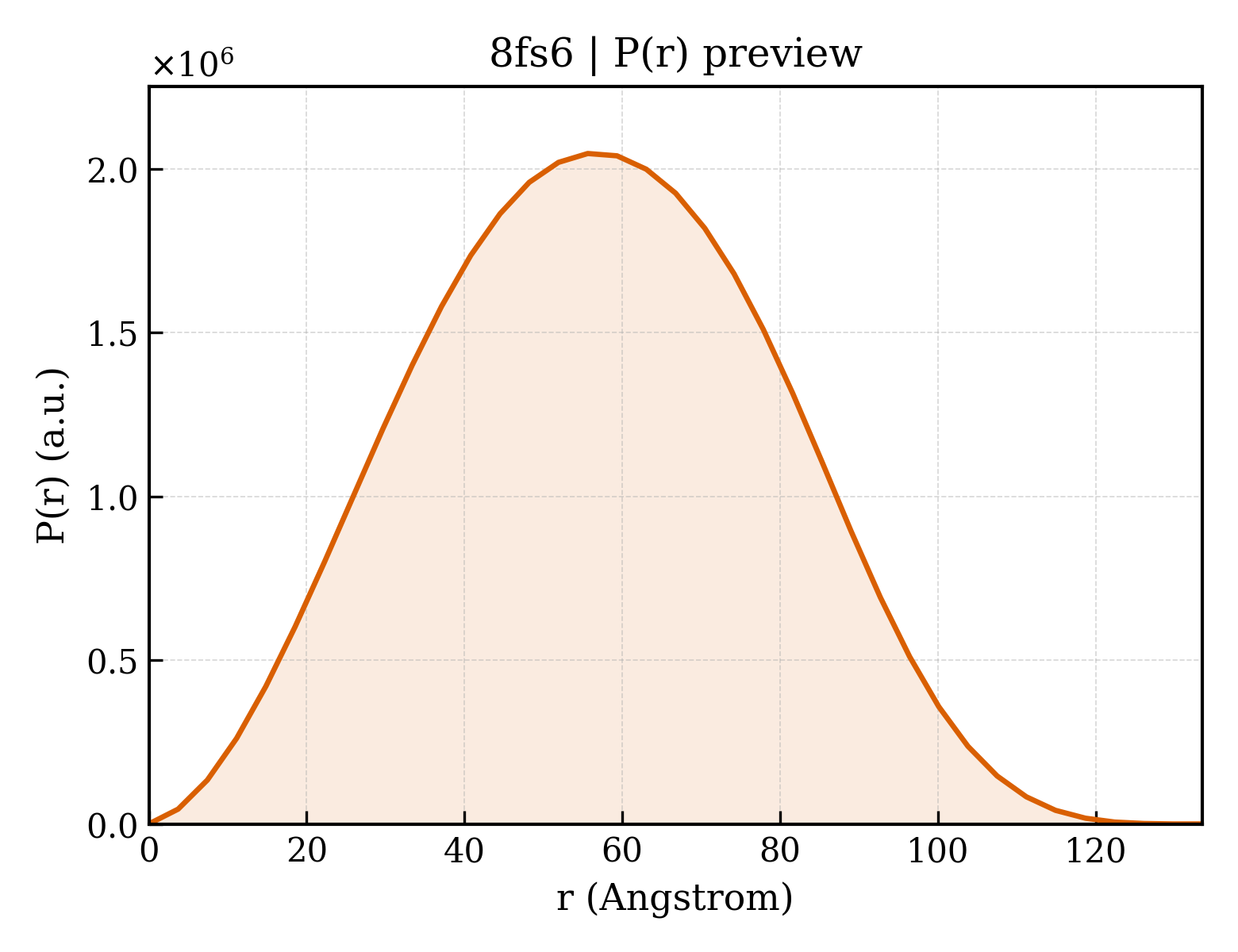

8fs6__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.46 Å
Rg (electron density)	42.93 Å
Total Rg	43.25 Å
Atom count	22246
Residues	2679
Excluded volume	394620 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8fs6__assembly_1__model_1`	undecameric （11）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Description description	Checkpoint protein RAD24
Molecular weight formula_weight	62792.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	22246

MDSTNLNKRPLLQYSLSSLGSQITKWSSSRPTSPVRKARSTENDFLSKQDTSSILPSINDDGGEQWYEKFKPNCLEQVAIHKRKLKDVQEALDAMFLPNAKHRILLLSGPSGCSKSTVIKELSKILVPKYRQNSNGTSFRSTPNEHKVTEFRGDCIVNDLPQMESFSEFLKGARYLVMSNLSLILIEDLPNVFHIDTRRRFQQLILQWLYSSEPLLPPLVICITECEIPENDNNYRKFGIDYTFSAETIMNKEILMHPRLKRIKFNPINSTLLKKHLKFICVQNMKMLKEKNKWNKRQEVIDYIAQETGDIRSAITTLQFWATSSGSLPISTRESTISYFHAIGKVIHGSHSTNNDNEMINNLFENSNNLLSKEDFKLGILENYNTFNKGEFSISDASSIVDCLSECDNMNGLPESNEYGLREVRKTFRNISKQGHNHGTVYFPREWKVRKLQNSFKVQAEDWLNVSLYKYNAVHSFRNITLEFGYYAPLIRKCQSYKKKYILYYLKNLPSGSSGPKQTMDKFSDIMKVENGIDVVDRIGGPIEA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 2 Entity 2 polymer

Description description	Replication factor C subunit 4
Molecular weight formula_weight	36201.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSKTLSLQLPWVEKYRPQVLSDIVGNKETIDRLQQIAKDGNMPHMIISGMPGIGKTTSVHCLAHELLGRSYADGVLELNASDDRGIDVVRNQIKHFAQKKLHLPPGKHKIVILDEADSMTAGAQQALRRTMELYSNSTRFAFACNQSNKIIEPLQSRCAILRYSKLSDEDVLKRLLQIIKLEDVKYTNDGLEAIIFTAEGDMRQAINNLQSTVAGHGLVNADNVFKIVDSPHPLIVKKMLLASNLEDSIQILRTDLWKKGYSSIDIVTTSFRVTKNLAQVKESVRLEMIKEIGLTHMRILEGVGTYLQLASMLAKIHKLNNKA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 3 Entity 3 polymer

Description description	Replication factor C subunit 3
Molecular weight formula_weight	37841.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSTSTEKRSKENLPWVEKYRPETLDEVYGQNEVITTVRKFVDEGKLPHLLFYGPPGTGKTSTIVALAREIYGKNYSNMVLELNASDDRGIDVVRNQIKDFASTRQIFSKGFKLIILDEADAMTNAAQNALRRVIERYTKNTRFCVLANYAHKLTPALLSRCTRFRFQPLPQEAIERRIANVLVHEKLKLSPNAEKALIELSNGDMRRVLNVLQSCKATLDNPDEDEISDDVIYECCGAPRPSDLKAVLKSILEDDWGTAHYTLNKVRSAKGLALIDLIEGIVKILEDYELQNEETRVHLLTKLADIEYSISKGGNDQIQGSAVIGAIKASFENETV

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 4 Entity 4 polymer

Description description	Replication factor C subunit 2
Molecular weight formula_weight	39794.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MFEGFGPNKKRKISKLAAEQSLAQQPWVEKYRPKNLDEVTAQDHAVTVLKKTLKSANLPHMLFYGPPGTGKTSTILALTKELYGPDLMKSRILELNASDERGISIVREKVKNFARLTVSKPSKHDLENYPCPPYKIIILDEADSMTADAQSALRRTMETYSGVTRFCLICNYVTRIIDPLASRCSKFRFKALDASNAIDRLRFISEQENVKCDDGVLERILDISAGDLRRGITLLQSASKGAQYLGDGKNITSTQVEELAGVVPHDILIEIVEKVKSGDFDEIKKYVNTFMKSGWSAASVVNQLHEYYITNDNFDTNFKNQISWLLFTTDSRLNNGTNEHIQLLNLLVKISQL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 5 Entity 5 polymer

Description description	Replication factor C subunit 5
Molecular weight formula_weight	39993.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MSLWVDKYRPKSLNALSHNEELTNFLKSLSDQPRDLPHLLLYGPNGTGKKTRCMALLESIFGPGVYRLKIDVRQFVTASNRKLELNVVSSPYHLEITPSDMGNNDRIVIQELLKEVAQMEQVDFQDSKDGLAHRYKCVIINEANSLTKDAQAALRRTMEKYSKNIRLIMVCDSMSPIIAPIKSRCLLIRCPAPSDSEISTILSDVVTNERIQLETKDILKRIAQASNGNLRVSLLMLESMALNNELALKSSSPIIKPDWIIVIHKLTRKIVKERSVNSLIECRAVLYDLLAHCIPANIILKELTFSLLDVETLNTTNKSSIIEYSSVFDERLSLGNKAIFHLEGFIAKVMCCLD

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 6 Entity 6 polymer

Description description	DNA damage checkpoint control protein MEC3
Molecular weight formula_weight	53207.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MKLKLIVNGCEAPDDYKLLRTTINTVASLRKTAILRFNSERLTIISTPKSSLNSSNNGTILRGDTGQLWCTIPHDVFRLYTVISARELNTITMECNCDSLLSVFKRYDRVMNQGSSSNMTIKLQSMPEWNTNNGTLSGGTAGGVDTTSKPNPICALGITFEEIVHTSGPNDAIVMNGGVDEHNGLPTTVGTGNLLASNKVIMHSFKVPVKLLFRAQDTRIQEPMINYIQLMMYKLPPISGEFGSAFHGFIRRVERYSNVNHIHLMGVKKKEHGNEGDDVELKIIVNELDWHLEICWNGPLDSVIQRQEGLTDNPSQNQHIDTDGRQEEGSLPIIEADKPMSSLYTNTRDREMEENIRYDEDLLRIEDSSIADTRGNIYTADTSGDTEFNDISVMVEKAEQESSSTHEVIIRCKDWKVCSKLYAAFEEVVLAISHDESCVFHCSLDRGSLEDSEDVEKPRERGQIIYYIARSKGL

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 7 Entity 7 polymer

Description description	DNA damage checkpoint control protein RAD17
Molecular weight formula_weight	45637.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

MRINSELANKFSASTVHLEHITTALSCLTPFGSKDDVLIFIDADGLSFVRENNHVIKIQLLLSRELFMSYSYRNETEDHMKLCVKINHILDSVSVMNRNSDDIVECTLSYDGHGSPFVLIFEDSFISERVEYSTYLIKDFDTNGLELDRERISFEAIIKGEALHSALKDLKEIGCKECYVYAKTEANDENVFALISKSQLGFSKIKLPSNRSILEKLQVFDGDSTTVIDGFAVIGFFDFTSFDKIRKSTKIASKVLFRMDVHGVLSVNILSQTDDVIITDTTRPSNNRPGSIRQLQLPKDYPGIVIEVCMLEKESIDEAAQTEIELLMETNELGNRNSFKKSTIRKRYGTDKGNETSNDNLLQLNGKKIKLPSEEENNKNRESEDEENHCKYPTKDIPIFF

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 8 Entity 8 polymer

Description description	DDC1 isoform 1
Molecular weight formula_weight	69787.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MSFKATITESGKQNIWFRAIYVLSTIQDDIKITVTTNELIAWSMNETDTTLCQVRFQKSFFEEYEFKPHEIVFGENGVQVIEDTYGNSHKLYSFRVNGRHLTTISRKPDGDGIKSFTIAVNNTSTCPESLANRLIVVIEMDSLIVKEYCPQFQPIKYDPIIINLKYKRRFLDVFGTAASDRNPQEPLDPKLLDVFTNTERELTSALFNEEVESDIRKRNQLTAADEINYICCNSTLLKNFLDNCNVNVTDEVKLEINVHRLSITAFTKAVYGKNNDLLRNALSMSNTISTLDLEHYCLFTTIEDEKQDKRSHSKRREHMKSIIFKLKDFKNFITIGPSWKTTQDGNDNISLWFCHPGDPILMQMQKPGVKLELVEVTDSNINDDILEGKFIKTAISGSKEEAGLKDNKESCESPLKSKTALKRENLPHSVAGTRNSPLKVSYLTPDNGSTVAKTYRNNTARKLFVEEQSQSTNYEQDKRFRQASSVHMNMNREQSFDIGTTHEVACPRNESNSLKRSIADICNETEDPTQQSTFAKRADTTVTWGKALPAADDEVSCSNIDRKGMLKKEKLKHMQGLLNSQNDTSNHKKQDNKEMEDGLGLTQVEKPRGIFD

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Saccharomyces cerevisiae

Entity 9 Entity 9 polymer

Description description	Template strand
Molecular weight formula_weight	15389.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

CGGTATAGGCGATACGAATCTTTTTTTTTTCCGTATAGCCGTAGCGAGCC

Entity 10 Entity 10 polymer

Description description	Primer strand 1
Molecular weight formula_weight	6464.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

GGCTCGCTACGGCTATACGGA

Entity 11 Entity 11 polymer

Description description	Primer strand 2
Molecular weight formula_weight	6084.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	K

GATTCGTATCGCCTATACCG

Entity 12 Entity 12 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 13 Entity 13 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 14 Entity 14 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

▼

6. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8fs6E01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	8fs6E02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	8 — Helicase, Ruva Protein; domain 3
Homologous superfamily homologous superfamily	60 —

Domain ID domain_id	8fs6E03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	272 — Zinc Finger, Delta Prime; domain 3
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	191448

Structure of S. cerevisiae Rad24-RFC loading the 9-1-1 clamp onto a 10-nt gapped DNA in step 4 (partially closed 9-1-1 and stably bound chamber DNA)

1. Protein Identity and Related Structures Protein Identity & Related Structures

Checkpoint protein RAD24

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication factor C subunit 4

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication factor C subunit 3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication factor C subunit 2

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Replication factor C subunit 5

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA damage checkpoint control protein MEC3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DNA damage checkpoint control protein RAD17

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

DDC1 isoform 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

8fs6__assembly_1__model_1

8fs6__assembly_1__model_1 | I(q)

8fs6__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (14)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer
