SAXSdb — 8fuf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Zinc finger protein 831 × 1 （Q5JPB2） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Zinc finger protein 831 × 1 （Q5JPB2） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Zinc finger protein 831 × 1 （Q5JPB2） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	Zinc finger protein 831 × 1 （Q5JPB2） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OGT1_HUMAN
Isoform	O15294-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–723； UniProt 197–915 Author chain C； PDBConstruct 5–723； UniProt 197–915 Author chain E； PDBConstruct 5–723； UniProt 197–915 Author chain G； PDBConstruct 5–723； UniProt 197–915

Zinc finger protein 831

OrganismNot specified

UniProt Q5JPB2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit × 1 （O15294） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit × 1 （O15294） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit × 1 （O15294） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 2	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit × 1 （O15294） URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZN831_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–13； UniProt 935–947 Author chain D； PDBConstruct 1–13； UniProt 935–947 Author chain F； PDBConstruct 1–13； UniProt 935–947 Author chain H； PDBConstruct 1–13； UniProt 935–947

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fuf
Deposition date deposition_date	2023-01-17
Structure title title	Crystal structure of human O-GlcNAc transferase (OGT) in complex with an exosite-binding peptide (ZNF831) and UDP-GlcNAc
Keywords keywords	O-GlcNAc transferase, exosite, protein-protein interaction, complex, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8fuf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8fuf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

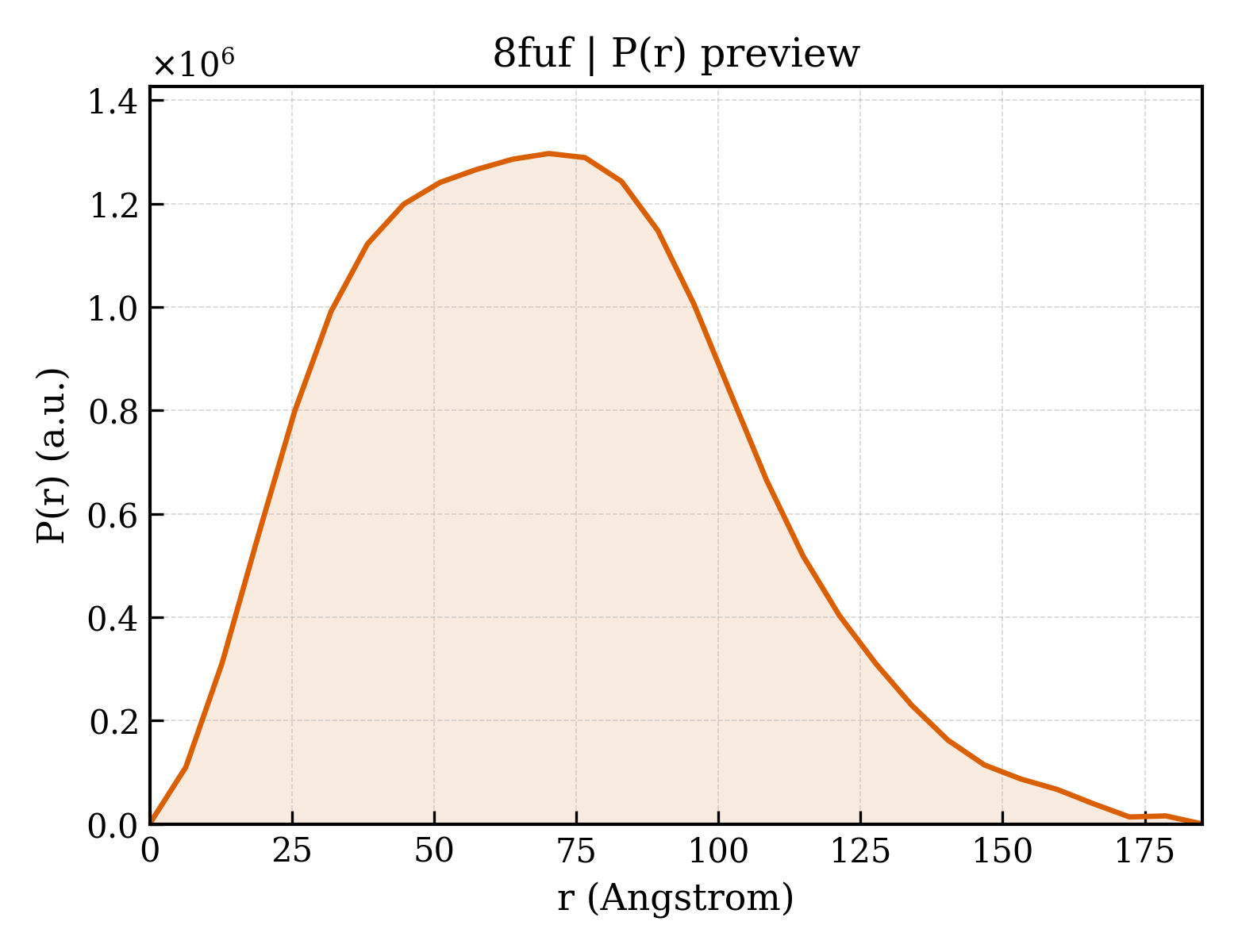

8fuf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.33 Å
Rg (electron density)	27.87 Å
Total Rg	28.53 Å
Atom count	5631
Residues	706
Excluded volume	100200 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8fuf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8fuf__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8fuf__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`8fuf__assembly_4__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase 110 kDa subunit
Molecular weight formula_weight	80974.5 kDa
EC 编号 ec_number	2.4.1.255
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	22524

GPGSCPTHADSLNNLANIKREQGNIEEAVRLYRKALEVFPEFAAAHSNLASVLQQQGKLQEALMHYKEAIRISPTFADAYSNMGNTLKEMQDVQGALQCYTRAIQINPAFADAHSNLASIHKDSGNIPEAIASYRTALKLKPDFPDAYCNLAHCLQIVCDWTDYDERMKKLVSIVADQLEKNRLPSVHPHHSMLYPLSHGFRKAIAERHGNLCLDKINVLHKPPYEHPKDLKLSDGRLRVGYVSSDFGNHPTSHLMQSIPGMHNPDKFEVFCYALSPDDGTNFRVKVMAEANHFIDLSQIPCNGKAADRIHQDGIHILVNMNGYTKGARNELFALRPAPIQAMWLGYPGTSGALFMDYIITDQETSPAEVAEQYSEKLAYMPHTFFIGDHANMFPHLKKKAVIDFKSNGHIYDNRIVLNGIDLKAFLDSLPDVKIVKMKCPDGGDNADSSNTALNMPVIPMNTIAEAVIEMINRGQIQITINGFSISNGLATTQINNKAATGEEVPRTIIVTTRSQYGLPEDAIVYCNFNQLYKIDPSTLQMWANILKRVPNSVLWLLRFPAVGEPNIQQYAQNMGLPQNRIIFSPVAPKEEHVRRGQLADVCLDTPLCNGHTTGMDVLWAGTPMVTMPGETLASRVAASQLTCLGCLELIAKNRQEYEDIAVKLGTDLEYLKKVRGKVWKQRISSPLFNTKQYTMELERLYLQMWEHYAAGNKPDHMIKPVE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Zinc finger protein 831
Molecular weight formula_weight	1548.8 kDa
Source method src_method	syn
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

NAFSPKYLLRLPQ

Entity 3 Entity 3 non-polymer

Description description	URIDINE-DIPHOSPHATE-N-ACETYLGLUCOSAMINE
Molecular weight formula_weight	607.4 kDa
Source method src_method	syn
Copy count entity_count	4

▼

6. Fold Classification (SCOP + CATH) 12 domains

CATH v4.4 (12 domains)

Domain ID domain_id	8fufA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	11380 —

Domain ID domain_id	8fufA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
Homologous superfamily homologous superfamily	150 —

Domain ID domain_id	8fufA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

Domain ID domain_id	8fufC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	11380 —

Domain ID domain_id	8fufC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
Homologous superfamily homologous superfamily	150 —

Domain ID domain_id	8fufC03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

Domain ID domain_id	8fufE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	11380 —

Domain ID domain_id	8fufE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
Homologous superfamily homologous superfamily	150 —

Domain ID domain_id	8fufE03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

Domain ID domain_id	8fufG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	11380 —

Domain ID domain_id	8fufG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	720 — Signal recognition particle alu RNA binding heterodimer, srp9/1
Homologous superfamily homologous superfamily	150 —

Domain ID domain_id	8fufG03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

▶

Unit-cell length a length_a	274.011 Å
Unit-cell length b length_b	274.011 Å
Unit-cell length c length_c	143.078 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	trigonal

Resolution resolution	3.690 Å
Low-resolution limit resolution_low	53.060 Å
R factor r_factor	0.1989
R_work r_work	0.1976
R_free r_free	0.2416

Crystal structure of human O-GlcNAc transferase (OGT) in complex with an exosite-binding peptide (ZNF831) and UDP-GlcNAc
