8fyh

G4 RNA-mediated PRC2 dimer

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Polycomb protein SUZ12

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein EED × 2 （O75530） Histone-binding protein RBBP4 × 2 （Q09028） Histone-lysine N-methyltransferase EZH2 × 2 （Q15910） protein Jumonji isoform X3 × 2 （A0A6I9KXB3） Zinc finger protein AEBP2 × 2 （Q6ZN18） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SUZ12_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–739； UniProt 1–739 Author chain H； PDBConstruct 1–739； UniProt 1–739

Polycomb protein EED

Homo sapiens

UniProt O75530

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein SUZ12 × 2 （Q15022） Histone-binding protein RBBP4 × 2 （Q09028） Histone-lysine N-methyltransferase EZH2 × 2 （Q15910） protein Jumonji isoform X3 × 2 （A0A6I9KXB3） Zinc finger protein AEBP2 × 2 （Q6ZN18） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EED_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–441； UniProt 1–441 Author chain I； PDBConstruct 1–441； UniProt 1–441

Histone-binding protein RBBP4

Homo sapiens

UniProt Q09028

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein SUZ12 × 2 （Q15022） Polycomb protein EED × 2 （O75530） Histone-lysine N-methyltransferase EZH2 × 2 （Q15910） protein Jumonji isoform X3 × 2 （A0A6I9KXB3） Zinc finger protein AEBP2 × 2 （Q6ZN18） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBBP4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–425； UniProt 1–425 Author chain J； PDBConstruct 1–425； UniProt 1–425

Histone-lysine N-methyltransferase EZH2

Homo sapiens

UniProt Q15910

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein SUZ12 × 2 （Q15022） Polycomb protein EED × 2 （O75530） Histone-binding protein RBBP4 × 2 （Q09028） protein Jumonji isoform X3 × 2 （A0A6I9KXB3） Zinc finger protein AEBP2 × 2 （Q6ZN18） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EZH2_HUMAN
Isoform	Q15910-2
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–751； UniProt 1–751 Author chain G； PDBConstruct 1–751； UniProt 1–751

protein Jumonji isoform X3

Homo sapiens

UniProt A0A6I9KXB3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein SUZ12 × 2 （Q15022） Polycomb protein EED × 2 （O75530） Histone-binding protein RBBP4 × 2 （Q09028） Histone-lysine N-methyltransferase EZH2 × 2 （Q15910） Zinc finger protein AEBP2 × 2 （Q6ZN18） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A6I9KXB3_PERMB
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–1238； UniProt 1–1238 Author chain K； PDBConstruct 1–1238； UniProt 1–1238

Zinc finger protein AEBP2

Homo sapiens

UniProt Q6ZN18

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Heteromer	Protein 12 RNA 1	Polycomb protein SUZ12 × 2 （Q15022） Polycomb protein EED × 2 （O75530） Histone-binding protein RBBP4 × 2 （Q09028） Histone-lysine N-methyltransferase EZH2 × 2 （Q15910） protein Jumonji isoform X3 × 2 （A0A6I9KXB3） G4 RNA × 1 ZINC ION × 14	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AEBP2_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–517； UniProt 1–517 Author chain L； PDBConstruct 1–517； UniProt 1–517

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8fyh
Deposition date deposition_date	2023-01-26
Structure title title	G4 RNA-mediated PRC2 dimer
Keywords keywords	PRC2, G-quadruplex RNA, RNP complex, chromatin modifier, GENE REGULATION; GENE REGULATION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8fyh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8fyh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

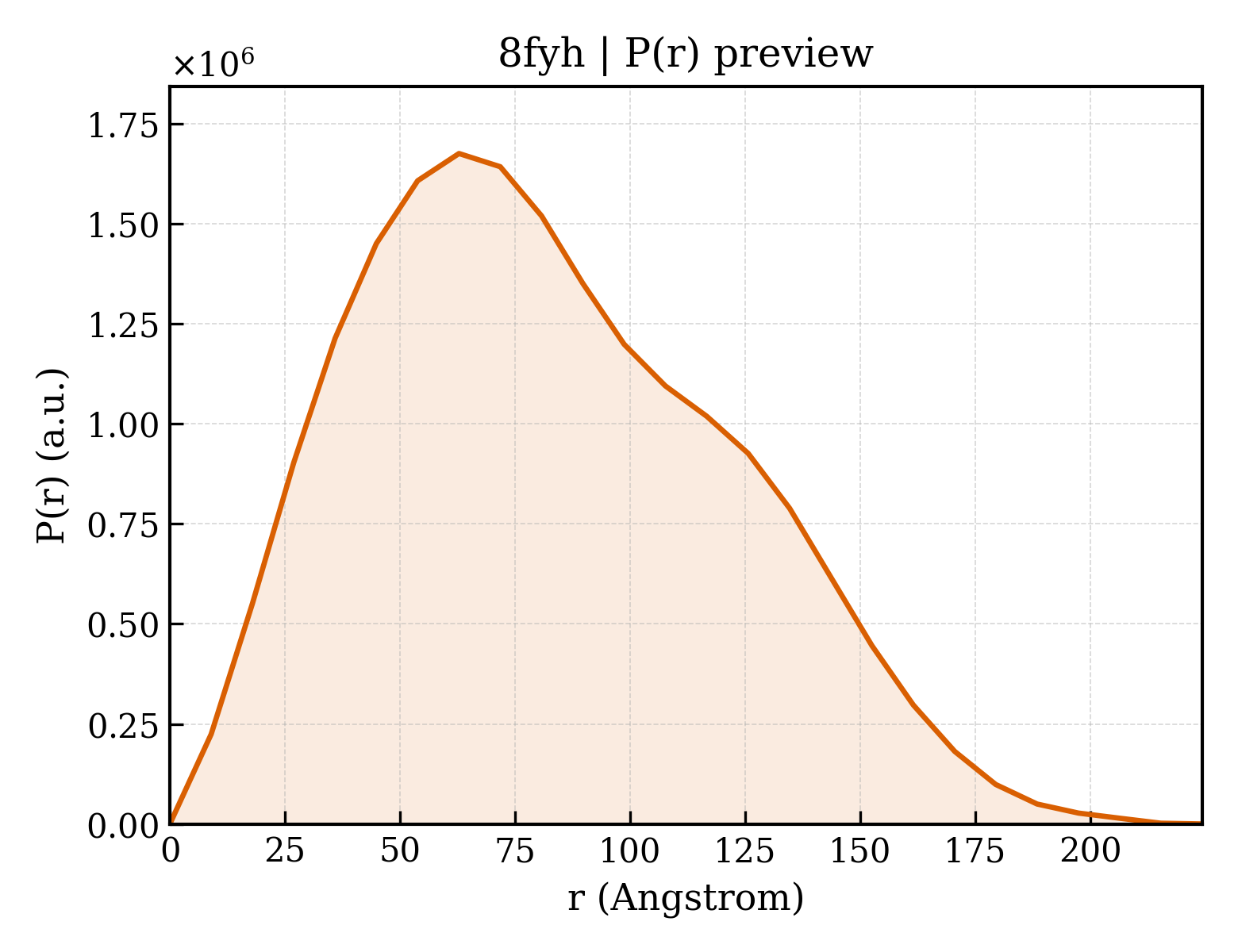

8fyh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	63.85 Å
Rg (electron density)	64.42 Å
Total Rg	63.84 Å
Atom count	25833
Residues	3710
Excluded volume	441070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8fyh__assembly_1__model_1`	tridecameric （13）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Polycomb protein SUZ12
Molecular weight formula_weight	83181.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,H
Atom count atom_count	25833

MAPQKHGGGGGGGSGPSAGSGGGGFGGSAAVAAATASGGKSGGGSCGGGGSYSASSSSSAAAAAGAAVLPVKKPKMEHVQADHELFLQAFEKPTQIYRFLRTRNLIAPIFLHRTLTYMSHRNSRTNIKRKTFKVDDMLSKVEKMKGEQESHSLSAHLQLTFTGFFHKNDKPSPNSENEQNSVTLEVLLVKVCHKKRKDVSCPIRQVPTGKKQVPLNPDLNQTKPGNFPSLAVSSNEFEPSNSHMVKSYSLLFRVTRPGRREFNGMINGETNENIDVNEELPARRKRNREDGEKTFVAQMTVFDKNRRLQLLDGEYEVAMQEMEECPISKKRATWETILDGKRLPPFETFSQGPTLQFTLRWTGETNDKSTAPIAKPLATRNSESLHQENKPGSVKPTQTIAVKESLTTDLQTRKEKDTPNENRQKLRIFYQFLYNNNTRQQTEARDDLHCPWCTLNCRKLYSLLKHLKLCHSRFIFNYVYHPKGARIDVSINECYDGSYAGNPQDIHRQPGFAFSRNGPVKRTPITHILVCRPKRTKASMSEFLESEDGEVEQQRTYSSGHNRLYFHSDTCLPLRPQEMEVDSEDEKDPEWLREKTITQIEEFSDVNEGEKEVMKLWNLHVMKHGFIADNQMNHACMLFVENYGQKIIKKNLCRNFMLHLVSMHDFNLISIMSIDKAVTKLREMQQKLEKGESASPANEEITEEQNGTANGFSEINSKEKALETDSVSGVSKQSKKQKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Polycomb protein EED
Molecular weight formula_weight	50267.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,I

MSEREVSTAPAGTDMPAAKKQKLSSDENSNPDLSGDENDDAVSIESGTNTERPDTPTNTPNAPGRKSWGKGKWKSKKCKYSFKCVNSLKEDHNQPLFGVQFNWHSKEGDPLVFATVGSNRVTLYECHSQGEIRLLQSYVDADADENFYTCAWTYDSNTSHPLLAVAGSRGIIRIINPITMQCIKHYVGHGNAINELKFHPRDPNLLLSVSKDHALRLWNIQTDTLVAIFGGVEGHRDEVLSADYDLLGEKIMSCGMDHSLKLWRINSKRMMNAIKESYDYNPNKTNRPFISQKIHFPDFSTRDIHRNYVDCVRWLGDLILSKSCENAIVCWKPGKMEDDIDKIKPSESNVTILGRFDYSQCDIWYMRFSMDFWQKMLALGNQVGKLYVWDLEVEDPHKAKCTTLTHHKCGAAIRQTSFSRDSSILIAVCDDASIWRWDRLR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Histone-binding protein RBBP4
Molecular weight formula_weight	47709.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,J

MADKEAAFDDAVEERVINEEYKIWKKNTPFLYDLVMTHALEWPSLTAQWLPDVTRPEGKDFSIHRLVLGTHTSDEQNHLVIASVQLPNDDAQFDASHYDSEKGEFGGFGSVSGKIEIEIKINHEGEVNRARYMPQNPCIIATKTPSSDVLVFDYTKHPSKPDPSGECNPDLRLRGHQKEGYGLSWNPNLSGHLLSASDDHTICLWDISAVPKEGKVVDAKTIFTGHTAVVEDVSWHLLHESLFGSVADDQKLMIWDTRSNNTSKPSHSVDAHTAEVNCLSFNPYSEFILATGSADKTVALWDLRNLKLKLHSFESHKDEIFQVQWSPHNETILASSGTDRRLNVWDLSKIGEEQSPEDAEDGPPELLFIHGGHTAKISDFSWNPNEPWVICSVSEDNIMQVWQMAENIYNDEDPEGSVDPEGQGS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 4 Entity 4 polymer

Description description	Histone-lysine N-methyltransferase EZH2
Molecular weight formula_weight	86149.1 kDa
EC 编号 ec_number	2.1.1.356
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G

MGQTGKKSEKGPVCWRKRVKSEYMRLRQLKRFRRADEVKSMFSSNRQKILERTEILNQEWKQRRIQPVHILTSVSSLRGTRECSVTSDLDFPTQVIPLKTLNAVASVPIMYSWSPLQQNFMVEDETVLHNIPYMGDEVLDQDGTFIEELIKNYDGKVHGDRECGFINDEIFVELVNALGQYNDDDDDDDGDDPEEREEKQKDLEDHRDDKESRPPRKFPSDKIFEAISSMFPDKGTAEELKEKYKELTEQQLPGALPPECTPNIDGPNAKSVQREQSLHSFHTLFCRRCFKYDCFLHRKCNYSFHATPNTYKRKNTETALDNKPCGPQCYQHLEGAKEFAAALTAERIKTPPKRPGGRRRGRLPNNSSRPSTPTINVLESKDTDSDREAGTETGGENNDKEEEEKKDETSSSSEANSRCQTPIKMKPNIEPPENVEWSGAEASMFRVLIGTYYDNFCAIARLIGTKTCRQVYEFRVKESSIIAPAPAEDVDTPPRKKKRKHRLWAAHCRKIQLKKDGSSNHVYNYQPCDHPRQPCDSSCPCVIAQNFCEKFCQCSSECQNRFPGCRCKAQCNTKQCPCYLAVRECDPDLCLTCGAADHWDSKNVSCKNCSIQRGSKKHLLLAPSDVAGWGIFIKDPVQKNEFISEYCGEIISQDEADRRGKVYDKYMCSFLFNLNNDFVVDATRKGNKIRFANHSVNPNCYAKVMMVNGDHRIGIFAKRAIQTGEELFFDYRYSQADALKYVGIEREMEIP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 5 Entity 5 polymer

Description description	protein Jumonji isoform X3
Molecular weight formula_weight	138406.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,K

MSKERPKRNIIQKKYDDSDGIPWSEERVVRKVLYLSLKEFKNAQKRQHGEGIAGSLKSVNGLLGNDQSKALGPASEQSENEKDDASQVSSTSNDVSSSDFEEGPSRKRPRLQAQRKFAQSQPNSPSTTPVKTVEPLLPPPATQISDLSKRKPKTEDFLTFLCLRGSPALPSSMVYFGSSQDEEDVEEEDDETEDVKTANNNASSSCQSTPRKGKTHKHVHNGHVFNGSNRSTREKEPAQKHKSKETTPAKEKHIDHRADSRREPASVAQPTATPSAGSLAKGLPANHQPPPPHRSAQDLRKQVTLHVSKVNGVTRMSSLGAGTTSAKKIREVRPSPSKTVKYTATVTKGTVTYTKAKRELVKETKPTHHKPSSAVNHTISGKTESSNAKTRKQVLSLGGASTSTGPAASGLKASSRLNPKSCTKEVGGRQLREGLRNSKRRLEEAQQVDKPQSPPKKMKGAAGIAEAPGKKASAASAEKSLLNGHVKKEVPERSLERNRPKRATAGKNMPGKQAHGKAEGTPCENRSTSQPESSHKPHDPQGKPEKGIGKSGWTAMDEIPVLRPSAKEFHDPLIYIESVRAQVEKYGMCRVIPPPDWRPECKLNDEMRFVTQIQHIHKLGRRWGPNVQRLACIKKHLRSQGITMDELPLIGGCELDLACFFRLINEMGGMQQVTDLKKWNKLADMLRIPKTAQDRLAKLQEAYCQYLLSYDSLSPEEHRRLEKEVLMEKEILEKRKGPLEGHTENDHHKFHSLPRFEPKNGLIHGVTPRNGFRSKLKEVGQAPLKTGRRRLFAQEKEVVKEEEEDKGVLNDFHKCIYKGRSVSLTTFYRTARNIMNMCFSKEPAPAEIEQEYWRLVEEKDCHVAVHCGKVDTNTHGSGFPVGKSEPFSRHGWNLTVLPNNTGSILRHLGAVPGVTIPWLNIGMVFSTSCWSRDQNHLPYIDYLHTGADCIWYCIPAEEENKLEDVVHTLLQANGTPGLQMLESNVMISPEVLCKEGIKVHRTVQQSGQFVVCFPGSFVSKVCCGYSVSETVHFATTQWTSMGFETAKEMKRRHIAKPFSMEKLLYQIAQAEAKKENGPTLSTISALLDELRDTELRQRRQLFEAGLHSSARYGSHDGNSTVADGKKKPRKWLQLETSERRCQICQHLCYLSMVVQENENVVFCLECALRHVEKQKSCRGLKLMYRYDEEQIISLVNQICGKVSGKHGGIENCLNKPTPKRGPRKRATVDVPPSRLPSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 6 Entity 6 polymer

Description description	Zinc finger protein AEBP2
Molecular weight formula_weight	54535.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,L

MAAAITDMADLEELSRLSPLPPGSPGSAARGRAEPPEEEEEEEEEEEEAEAEAVAALLLNGGSGGGGGGGGGGVGGGEAETMSEPSPESASQAGEDEDEEEDDEEEEDESSSSGGGEEESSAESLVGSSGGSSSDETRSLSPGAASSSSGDGDGKEGLEEPKGPRGSQGGGGGGSSSSSVVSSGGDEGYGTGGGGSSATSGGRRGSLEMSSDGEPLSRMDSEDSISSTIMDVDSTISSGRSTPAMMNGQGSTTSSSKNIAYNCCWDQCQACFNSSPDLADHIRSIHVDGQRGGVFVCLWKGCKVYNTPSTSQSWLQRHMLTHSGDKPFKCVVGGCNASFASQGGLARHVPTHFSQQNSSKVSSQPKAKEESPSKAGMNKRRKLKNKRRRSLPRPHDFFDAQTLDAIRHRAICFNLSAHIESLGKGHSVVFHSTVIAKRKEDSGKIKLLLHWMPEDILPDVWVNESERHQLKTKVVHLSKLPKDTALLLDPNIYRTMPQKRLKRTLIRKVFNLYLSKQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 7 Entity 7 polymer

Description description	G4 RNA
Molecular weight formula_weight	7955.8 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	M

GGGUAAGGGUAAGGGUAAGGGUAA

Entity 8 Entity 8 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	14

▶

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	217196
