8g04

Structure of signaling thrombopoietin-MPL receptor complex

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Thrombopoietin

Homo sapiens

UniProt P40225

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 3 Thrombopoietin receptor × 2 (P40238) 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 alpha-D-mannopyranose × 6 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name TPO_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A; PDBConstruct 9–171; UniProt 22–184

Thrombopoietin receptor

Homo sapiens

UniProt P40238

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 3 Thrombopoietin × 1 (P40225) 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 alpha-D-mannopyranose × 6 Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence
UniProt name TPOR_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B; PDBConstruct 1–610; UniProt 26–635 Author chain C; PDBConstruct 1–610; UniProt 26–635

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8g04
Deposition date deposition_date2023-01-31
Structure title titleStructure of signaling thrombopoietin-MPL receptor complex
Keywords keywordsTPO, TpoR, cytokine, receptor, signaling, haematology; CYTOKINE
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8g04__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

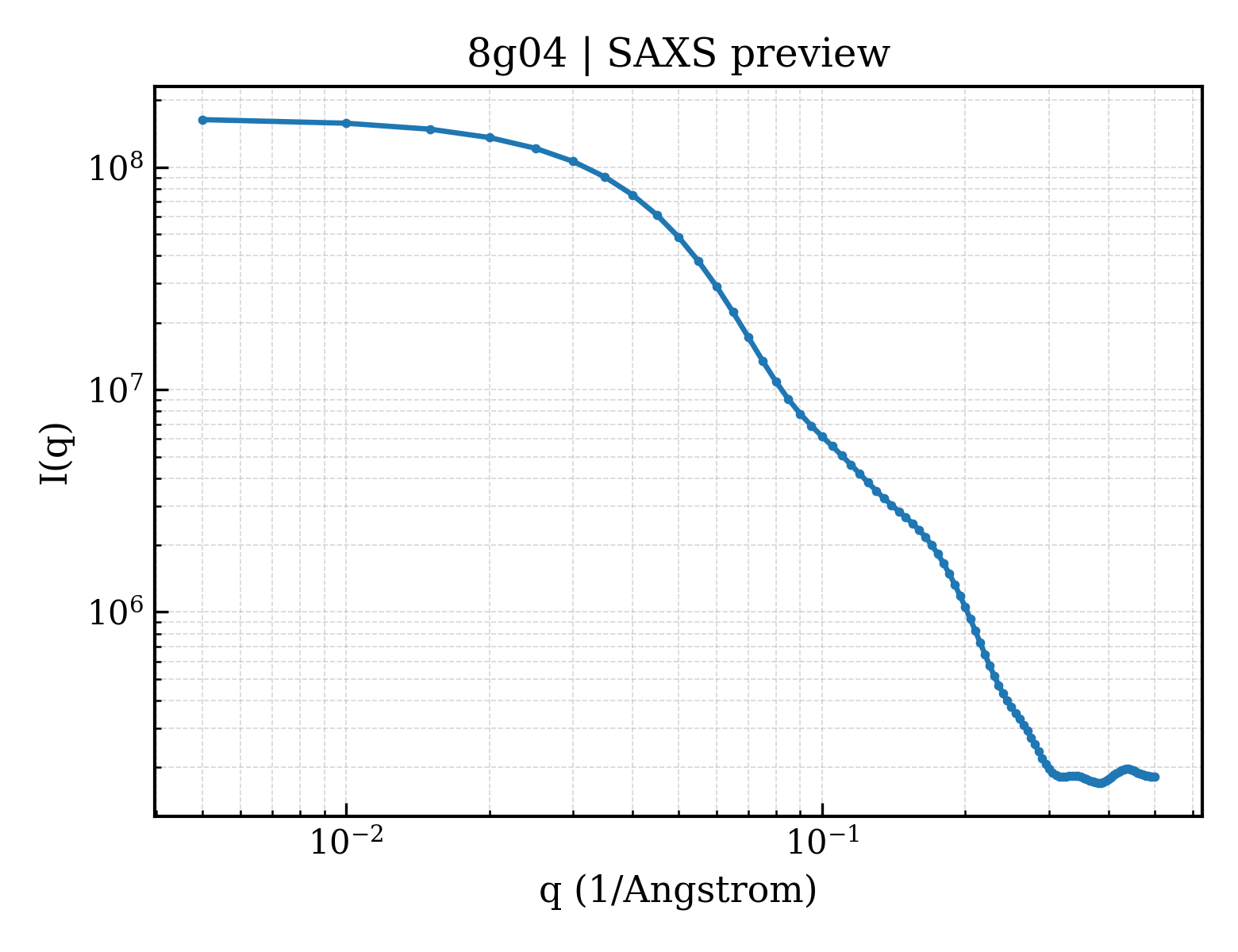

8g04__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8g04__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg(Guinier)38.50 Å
Rg (electron density)38.09 Å
Total Rg38.31 Å
Atom count7314
Residues942
Excluded volume129450 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8g04__assembly_1__model_1 trimeric (3) Success 4.1.3-1-20251215 (887e7ef) View Download
▶
