SAXSdb — 8glu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transposon Tn7 transposition protein TnsC

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Transposon Tn7 transposition protein TnsD × 1 （P13991） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 3 ZINC ION × 1 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNSC_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–503； UniProt 1–503 Author chain F； PDBConstruct 1–503； UniProt 1–503 Author chain G； PDBConstruct 1–503； UniProt 1–503

Transposon Tn7 transposition protein TnsD

Escherichia coli

UniProt P13991

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Transposon Tn7 transposition protein TnsC × 3 （P05846） ADENOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 3 ZINC ION × 1 ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNSD_ECOLX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–318； UniProt 1–318

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8glu
Deposition date deposition_date	2023-03-23
Last revision last_revision	2024-07-31
Structure title title	CryoEM structure of TnsC(1-503) bound to TnsD(1-318) from E.coli Tn7
Keywords keywords	Transposon, AAA+ ATPase, Oligomer, Complex, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8glu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8glu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

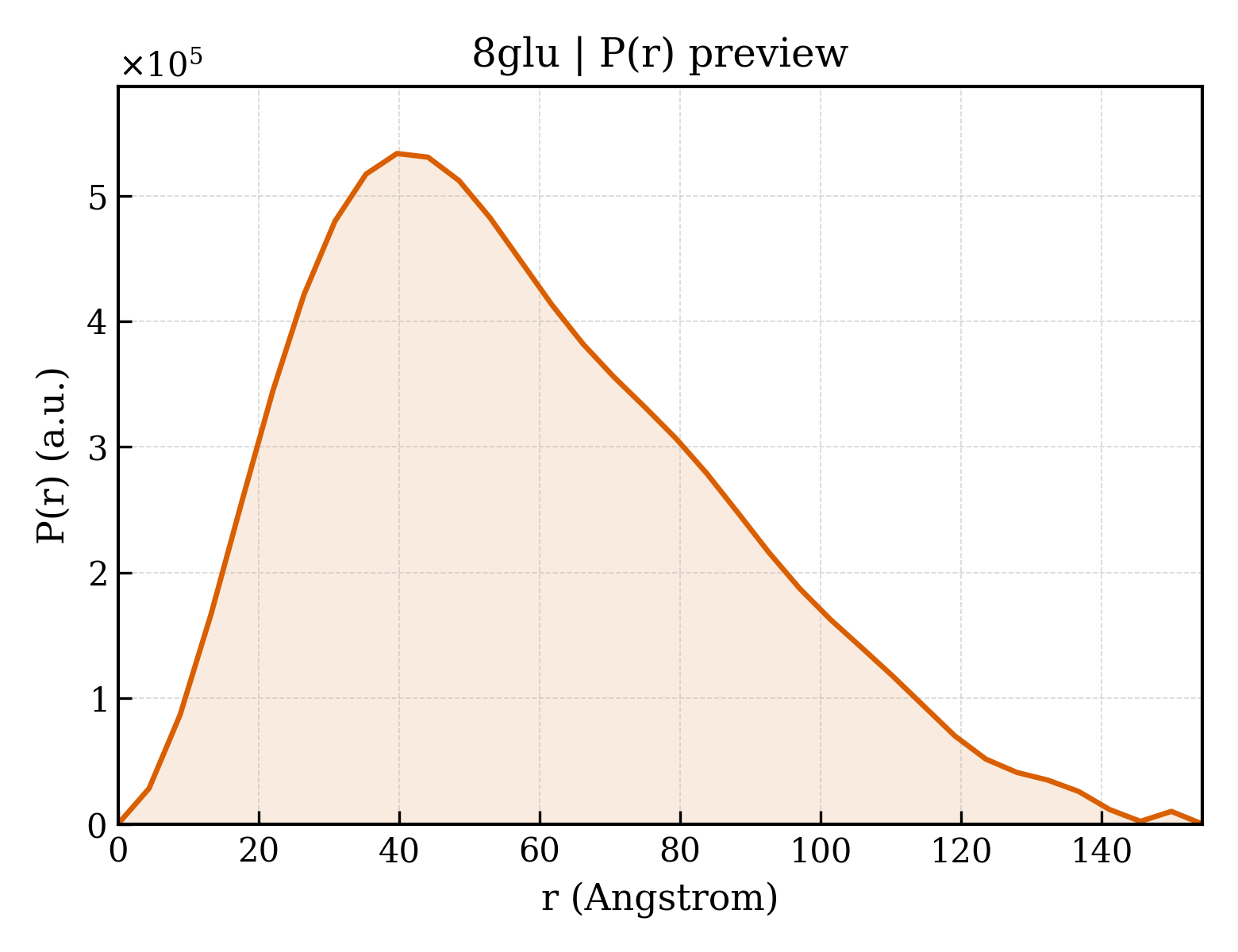

8glu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.78 Å
Rg (electron density)	45.33 Å
Total Rg	45.31 Å
Atom count	12338
Residues	1533
Excluded volume	219570 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8glu__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Transposon Tn7 transposition protein TnsC
Molecular weight formula_weight	59318.9 kDa
Mutation mutation	S2G
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,F,E
Atom count atom_count	12338

MGATRIQAVYRDTGVEAYRDNPFIEALPPLQESVNSAASLKSSLQLTSSDLQKSRVIRAHTICRIPDDYFQPLGTHLLLSERISVMIRGGYVGRNPKTGDLQKHLQNGYERVQTGELETFRFEEARSTAQSLLLIGCSGSGKTTSLHRILATYPQVIYHRELNVEQVVYLKIDCSHNGSLKEICLNFFRALDRALGSNYERRYGLKRHGIETMLALMSQIANAHALGLLVIDEIQHLSRSRSGGSQEMLNFFVTMVNIIGVPVMLIGTPKAREIFEADLRSARRGAGFGAIFWDPIQQTQRGKPNQEWIAFTDNLWQLQLLQRKDALLSDEVRDVWYELSQGVMDIVVKLFVLAQLRALALGNERITAGLLRQVYQDELKPVHPMLEALRSGIPERIARYSDLVVPEIDKRLIQLQLDIAAIQEQTPEEKALQELDTEDQRHLYLMLKEDYDSSLLIPTIKKAFSQNPTMTRQKLLPLVLQWLMEGETVVSELEKPSKSKKVSPNSSSVDKLAAALEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Transposon Tn7 transposition protein TnsD
Molecular weight formula_weight	36636.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X

MRNFPVPYSNELIYSTIARAGVYQGIVSPKQLLDEVYGNRKVVATLGLPSHLGVIARHLHQTGRYAVQQLIYEHTLFPLYAPFVGKERRDEAIRLMEYQAQGAVHLMLGVAASRVKSDNRFRYCPDCVALQLNRYGEAFWQRDWYLPALPYCPKHGALVFFDRAVDDHRHQFWALGHTELLSDYPKDSLSQLTALAAYIAPLLDAPRAQELSPSLEQWTLFYQRLAQDLGLTKSKHIRHDLVAERVRQTFSDEALEKLDLKLAENKDTCWLKSIFRKHRKAFSYLQHSIVWQALLPKLTVIEALQQASALTEHSITTR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.57 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	330929

CryoEM structure of TnsC(1-503) bound to TnsD(1-318) from E.coli Tn7
